Description
DN | Inch | Inside | Outside | Working- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | bar | psi | bar | mm |
5 | 3/16 | -3 | 4.8 | 11.6 | 34 | 500 | 136 | 50 |
6.3 | 1/4 | -4 | 6.4 | 13.0 | 28 | 410 | 112 | 65 |
8 | 5/16 | -5 | 7.9 | 14.5 | 28 | 410 | 112 | 70 |
10 | 3/8 | -6 | 9.5 | 16.7 | 28 | 410 | 112 | 80 |
12.5 | 1/2 | -8 | 12.7 | 20.0 | 28 | 410 | 112 | 100 |
16 | 5/8 | -10 | 15.9 | 23.4 | 24 | 350 | 96 | 125 |
19 | 3/4 | -12 | 19.0 | 26.8 | 21 | 310 | 84 | 150 |
25 | 1 | -16 | 25.4 | 34.5 | 18 | 265 | 72 | 170 |
31.5 | 1-1/4 | -20 | 31.8 | 42.5 | 16 | 235 | 64 | 200 |
38 | 1-1/2 | -24 | 38.1 | 48.5 | 15 | 220 | 60 | 230 |
50 | 2 | -32 | 50.8 | 62.0 | 14 | 210 | 56 | 250 |
Features

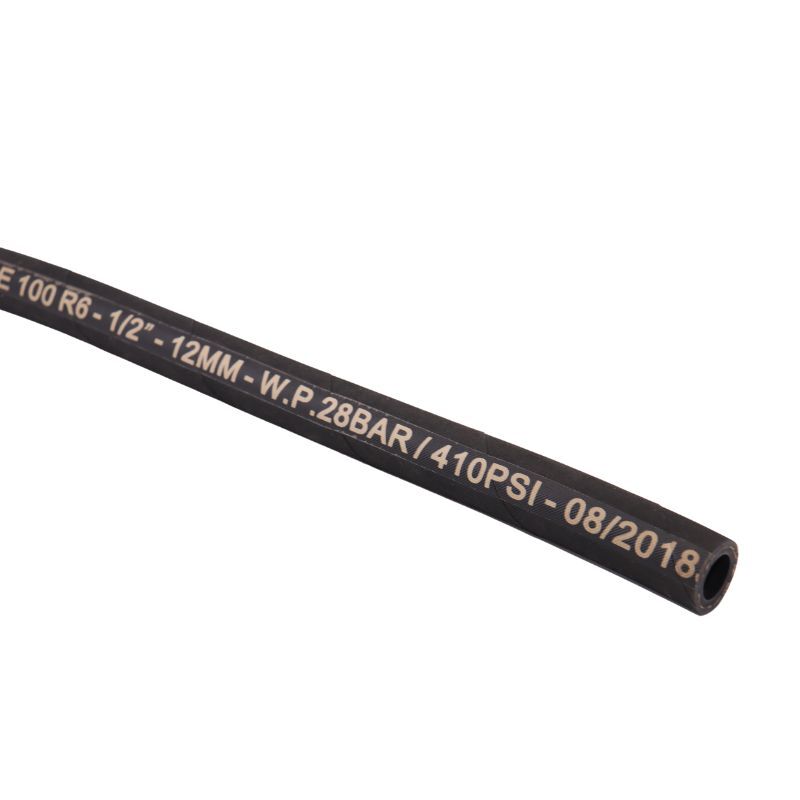

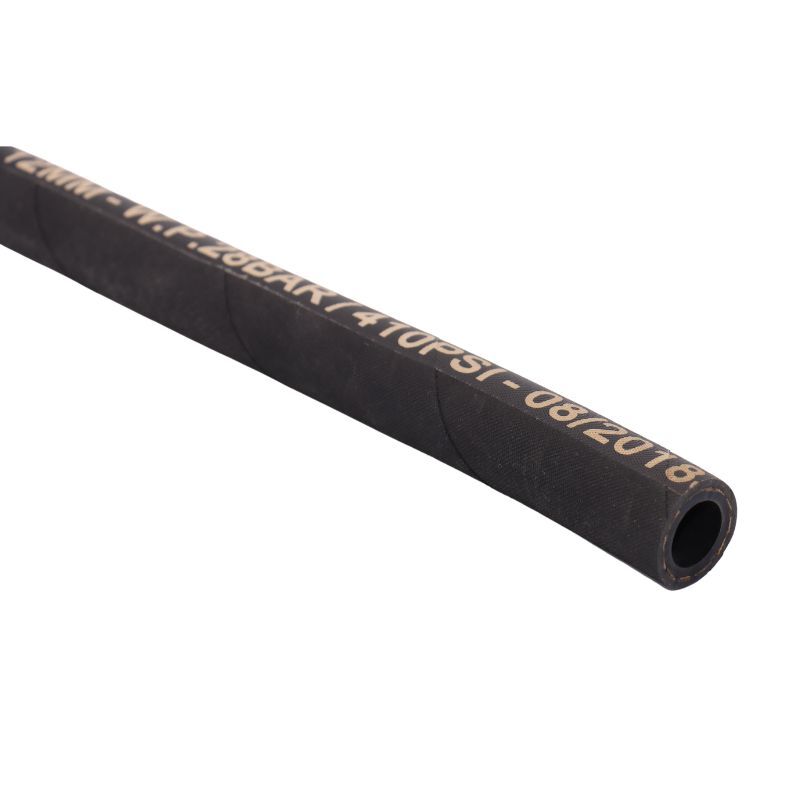

Topa’s SAE 100R6 hydraulic hose meets the international standard SAE J517 – 100 R6, having excellent performance. It also has the advantages of being flexible, used in intricate routing lines and varied climate conditions. In addition, it also can be used for transportation, construction, and automotive. It is suitable for transporting petroleum-based fluids, water-based fluids, and anti-freeze solutions as well. It can be used with the xxxx8-xx-xx Series fitting manufactured by Topa.
SAE 100R6 Hydraulic Hose Video
This video shows information about SAE 100R6 hydraulic hose.

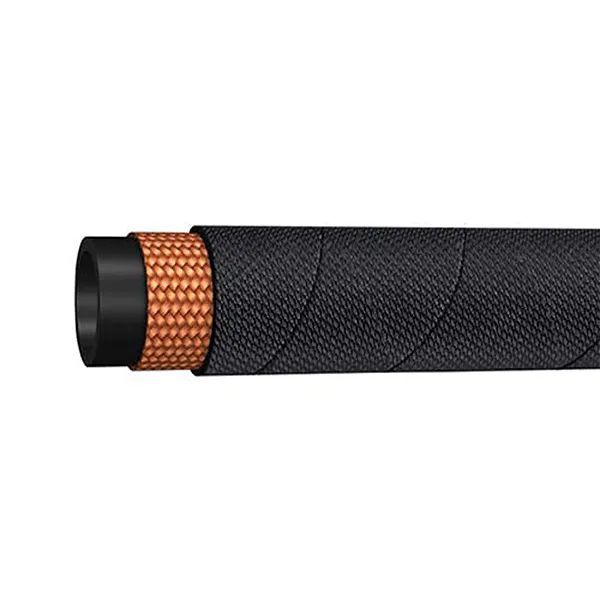

SAE 100R6 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of one high tensile steel wire braid, and an outer cover of impregnated textile braid. Topa’s SAE 100R6 hydraulic hoses with excellent performance to keep your work running smoothly.
If you have any questions about SAE 100R6 hydraulic hoses, please contact us.
