Description
DN | Inch | Inside | Outside | Working- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | bar | psi | bar | mm |
5 | 3/16 | -3 | 4.8 | 13.1 | 345 | 5000 | 1379 | 90 |
6.3 | 1/4 | -4 | 6.4 | 15.9 | 345 | 5000 | 1379 | 100 |
8 | 5/16 | -5 | 7.9 | 17.0 | 300 | 4350 | 1200 | 115 |
10 | 3/8 | -6 | 9.5 | 19.0 | 276 | 4000 | 1103 | 125 |
12.5 | 1/2 | -8 | 12.7 | 22.7 | 245 | 3490 | 965 | 180 |
16 | 5/8 | -10 | 15.9 | 25.0 | 192 | 2780 | 768 | 205 |
19 | 3/4 | -12 | 18.9 | 29.0 | 157 | 2270 | 630 | 240 |
25 | 1 | -16 | 25.4 | 34 | 140 | 2030 | 560 | 300 |
Features

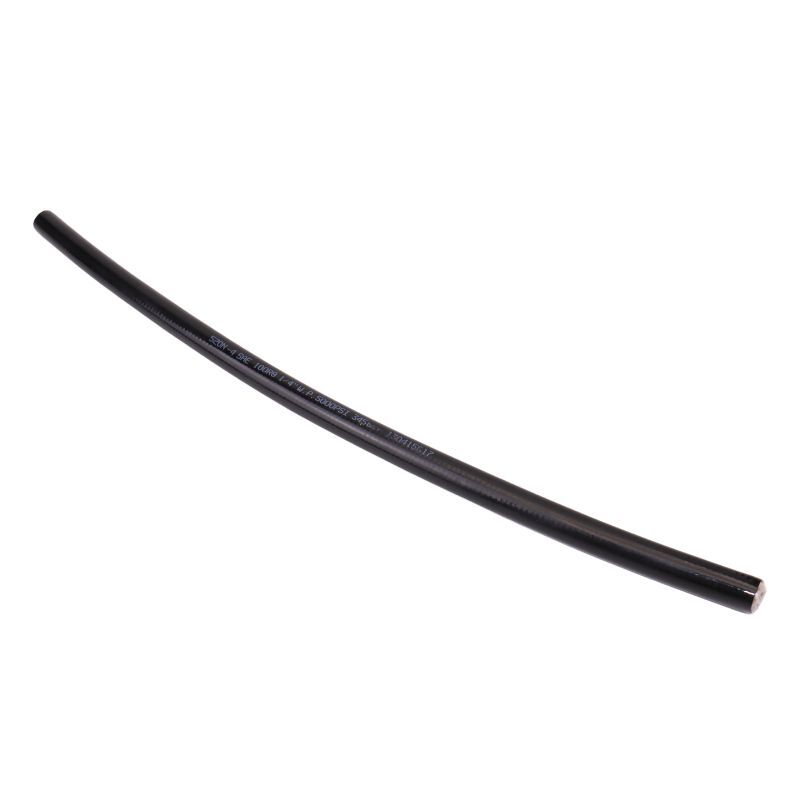

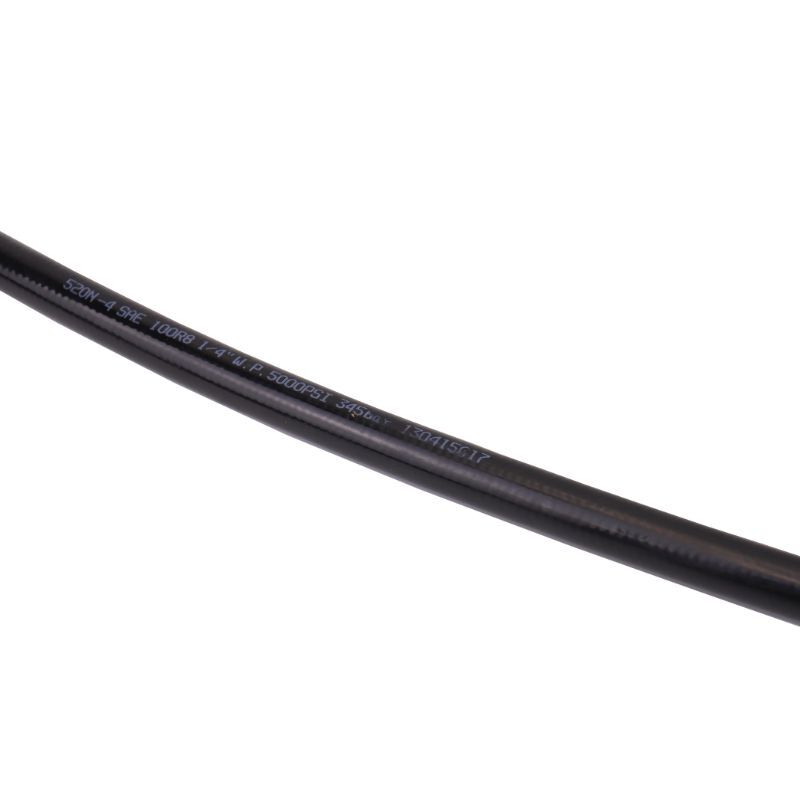

Topa’s SAE 100R8 hydraulic hose meets the international standards SAE 100 R8 and DIN EN ISO 3949, having excellent performance. It also has the advantages of light weight, having a low change in length, and fast response. In addition, it also can be used for mobile equipment, machine tools, and construction. It is suitable for transporting petroleum-based fluids,synthetic-based fluids, and water-based fluids as well.
SAE 100R8 Hydraulic Hose Video
This video shows information about SAE 100R8 hydraulic hose.

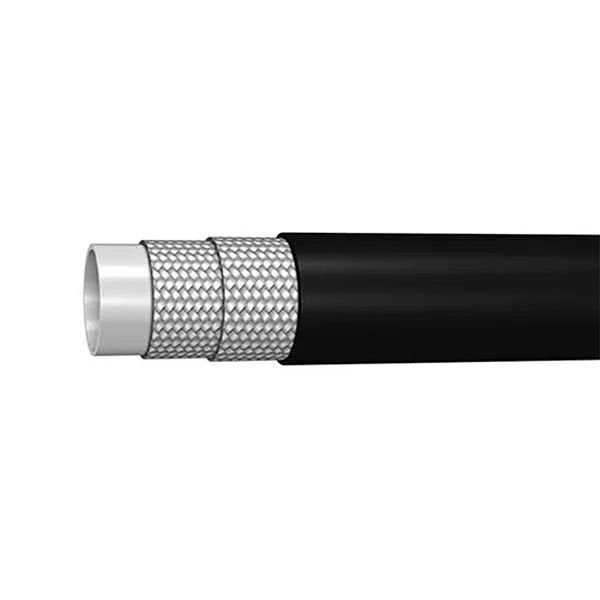

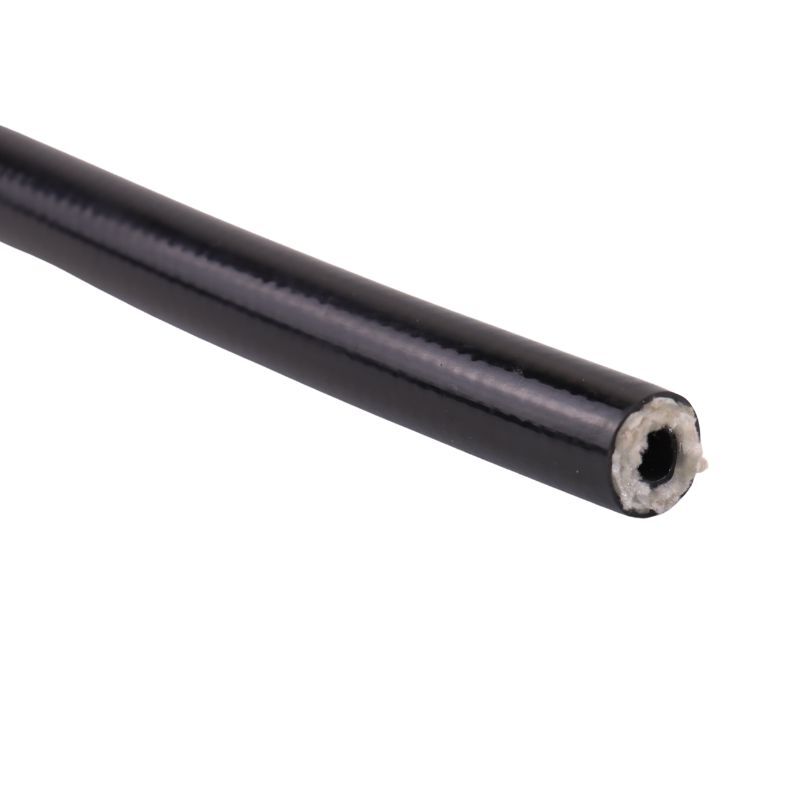

SAE 100R8 hydraulic hose consists of three parts: an inner tube of thermoplastic elastomer, reinforcement of two high tensile textile wire braids, and an outer cover of polyurethane. Topa can produce SAE 100R8 hydraulic hoses in a wide range of models and sizes to meet all your needs.
If you have any questions about SAE 100R8 hydraulic hoses, please contact us.
