Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm |
10 | 3/8 | -6 | 9.5 | 17.5 | 20.3 | 280 | 4060 | 552 | 1104 | 130 |
12.5 | 1/2 | -8 | 12.7 | 20.7 | 23.8 | 280 | 4060 | 552 | 1104 | 180 |
16 | 5/8 | -10 | 15.9 | 24.6 | 27.4 | 280 | 4000 | 552 | 1104 | 200 |
19 | 3/4 | -12 | 19.0 | 27.7 | 30.7 | 280 | 4060 | 552 | 1104 | 240 |
25 | 1 | -16 | 25.4 | 34.9 | 38.0 | 280 | 4060 | 552 | 1104 | 300 |
31.5 | 1-1/4 | -20 | 31.8 | 43.9 | 47.0 | 210 | 3045 | 420 | 840 | 420 |
38 | 1-1/2 | -24 | 38.1 | 50.4 | 53.5 | 175 | 2540 | 350 | 700 | 500 |
51 | 2 | -32 | 50.8 | 63.7 | 66.7 | 175 | 2540 | 350 | 700 | 630 |
Features

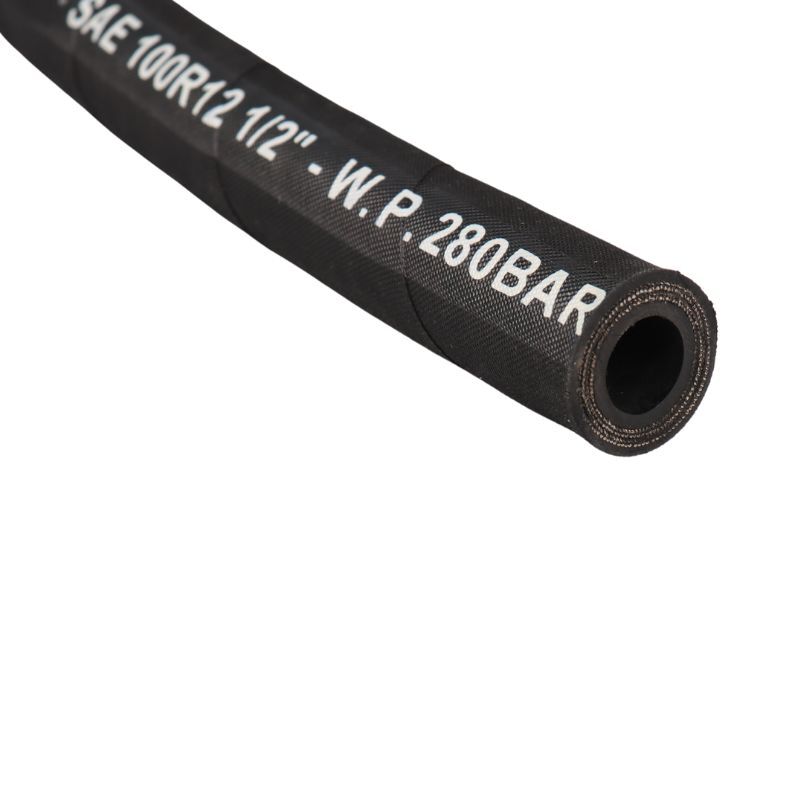

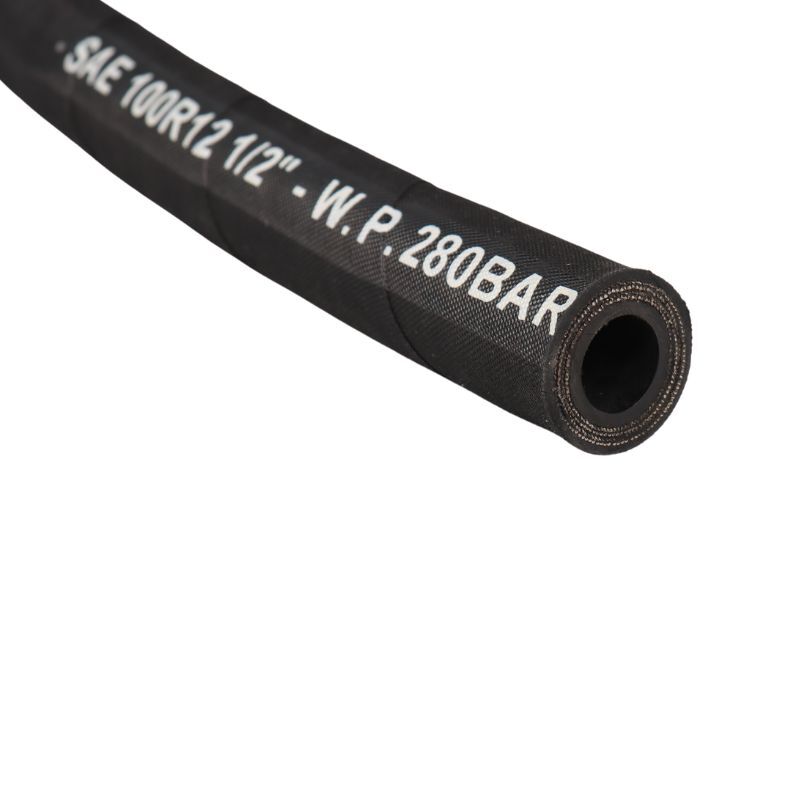

Topa’s SAE 100R12 hydraulic hose meets the international standards SAE J517 – 100 R12, EN 856 – R12, and ISO 3862, having excellent performance. It also has the advantages of extended hose life, lower maintenance and replacement costs, and extreme flexibility. In addition, it also can be used for in-plant equipment, agricultural equipment, and construction equipment. It is suitable for high-impulse applications, transporting petroleum-based fluids,oil-water-emulsions, and water-based fluids as well. It can be used with the xxxx2-xx-xx Series fitting manufactured by Topa.
SAE 100R12 Hydraulic Hose Video
This video shows information about SAE 100R12 hydraulic hose.

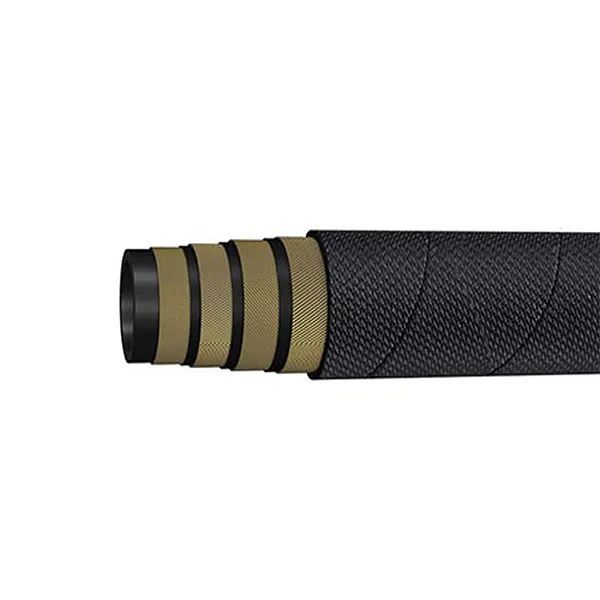

SAE 100R12 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of four high tensile steel wire spiral layers, and an outer cover of abrasion and weather resistant synthetic rubber. Topa can produce SAE 100R12 hydraulic hoses in a wide range of models and sizes to meet all your needs.
If you have any questions about SAE 100R12 hydraulic hoses, please contact us.
