Description
DN | Inch | Inside | Outside | Working- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | bar | psi | bar | mm |
3 | 1/8 | -2 | 3.2 | 8.5 | 300 | 4350 | 1200 | 80 |
5 | 3/16 | -3 | 4.8 | 10.8 | 345 | 5000 | 1379 | 90 |
6.3 | 1/4 | -4 | 6.4 | 13.0 | 345 | 5000 | 1379 | 100 |
8 | 5/16 | -5 | 7.9 | 15.1 | 300 | 4350 | 1200 | 115 |
10 | 3/8 | -6 | 9.5 | 17.0 | 276 | 4000 | 1103 | 125 |
12.5 | 1/2 | -8 | 12.7 | 20.7 | 245 | 3490 | 965 | 180 |
16 | 5/8 | -10 | 15.9 | 23.0 | 192 | 2780 | 768 | 205 |
19 | 3/4 | -12 | 18.9 | 26.0 | 157 | 2270 | 630 | 240 |
25 | 1 | -16 | 25.4 | 32 | 140 | 2030 | 560 | 300 |
Features

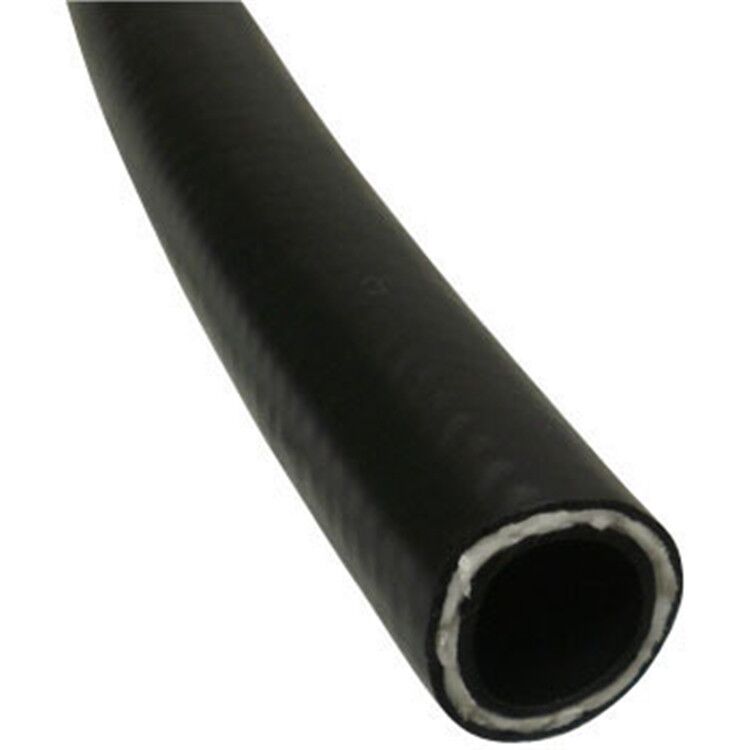

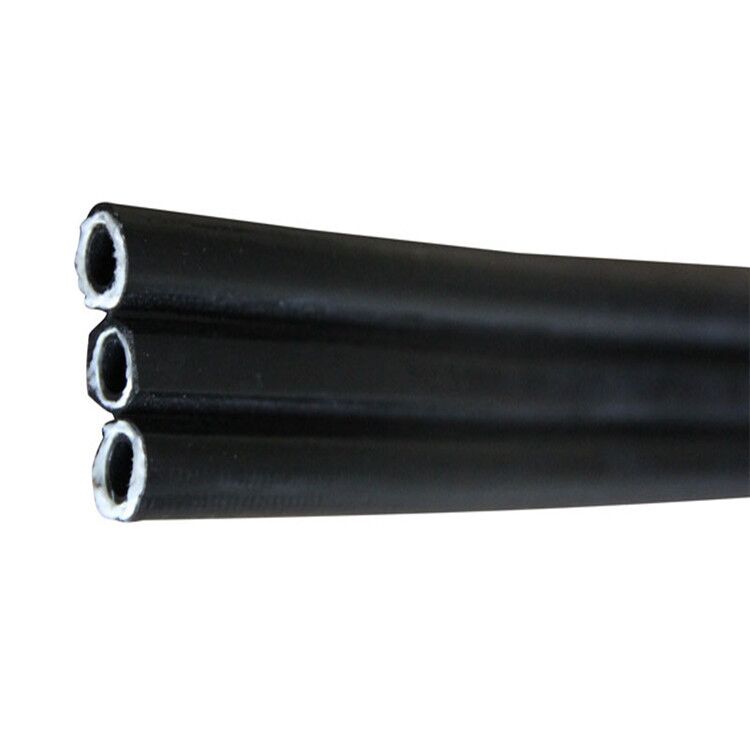

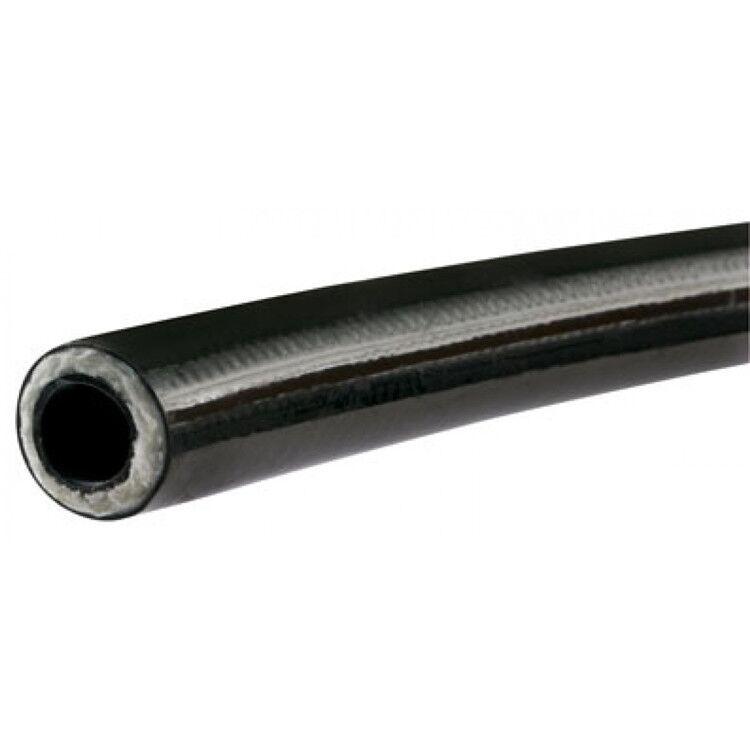

Topa’s SAE 100R7 hydraulic hose meets the international standards SAE 100 R7 and DIN EN ISO 3949, having excellent performance. It also has the advantages of being resistant to weather and hydraulic fluids, widely used, and compact. In addition, it also can be used for agricultural brake systems, lift equipment, and forklift trucks. It is suitable for transporting petroleum-based fluids, and water-based fluids as well. It can be used with the xxxx1-xx-xx Series fitting manufactured by Topa.
SAE 100R7 Hydraulic Hose Video
This video shows information about SAE 100R7 hydraulic hose.

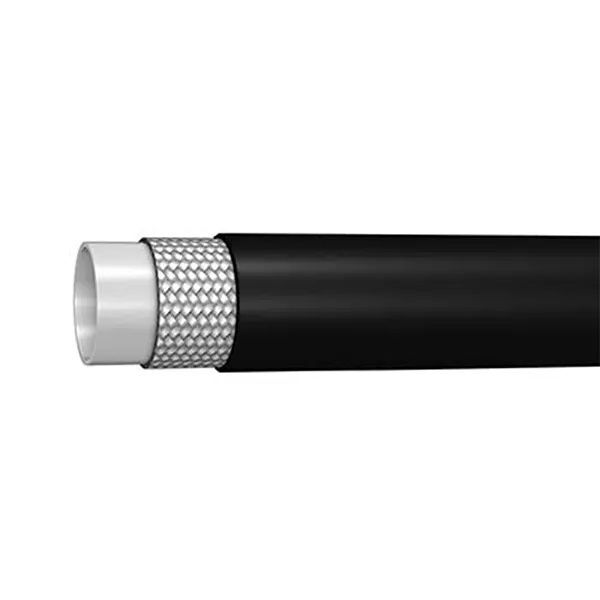

SAE 100R7 hydraulic hose consists of three parts: an inner tube of thermoplastic elastomer, reinforcement of one high tensile steel wire braid, and an outer cover of polyurethane. Topa can produce SAE 100R7 hydraulic hoses in a wide range of models and sizes to meet all your needs.
If you have any questions about SAE 100R7 hydraulic hoses, please contact us.
