Compression Brass Fittings-Forged Reducing Elbow

Compression Brass Fittings

Description:

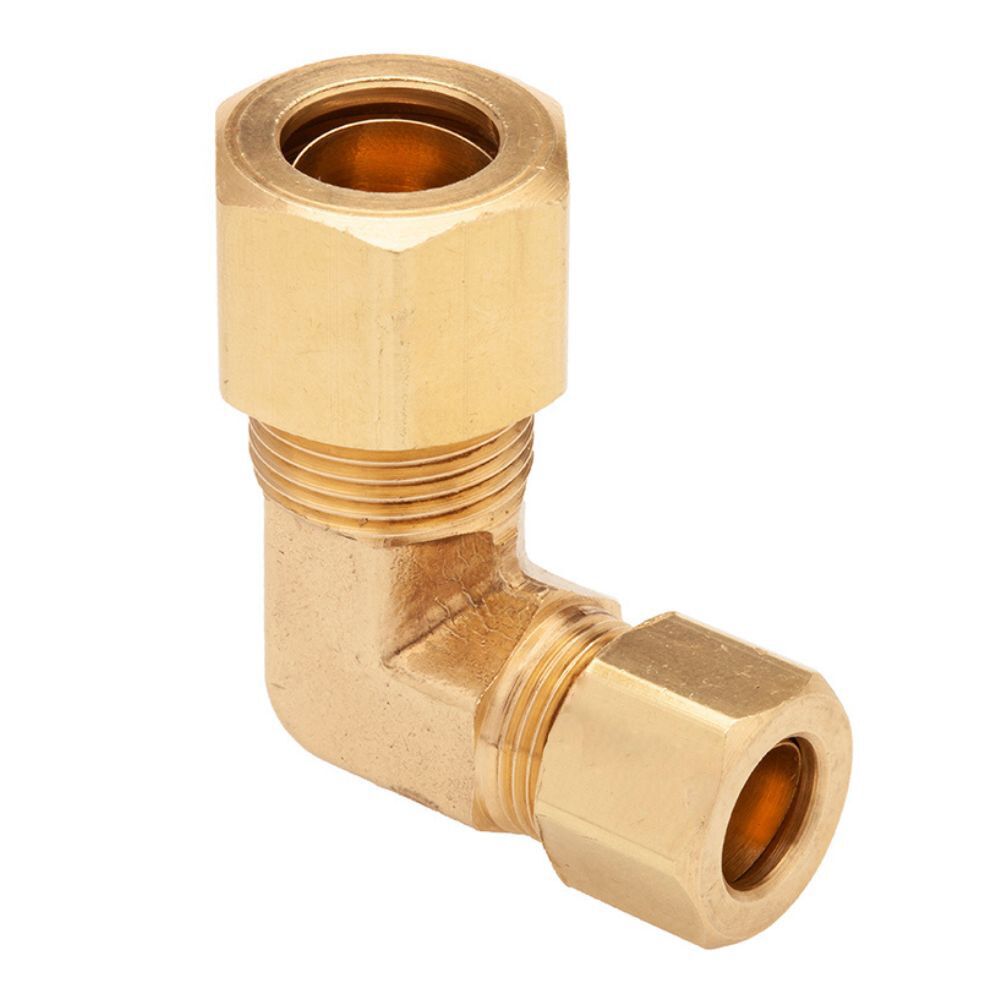

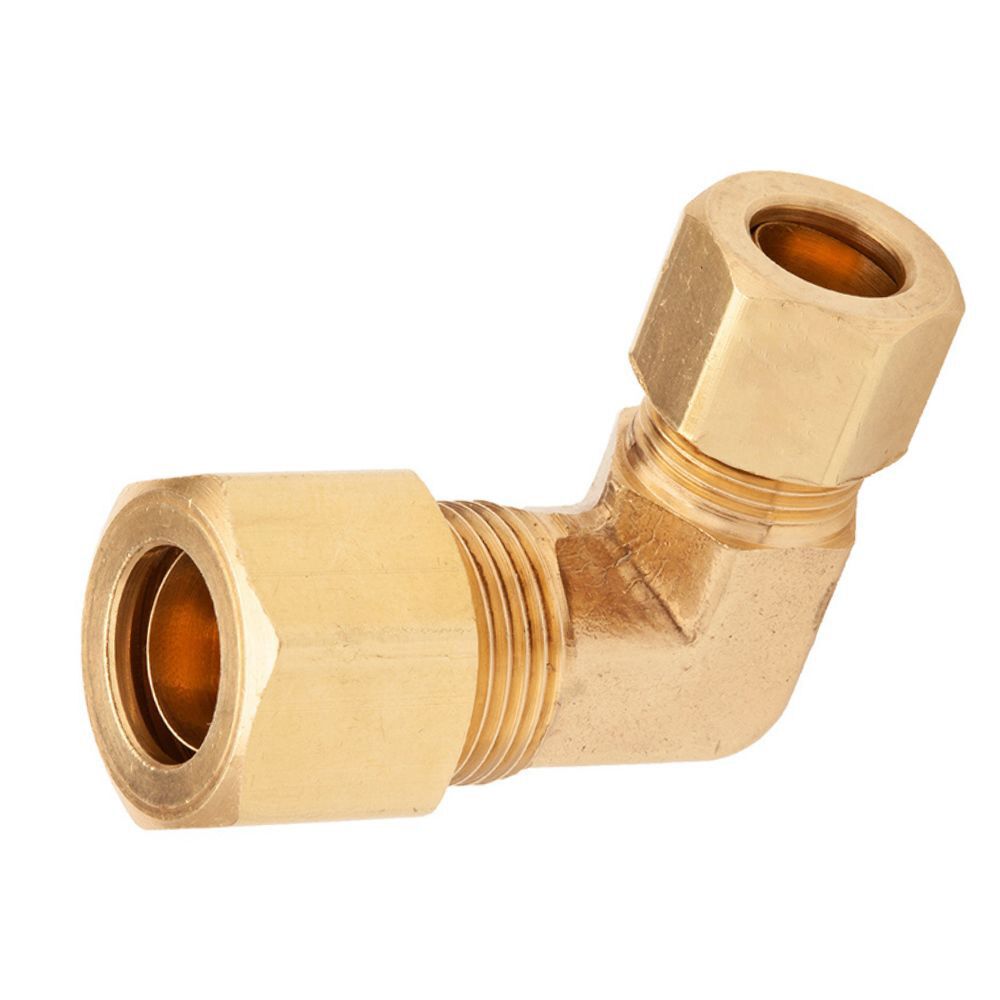

A brass compression reducing elbow is a type of compression plumbing fitting used to connect two pipes at a right angle.

In the case of a reducing elbow, the fitting has a larger opening on one end and a smaller opening on the other, allowing it to connect a larger pipe to a smaller one while changing the direction of the flow. The elbow shape of the fitting allows for a smooth transition in the flow of water or other fluids, which can help to reduce pressure and turbulence in the pipes.

If you have any questions about the brass elbow compression fitting, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

Description

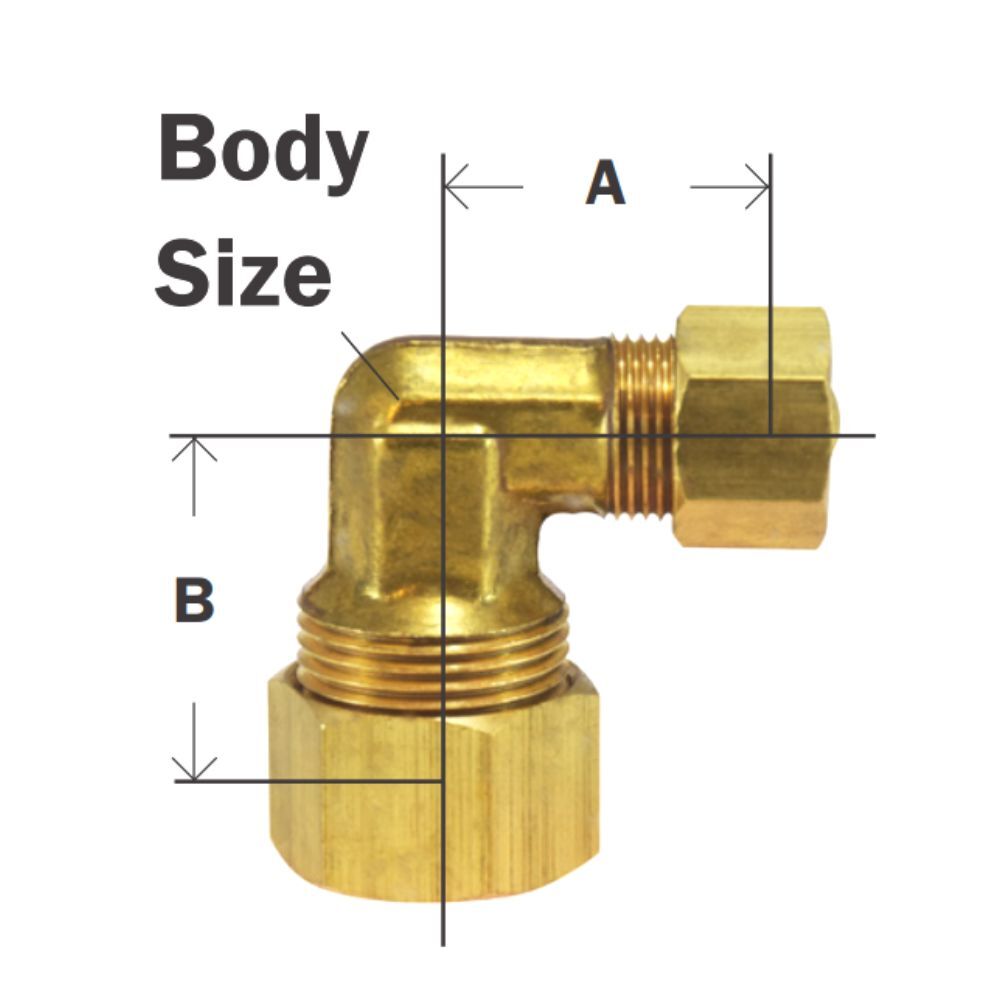

Part #	Size	A	B	Body Size	Approx. Wt. Lbs.
18-135	3/8” x 1/4”	0.69	0.75	0.47	0.12
18-136	1/2” x 3/8”	0.88	0.94	0.59	0.15
18-137	5/8” x 3/8”	0.88	0.97	0.56	0.18
31-137	3/8″ OD x 5/8″ OD	Chrome Plated

Compression Brass Fittings-Forged Reducing Elbow Video

This video shows information about compression brass fitting-forged reducing elbow.

Brass forged reducing elbow are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.

If you have any questions about brass elbow compression fitting, please contact us.
