Description
Part # | Comp. X Female NPTF | A | Hex | Approx. Wt. Lbs. |
18-142 | 1/8” x 1/8” | 0.75 | 0.56 | 0.02 |
18-143 | 3/16” x 1/8” | 0.78 | 0.56 | 0.04 |
18-144 | 3/16” x 1/4” | 0.96 | 0.68 | 0.04 |
18-145L | 1/4” x 1/8” | 0.84 | 0.50 | 0.05 |
18-145 | 1/4” x 1/8” | 0.78 | 0.56 | 0.05 |
18-146L | 1/4” x 1/4” | 0.88 | 0.62 | 0.09 |
18-146 | 1/4” x 1/4” | 1.03 | 0.68 | 0.09 |
18-148 | 1/4” x 1/2” | 1.02 | 0.87 | 0.12 |
18-149 | 5/16” x 1/8” | 0.81 | 0.56 | 0.05 |
18-150 | 5/16” x 1/4” | 0.91 | 0.62 | 0.06 |
18-152 | 3/8” x 1/8” | 0.88 | 0.56 | 0.06 |
18-153L | 3/8” x 1/4” | 0.97 | 0.62 | 0.08 |
18-153 | 3/8” x 1/4” | 1.06 | 0.68 | 0.08 |
18-154L | 3/8” x 3/8” | 1.03 | 0.75 | 0.08 |
18-154 | 3/8” x 3/8” | 1.06 | 0.81 | 0.10 |
18-155 | 3/8” x 1/2” | 1.12 | 1.00 | 0.08 |
18-156 | 3/8” x 3/4” | 1.19 | 1.16 | 0.14 |
18-157 | 1/2” x 1/4” | 1.09 | 0.68 | 0.10 |
18-158L | 1/2” x 3/8” | 0.94 | 0.81 | 0.12 |
18-158 | 1/2” x 3/8” | 1.12 | 0.81 | 0.12 |
18-159L | 1/2” x 1/2” | 1.19 | 1.00 | 0.12 |
18-159 | 1/2” x 1/2” | 1.31 | 1.00 | 0.12 |
18-160 | 1/2” x 3/4” | 1.25 | 1.16 | 0.18 |
18-162L | 5/8” x 1/2” | 1.20 | 0.94 | 0.18 |
18-162 | 5/8” x 1/2” | 1.38 | 1.00 | 0.18 |
18-163 | 5/8” x 3/4” | 1.20 | 1.12 | 0.22 |
18-164 | 3/4” x 1/2” | 1.25 | 1.06 | 0.26 |
18-165 | 3/4” x 3/4” | 1.28 | 1.19 | 0.28 |
18-167 | 7/8” x 1/2” | 1.28 | 1.19 | 0.32 |
18-166 | 7/8” x 3/4” | 1.31 | 1.12 | 0.34 |

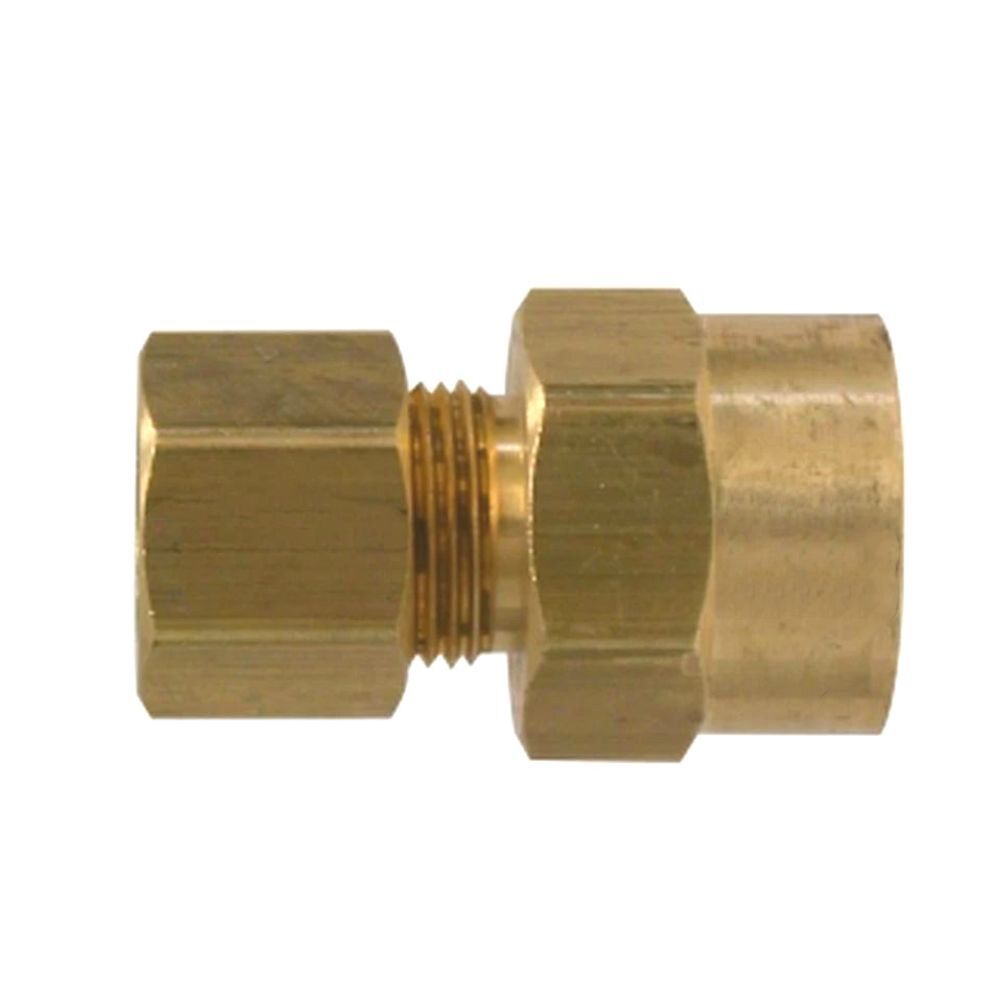

Brass Compression Adapter-Female Adapter Video
This video shows information about brass compression adapter-female adapter.
Brass female adapters are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.
If you have any questions about brass female compression fittings, please contact us.
