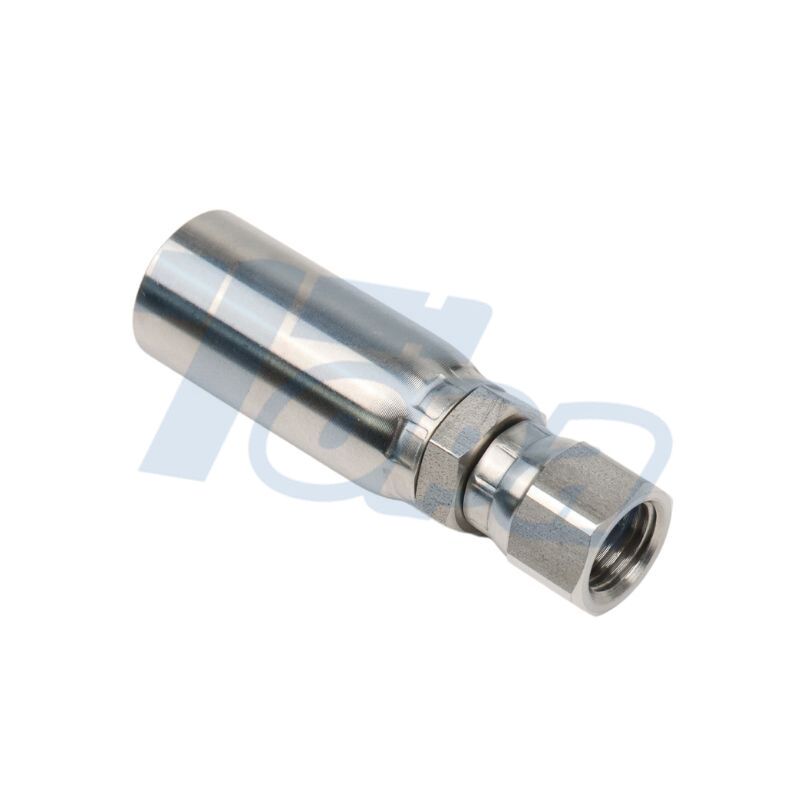

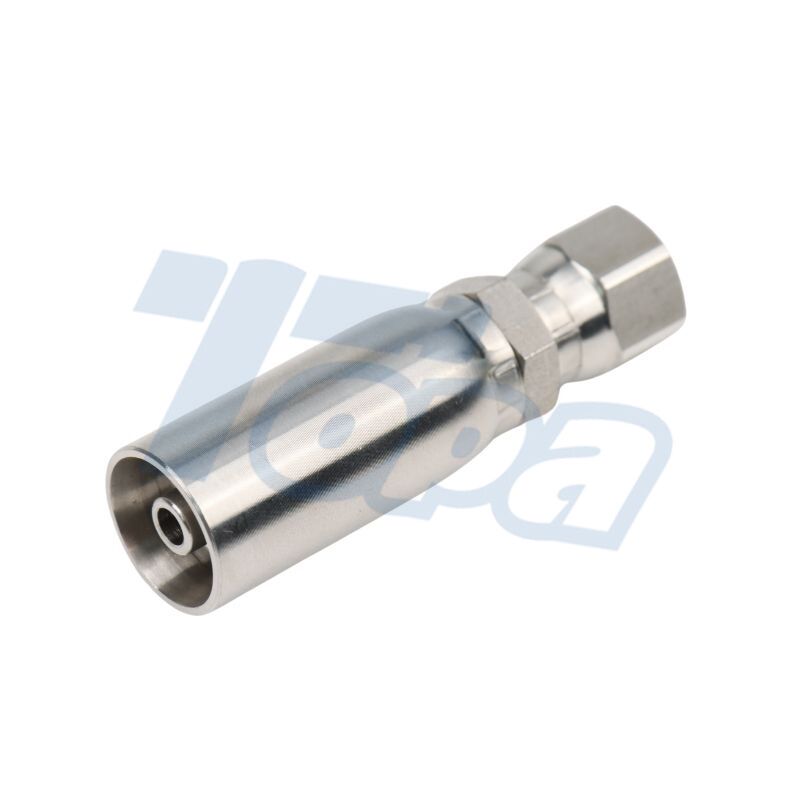

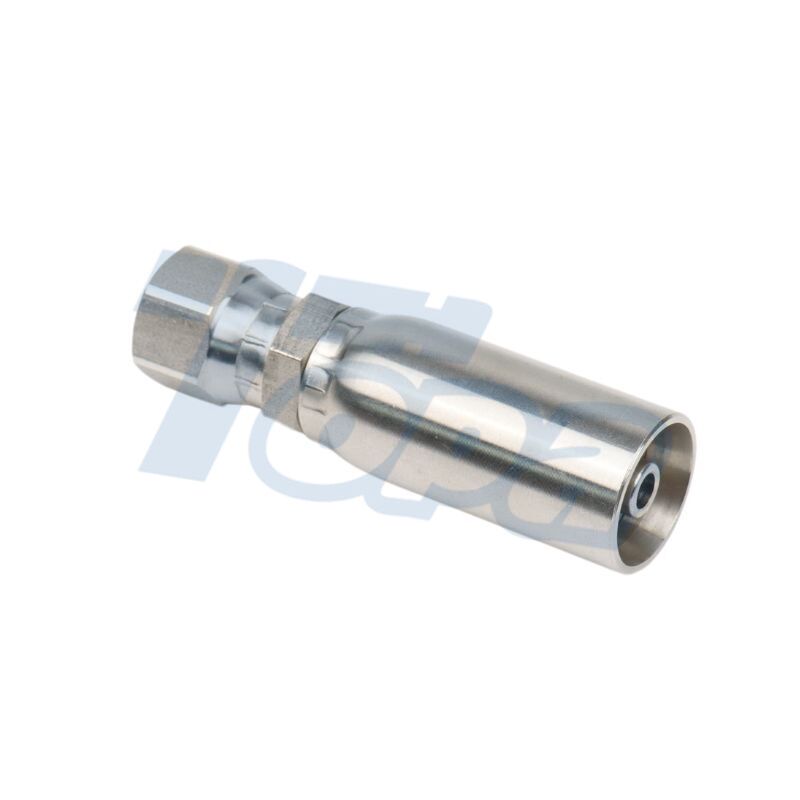

Description
| Part Number | Thread Size | Hose I.D. | A | B | H Hex | J Hex | |||
| inch | mm | inch | mm | inch | mm | inch | inch | ||
| 10656-3-3 | 3/8-24 | 3/16 | 5 | 1.91 | 49 | 1-3/16 | 30 | 1/2 | 1/2 |
| 10656-4-3 | 7/16-20 | 3/16 | 5 | 1.78 | 45 | 1-1/16 | 27 | 9/16 | 9/16 |
| 10656-5-3 | 1/2-20 | 3/16 | 5 | 1.84 | 47 | 1-1/8 | 28 | 9/16 | 5/8 |
| 10656-2-4 | 3/8-24 | 1/4 | 6 | 1.98 | 50 | 1 | 25 | 1/2 | 7/16 |
| 10656-4-4 | 7/16-20 | 1/4 | 6 | 2.05 | 52 | 1-1/16 | 27 | 9/16 | 9/16 |
| 10656-5-4 | 1/2-20 | 1/4 | 6 | 2.12 | 54 | 1-1/8 | 28 | 9/16 | 5/8 |
| 10656-6-4 | 9/16-18 | 1/4 | 6 | 2.14 | 54 | 1-3/16 | 30 | 11/16 | 9/16 |
| 10656-4-5 | 7/16-20 | 5/16 | 8 | 2.10 | 53 | 1-1/16 | 27 | 9/16 | 9/16 |
| 10656-5-5 | 1/2-20 | 5/16 | 8 | 2.21 | 56 | 1-3/16 | 30 | 5/8 | 5/8 |
| 10656-6-5 | 9/16-18 | 5/16 | 8 | 2.23 | 57 | 1-3/16 | 30 | 5/8 | 11/16 |
| 10656-4-6 | 7/16-20 | 3/8 | 10 | 2.09 | 53 | 1-1/8 | 28 | 9/16 | 9/16 |
| 10656-5-6 | 1/2-20 | 3/8 | 10 | 2.23 | 57 | 1-1/4 | 32 | 5/8 | 5/8 |
| 10656-6-6 | 9/16-18 | 3/8 | 10 | 2.22 | 56 | 1-1/4 | 32 | 11/16 | 11/16 |
| 10656-8-6 | 3/4-16 | 3/8 | 10 | 2.37 | 60 | 1-3/8 | 35 | 11/16 | 7/8 |
| 10656-6-8 | 9/16-18 | 1/2 | 13 | 2.42 | 61 | 1-5/16 | 33 | 3/4 | 11/16 |
| 10656-8-8 | 3/4-16 | 1/2 | 13 | 2.54 | 64 | 1-7/16 | 36 | 13/16 | 7/8 |
| 10656-10-8 | 7/8-14 | 1/2 | 13 | 2.64 | 67 | 1-1/2 | 38 | 7/8 | 1 |
| 10656-8-10 | 3/4-16 | 5/8 | 16 | 2.73 | 69 | 1-7/16 | 36 | 15/16 | 7/8 |
| 10656-10-10 | 7/8-14 | 5/8 | 16 | 2.99 | 76 | 1-11/16 | 43 | 15/16 | 1 |
| 10656-12-10 | 1-1/16-12 | 5/8 | 16 | 3.06 | 78 | 1-3/4 | 44 | 1-1/16 | 1-1/4 |
| 10656-10-12 | 7/8-14 | 3/4 | 19 | 2.88 | 73 | 1-1/2 | 38 | 1-1/16 | 1 |
| 10656-12-12 | 1-1/16-12 | 3/4 | 19 | 3.06 | 78 | 1-3/4 | 44 | 1-1/16 | 1-1/4 |
| 10656-16-12 | 1-5/16-12 | 3/4 | 19 | 3.27 | 83 | 1-15/16 | 49 | 1-1/4 | 1-1/2 |
| 10656-16-16 | 1-5/16-12 | 1 | 25 | 3.81 | 97 | 1-15/16 | 49 | 1-3/8 | 1-1/2 |
| 10656-20-16 | 1-5/8-12 | 1 | 25 | 3.96 | 101 | 2-1/16 | 52 | 1-5/8 | 2 |
10656 JIC One Piece Hydraulic Fittings Video
The JIC one piece hydraulic fittings manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.
As the video unfolds, you will see the entire process of one piece crimp hose fittings from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.
Ready to experience quality service? Visit Topa today to learn more about our line of premium hydraulic fittings. Let Topa help you make a better choice
