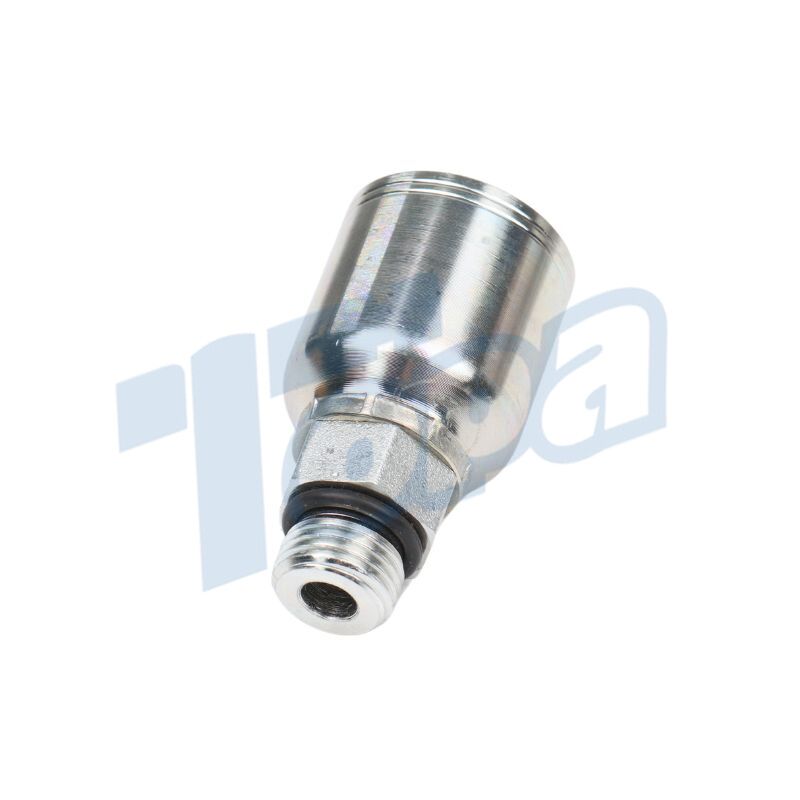

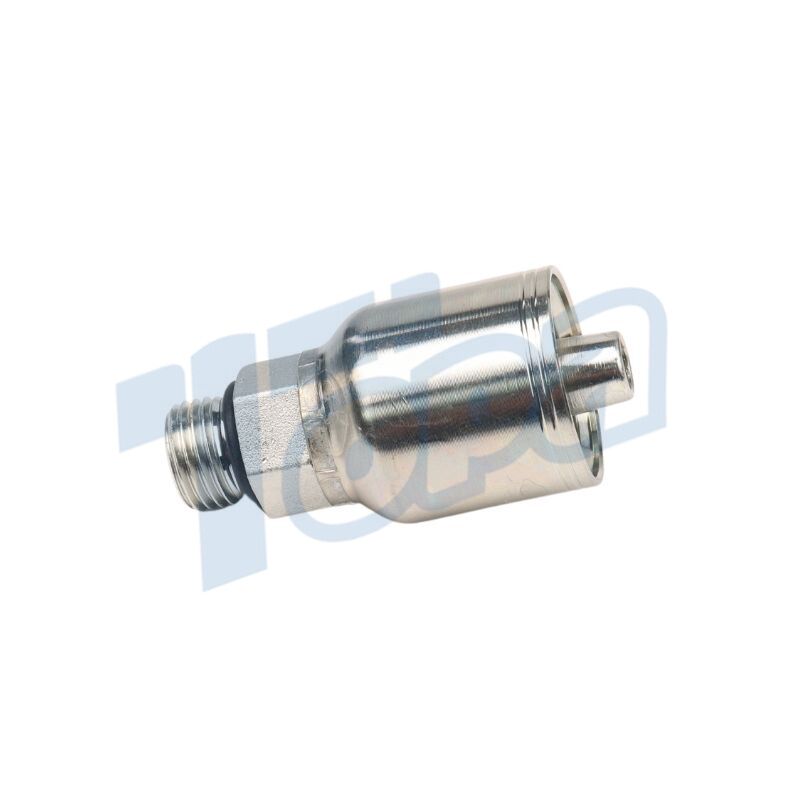

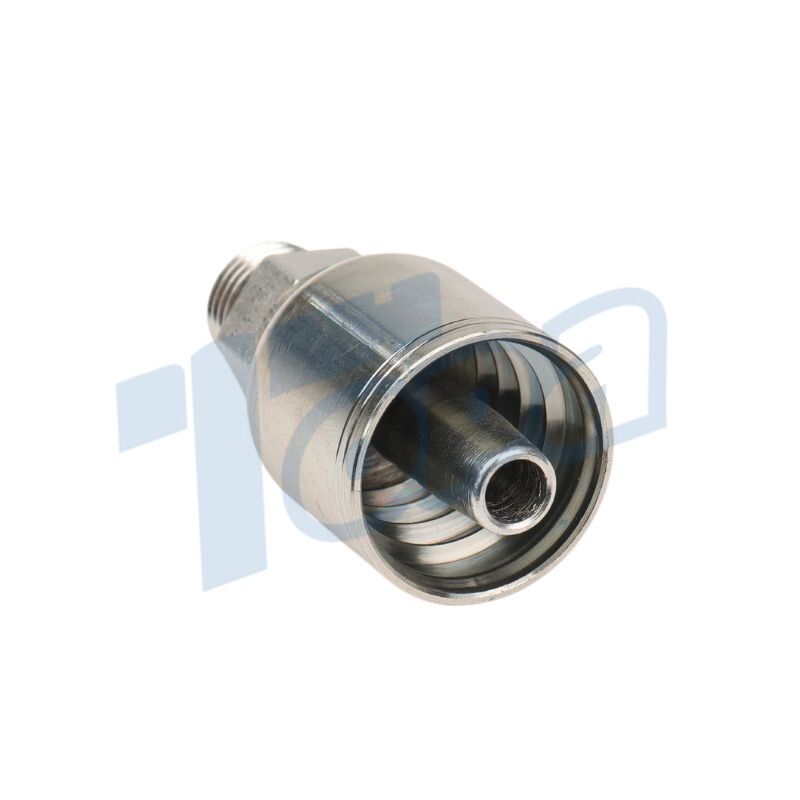

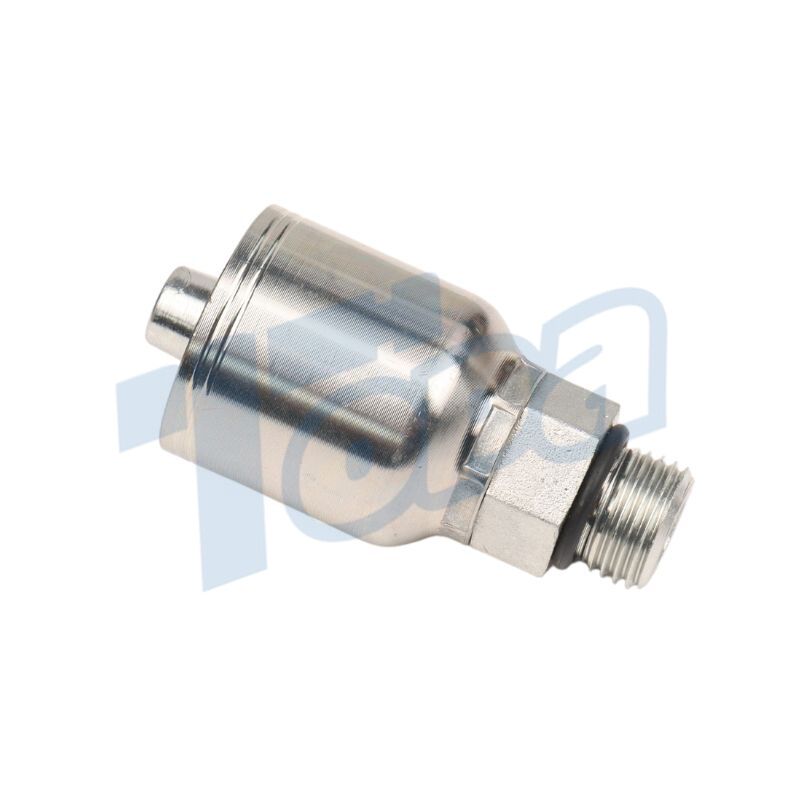

10543 ORB One Piece Hose Fittings

Topa’s 10543 ORB one piece hose fittings are designed to provide a secure connection and leak-free seal for hydraulic systems. Its construction is described in more detail below:

Connection 1: Male SAE

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Male SAE Straight Thread with O-Ring – Rigid

Applications: Industrial Equipment, Construction, Transportation, Agriculture

If you want hydraulic crimped hose fittings, just contact Topa. We can supply standard hose fittings, and also can custom crimped hose fittings for your special needs!

Description

Part No.	1- Hose Bore			2- Thread	Dimensions
Part No.	Size	Inch	DN	2- Thread	A(mm)	B(mm)	H(mm)
10543-04-04MPX	4	1/4″	6	1/4″-18	58	37	17.4
10543-04-06MPX	4	1/4″	6	3/8″-18	58	38	22.2
10543-06-04MPX	6	3/8″	10	1/4″-18	67	40	17.4
10543-06-06MPX	6	3/8″	10	3/8″-18	71	44	22.2
10543-06-08MPX	6	3/8″	10	1/2″-14	76	49	25.4
10543-08-06MPX	8	1/2″	12	3/8″-18	76	44	22.2
10543-08-08MPX	8	1/2″	12	1/2″-14	80	49	25.4
10543-08-12MPX	8	1/2″	12	3/4″-14	92	61	34.9
10543-12-08MPX	12	3/4″	20	1/2″-14	88	49	25.4
10543-12-12MPX	12	3/4″	20	3/4″-14	110	61	34.9
10543-12-16MPX	12	3/4″	20	1″-11.5	112	73	38.1
10543-16-12MPX	16	1″	25	3/4″-14	106	61	34.9
10543-16-16MPX	16	1″	25	1″-11.5	118	73	38.1

10543 ORB One Piece Hose Fittings Video

The ORB one piece hose fittings manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of china one piece hose fitting from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.

Ready to experience quality service? Visit Topa today to learn more about our line of premium hydraulic fittings. Let Topa help you make a better choice.
