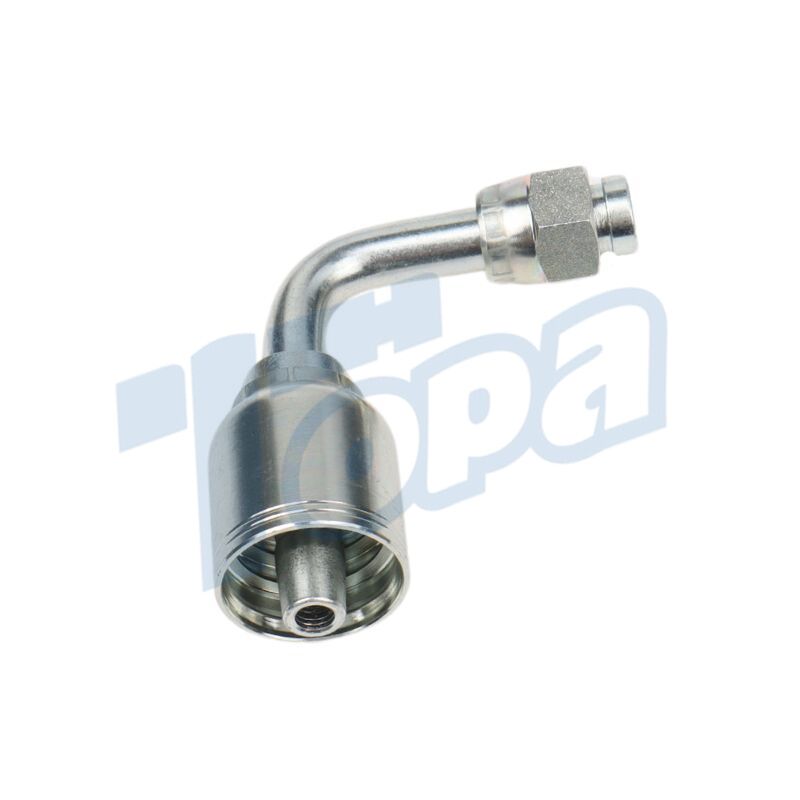

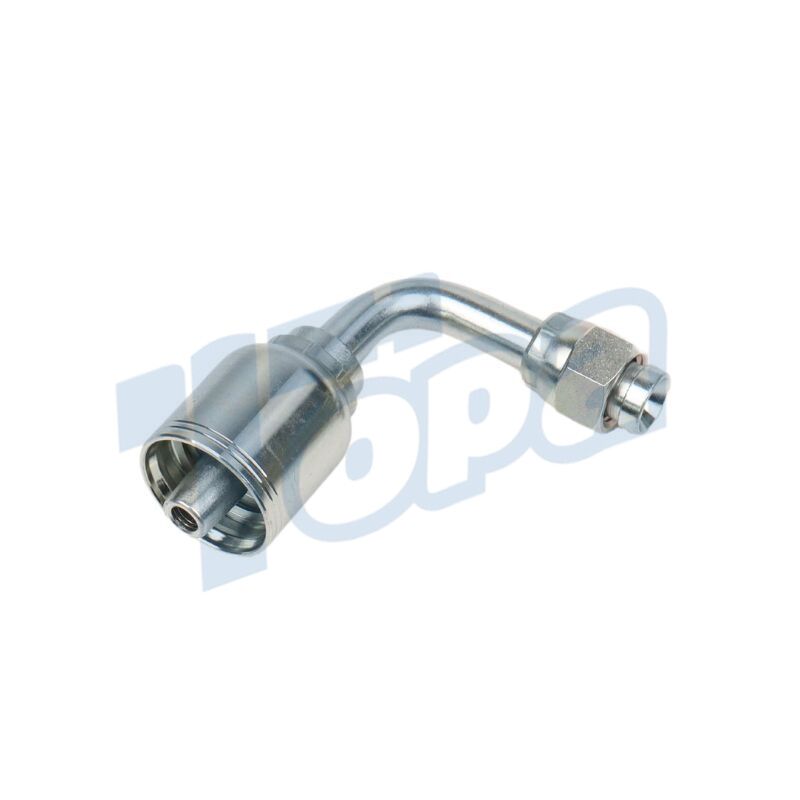

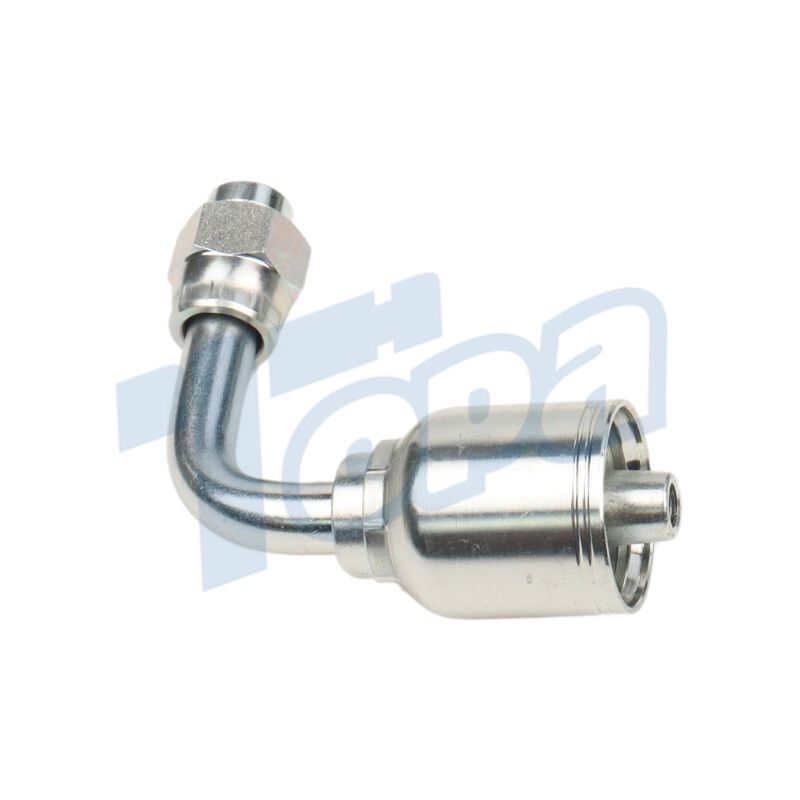

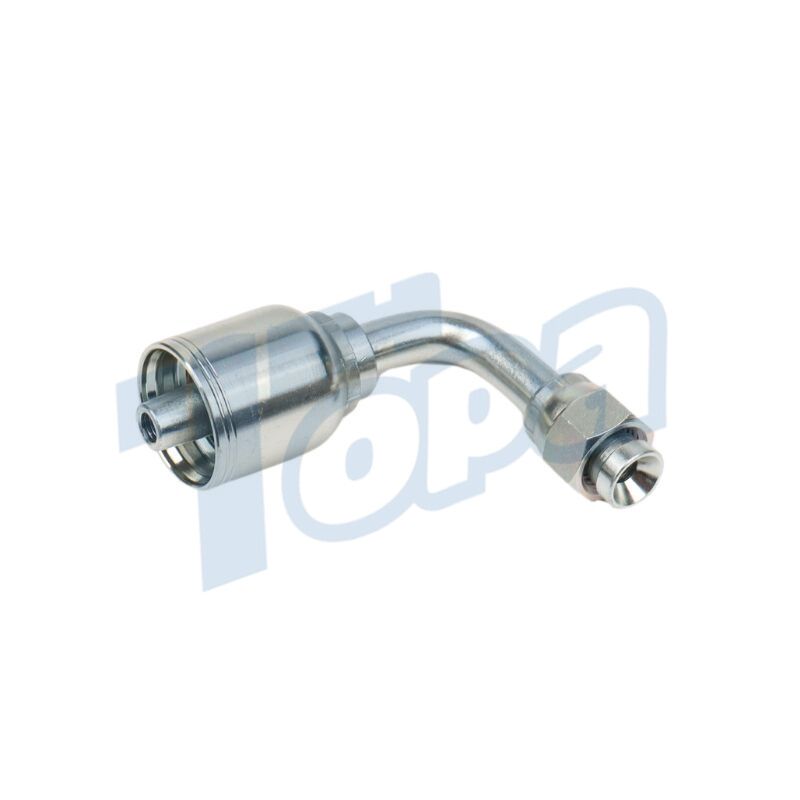

14143 JIC Crimp on Hydraulic Fittings

Topa’s JIC hydraulic hose crimp fittings are designed to provide a secure connection and leak-free seal for hydraulic systems. Its construction is described in more detail below:

Connection 1: Female JIC 37°

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Shape: Elbow 90° – Long Drop

Product types: Crimped Fittings

Applications: Industrial Equipment, Manufacturing, Transportation, Oil & Gas

If you want hydraulic crimped hose fittings, just contact Topa. We can supply standard hose fittings, and also can custom crimped hose fittings for your special needs!

Description

Part No.	1- Hose Bore			2- Thread	W -NUT	Dimensions
Part No.	Size	Inch	DN	2- Thread	(mm)	A(mm)	B(mm)	E(mm)
04-04FJ9L	4	1/4″	6	7/16″-20	14.2	51	30	46
04-05FJ9L	4	1/4″	6	1/2″-20	17.4	51	30	46
06-06FJ9L	6	3/8″	10	9/16″-18	17.4	69	42	55
06-08FJ9L	6	3/8″	10	3/4″-16	22.2	69	42	62
08-08FJ9L	8	1/2″	12	3/4″-16	22.2	70	38	62
08-10FJ9L	8	1/2″	12	7/8″-14	25.4	70	38	65
10-10FJ9L	10	5/8″	16	7/8″-14	25.4	71	42	65
12-12FJ9L	12	3/4″	20	1.1/16″-12	31.7	101	61	95
16-16FJ9L	16	1″	25	1.5/16″-12	38.1	126	81	110
20-20FJ9L	20	1.1/4″	32	1.5/8″-12	50.8	140	93	134

14143 JIC Crimp on Hydraulic Fittings Video

The 14143 JIC crimp hose fitting manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of hydraulic crimp fittings from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.

Ready to experience quality service? Visit Topa today to learn more about our line of premium hydraulic fittings. Let Topa help you make a better choice.
