One Piece Fitting

1D043 One Piece Fitting

Topa’s metric hydraulic hose crimp fittings are designed to provide a secure connection and leak-free seal for hydraulic systems. Its construction is described in more detail below:

Connection 1: Male Metric L – Rigid (24° Cone)

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings No-Skive

Applications: Industry, Construction, Mining,Agriculture

If you want hydraulic crimped hose fittings, just contact Topa. We can supply standard hose fittings, and also can custom crimped hose fittings for your special needs!

Description

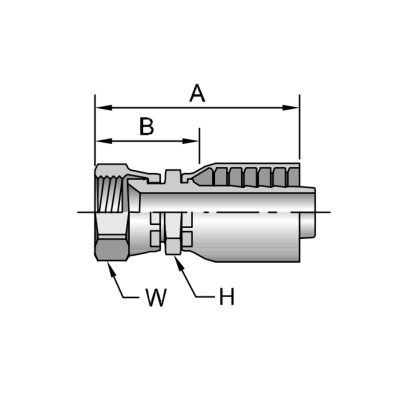

Part Number	Thread mm		Hose I.D. inch	A		H		B mm
Part Number	Thread mm		Hose I.D. inch	inch	mm	mm	inch	B mm
1D043-6-4 1D043-8-4 1D043-10-5	6 8 10	M12x1.5 M14x1,5 M16x1,5	1/4 1/4 5/16	1.73 1.61 1.97	44 41 50	14 14 19	0.93 0.93 0.83	24 24 21
1D043-10-6 1D043-12-5 1D043-12-6	10 12 12	M16x1,5 M18x1,5 M18x1,5	3/8 5/16 3/8	1.97 1.89 1.97	50 48 50	19 19 19	0.83 0.94 0.83	21 24 21
1D043-15-6 1D043-15-8 1D043-18-10	15 15 18	M22x1,5 M22x1,5 M26x1.5	3/8 1/2 5/8	1.93 2.28 2.68	49 58 68	22 22 27	1.02 0.94 1.14	26 24 29
1D043-18-12 1D043-22-12 1D043-28-16	18 22 28	M26x1,5 M30x2 M36x2	3/4 3/4 1	2.68 2.72 3.11	68 69 79	27 30 36	1.14 1.22 1.30	29 33
1D043-35-20	35	M45x2	1-1/4	3.35	85	46	1.50	38
