One Piece Hose Fitting

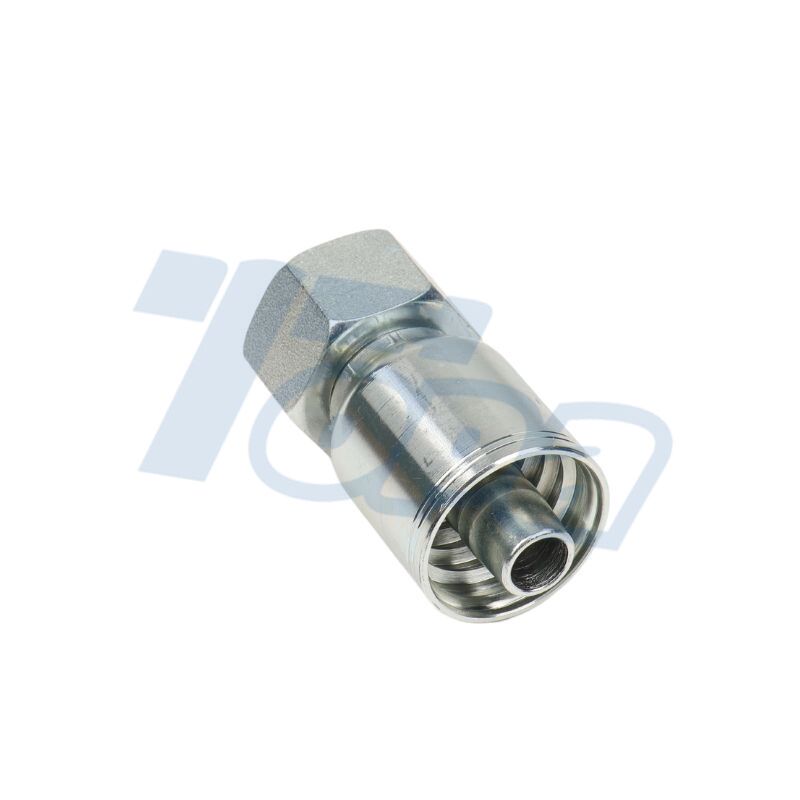

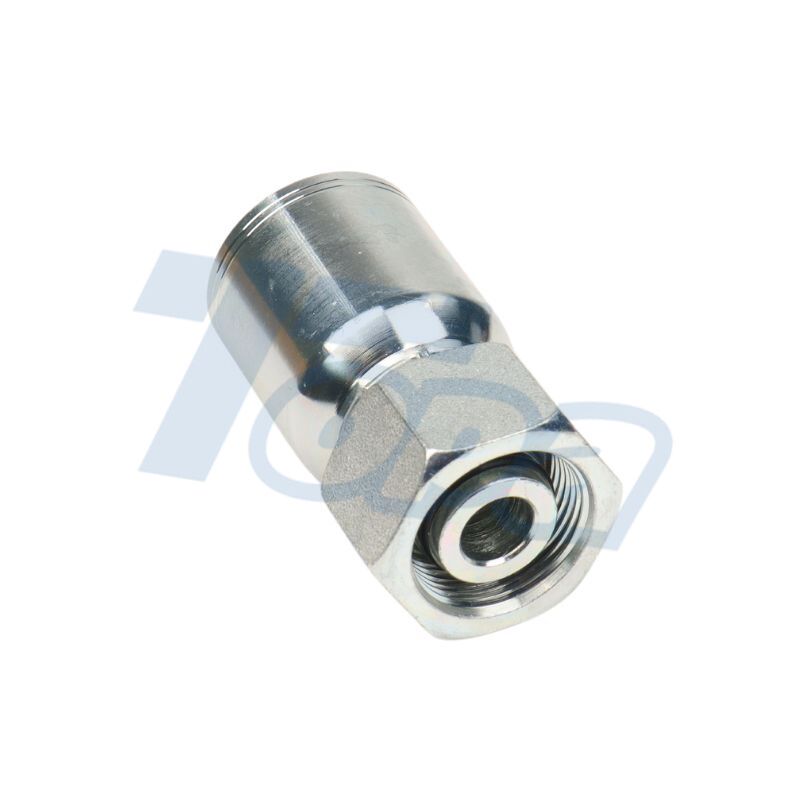

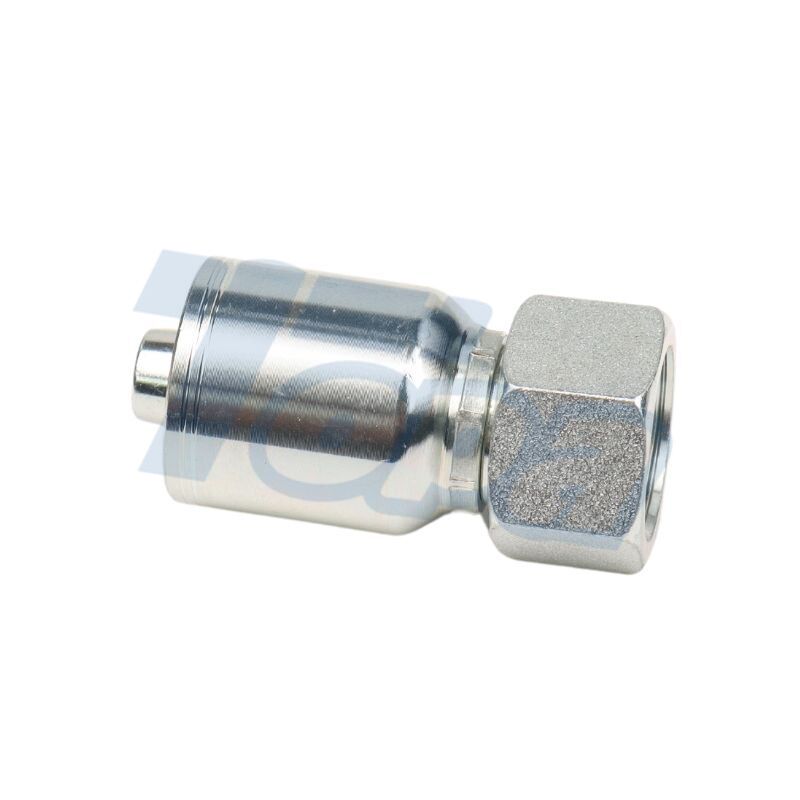

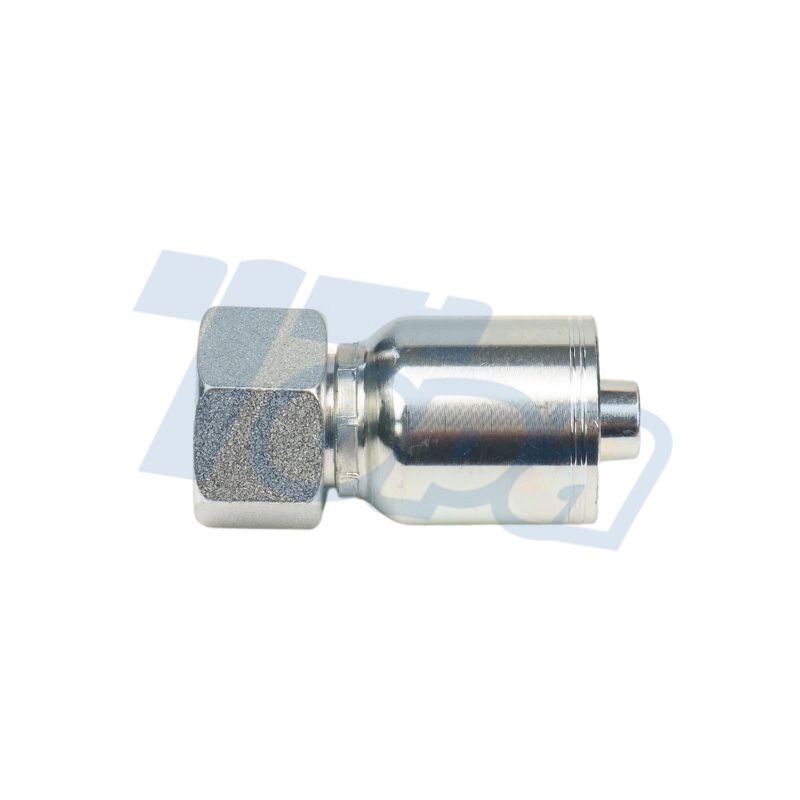

1C977 One Piece Hose Fitting

Topa’s metric hydraulic hose crimp fittings are designed to provide a secure connection and leak-free seal for hydraulic systems. Its construction is described in more detail below:

Connection 1: Female Metric S – Swivel (24° Cone with O-Ring)

Connection 2: Hose End

Material selection: Carbon steel; Stainless steel

Shape: Straight

Product types: Crimp Fittings No-Skive

Applications: Industry, Construction, Oil Field Service, Agriculture

If you want hydraulic crimped hose fittings, just contact Topa. We can supply standard hose fittings, and also can custom crimped hose fittings for your special needs!

Description

Part Number	Thread mm		Hose I.D inch	A			C mm	W mm	B
Part Number	Thread mm		Hose I.D inch	inch	mm	inch	C mm	W mm	inch	mm
1C977-16-8 1C977-16-10 1C977-20-10	16 16 20	M24x1.5 M24x1.5 M30x2	1/2 5/8 5/8	2.34 2.64 2.64	59,5 67,0 67,0	0.09 0.09 0.05	2,0 2,0 1,3	30 30 36	1.12 1.29 1.29	28.5 32,8 32,8
1C977-20-12 1C977-25-12 1C977-25-16	20 25 25	M30x2 M36x2 M36x2	3/4 3/4 1	2.99 3.00 3.51	76,0 76,5 89,2	0.05 0.10 0.10	1,3 2,6 2,6	36 46 46	1.34 1.37 1.56	34,0 35,0 39,6
1C977-30-12 1C977-30-16 1C977-30-20	30 30 30	M42x2 M42x2 M42x2	3/4 1 1-1/4	3.17 3.50 4.09	80,4 89,0 103,9	0.19 0.19 0.19	5,0 5,0 5,0	50 50 50	1.53 1.55 1.82	39,0 39,5 46,2
1C977-38-20 1C977-38-24	38 38	M52x2 M52x2	1-1/4 1-1/2	3.86 4.08	98,0 103,7	0.27 0.24	6,9 6,0	60 60	1.38 1.69	35,0 43,1

1C977 One Piece Hose Fitting Video

The one piece hose fitting manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.

As the video unfolds, you will see the entire process of crimp hydraulic hose fittings from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.
