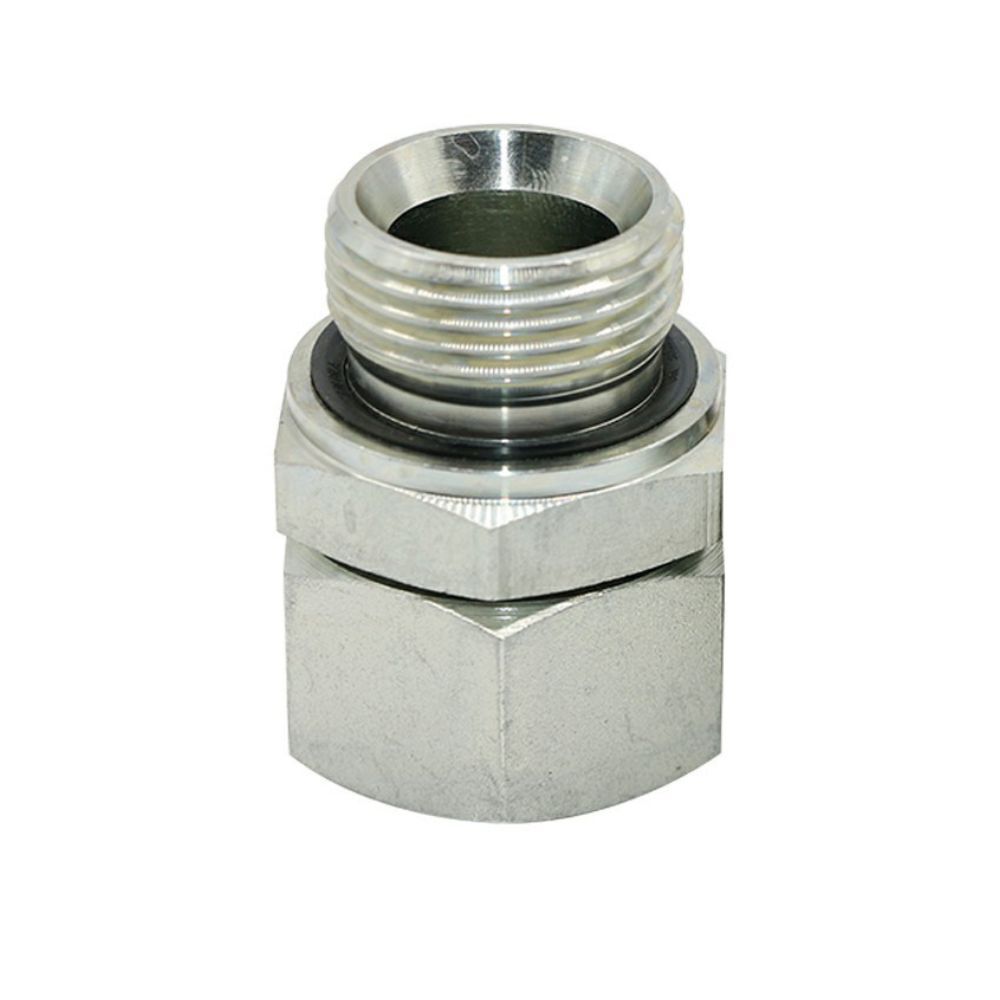

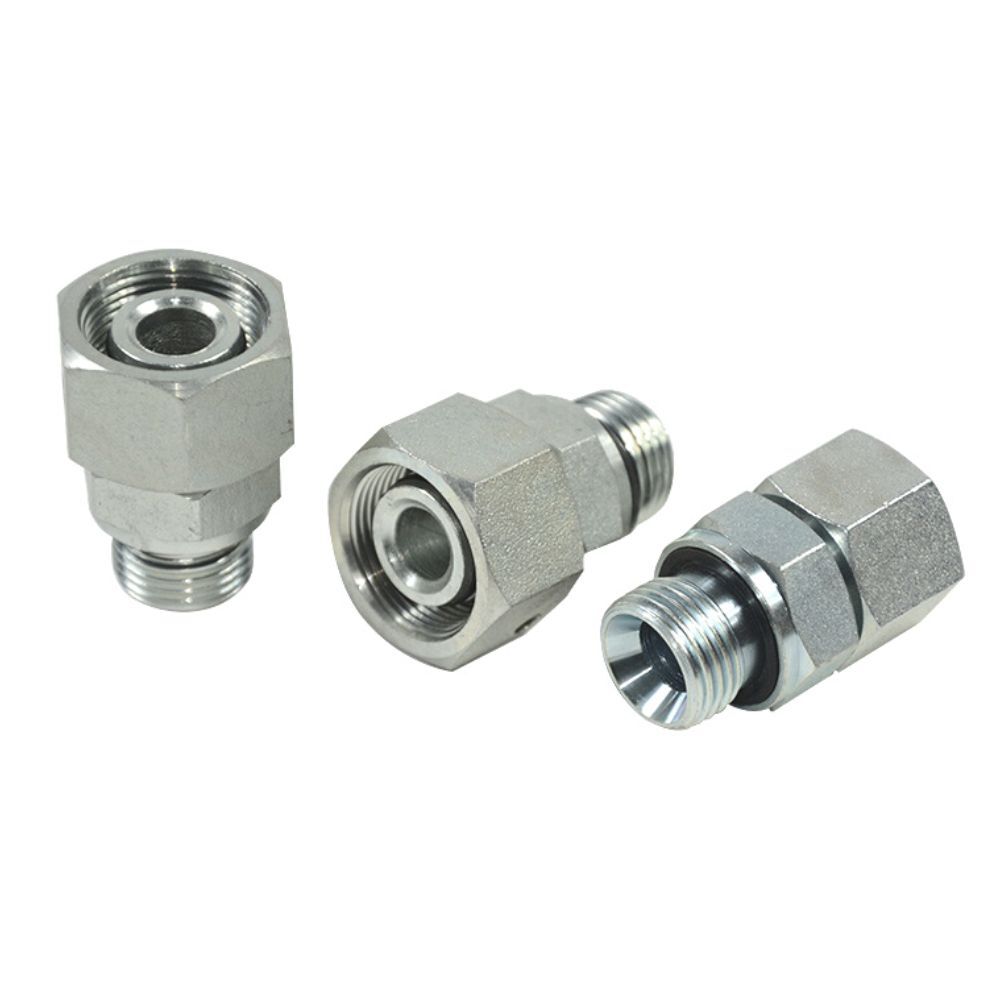

Metric to BSP Fittings

  PART  NO.

THREAD

TUBE O.D

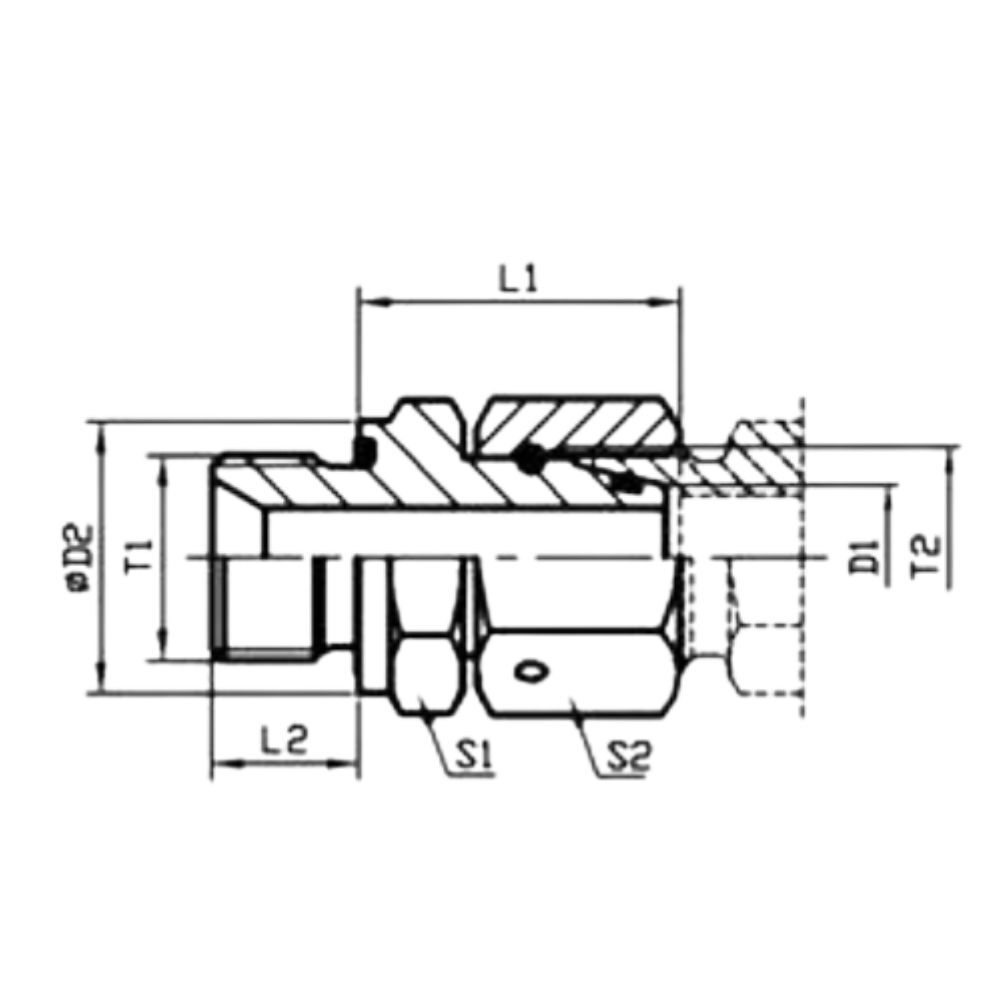

DIMENSIONS

T1

T2

D1

D2

L1

L2

S1

S2

L

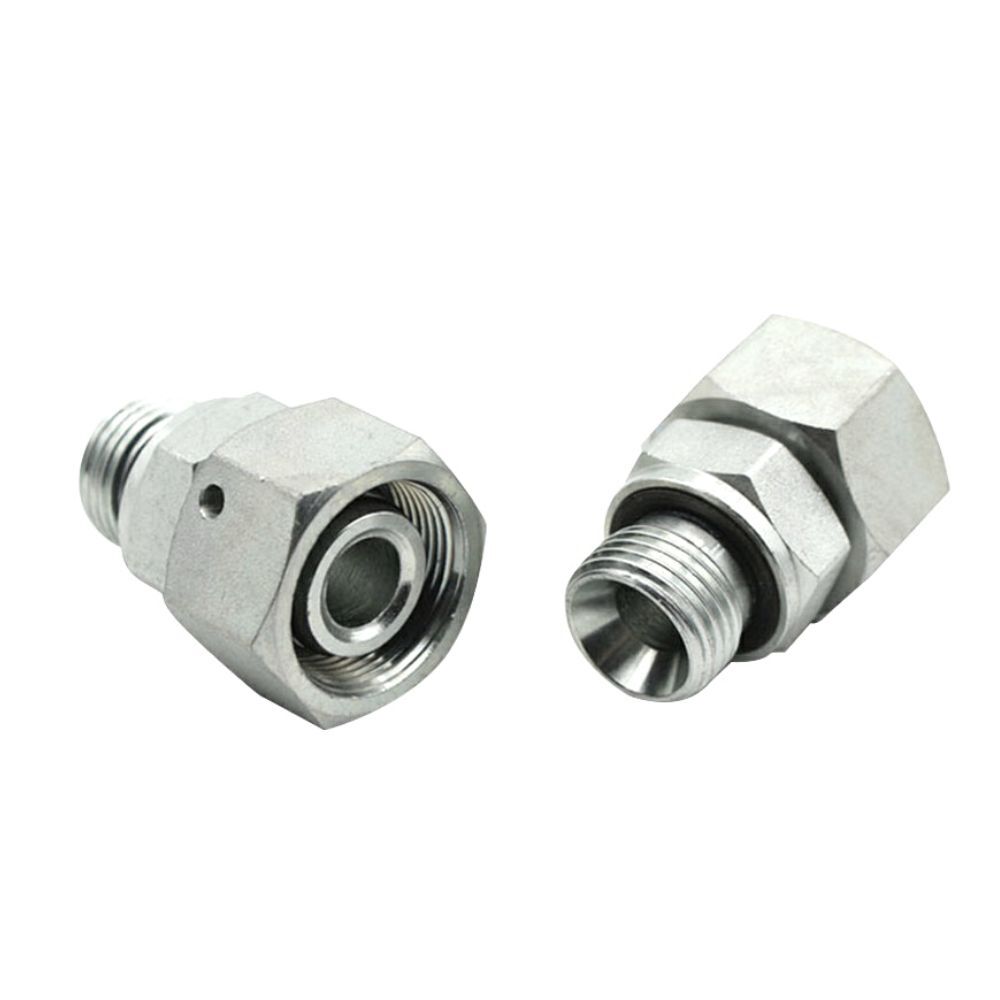

2BC-02-12WDW

G1/8＂X28

M12X1.5

06

14

24.5

8

14

14

2BC-04-14WDW

G1/4＂X19

M14X1.5

08

19

29.5

12

19

17

2BC-04-16WDW

G1/4＂X19

M16X1.5

10

19

27.5

12

19

19

2BC-06-16WDW

G3/8＂X19

M16X1.5

10

22

29

12

22

19

2BC-06-18WDW

G3/8＂X19

M18X1.5

12

22

34

12

22

22

2BC-04-18WDW

G1/4＂X19

M18X1.5

12

19

27.5

12

19

22

2BC-08-18WDW

G1/2＂X14

M18X1.5

12

27

29.5

14

27

22

2BC-08-22WDW

G1/2＂X14

M22X1.5

15

27

32

14

27

27

2BC-08-26WDW

G1/2＂X14

M26X1.5

18

27

31.5

14

27

32

2BC-12-26WDW

G3/4＂X14

M26X1.5

18

32

29.5

16

32

32

2BC-12-30WDW

G3/4＂X14

M30X2

22

32

32.5

16

32

36

2BC-16-36WDW

G1＂X11

M36X2

28

40

35

18

41

41

2BC-20-45WDW

G1.1/4＂X11

M45X2

35

50

42.5

20

50

50

2BC-24-52WDW

G1.1/2＂X11

M52X2

42

55

46.5

22

55

60

S

2BD-04-14WDW

G1/4＂X19

M14X1.5

06

19

27

12

19

17

2BD-04-16WDW

G1/4＂X19

M16X1.5

08

19

29.5

12

19

19

2BD-06-18WDW

G3/8＂X19

M18X1.5

10

22

32

12

22

22

2BD-06-20WDW

G3/8＂X19

M20X1.5

12

22

34

12

22

24

2BD-04-20WDW

G1/4＂X19

M20X1.5

12

19

31.5

12

19

24

2BD-08-20WDW

G1/2＂X14

M20X1.5

12

27

35

14

27

24

2BD-08-22WDW

G1/2＂X14

M22X1.5

14

27

36.5

14

27

27

2BD-08-24WDW

G1/2＂X14

M24X1.5

16

27

37

14

27

30

2BD-12-30WDW

G3/4＂X14

M30X2

20

32

43

16

32

36

2BD-16-36WDW

G1＂X11

M36X2

25

40

48

18

41

46

2BD-20-42WDW

G1.1/4＂X11

M42X2

30

50

51

20

50

50

2BD-24-52WDW

G1.1/2＂X11

M52X2

38

55

60

22

55

60
