Metric JIS Fittings

Description:

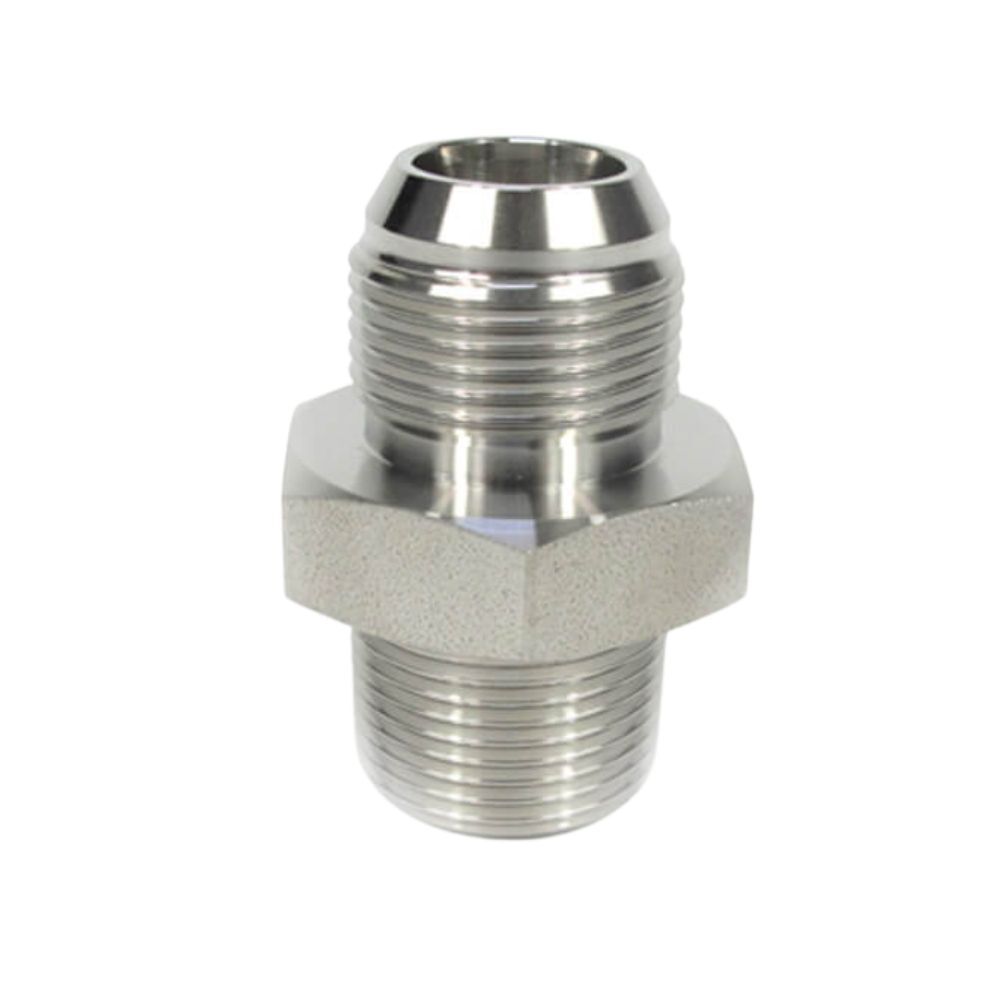

1KT-sp metric JIS fitting has a 60° cone seat metric thread and a bspt thread, it is a male metric adapter that can create a connection with a female adapter or tubes.

JIS hydraulic adapters are a type of hydraulic fitting that is designed according to the Japanese Industrial Standards (JIS) specifications.

Feel free to ask any questions about the metric pipe fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

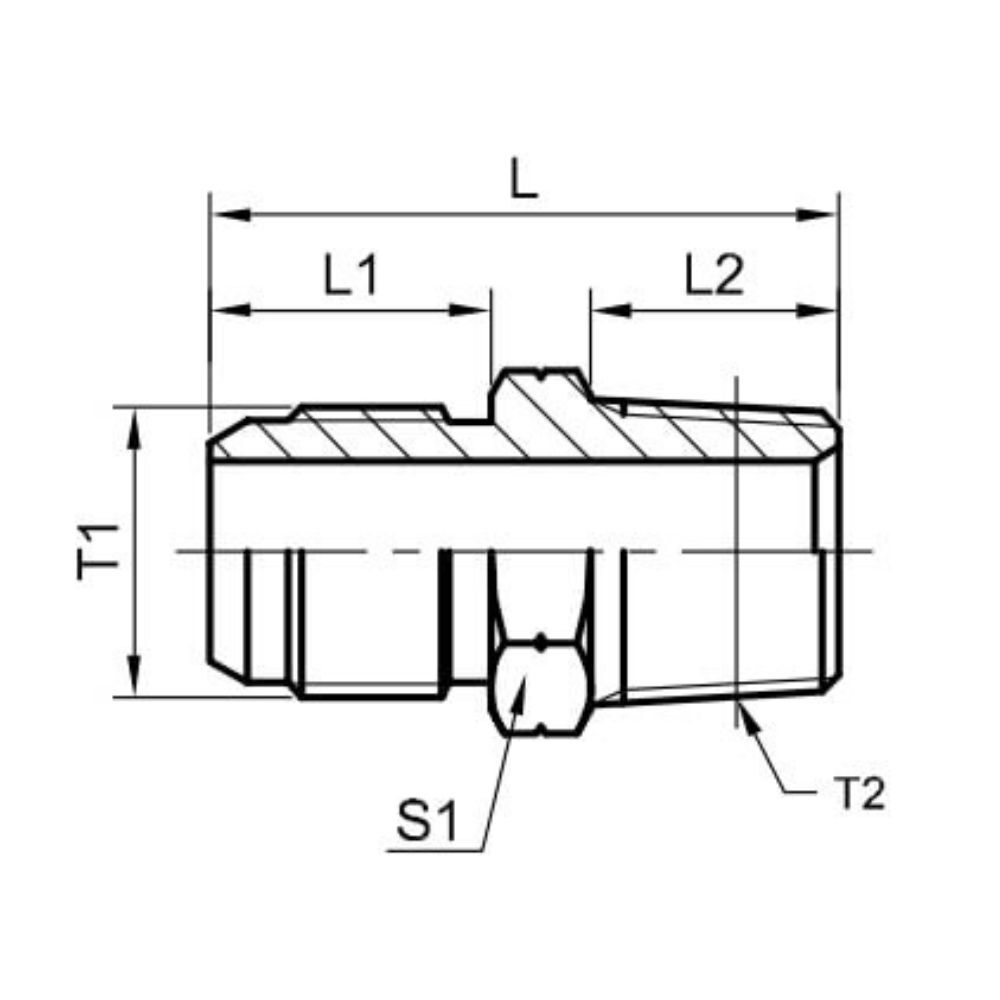

PART NO.	THREAD		DIMENSIONS				Working pressure(bar)
PART NO.	T1	T2	L1	L2	L	S1	Working pressure(bar)
1KT-14-04SP	M14X1.5	R1/4＂X29	17	13	37.5	17	34.5
1KT-14-06SP	M14X1.5	R3/8＂X19	17	15	38	19
1KT-16-06SP	M16X1.5	R3/8＂X19	18	15	39	19
1KT-18-06SP	M18X1.5	R3/8＂X19	18	15	39	19
1KT-20-06SP	M20X1.5	R3/8＂X19	20	15	43	22
1KT-22-06SP	M22X1.5	R3/8＂X19	20	15	43	24
1KT-22-08SP	M22X1.5	R1/2＂X14	20	18	48	24
1KT-24-08SP	M24X1.5	R1/2＂X14	21.5	18	51.5	27	27.5
1KT-24-12SP	M24X1.5	R3/4＂X14	21.5	20	51.5	30	27.5
1KT-30-12SP	M30X1.5	R3/4＂X14	26	20	57	32	20.5
1KT-33-16SP	M33X1.5	R1＂X11	30	22	66.5	36	20.5
1KT-36-20SP	M36X1.5	R1.1/4＂X11	33	25	72.5	46	17
1KT-42-24SP	M42X1.5	R1.1/2＂X11	36	25	77.5	50	10.5

1KT-SP Male 60° Cone/BSPT Thread Metric JIS Fittings Video

This video shows information about the 1KT-sp metric JIS fittings.

Metric JIS fittings are commonly used in hydraulic systems that operate at high pressures, such as those found in heavy machinery and industrial equipment.
