Metric JIS Adapter

Description:

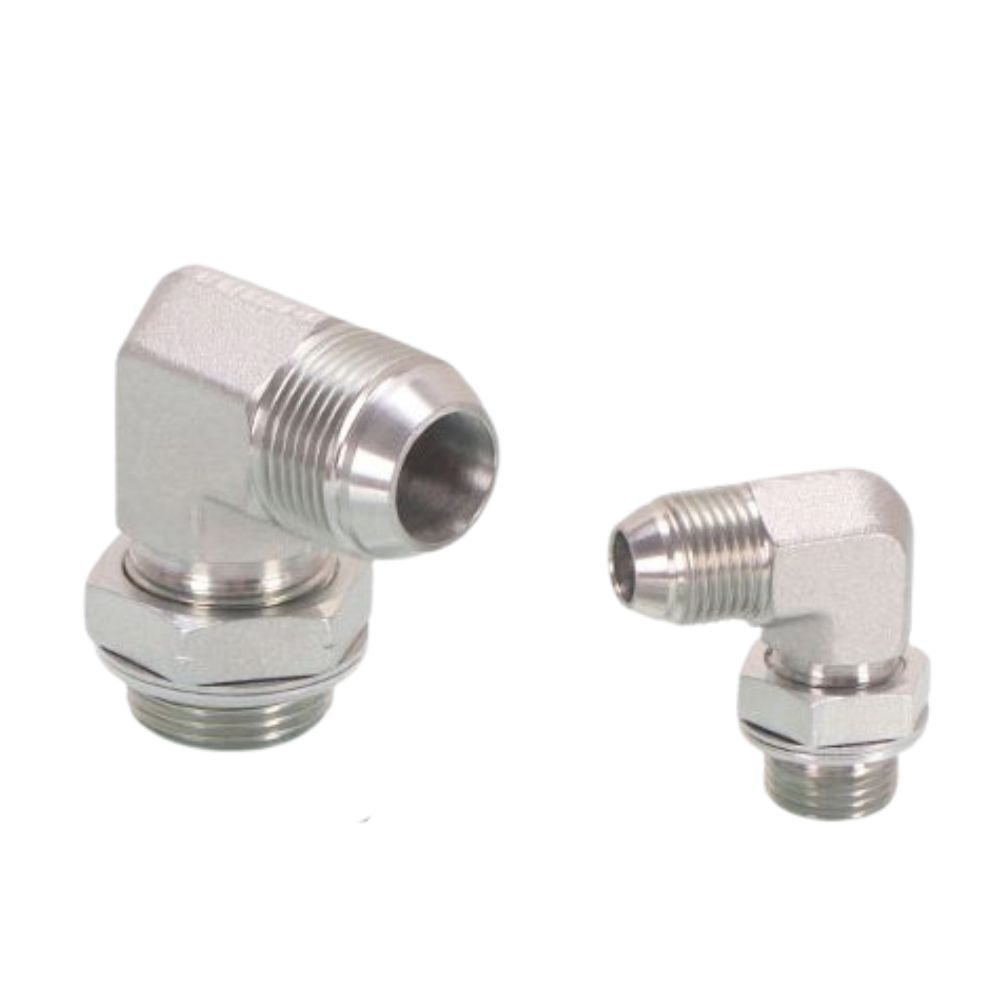

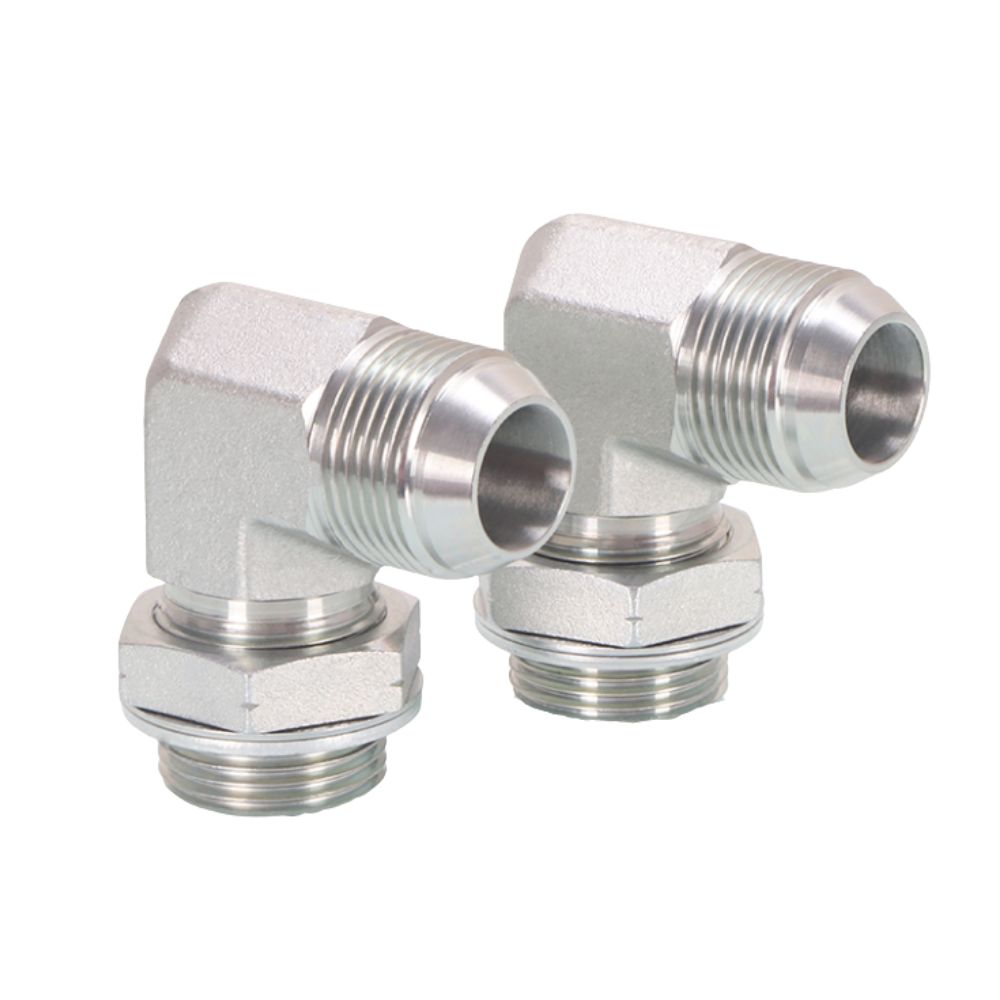

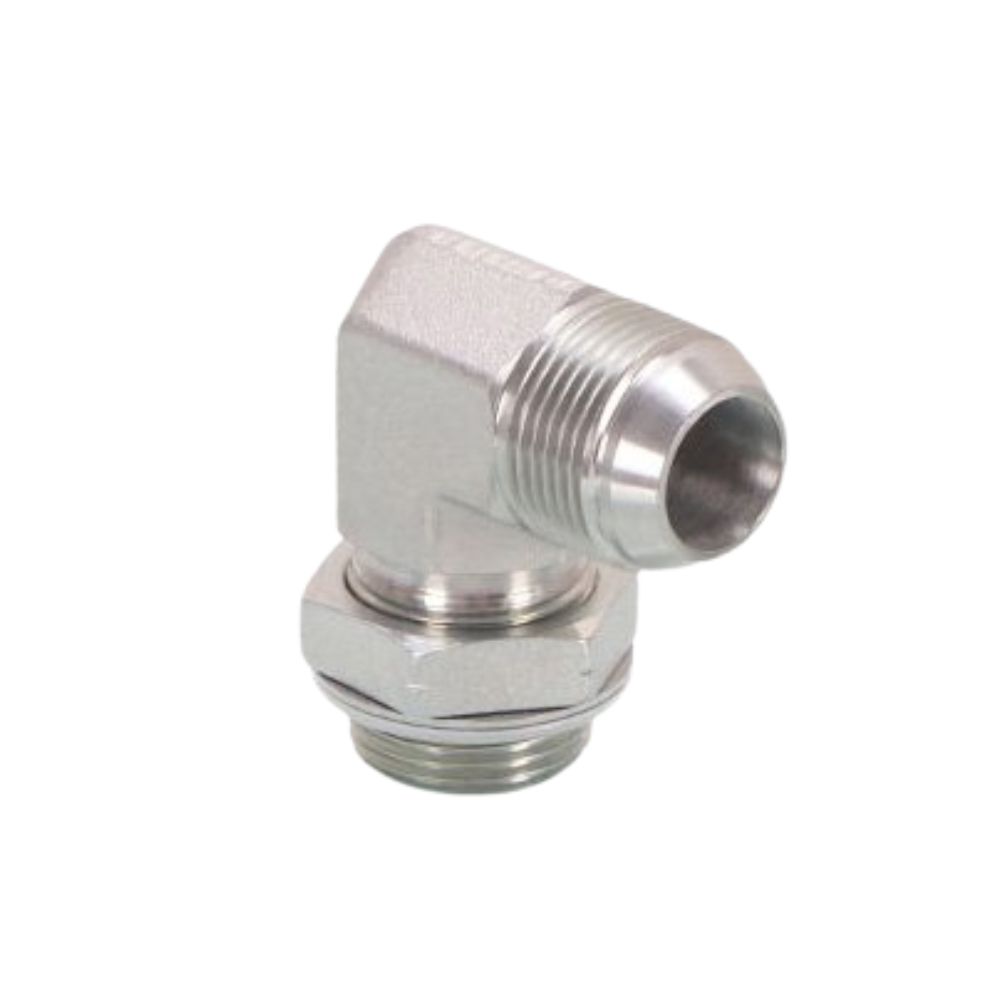

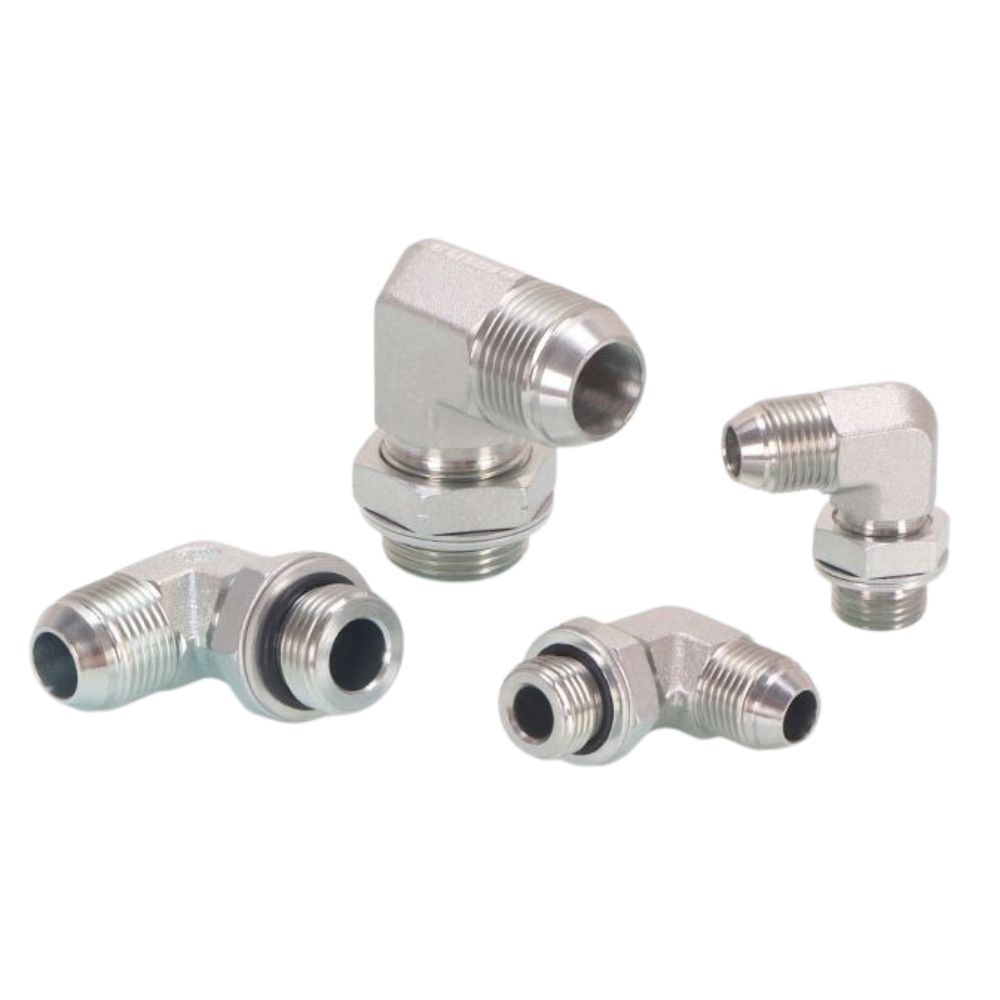

1KG9-OG metric JIS fitting has a 60° cone seat metric thread and a BSP thread with an o-ring seal, it is a 90-degree male metric adapter that can create a connection with a female adapter or tubes.

Metric JIS hydraulic fittings are available in a range of sizes and materials to suit different applications and operating conditions.

Feel free to ask any questions about the metric adapter fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

PART NO.	THREAD		DIMENSIONS			Working pressure(bar)
PART NO.	T1	T2	L1	L2	S1	Working pressure(bar)
1KG9-14-04OG	M14X1.5	G1/4＂X19	26.5	31.3	14	31.5
1KG9-14-06OG	M14X1.5	G3/8＂X19	28.5	35.8	16	25
1KG9-16-06OG	M16X1.5	G3/8＂X19	29.5	35.8	16
1KG9-18-06OG	M18X1.5	G3/8＂X19	30.8	37	19
1KG9-22-08OG	M22X1.5	G1/2＂X14	35.5	43.2	22
1KG9-24-08OG	M24X1.5	G1/2＂X14	37	43.2	22
1KG9-24-12OG	M24X1.5	G3/4＂X14	40	49.3	27	16
1KG9-30-12OG	M30X1.5	G3/4＂X14	45	53	30
1KG9-33-16OG	M33X1.5	G1＂X11	50	53	33
1KG9-42-20OG	M42X1.5	G1.1/4＂X11	63	59	41

1KG9-OG 90° Male 60°Cone/BSP O-ring Metric JIS Adapter Video

This video shows information about the 1KG9-OG metric JIS adapter.

Metric JIS adapters are commonly used in hydraulic systems that operate at high pressures, such as those found in heavy machinery and industrial equipment.
