Hydraulic Metric Tee Fitting

Description:

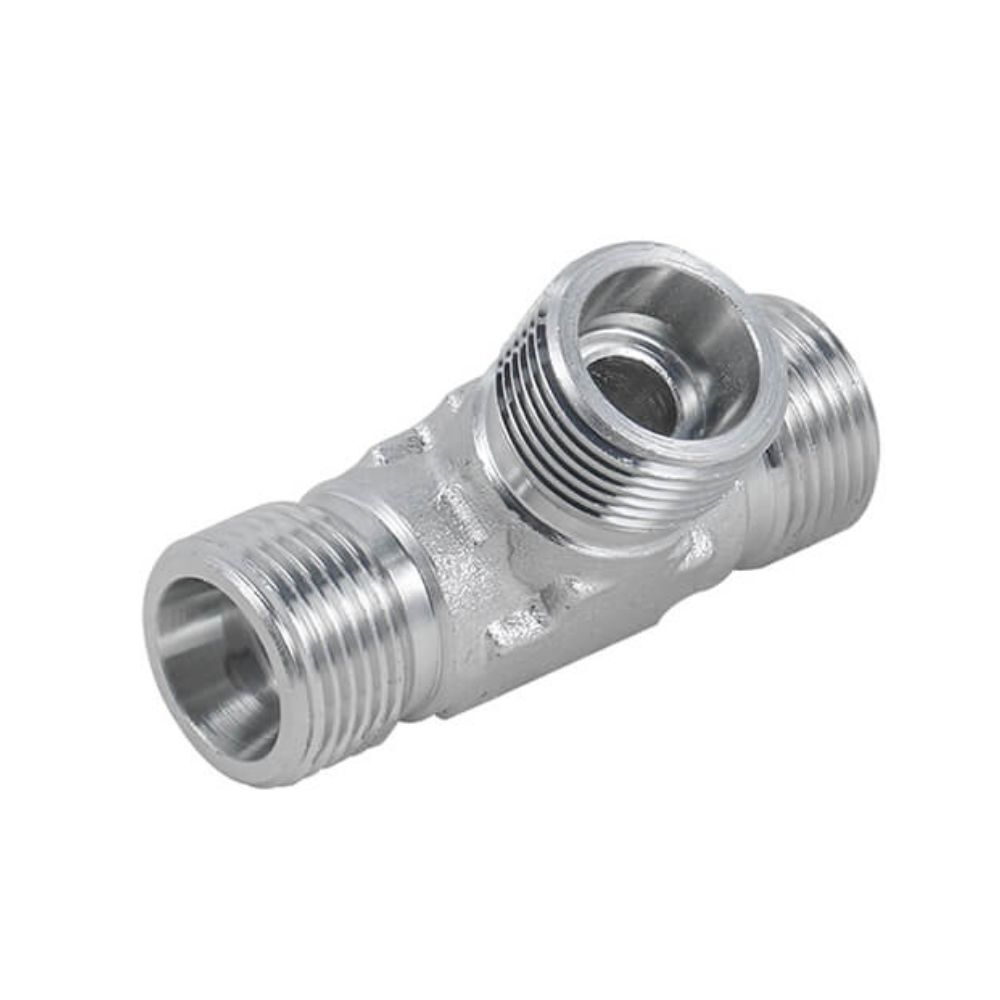

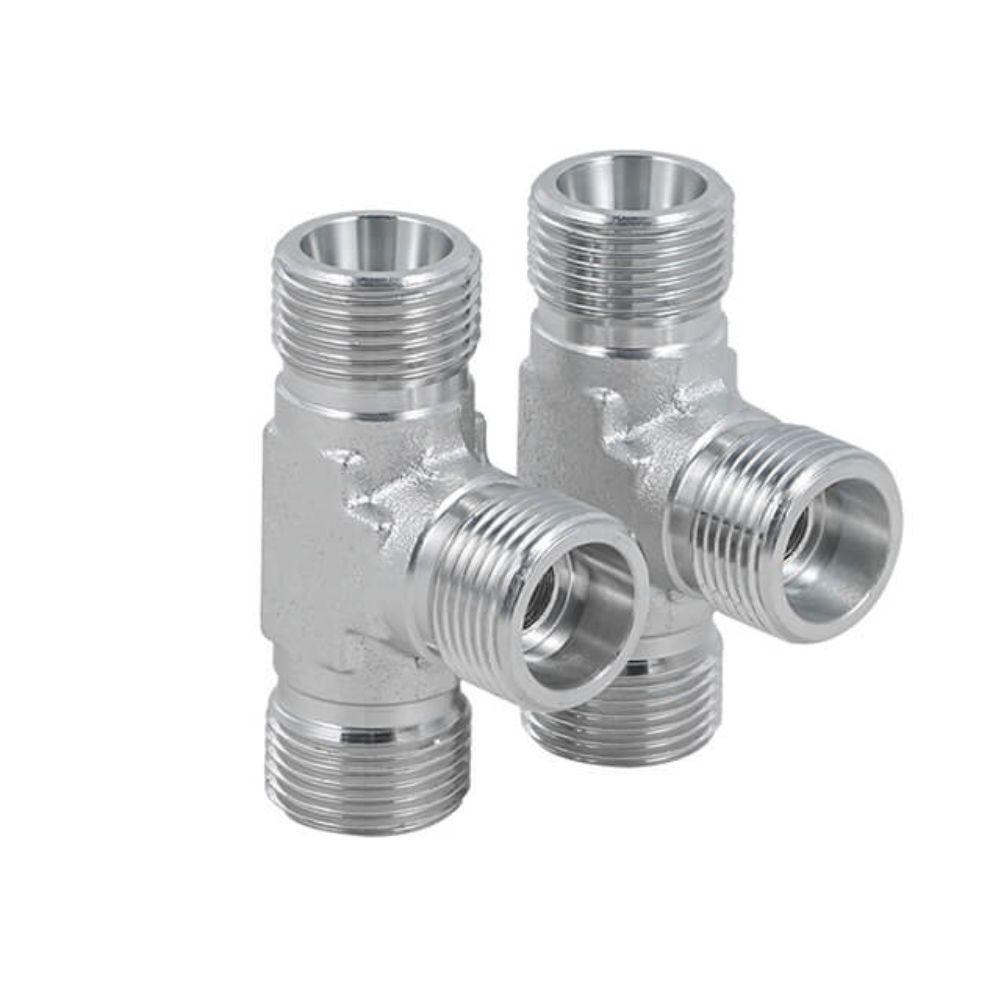

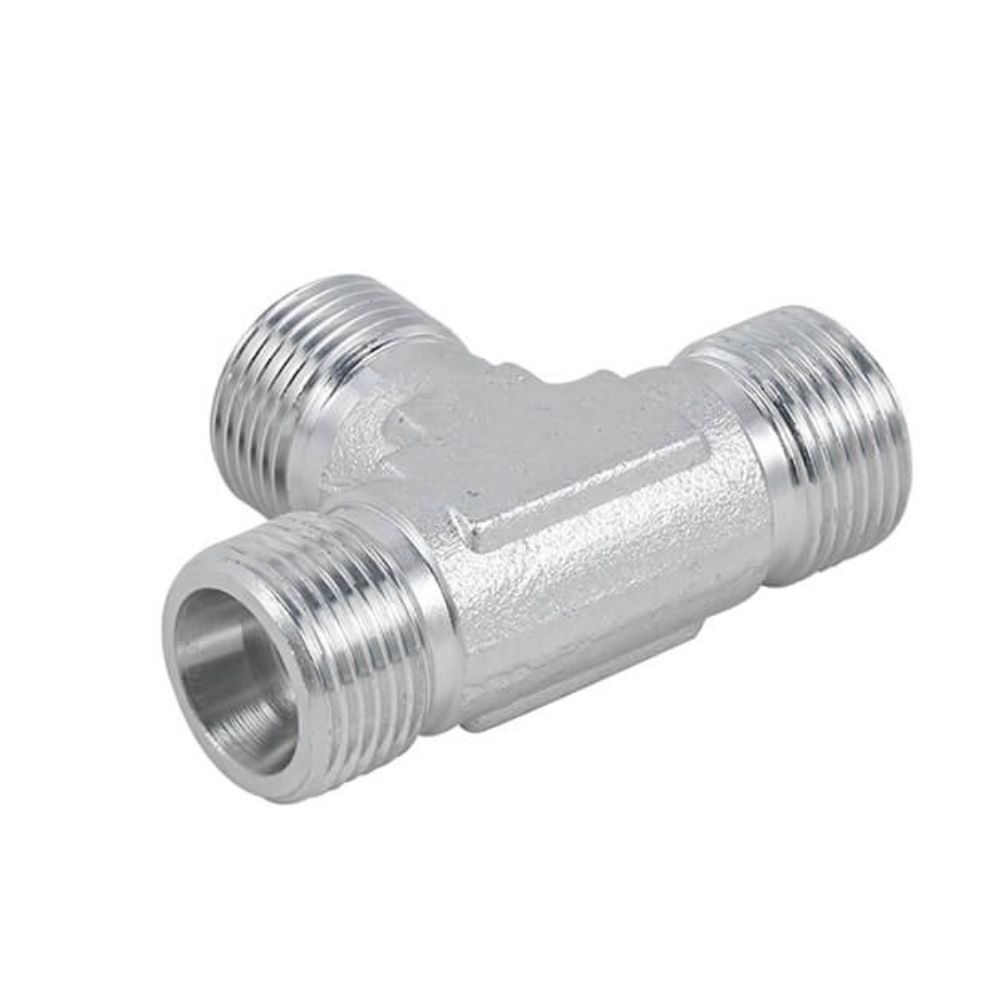

The AC metric tee fitting has three threaded ends, each with a specific metric thread size, and is designed to allow fluid to flow in three directions at once.

Overall, metric hydraulic run tees are an essential component in hydraulic fluid systems and can help to optimize the flow and function of the system.

Feel free to ask any questions about the metric male hydraulic fitting adapter.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description



PART  NO.

THREAD

TUBE O.D

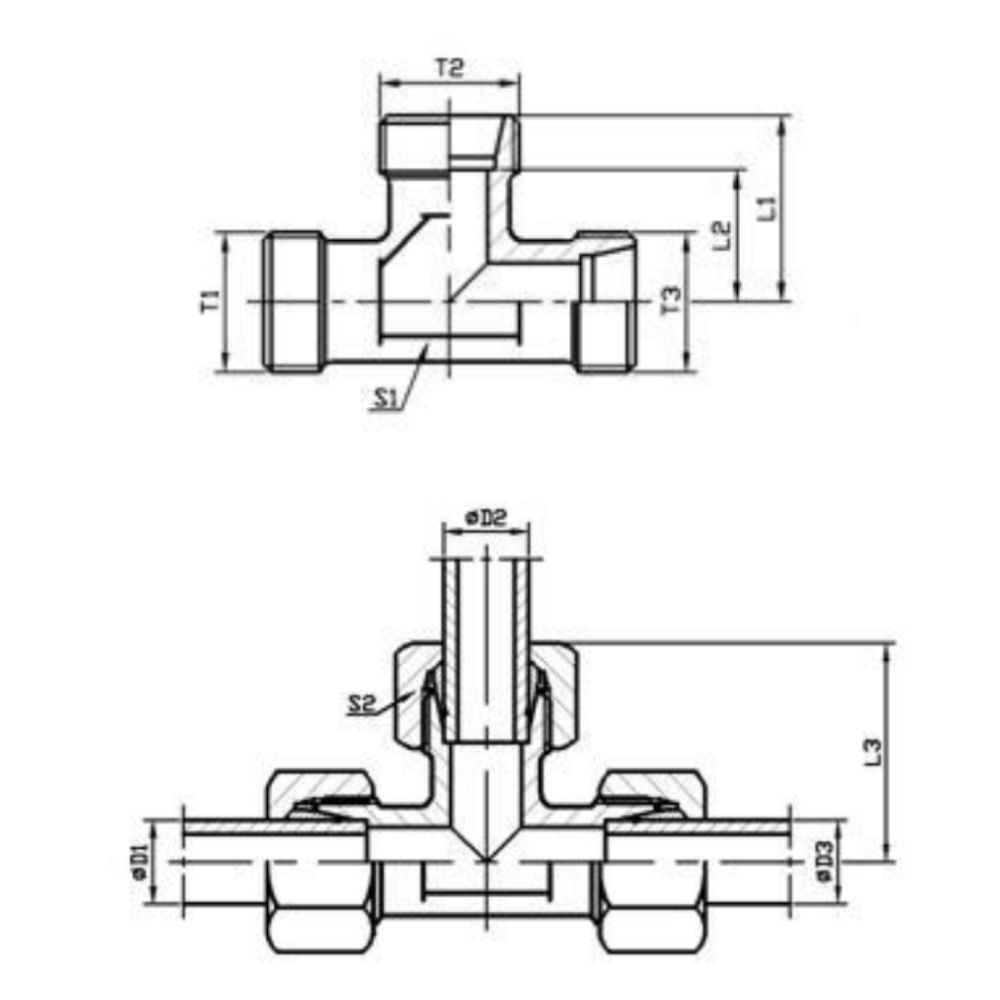

DIMENSIONS

T1

T2

T3

D1D2D3

L1

L2

L3

S1

S2









L

AC-12

M12X1.5

M12X1.5

M12X1.5

06

19

12

27

12

14

AC-14

M14X1.5

M14X1.5

M14X1.5

08

21

14

29

12

17

AC-16

M16X1.5

M16X1.5

M16X1.5

10

22

15

30

14

19

AC-18

M18X1.5

M18X1.5

M18X1.5

12

24

17

32

17

22

AC-22

M22X1.5

M22X1.5

M22X1.5

15

28

21

36

19

27

AC-26

M26X1.5

M26X1.5

M26X1.5

18

31

23.5

40

24

32

AC-30

M30X2

M30X2

M30X2

22

35

27.5

44

27

36

AC-36

M36X2

M36X2

M36X2

28

38

30.5

47

36

41

AC-45

M45X2

M45X2

M45X2

35

45

34.5

56

41

50

AC-52

M52X2

M52X2

M52X2

42

51

40

63

50

60









S

AD-14

M14X1.5

M14X1.5

M14X1.5

06

23

16

31

12

17

AD-16

M16X1.5

M16X1.5

M16X1.5

08

24

17

32

14

19

AD-18

M18X1.5

M18X1.5

M18X1.5

10

25

17.5

34

17

22

AD-20

M20X1.5

M20X1.5

M20X1.5

12

29

21.5

38

17

24

AD-22

M22X1.5

M22X1.5

M22X1.5

14

30

22

40

19

27

AD-24

M24X1.5

M24X1.5

M24X1.5

16

33

24.5

43

24

30

AD-30

M30X2

M30X2

M30X2

20

37

26.5

48

27

36

AD-36

M36X2

M36X2

M36X2

25

42

30

54

36

46

AD-42

M42X2

M42X2

M42X2

30

49

35.5

62

41

50

AD-52

M52X2

M52X2

M52X2

38

57

41

72

50

60

AC Hydraulic Metric Tee Fitting Video

This video shows information about the AC hydraulic metric tee fitting.

Metric tees are commonly used in hydraulic systems for a variety of applications, such as splitting a hydraulic line to power two separate functions or connecting multiple hydraulic lines to a single component.

If you have any questions about metric adapter fittings, please contact us.
