Metric Hydraulic Fitting-10311 Metric Male Flat Seal Fitting

Metric Hydraulic Fitting

Description:

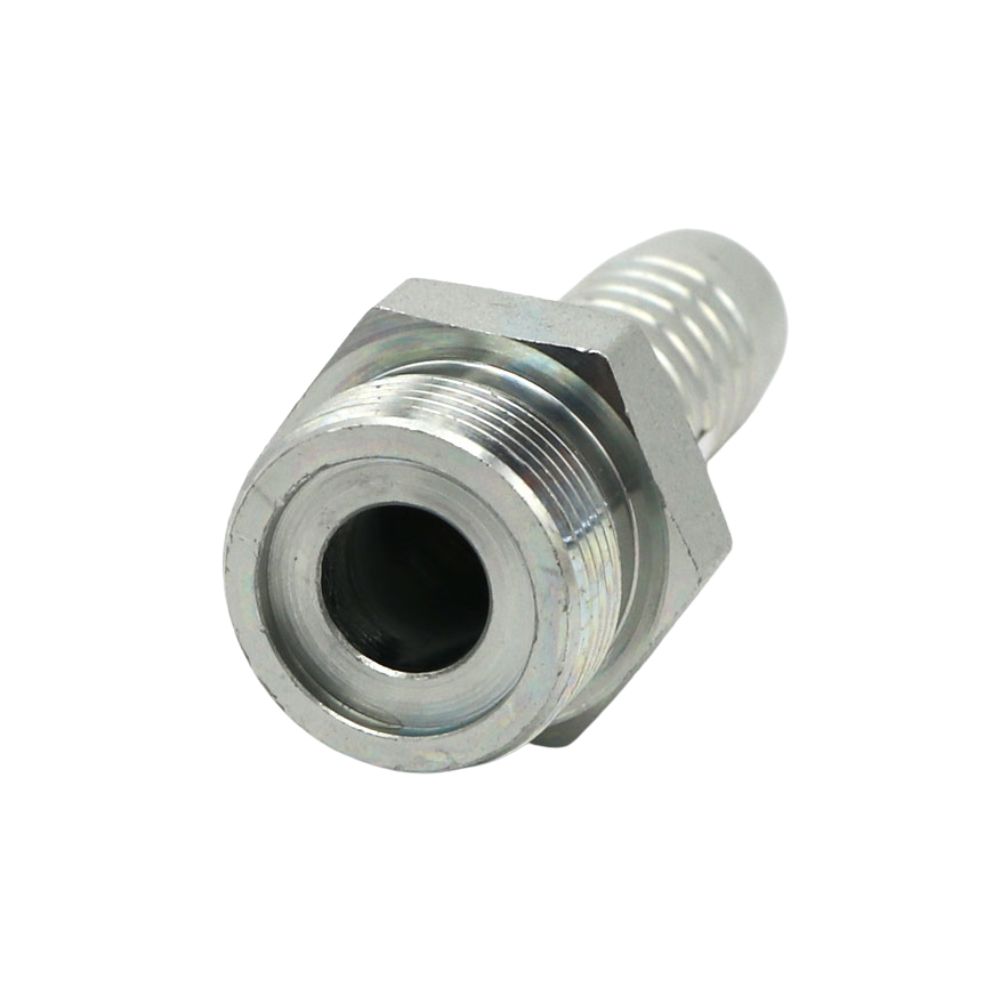

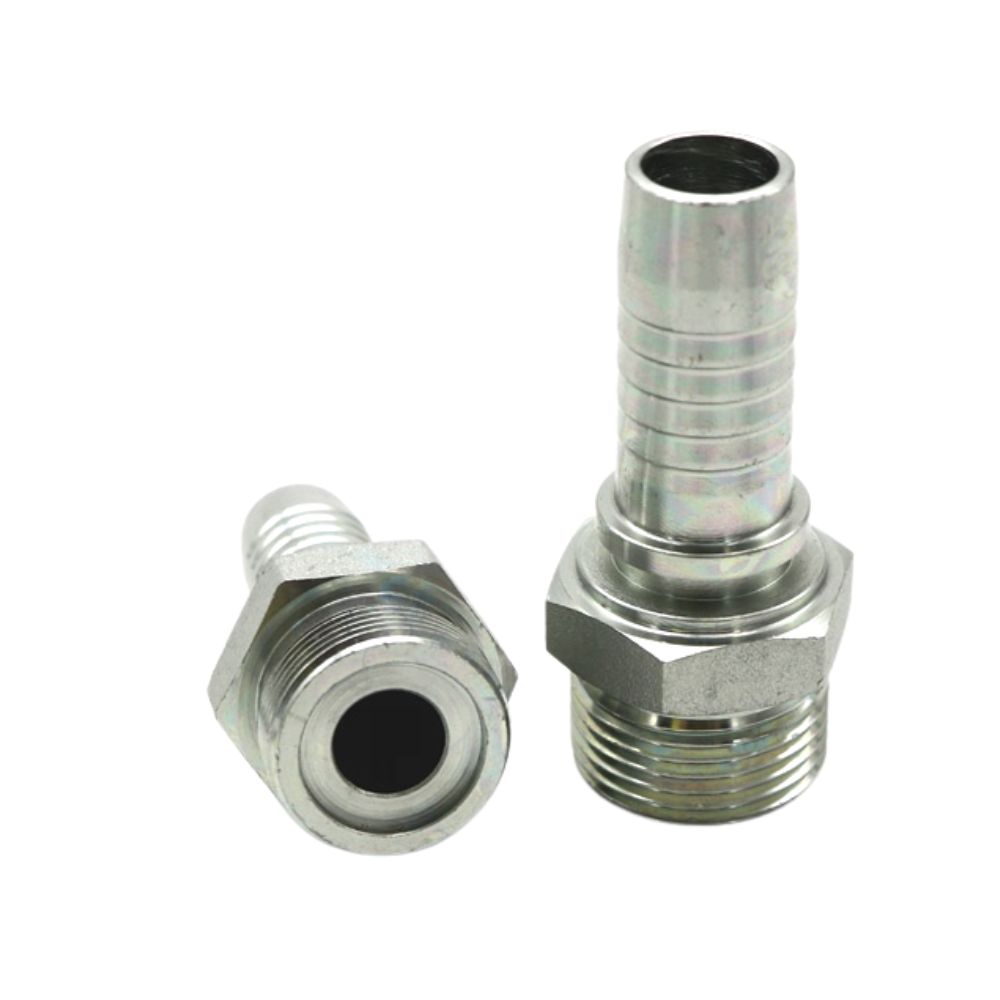

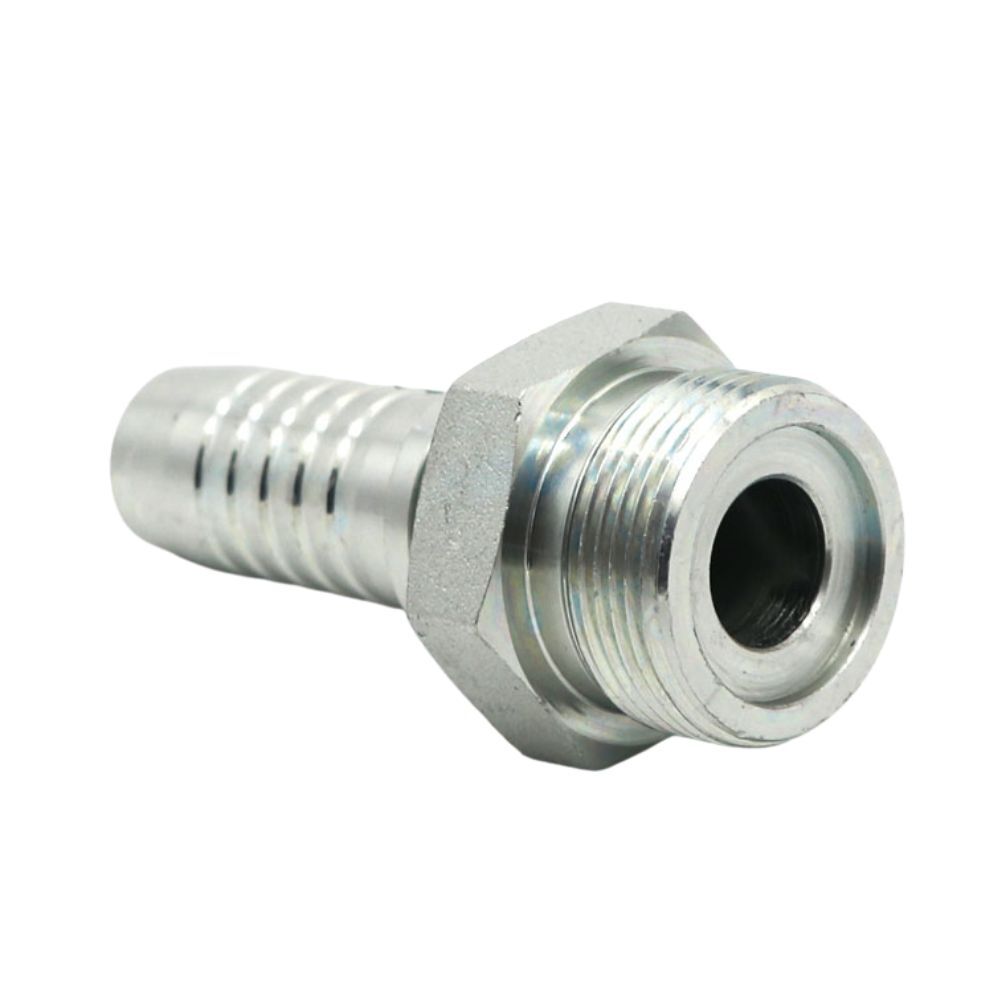

10311 O-ring male flat seal metric hydraulic fitting is a straight male hydraulic hose fitting with a 24-degree metric thread and a flat face, which can create a leak-free seal between two components.

The O-ring is typically made of durable rubber or silicone and provides a reliable seal that prevents hydraulic fluid from leaking out of the connection.

Feel free to ask if you have any questions about the hydraulic metric fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to operate
• Great strength

Description

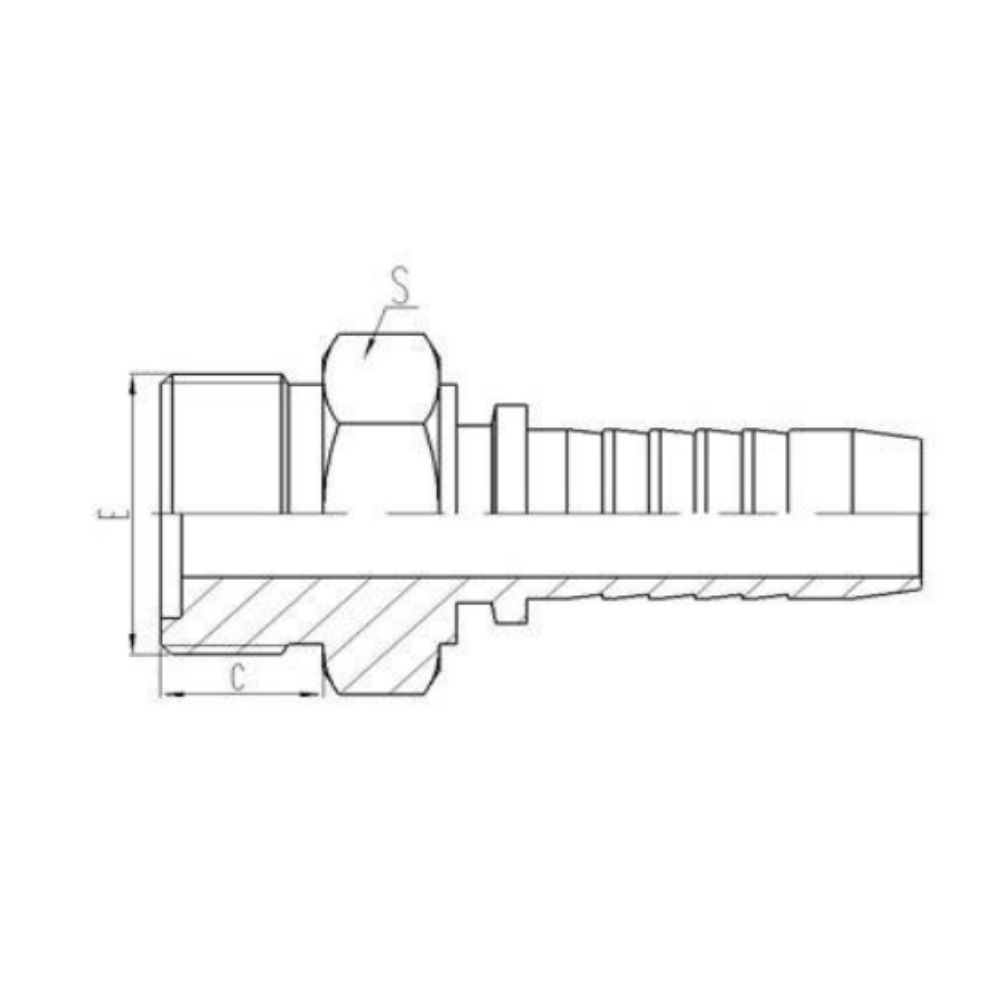

	E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S
10311-14-04	M14X1.5	6	04	11	17
10311-16-05	M16X1.5	8	05	11	17
10311-16-08	M16X1.5	12	08	11	17
10311-18-06	M18X1.5	10	06	11	19
10311-22-06	M22X1.5	10	06	12	24
10311-22-08	M22X1.5	12	08	12	24
10311-27-10	M27X1.5	16	10	13	30
10311-30-12	M30X1.5	20	12	14	32
10311-36-14	M36X2	22	14	16	38
10311-39-16	M39X2	25	16	16	41
10311-45-20	M45X2	32	20	20	46
10311-52-24	M52X2	38	24	22	55
10311-64-32	M64X2	51	32	27	65

10311 O-ring Male Flat Seal Metric Hydraulic Fitting Video

This video shows information about o-ring male flat seal metric hydraulic fitting.

The metric hydraulic flat seal fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about metric fittings, please contact us.
