Metric Hydraulic Fittings

Description:

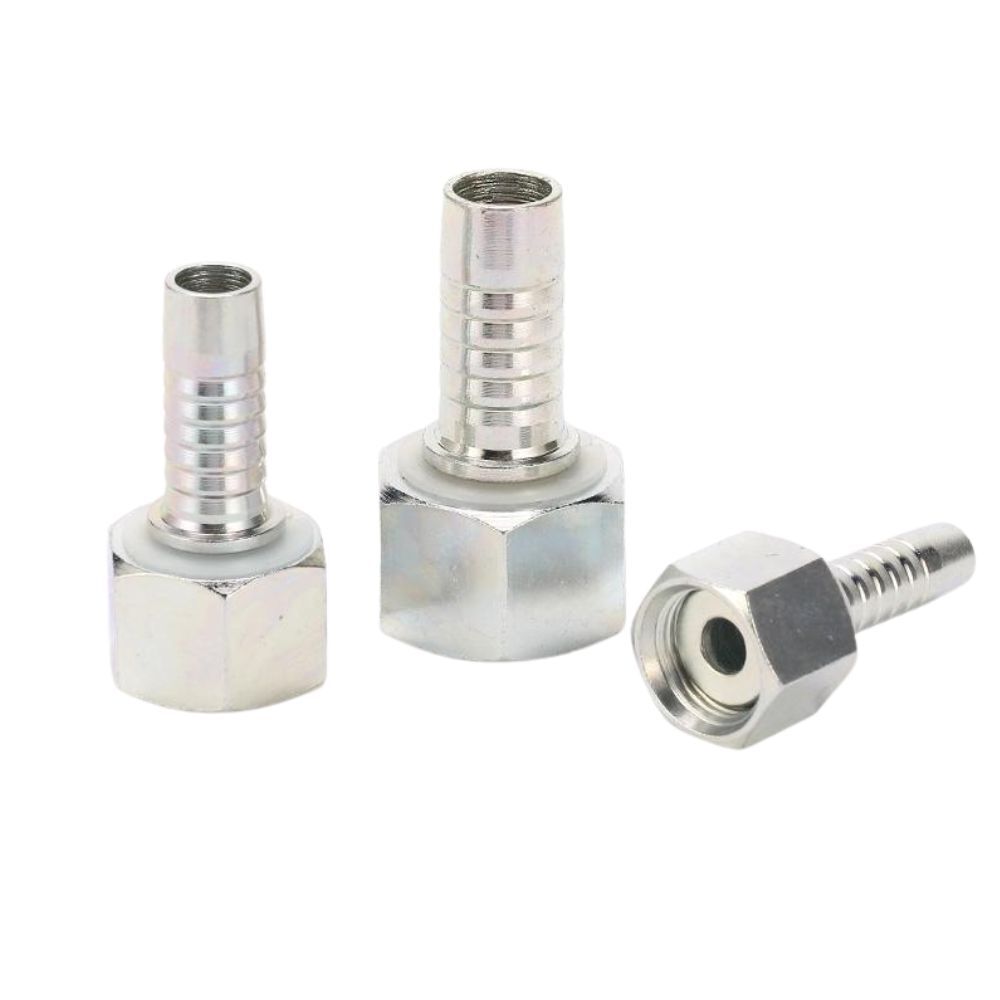

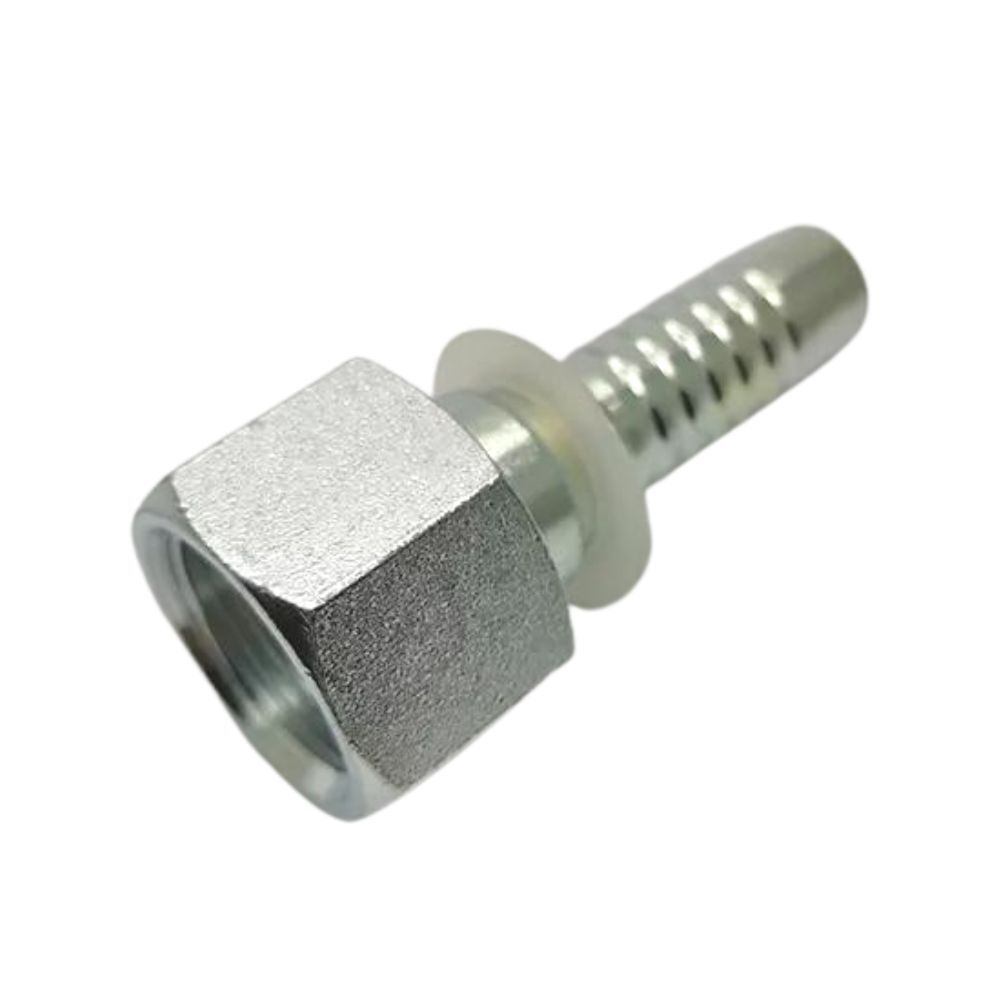

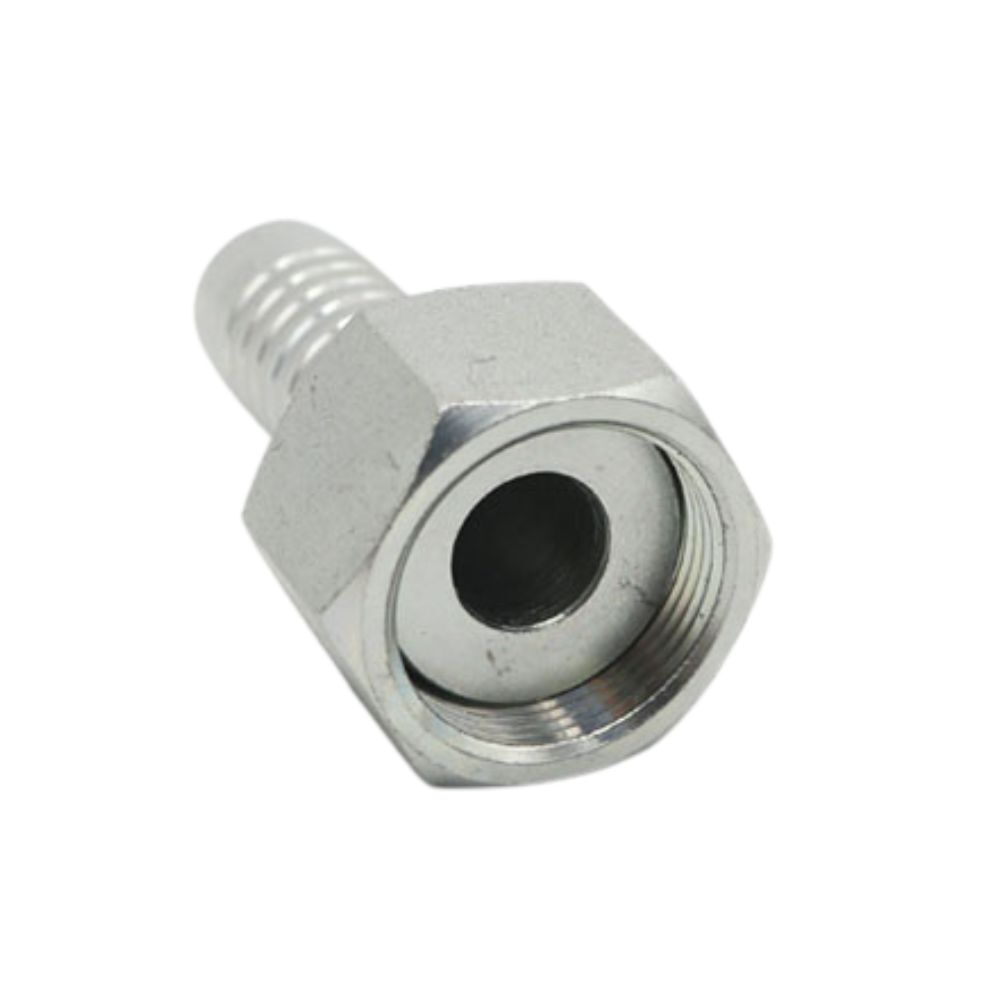

20211/20211-T flat seal metric hydraulic fitting is a straight female hydraulic hose fitting with a 24-degree metric thread and a flat face, which can create a leak-free seal between two components.

The flat sealing surface is designed to create a leak-tight connection when used with fittings.

Feel free to ask if you have any questions about the hydraulic metric fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to operate
• Great strength

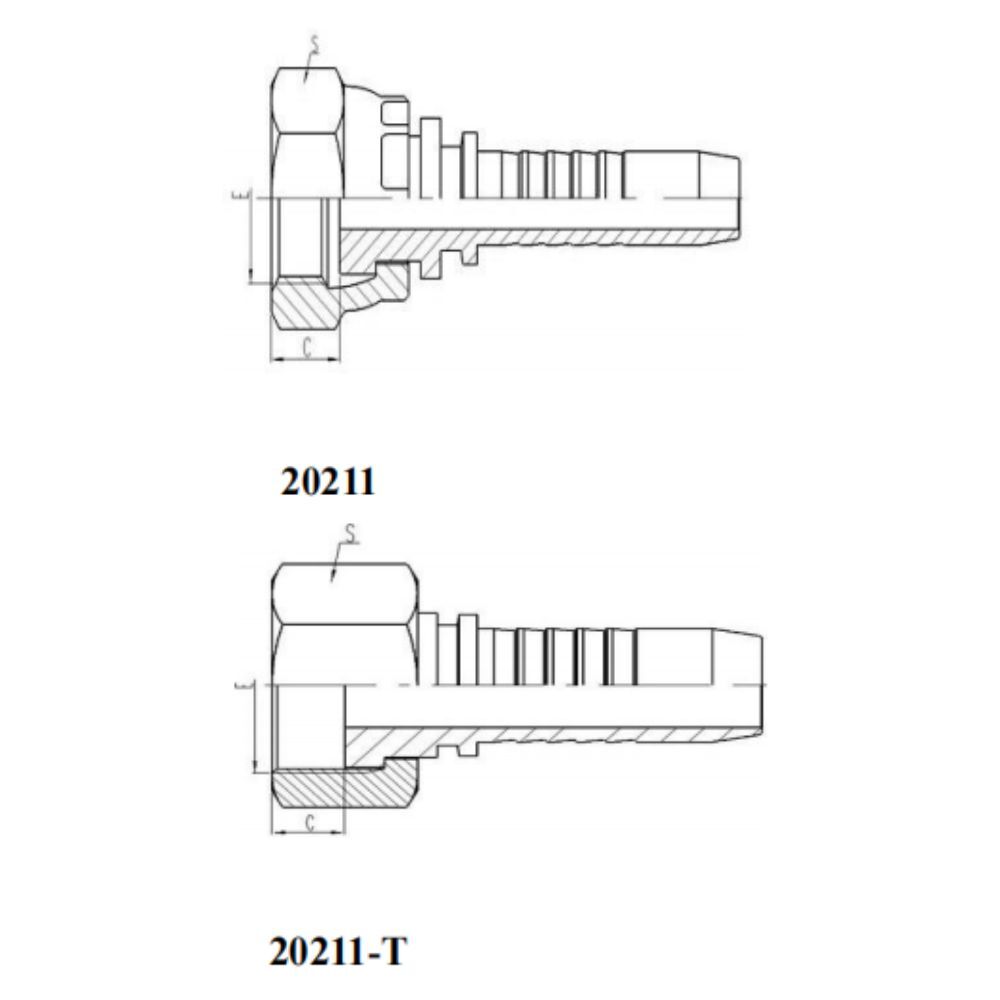

Description



E

HOSE BORE

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

S

20211-10-03

M10X1

5

3

6

14

20211-10-04

M10X1

6

4

6

14

20211-12-03

M12X1.25

4

3

8

17

20211-12-04

M12X1.25

6

4

8

17

20211-14-04

M14X1.5

6

4

8.5

19

20211-14-05

M14X1.5

8

5

8.5

19

20211-14-08

M14X1.5

12

8

8.5

19

20211-16-04

M16X1.5

6

4

8

22

20211-16-05

M16X1.5

8

5

8

22

20211-16-06

M16X1.5

10

6

8

22

20211-18-05

M18X1.5

8

5

8

24

20211-18-06

M18X1.5

10

6

8

24

20211-18-08

M18X1.5

12

8

8

24

20211-20-08

M20X1.5

12

8

10

27

20211-22-08

M22X1.5

12

8

10

27

20211-27-10

M27X1.5

16

10

10

32

20211-27-12

M27X1.5

20

12

10

32

20211-30-12

M30X1.5

20

12

11

36

20211-33-14

M33X2

22

14

13

41

20211-33-16

M33X2

25

16

13

41

20211 Female Flat Seal Metric Hydraulic Fittings Video

This video shows information about female flat seal metric hydraulic fittings.

The metric hydraulic flat seal fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.

If you have any questions about metric fitting, please contact us.
