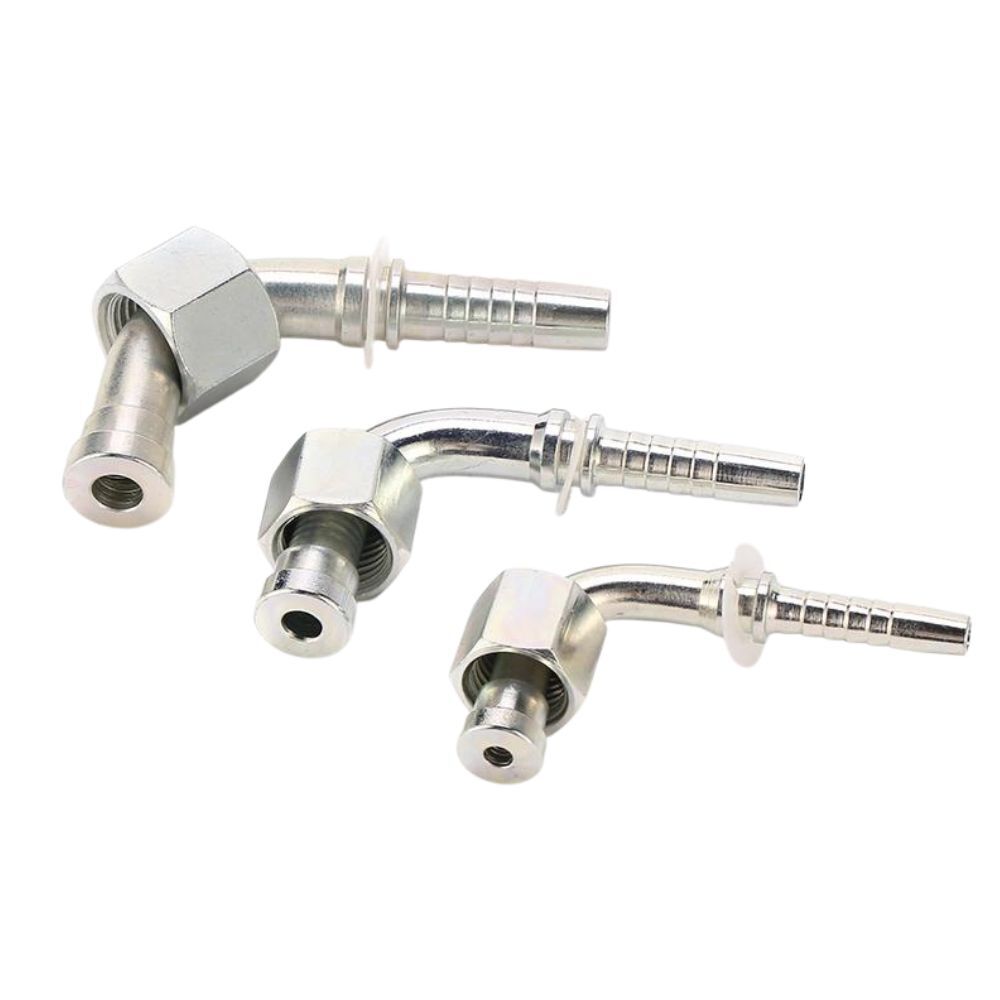

20291/20291-T Hydraulic Metric Fitting

Description:

20291/20291-T female flat seal metric hydraulic fitting is an elbow 90° hydraulic hose fitting with a 24-degree metric thread and a flat face, which can create a leak-free seal between two components.

The flat sealing surface is designed to create a leak-tight connection when used with fittings.

Feel free to ask if you have any questions about the hydraulic metric fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to operate
• Great strength

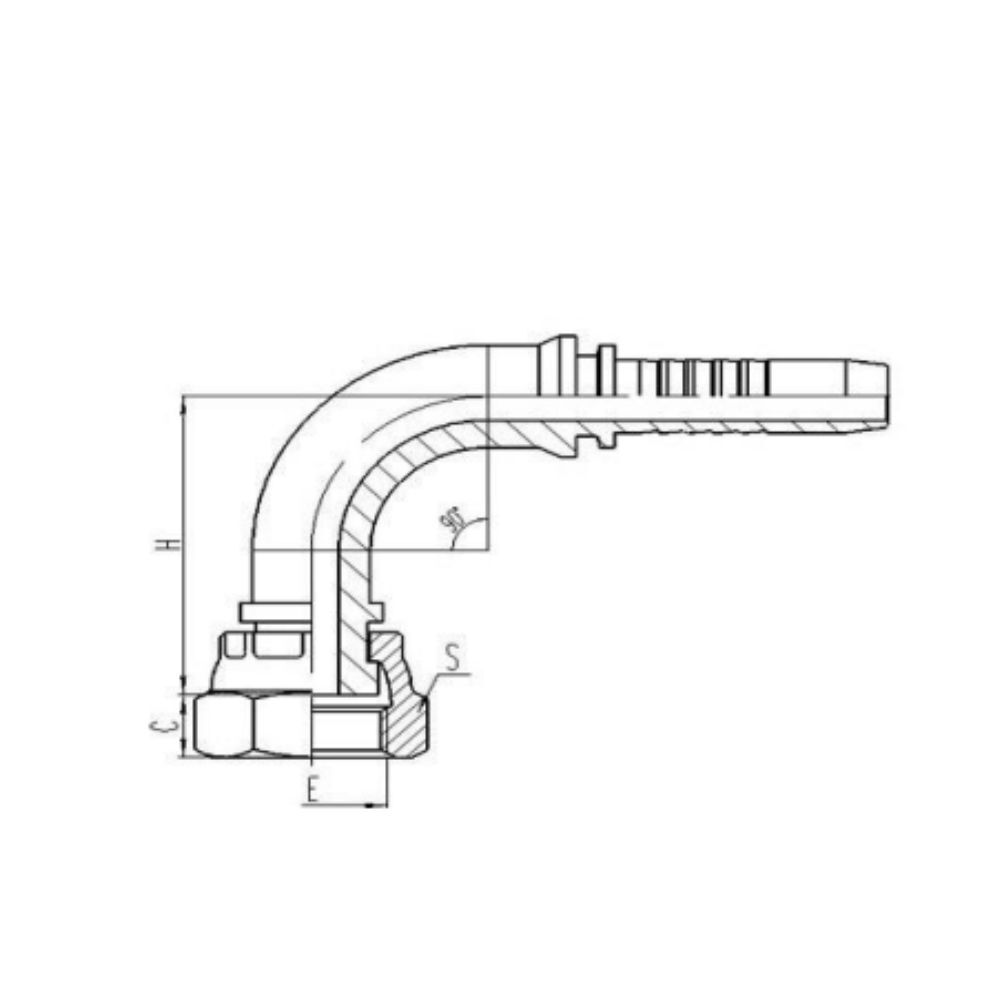

Description

E

HOSE BORE

DIMENSIONS



PART NO.

THREAD E

DN

DASH

C

S

H

20291-12-03

M12X1.25

5

03

8

17

30.5

20291-14-04

M14X1.5

6

04

8.5

19

34

20291-14-05

M14X1.5

8

05

8.5

19

34

20291-16-05

M16X1.5

8

05

8.5

22

38

20291-18-06

M18X1.5

10

06

8.5

24

41.3

20291-22-08

M22X1.5

12

08

10

27

48

20291-22-12

M22X1.5

20

12

10

27

62

20291-27-10

M27X1.5

16

10

10

32

54

20291-30-12

M30X1.5

20

12

11

36

63.5

20291-36-16

M36X2

25

16

13

41

70

20291-42-20

M42X2

32

20

15

50

82.5

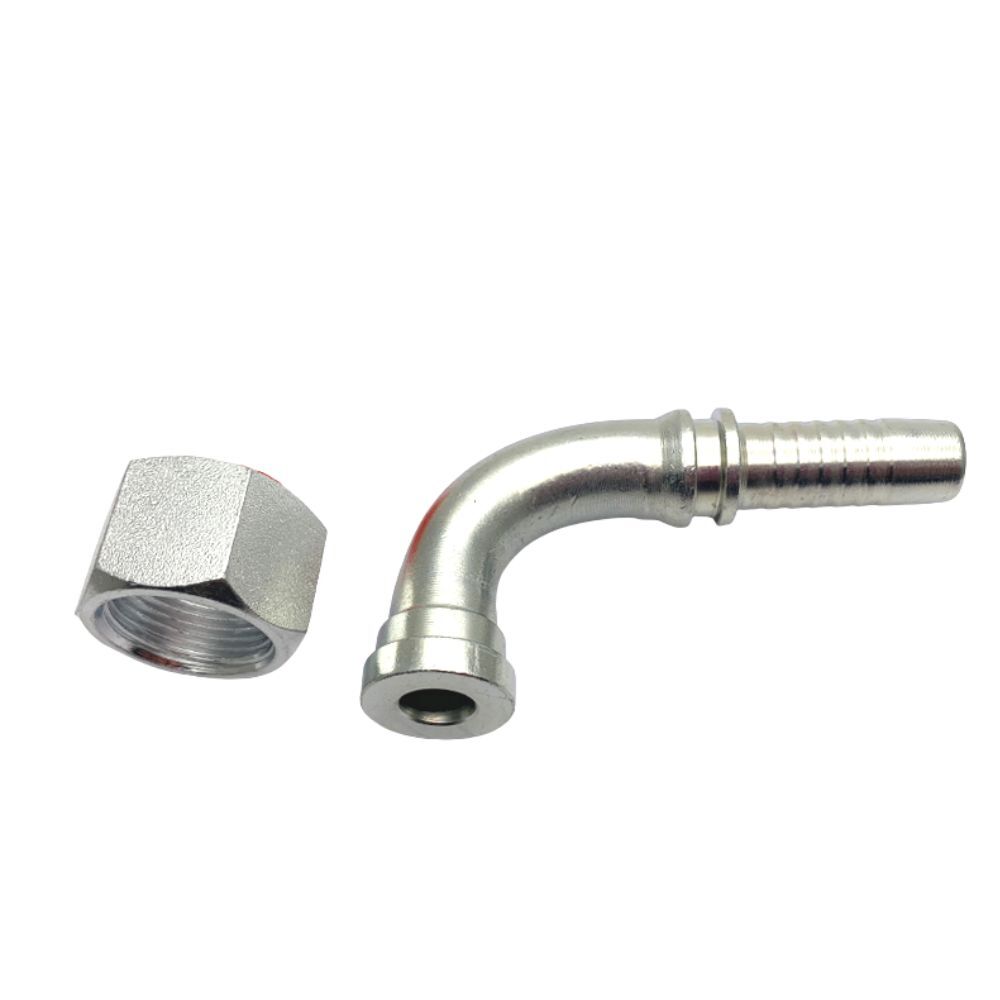

20291/20291-T 90° Metric Flat Seat Hydraulic Metric Fitting

This video shows information about 90-degree male flat face hydraulic metric fitting.

The metric hydraulic flat face fittings are commonly applied in a variety of hydraulic fluid systems, including automotive systems,industrial machinery, and construction equipment.
