Metric Bulkhead Fitting

Description:

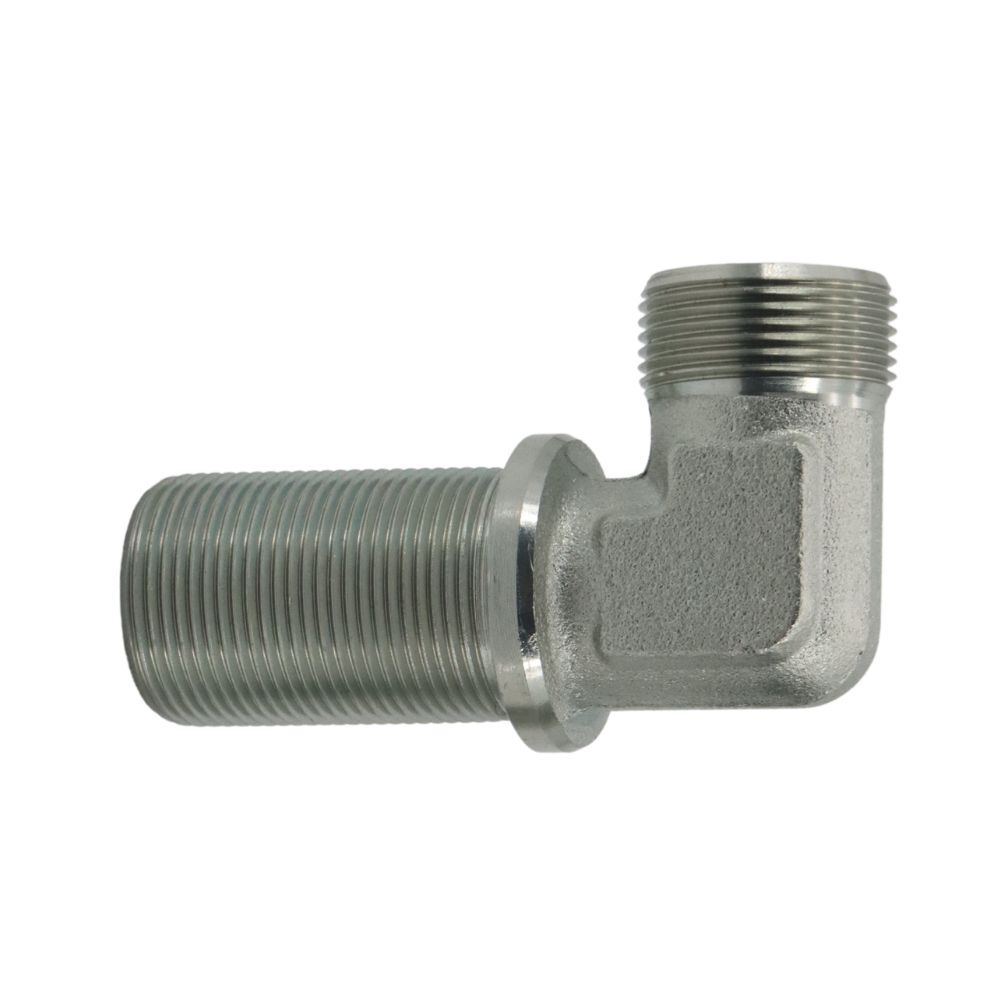

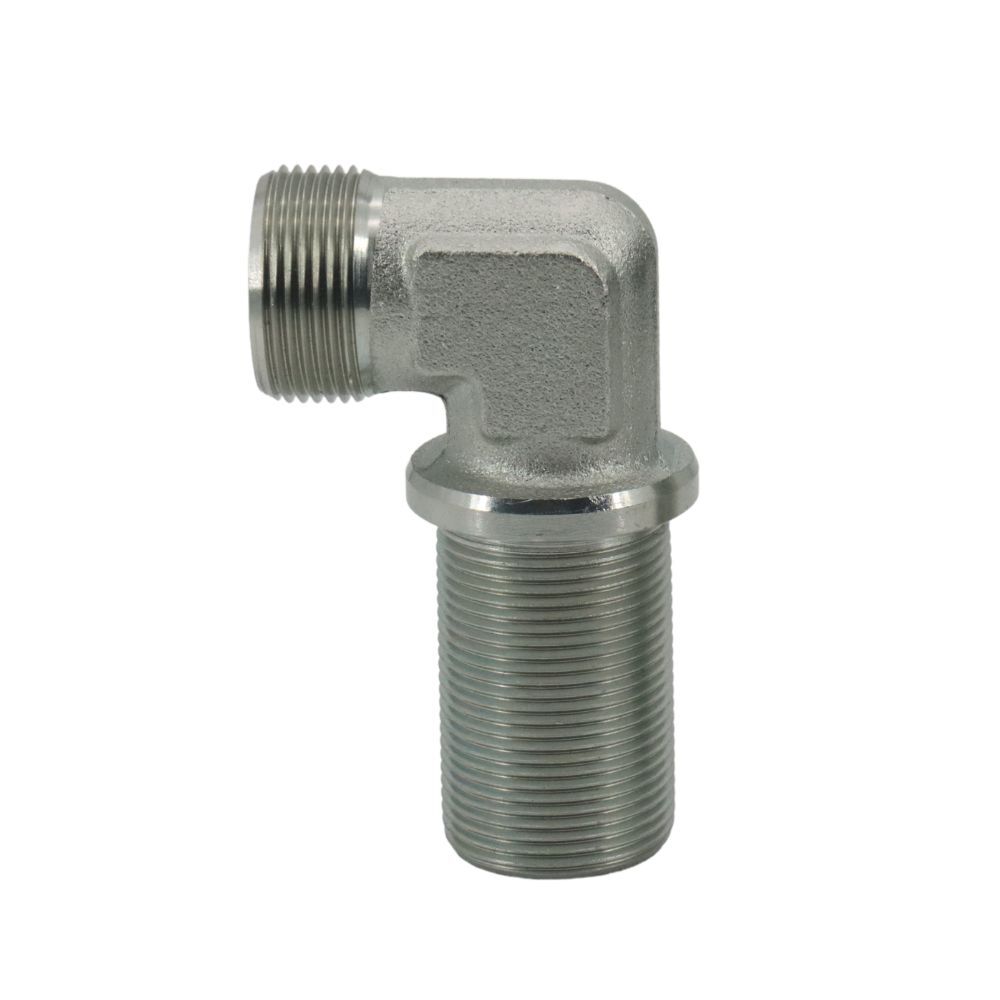

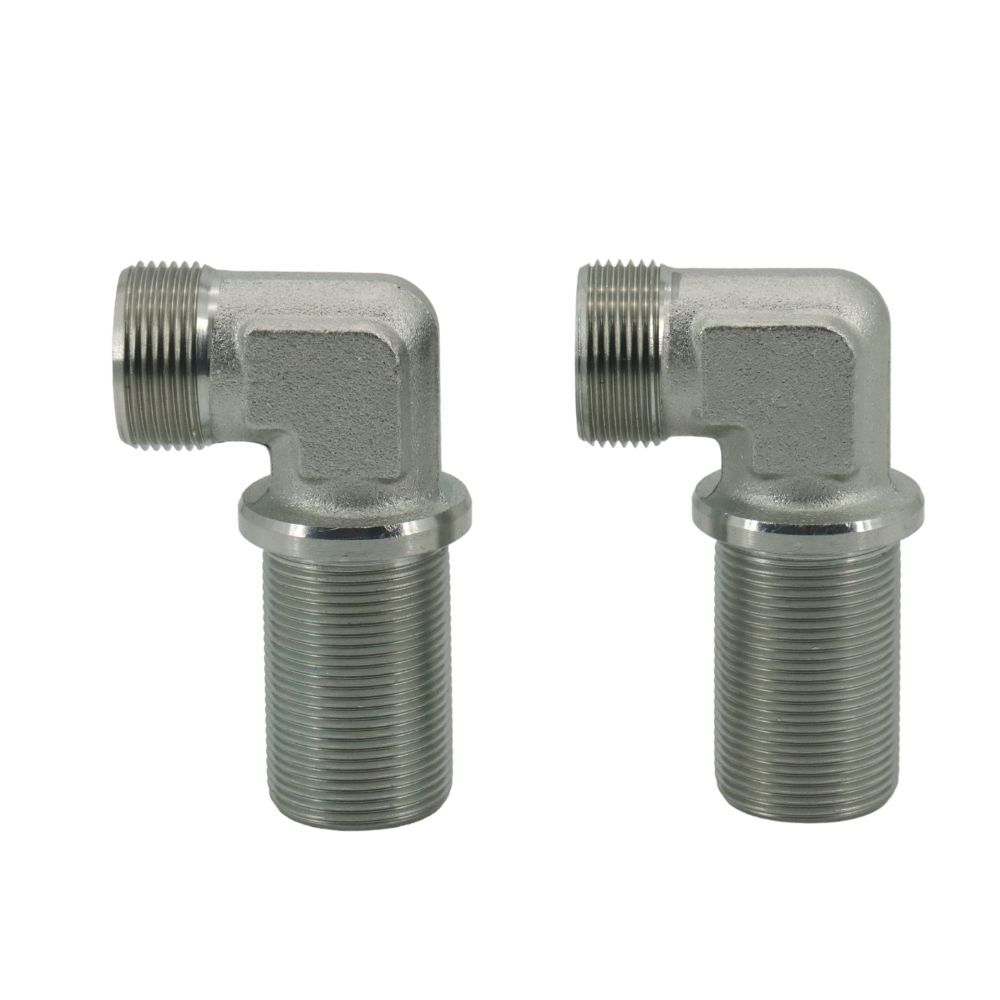

6C9 metric 24-degree cone bulkhead adapter is a 90-degree elbow hydraulic adapter that connects pipes or hoses through a bulkhead or panel.

The bulkhead nut is used to tighten the fitting onto the bulkhead or panel, while the bulkhead sleeve supports the panel and helps distribute the load.

Feel free to ask any questions about the metric fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description



RAPT  NO.

THREAD

TUBE O.D.

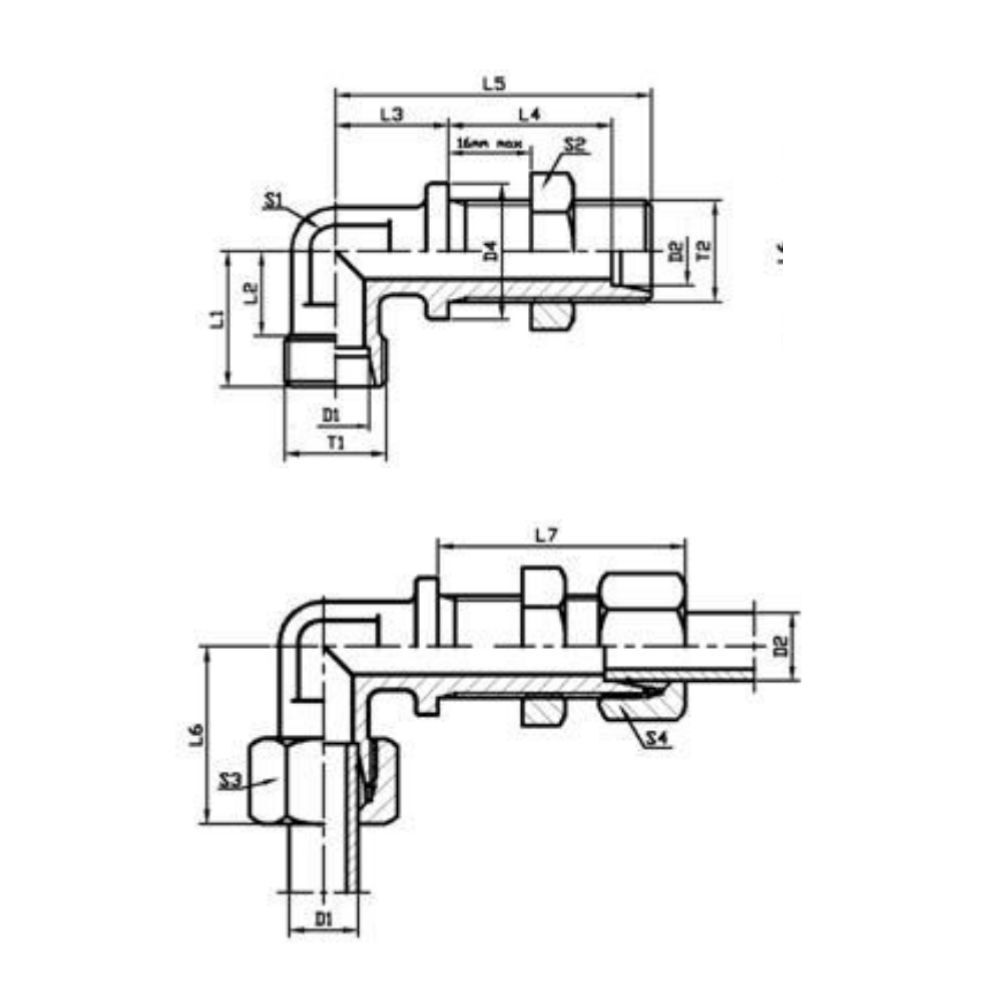

DIMENSIONS

T1

T2

D1D2

D4

L1

L2

L3

L4

L5

L6

L7

S1

S2

S3S4







L

6C9-12LN

M12X1.5

M12X1.5

06

17

19

12

14

27

48

27

42

12

17

14

6C9-14LN

M14X1.5

M14X1.5

08

19

21

14

17

27

51

29

42

12

19

17

6C9-16LN

M16X1.5

M16X1.5

10

22

22

15

18

28

53

30

43

14

22

19

6C9-18LN

M18X1.5

M18X1.5

12

24

24

17

20

29

56

32

44

17

24

22

6C9-22LN

M22X1.5

M22X1.5

15

27

28

21

23

31

61

36

46

19

30

27

6C9-26LN

M26X1.5

M26X1.5

18

32

31

23.5

24

32.5

64

40

49

24

36

32

6C9-30LN

M30X2

M30X2

22

36

35

27.5

30

34.5

72

44

51

27

41

36

6C9-36LN

M36X2

M36X2

28

42

38

30.5

34

35.5

77

47

52

36

46

41

6C9-45LN

M45X2

M45X2

35

50

45

34.5

39

36.5

86

56

58

41

55

50

6C9-52LN

M52X2

M52X2

42

60

51

40

43

36

90

63

59

50

65

60







S

6D9-14LN

M14X1.5

M14X1.5

06

19

23

16

17

29

53

31

44

12

19

17

6D9-16LN

M16X1.5

M16X1.5

08

22

24

17

18

29

54

32

44

14

22

19

6D9-18LN

M18X1.5

M18X1.5

10

24

25

17.5

20

29.5

57

34

46

17

24

22

6D9-20LN

M20X1.5

M20X1.5

12

27

29

21.5

21

30.5

59

38

47

17

27

24

6D9-22LN

M22X1.5

M22X1.5

14

27

30

22

23

32

63

40

50

19

30

27

6D9-24LN

M24X1.5

M24X1.5

16

30

33

24.5

24

31.5

64

43

50

24

32

30

6D9-30LN

M30X2

M30X2

20

36

37

26.5

30

33.5

74

48

55

27

41

36

6D9-36LN

M36X2

M36X2

25

42

42

30

34

35

81

54

59

36

46

46

6D9-42LN

M42X2

M42X2

30

50

49

35.5

39

37.5

90

62

64

41

50

50

6D9-52LN

M52X2

M52X2

38

60

57

41

43

37

96

72

68

50

65

60

6C9 90° Elbow Metric Bulkhead Fitting Video

This video shows information about the 6C9 metric bulkhead fitting.

Hydraulic metric adapters have a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.

If you have any questions about metric thread adapter, please contact us.
