Metric Bulkhead Adapter

Description:

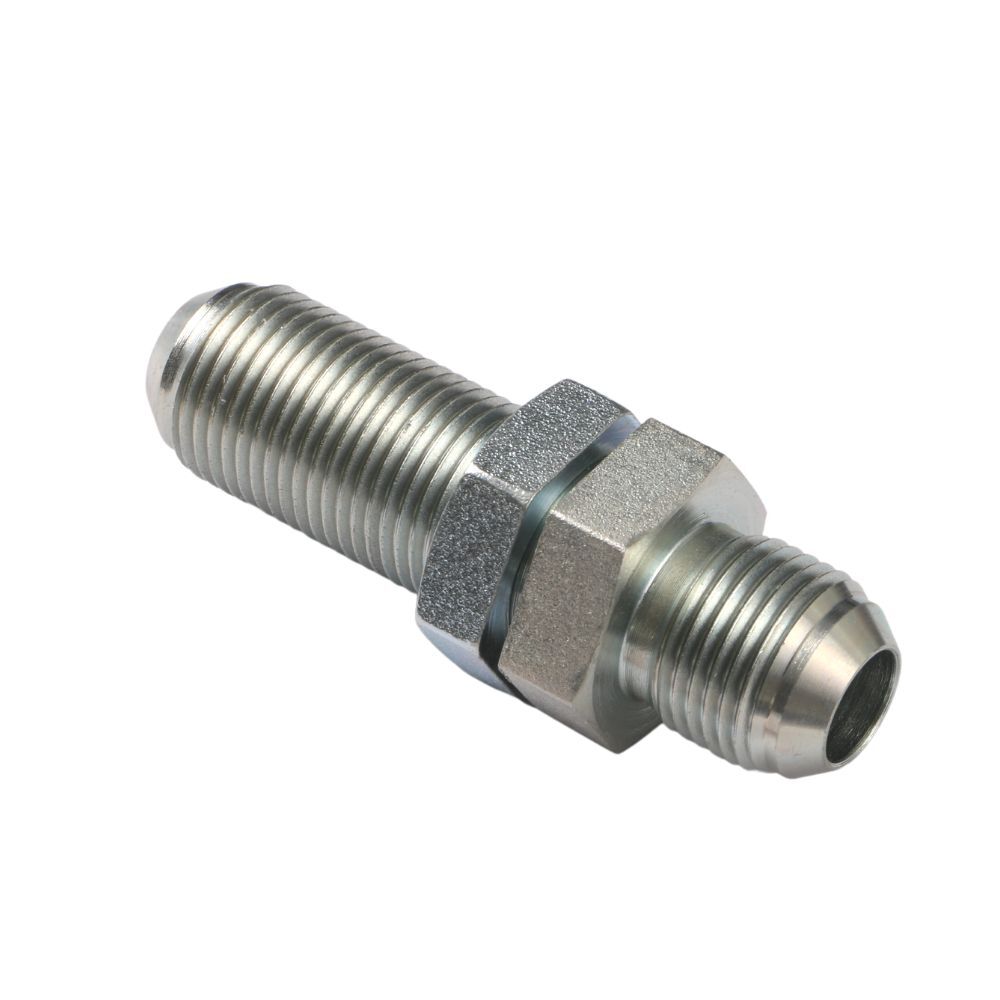

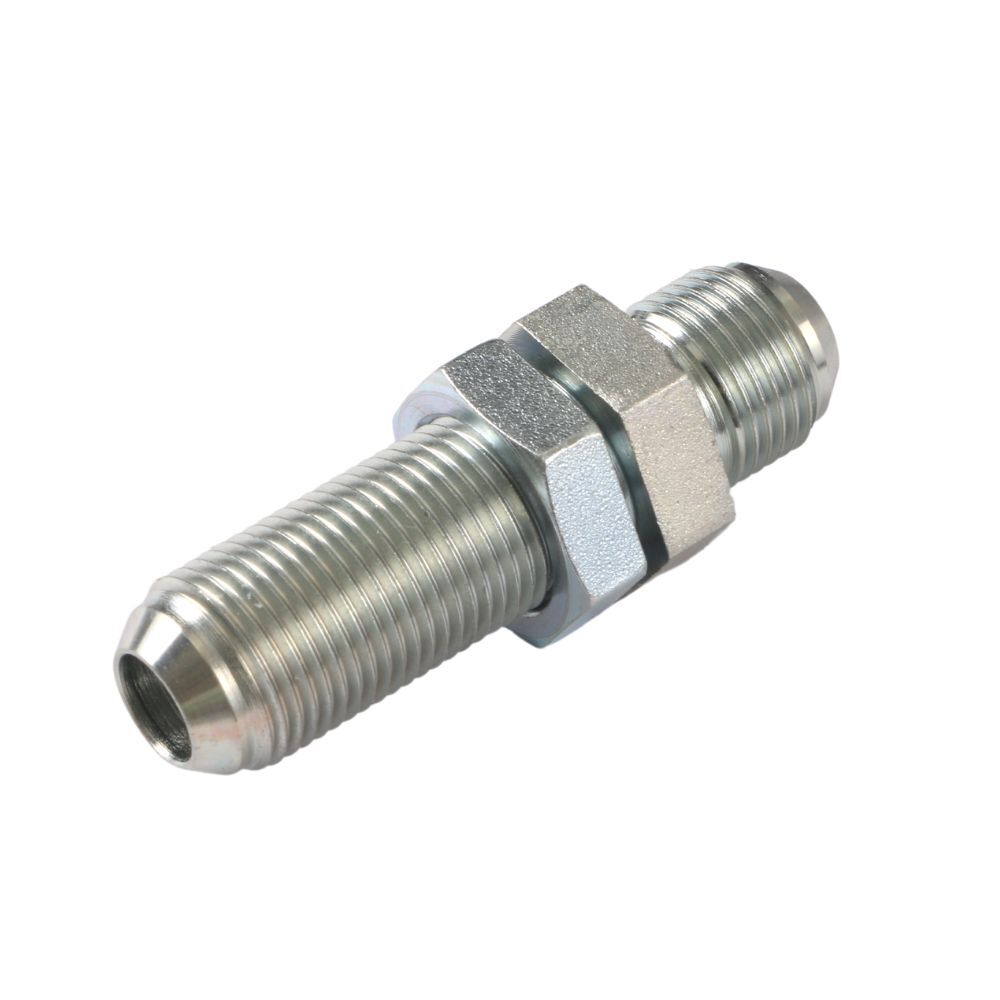

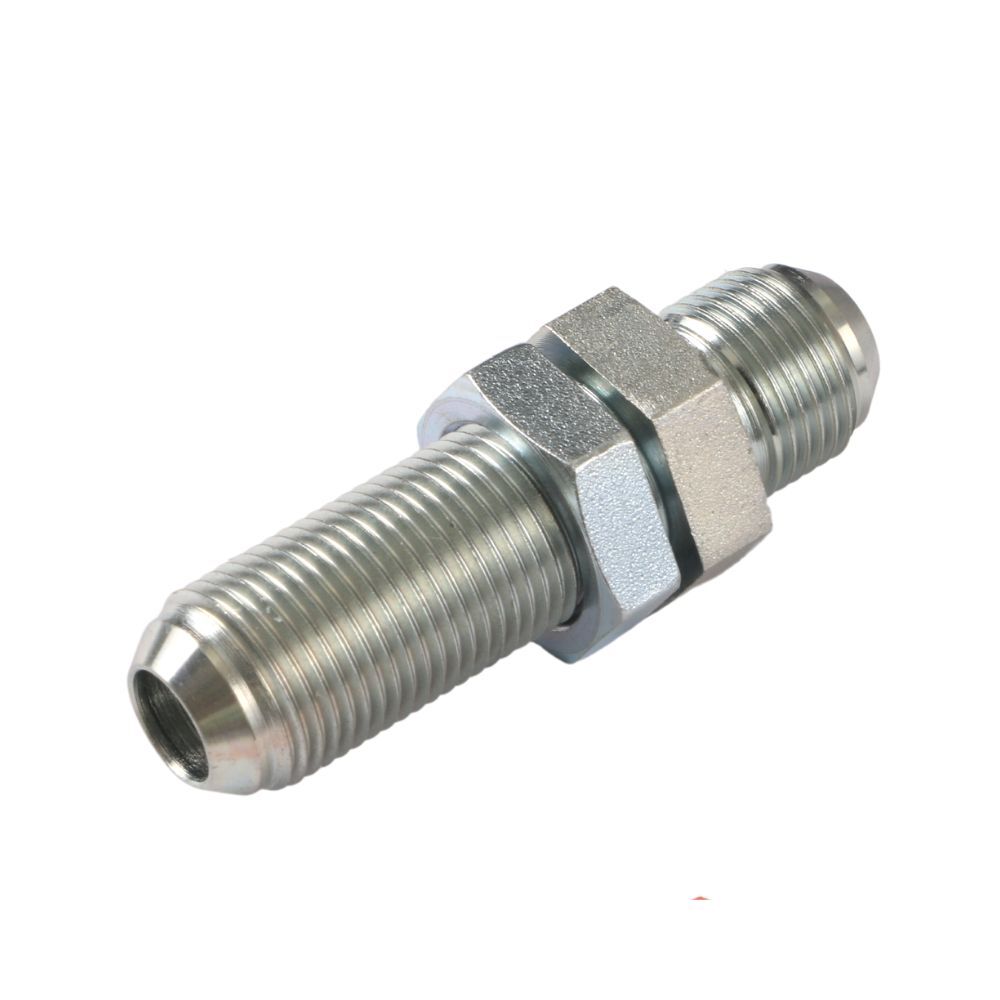

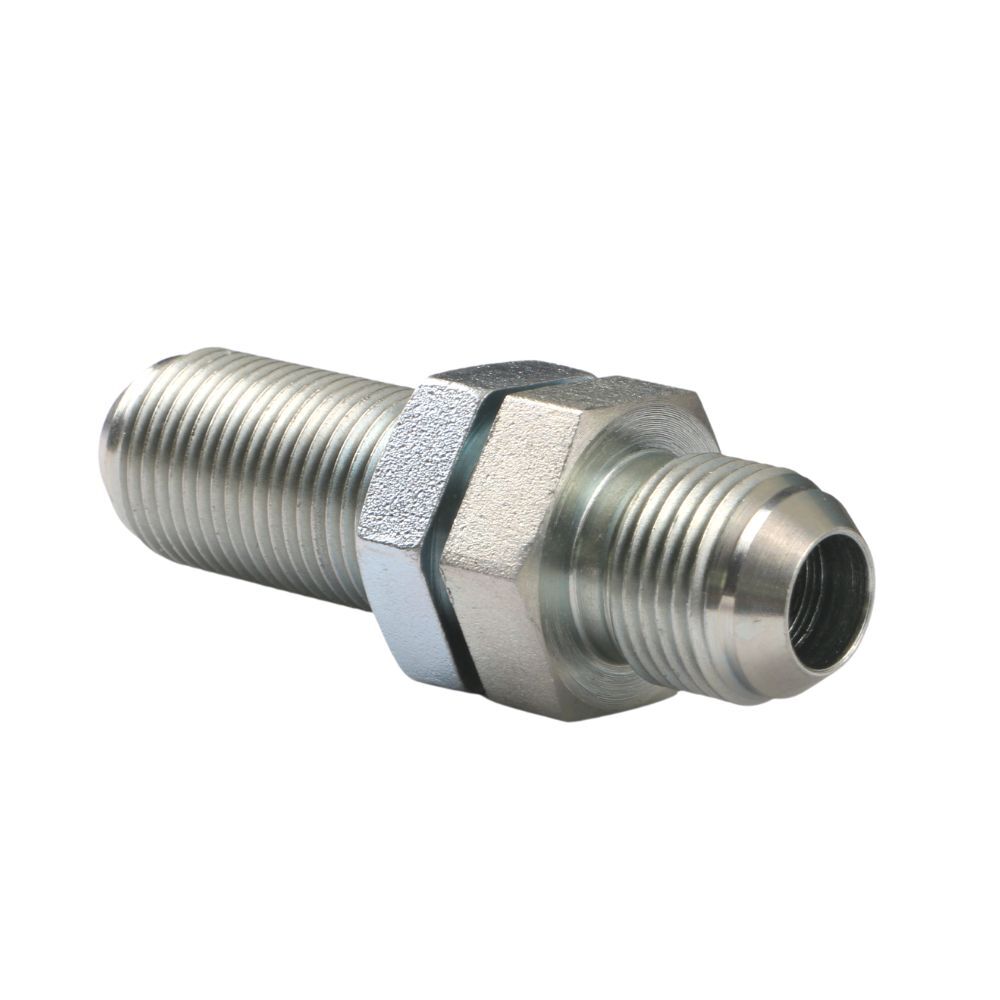

6Q metric 74-degree cone bulkhead adapter is a straight hydraulic adapter that connects pipes or hoses through a bulkhead or panel.

The bulkhead nut is used to tighten the fitting onto the bulkhead or panel, while the bulkhead sleeve supports the panel and helps distribute the load.

Feel free to ask any questions about the metric hydraulic fittings.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

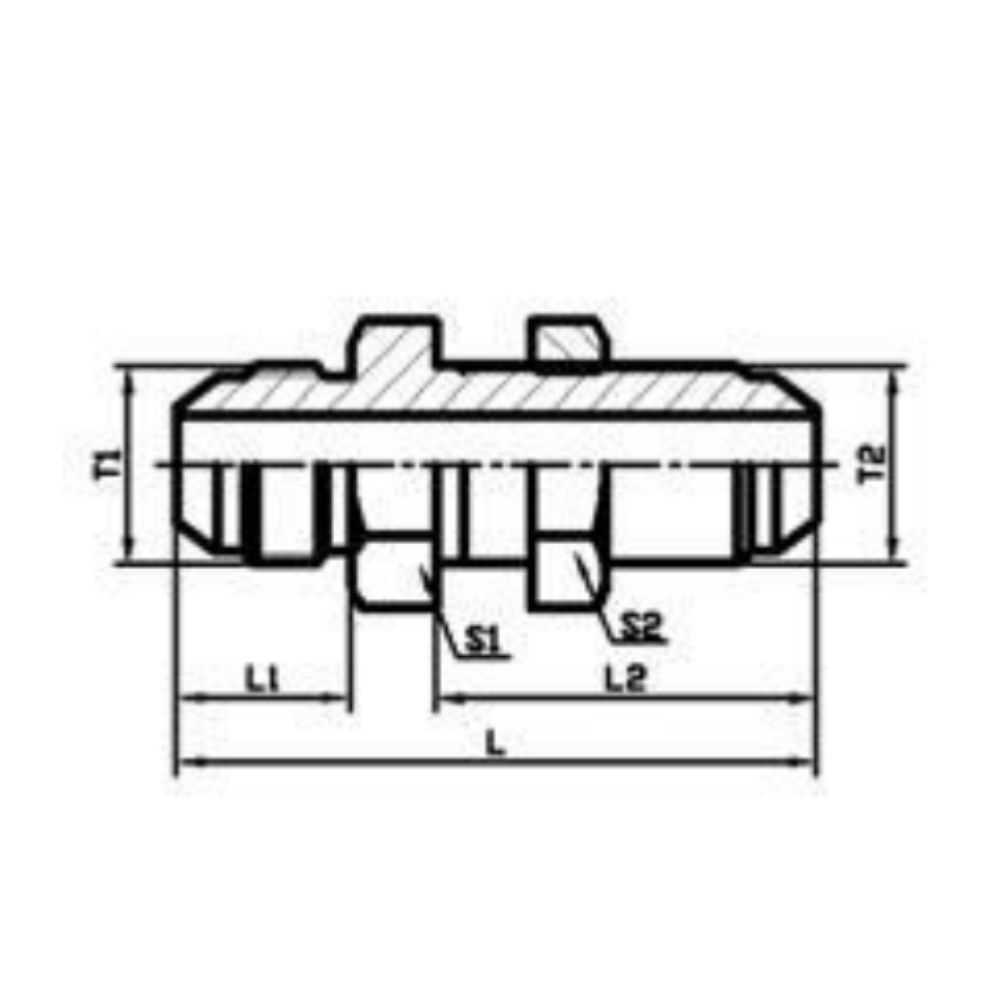

RAPT NO.	THREAD		DIMENSIONS					Working pressre MPa
RAPT NO.	T1	T2	L1	L2	L	S1	S2	Working pressre MPa
6Q-10LN	M10X1	M10X1	12.5	34	51.5	14	14	35
6Q-12LN	M12X1.5	M12X1.5	16	38	60	14	17
6Q-14LN	M14X1.5	M14X1.5	18	40	64	17	19
6Q-16LN	M16X1.5	M16X1.5	19	41	66	19	22	25
6Q-18LN	M18X1.5	M18X1.5	19	43	68	22	24	25
6Q-22LN	M22X1.5	M22X1.5	19.5	44	69.5	27	27	20
6Q-24LN	M24X1.5	M24X1.5	20	45	73	30	30
6Q-27LN	M27X1.5	M27X1.5	20.5	48	76.5	32	32
6Q-30LN	M30X1.5	M30X1.5	23	53	87	36	36
6Q-33LN	M33X2	M33X2	26	55	90	41	41	16
6Q-36LN	M36X2	M36X2	26	56	93	41	41	16
6Q-39LN	M39X2	M39X2	27.5	58	97.5	46	46	12.5
6Q-42LN	M42X2	M42X2	28.5	59	100.5	50	50	12.5
6Q-45LN	M45X2	M45X2	28.5	60	102.5	50	55	10

6Q Metric Bulkhead Adapter Video

This video shows information about the metric bulkhead adapter.

Hydraulic metric adapters have a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.

If you have any questions about metric hydraulic fitting, please contact us.
