Description

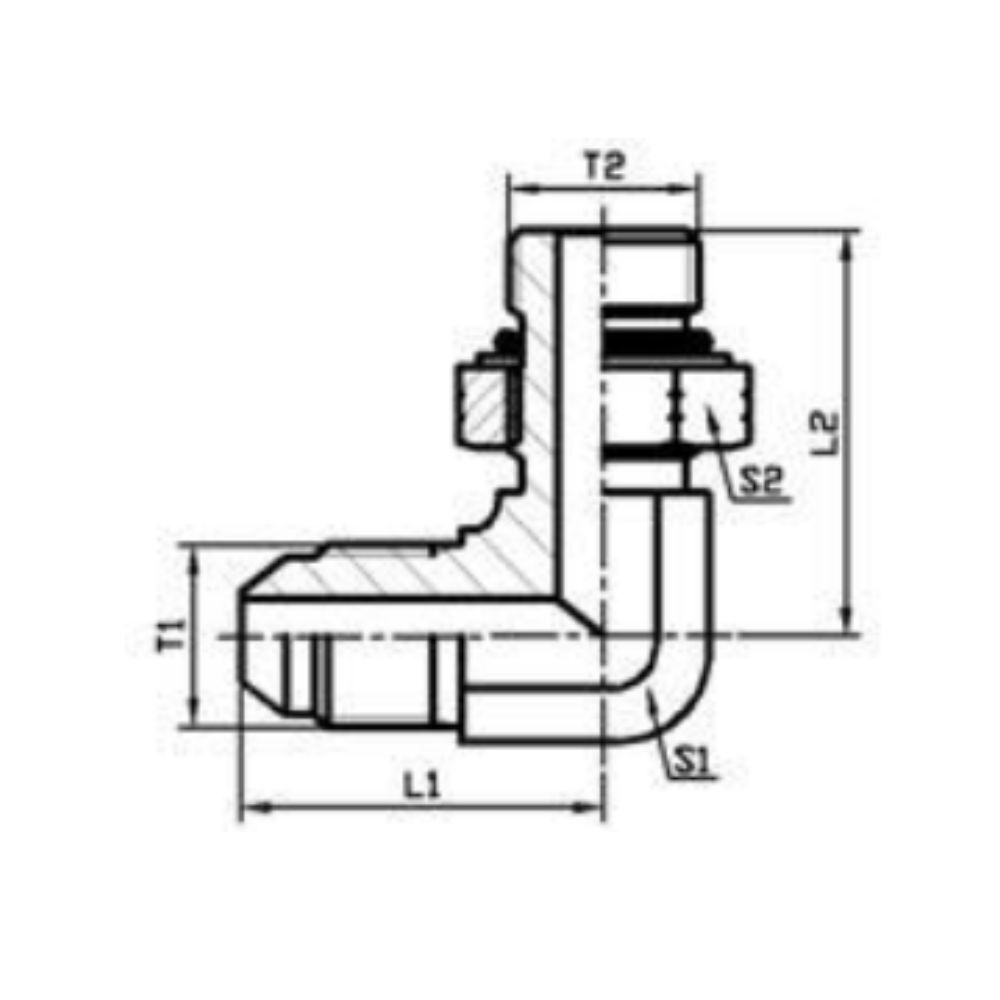

PART NO. | THREAD | DIMENSIONS | MPa | ||||
T1 | T2 | L1 | L2 | S1 | S2 | ||
1QO9-16-06OG | M16X1.5 | 9/16＂X18 | 32 | 31.8 | 16 | 17 | 25 |
1QO9-18-08OG | M18X1.5 | 3/4＂X16 | 34 | 36.8 | 19 | 22 | |
1QO9-22-10OG | M22X1.5 | 7/8＂X14 | 37.5 | 44 | 22 | 27 | 20 |
1QO9-27-12OG | M27X1.5 | 1.1/16＂X12 | 41.5 | 51 | 27 | 32 | |
1QO9-30-12OG | M30X1.5 | 1.1/16＂X12 | 45.8 | 53 | 30 | 32 | |
1QO9-33-16OG | M33X2 | 1.5/16＂X12 | 51 | 54.5 | 33 | 41 | 16 |
1QO9-39-16OG | M39X2 | 1.5/16＂X12 | 55.5 | 59.5 | 41 | 41 | |
1QO9-45-20OG | M45X2 | 1.5/8＂X12 | 60 | 64 | 46 | 50 | 10 |

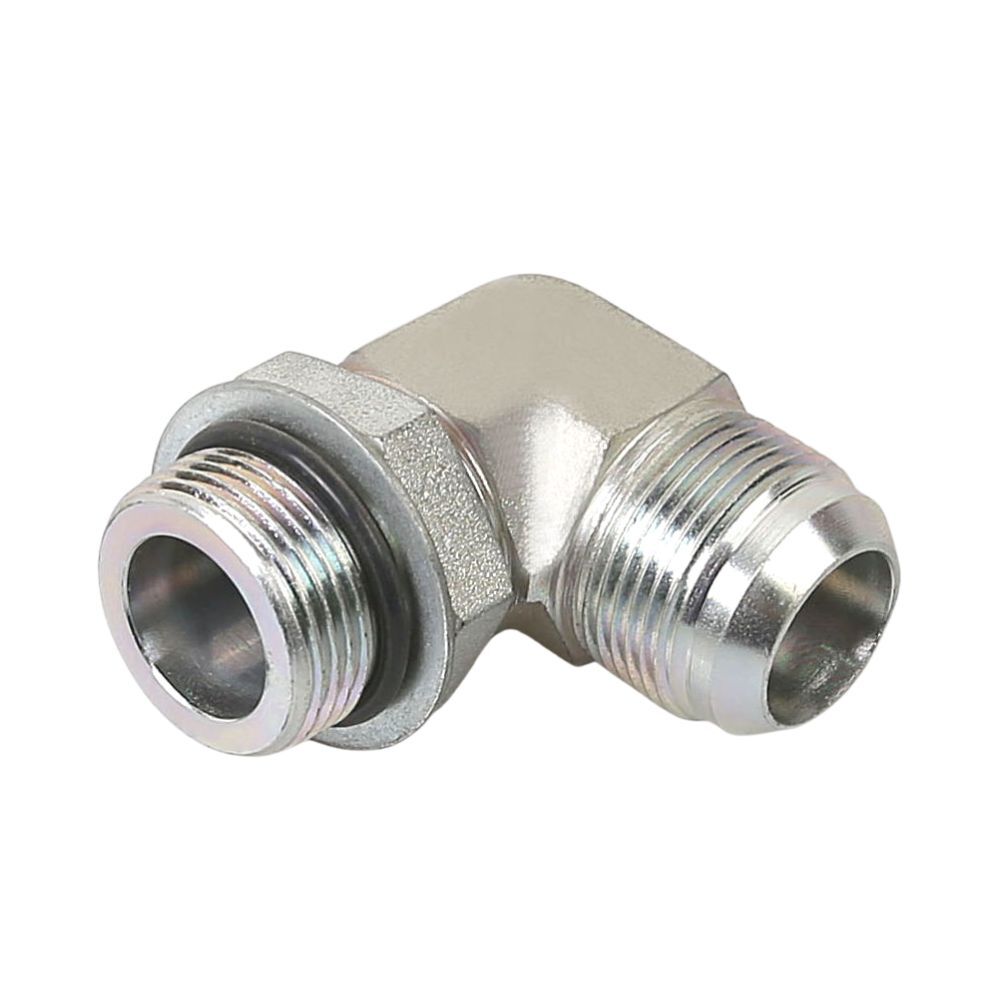

1QO9-OG 90° Elbow 74° Cone Metric Adapter Fittings Video
This video shows information about the 1QO9-OG 90°elbow 74° cone seat metric adapter fittings.
Hydraulic metric adapters can be applied in many hydraulic applications, construction equipments, and industrial machinery.
If you have any questions about metric adapter fittings, please contact us.
