Description

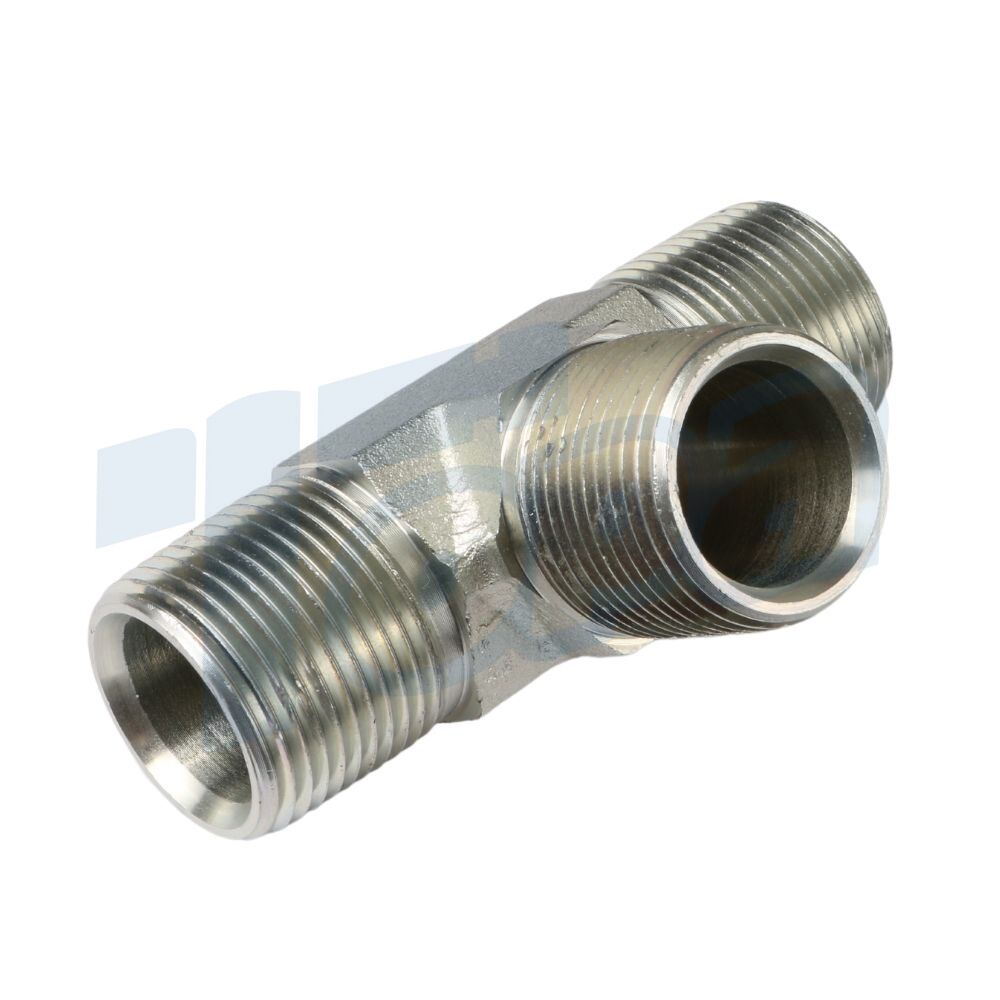

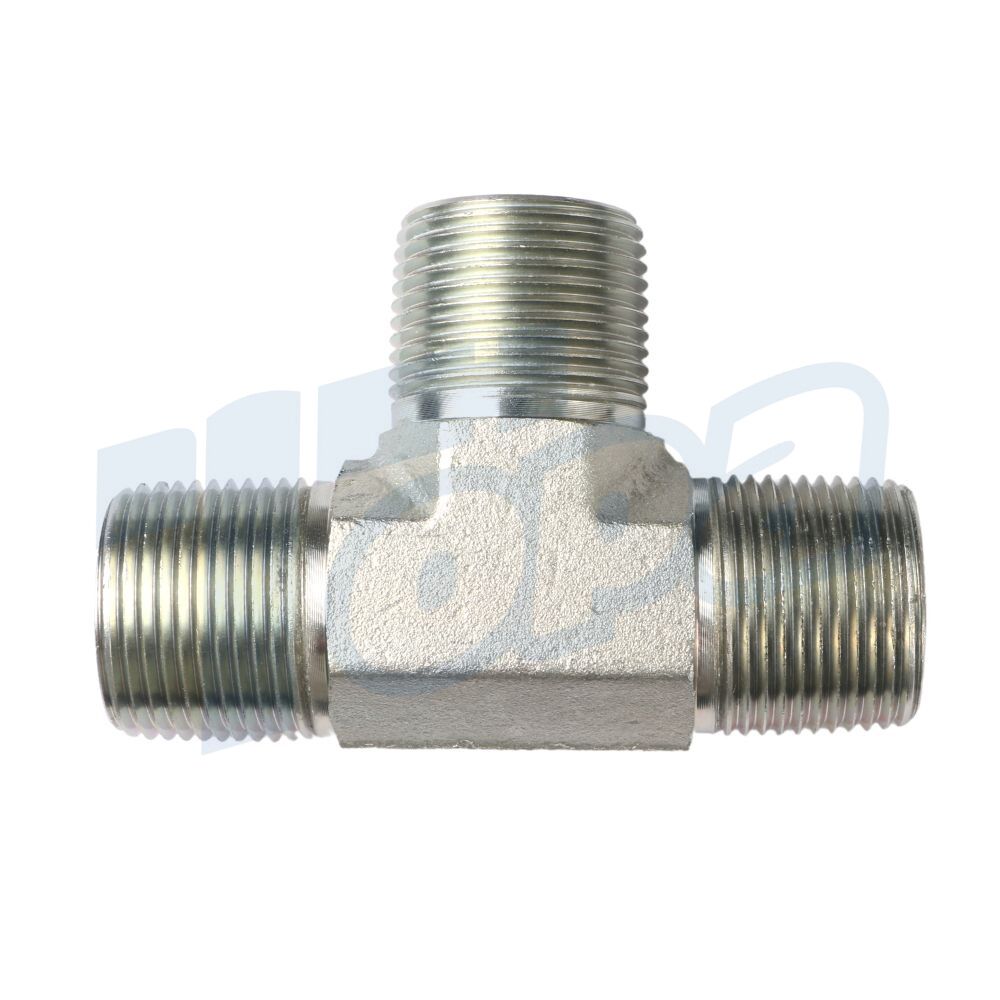

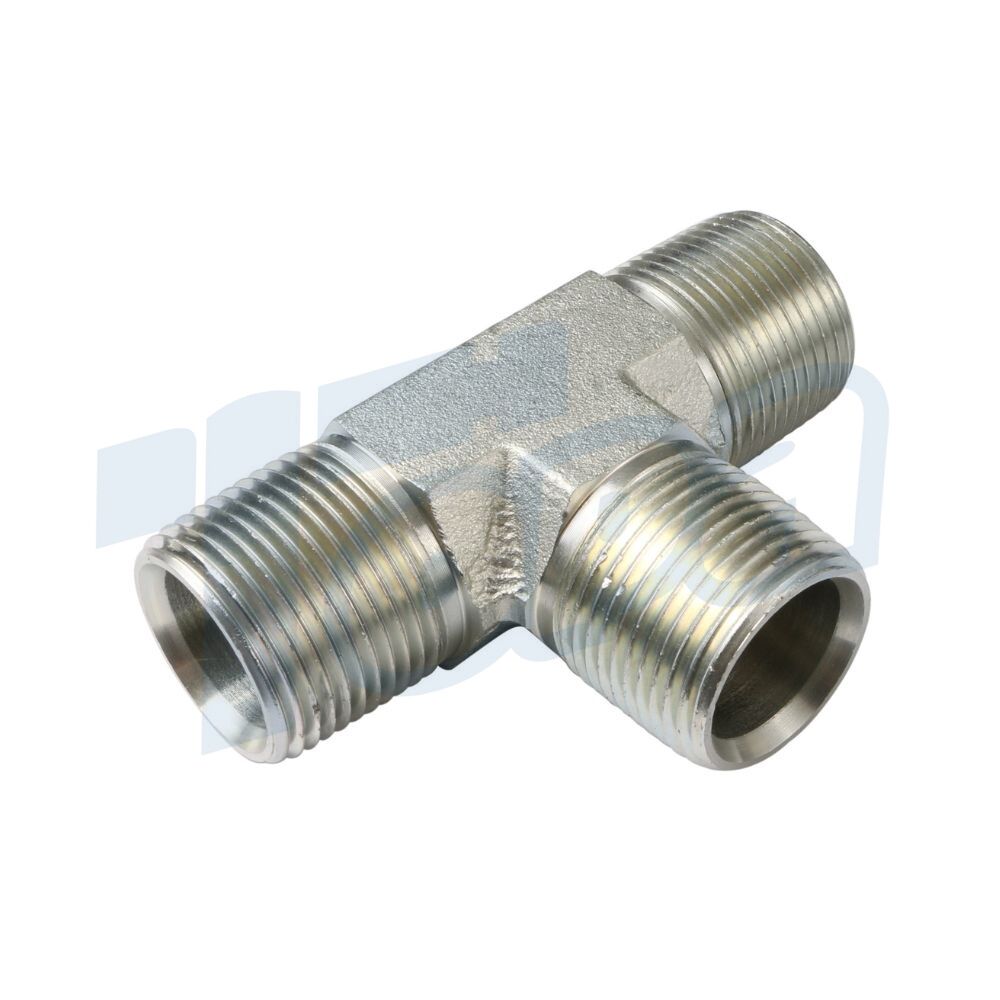

NPT Male Hydraulic Fitting
5600 male NPT pipe tee adapters have three external NPT threads on both ends. And they are used to connect hydraulic pipes and tubes. Those NPT fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with npt male hydraulic fittings, please contact us!
Dimensional Drawings:
TUBE FITTING PART # | PT PORT THD NPTF | D DRILL (inch) | N (inch) | Y (inch) |
5600-2-2-2 | 1/8-27 | 0.188 | 0.78 | 7/16 |
5600-4-4-4 | 1/4-18 | 0.281 | 1.09 | 9/16 |
5600-6-6-6 | 3/8-18 | 0.406 | 1.22 | 3/4 |
5600-8-8-8 | 1/2-14 | 0.531 | 1.47 | 7/8 |
5600-12-12-12 | 3/4-14 | 0.719 | 1.59 | 11/16 |
5600 Male Hydraulic Fitting Video
As the best Chinese hydraulic adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our products can be used in a wide range of hydraulic fluid environments and are resistant to high pressures and temperatures.
With multiple CNC machines in our factory, Topa can produce fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt hydraulic male pipe fittings, please contact us!
