NPT Hydraulic T Fitting

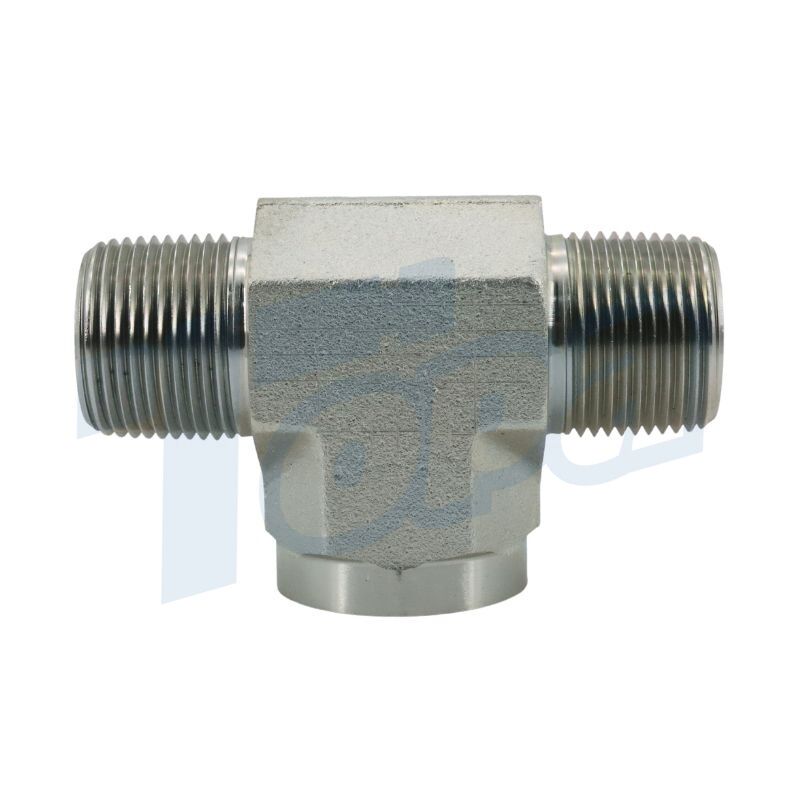

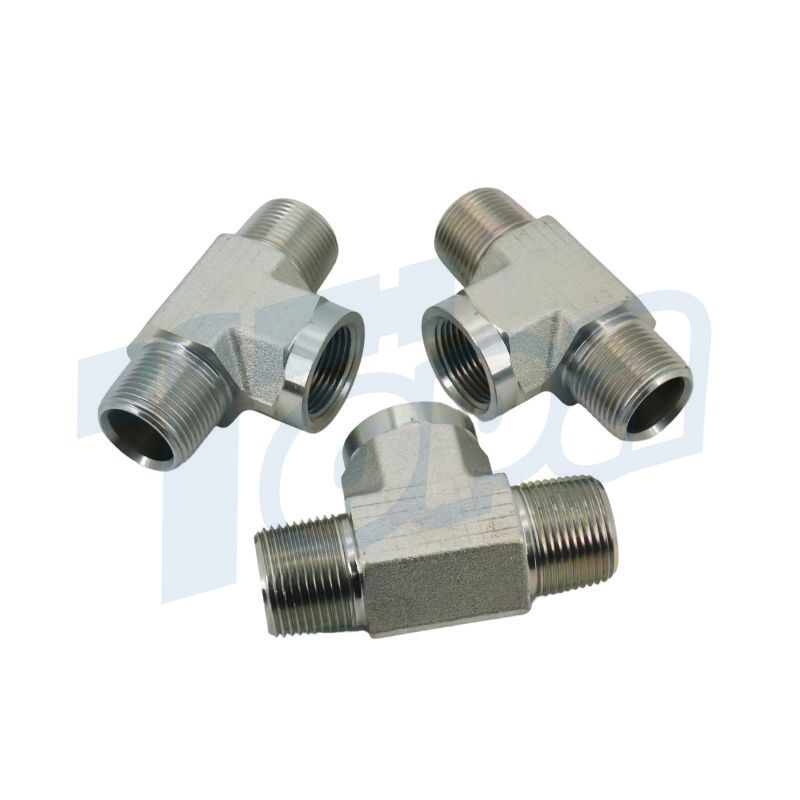

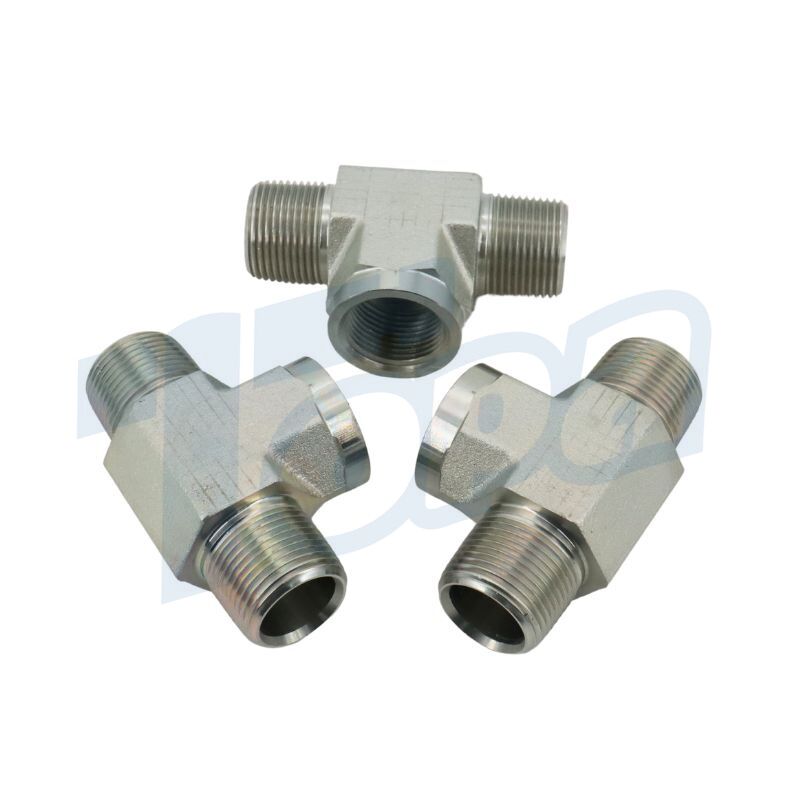

5601 NPT tee adapters have a female NPT thread and male NPT threads on the ends. And they are used to connect hydraulic pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with hydraulic pipe fittings, please contact us!
Dimensional Drawings:
PART NO | A1 NPTF | A2 NPTF | A3 NPTF | N (1) | N (2) | N1 | W | D1 | D2 | TAP DRILL |
5601-2-2-2 | 1/8-27 | 1/8-27 | 1/8-27 | 0.84 | 0.84 | 0.66 | 0.63 | 0.19 | 0.19 | 0.33 |
5601-4-4-4 | 1/4-18 | 1/4-18 | 1/4-18 | 1.09 | 1.09 | 0.88 | 0.75 | 0.28 | 0.28 | 0.43 |
5604-4-4-4-FG | 1/4-18 | 1/4-18 | 1 1/4-18 | 1.09 | 1.09 | 0.88 | 0.75 | 0.28 | 0.28 | 0.43 |
5601-6-6-6 | 3/8-18 | 3/8-18 | 3/8-18 | 1.22 | 1.22 | 1.02 | 0.88 | 0.41 | 0.41 | 0.57 |
5601-8-8-8 | 1/2-14 | 1/2-14 | 1/2-14 | 1.47 | 1.47 | 1.23 | 1.13 | 0.53 | 0.53 | 0.70 |
5601-12-12-12 | 3/4-14 | 3/4-14 | 3/4-14 | 1.59 | 1.59 | 1.36 | 1.38 | 0.72 | 0.72 | 0.91 |
5601-16-16-16 | 1-11 1/2 | 1-11 1/2 | 1-11 1/2 | 1.97 | 1.97 | 1.62 | 1.63 | 0.94 | 0.94 | 1.14 |
5601-20-20-20 | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 2.38 | 2.38 | 1.70 | 2.00 | 1.25 | 1.25 | 1.48 |
5601 NPT Hydraulic T Fitting Video
As the best Chinese hydraulic male adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our products can be used in a wide range of hydraulic fluid environments and are resistant to high pressures and temperatures.
Topa has multiple CNC machines and professional staff, so we can manufacture fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt swivel hydraulic fittings, please contact us!
