Description

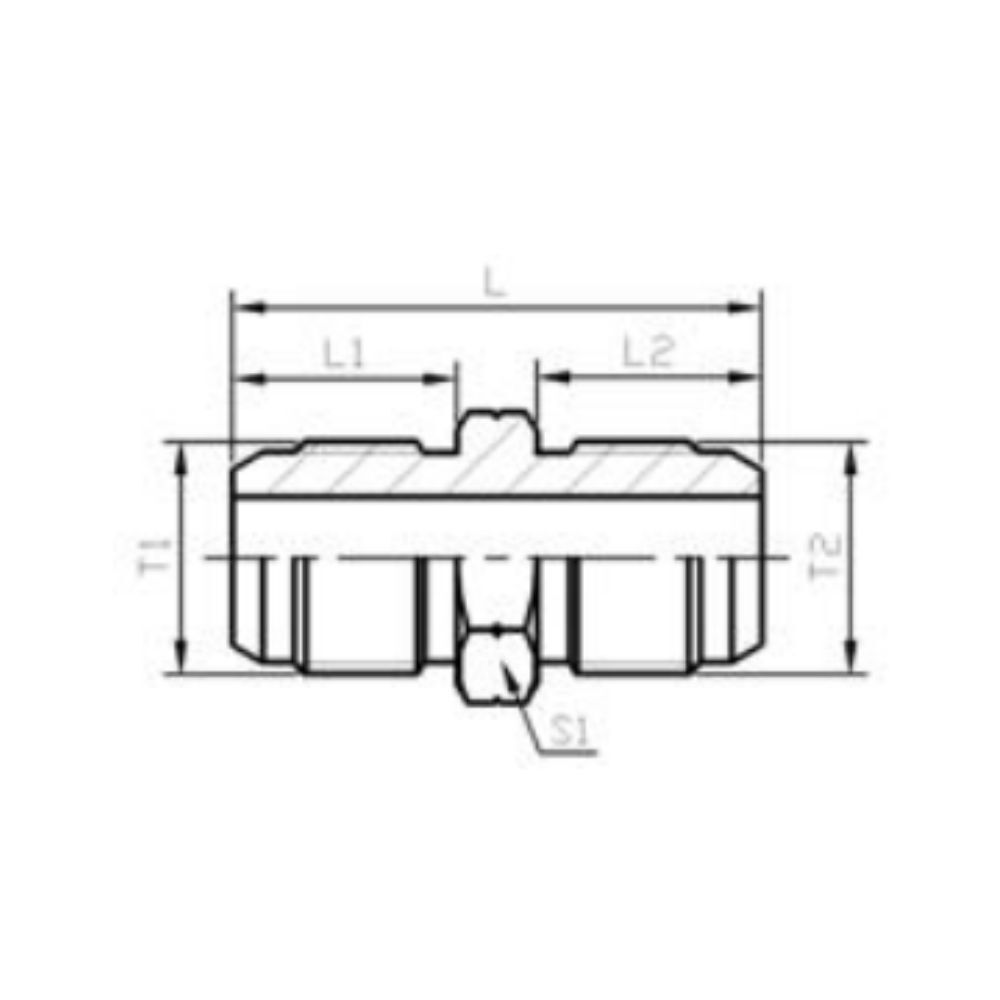

PART NO. | THREAD | DIMENSIONS | ||||
T1 | T2 | L1 | L2 | L | S1 | |
1S-02 | G1/8"X28 | G1/8"X28 | 12 | 12 | 30 | 14 |
1S-04 | G1/4"X19 | G1/4"X19 | 16 | 16 | 38 | 17 |
1S-06 | G3/8"X19 | G3/8"X19 | 18 | 18 | 42 | 19 |
1S-08 | G1/2"X14 | G1/2"X14 | 20 | 20 | 48 | 22 |
1S-12 | G3/4"X14 | G3/4"X14 | 22 | 22 | 54 | 30 |
1S-16 | G1"X11 | G1"X11 | 24 | 24 | 59 | 36 |
1S-20 | G1.1/4"X11 | G1.1/4"X11 | 27 | 27 | 67 | 46 |
1S-24 | G1.1/2"X11 | G1.1/2"X11 | 27 | 27 | 69 | 50 |
1S-32 | G2"X11 | G2"X11 | 30 | 30 | 77 | 65 |
1S Male JIS Pipe Fittings Video

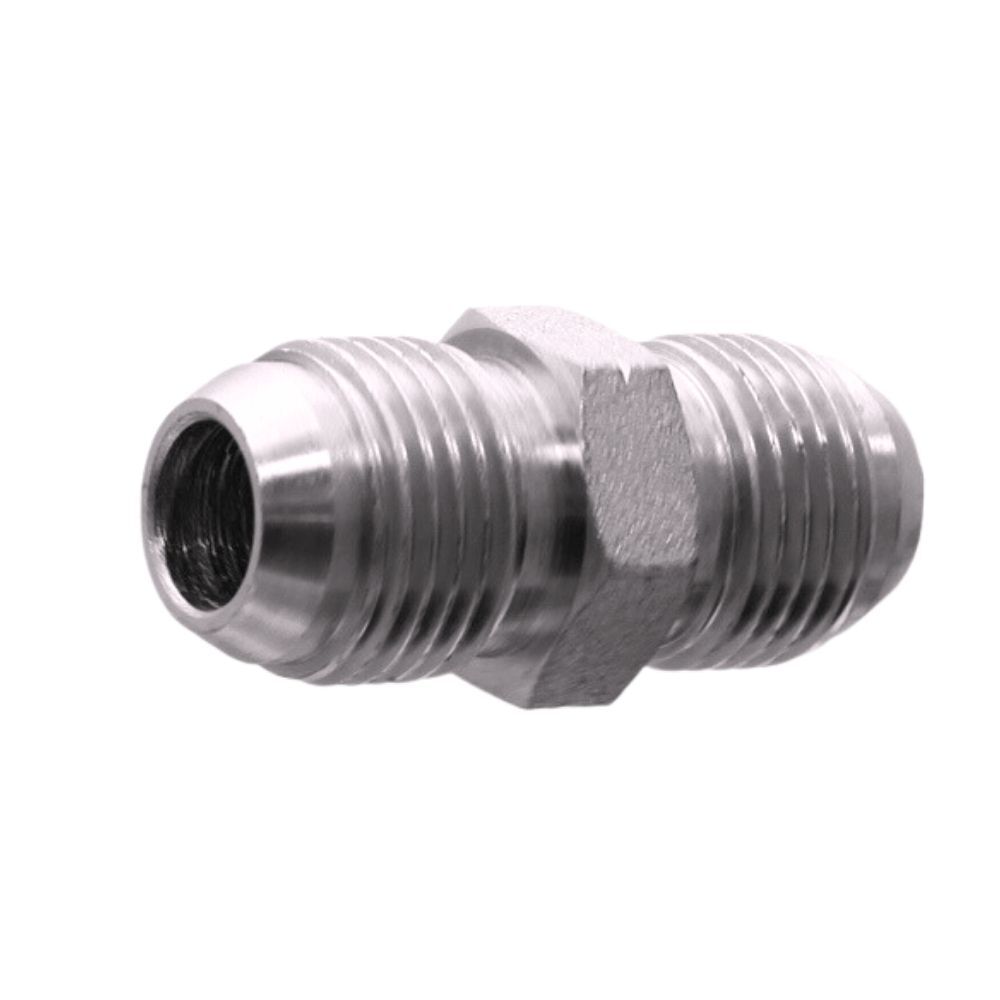

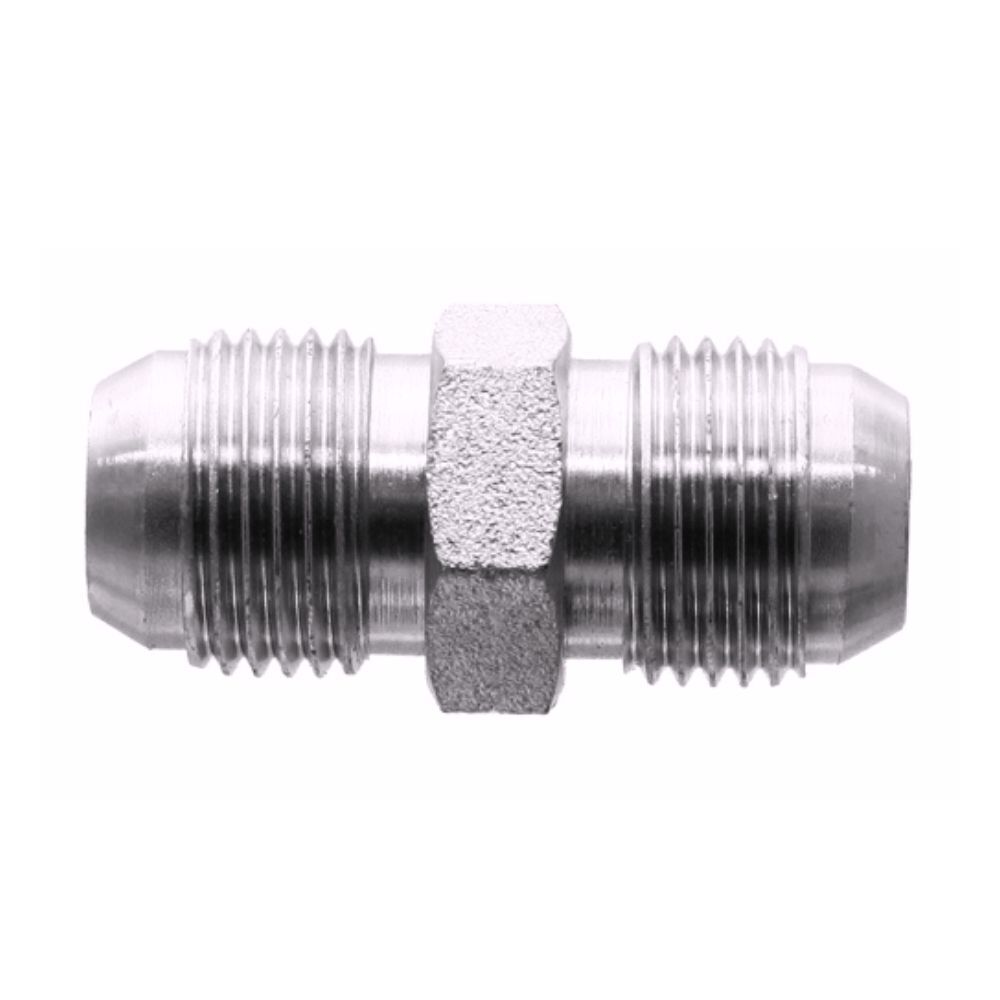

This video shows information about 1S male JIS pipe fittings.
Typically, JIS pipe connector is commonly used in high-pressure hydraulic applications such as in industrial machinery, construction equipment, and automotive systems.
If you have any questions about JIS adapter fittings, please contact us.
