JIS Adapter

Description:

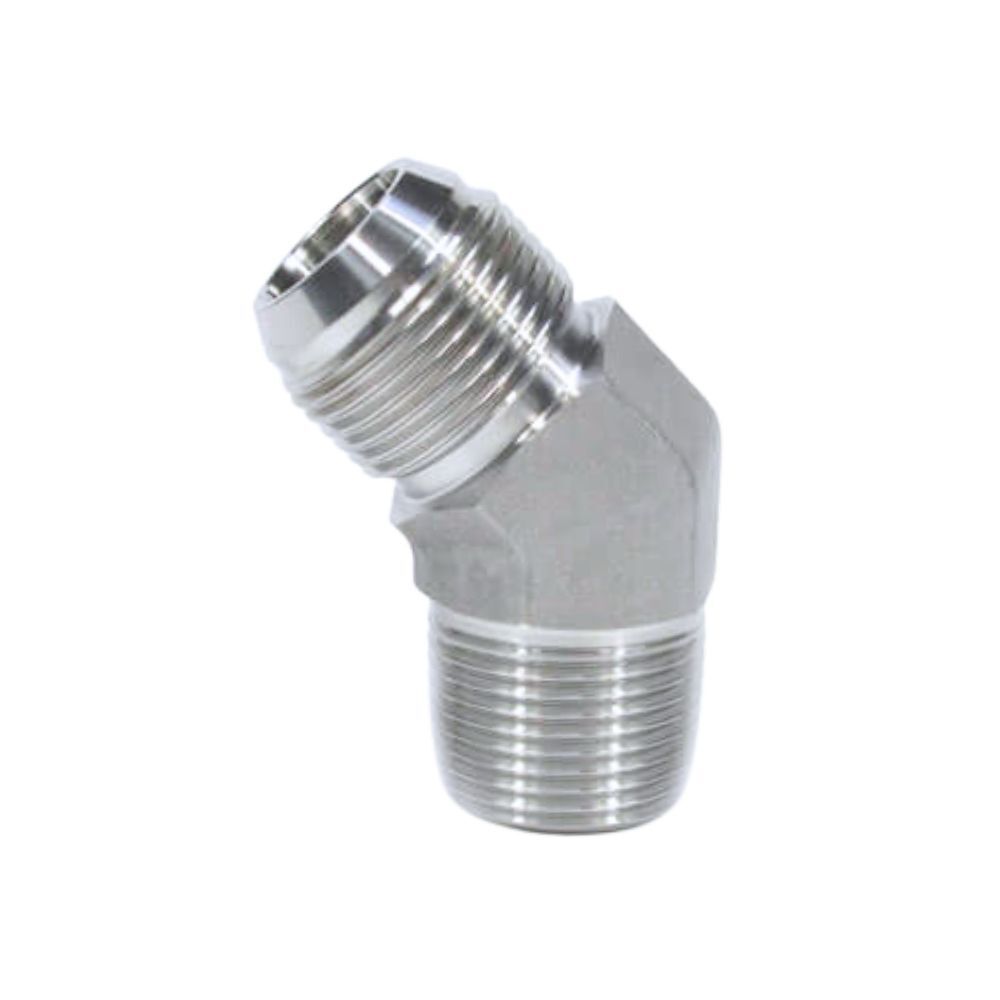

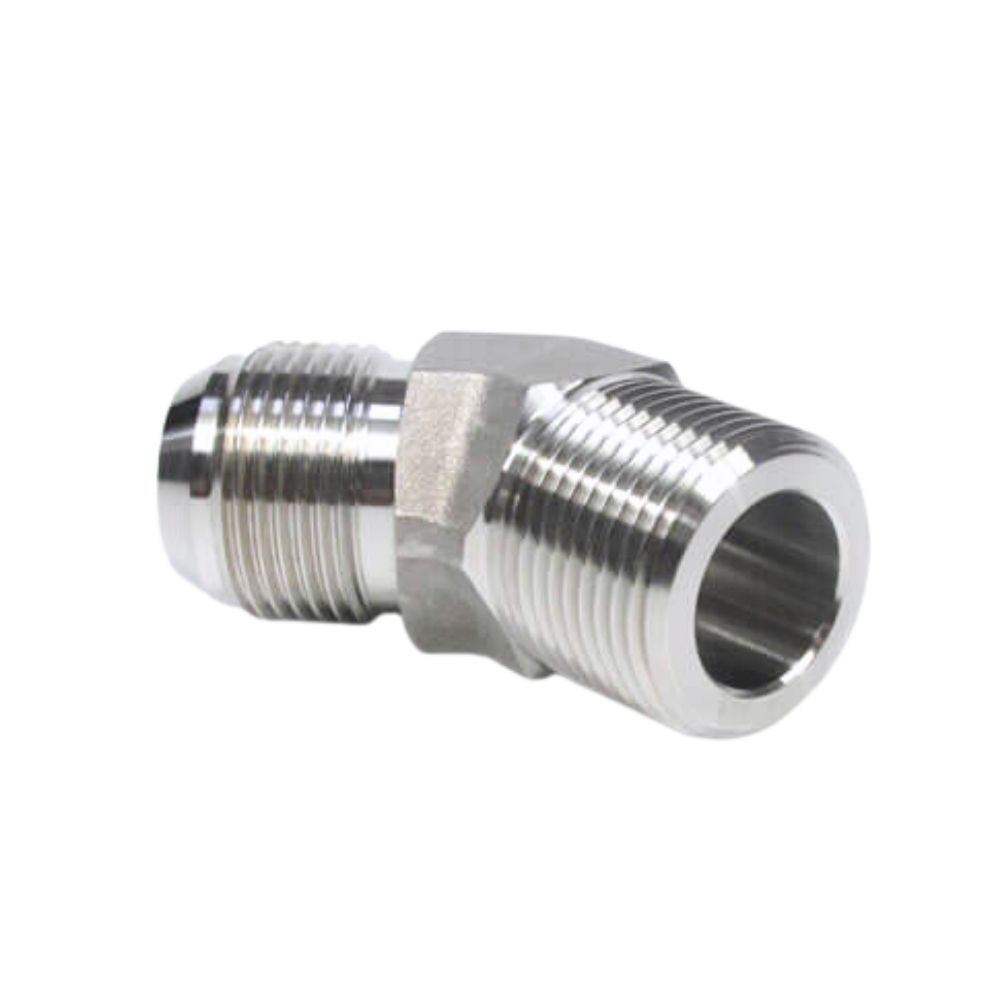

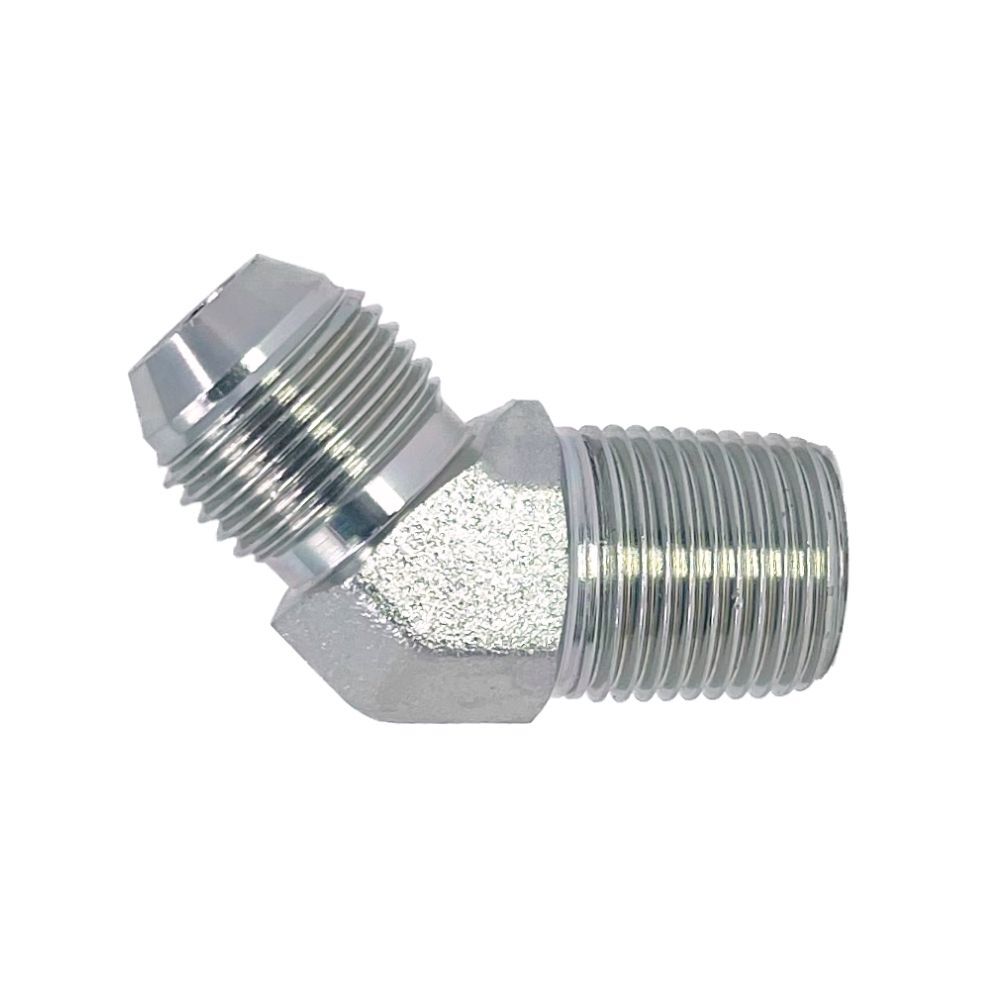

1ST-sp 45-degree elbow JIS to BSPT adapter is a male pipe adapter that has a male 60-degree cone JIS thread and a male BSPT tapered thread.

Male JIS to BSPT adapters are available in a variety of materials, and the choice of materials depends on the application requirements.

Feel free to ask any questions about the JIS adapters.

Features and Benefits:

• Leak-tight
• Reliable
• Free samples
• Customize



Description

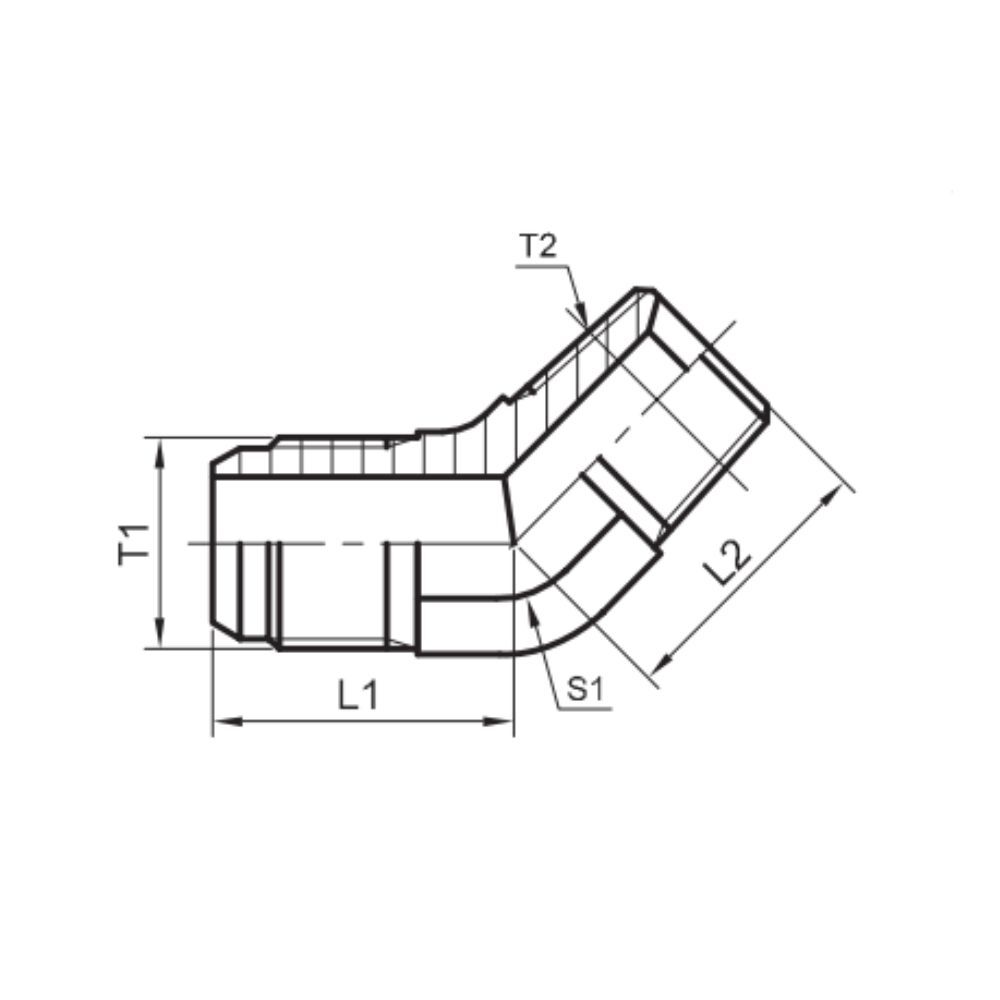

PART  NO.

THREAD

DIMENSIONS

T1

T2

L1

L2

S1

1ST4-02SP

G1/8"X28

R1/8"X28

19

17

11

1ST4-04SP

G1/4"X19

R1/4"X19

22

19

14

1ST4-06SP

G3/8"X19

R3/8"X19

25

22

16

1ST4-08SP

G1/2"X14

R1/2"X14

28

26

22

1ST4-12SP

G3/4"X14

R3/4"X14

32

30

27

1ST4-16SP

G1"X11

R1"X11

36

34

33

1ST4-20SP

G1.1/4"X11

R1.1/4"X11

42

40

41

1ST4-24SP

G1.1/2"X11

R1.1/2"X11

43

41

48

1ST4-32SP

G2"X11

R2"X11

54

50

63

1ST4-SP 45° Elbow Male 60° JIS Adapter Video

This video shows information about 1ST4-SP JIS to BSPT adapter.

Typically, JIS adapter is commonly used in high-pressure hydraulic applications such as in industrial machinery, construction equipment, and automotive systems.

If you have any questions about JIS to BSPT adapter, please contact us.
