Description

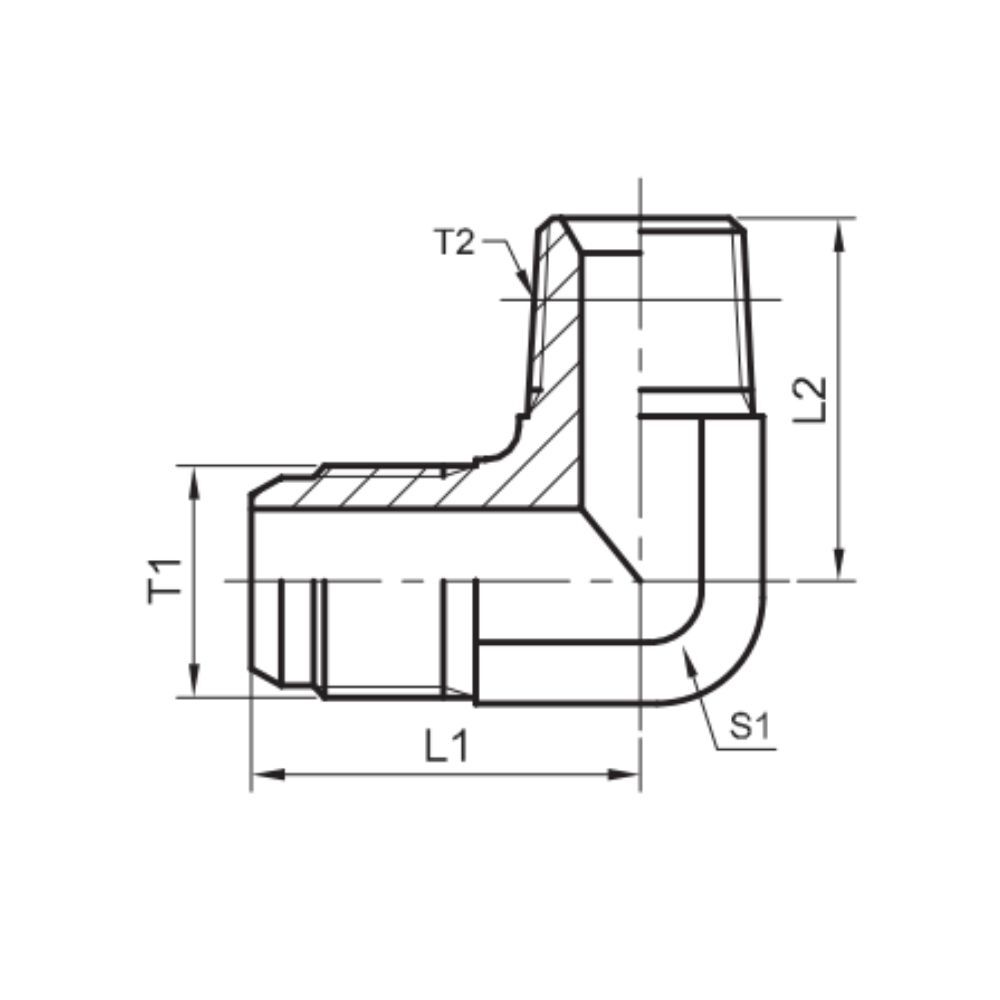

PART NO. | THREAD | DIMENSIONS | |||
T1 | T2 | L1 | L2 | S1 | |
1ST9-02SP | G1/8"X28 | R1/8"X28 | 21.8 | 21 | 11 |
1ST9-04SP | G1/4"X19 | R1/4"X19 | 25 | 26 | 14 |
1ST9-06SP | G3/8"X19 | R3/8"X19 | 28 | 30 | 16 |
1ST9-08SP | G1/2"X14 | R1/2"X14 | 32 | 36 | 22 |
1ST9-12SP | G3/4"X14 | R3/4"X14 | 37 | 43 | 27 |
1ST9-16SP | G1"X11 | R1"X11 | 42 | 50 | 33 |
1ST9-20SP | G1.1/4"X11 | R1.1/4"X11 | 50 | 58 | 41 |
1ST9-24SP | G1.1/2"X11 | R1.1/2"X11 | 52 | 63 | 48 |
1ST9-32SP | G2"X11 | R2"X11 | 63 | 75 | 63 |

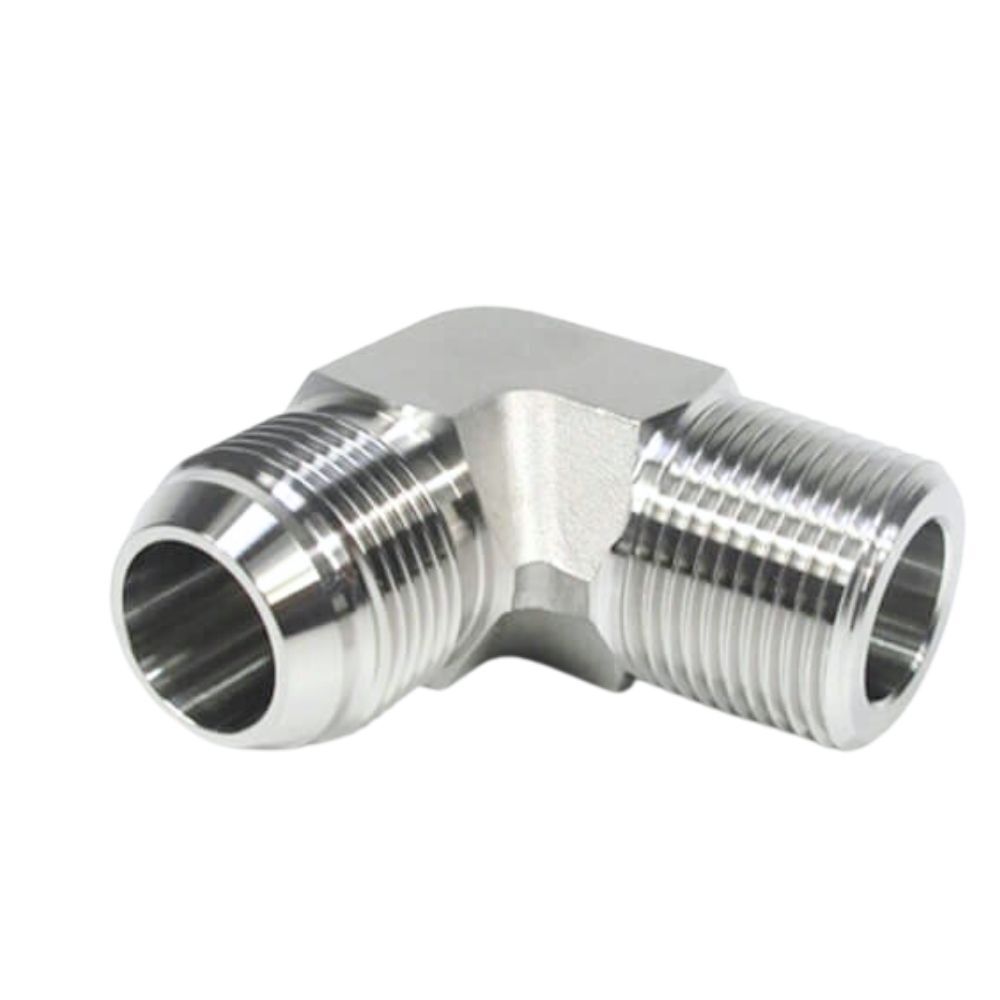

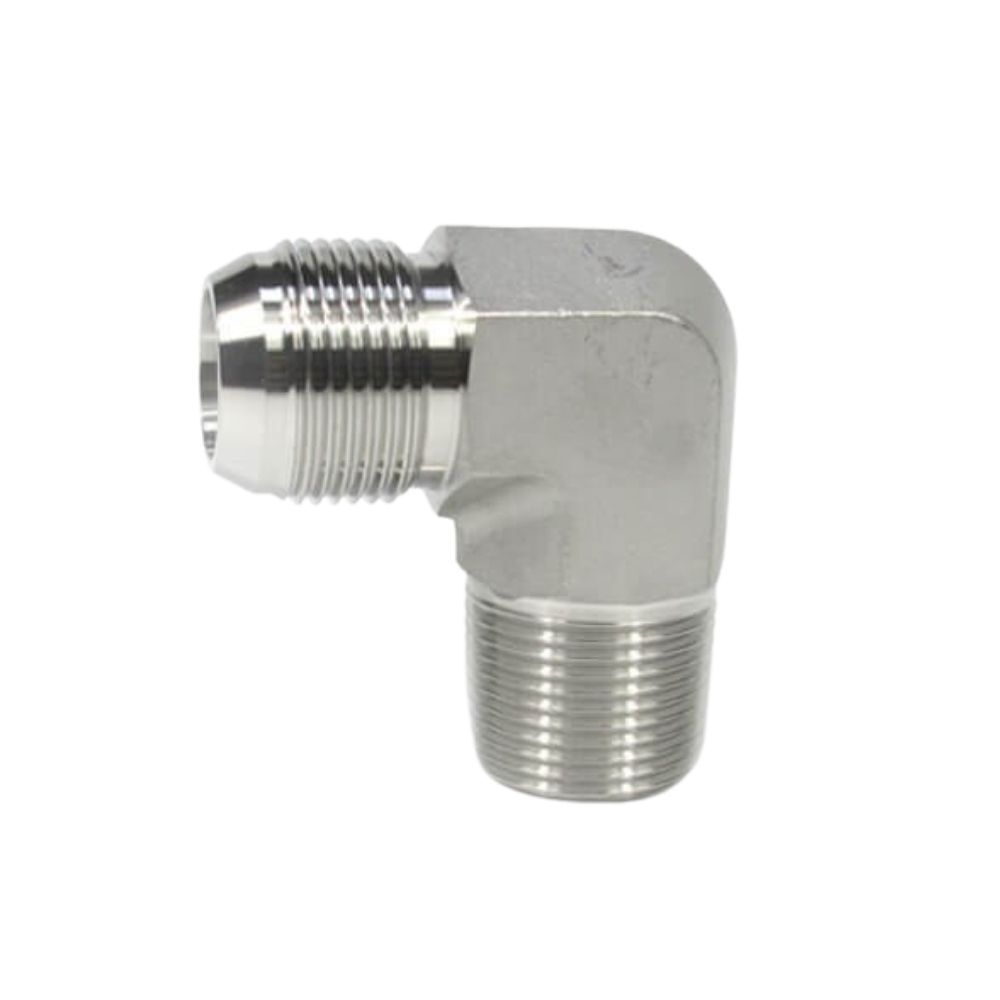

1ST9-SP 90° JIS 30-degree Fittings Video
This video shows information about 1ST9-SP JIS to BSPT adapter.
Typically, JIS 30-degree fittings are commonly used in high-pressure hydraulic applications such as in industrial machinery, construction equipment, and automotive systems.
If you have any questions about JIS standard pipe fittings, please contact us.
