Description
PART Number | THREAD E | HOSE BORE | DIMENSIONS | |||||
DN | DASH | A | C | H | S1 | S2 | ||
28641-14-04 | M14 × 1.5 | 6 | 4 | 43.4 | 10.5 | 21.3 | 19 | 19 |
28641-16-05 | M16 × 1.5 | 8 | 5 | 47.6 | 10 | 24.3 | 22 | 22 |
28641-18-06 | M18 × 1.5 | 10 | 6 | 49.2 | 11.5 | 24.9 | 24 | 24 |
28641-22-08 | M22 × 1.5 | 12 | 8 | 62.1 | 14 | 27.2 | 27 | 27 |
28641-24-10 | M24 × 1.5 | 16 | 10 | 74.7 | 15 | 29.9 | 32 | 32 |
28641-30-12 | M30 × 1.5 | 20 | 12 | 80.9 | 18.3 | 33.5 | 36 | 36 |
28641-33-16 | M33 × 1.5 | 25 | 16 | 89.9 | 21.3 | 35.7 | 41 | 41 |
28641-36-20 | M36 × 1.5 | 32 | 20 | 104.1 | 20 | 41.9 | 46 | 46 |
28641-42-21 | M42 × 1.5 | 38 | 24 | 116.2 | 18.8 | 45.5 | 50 | 55 |

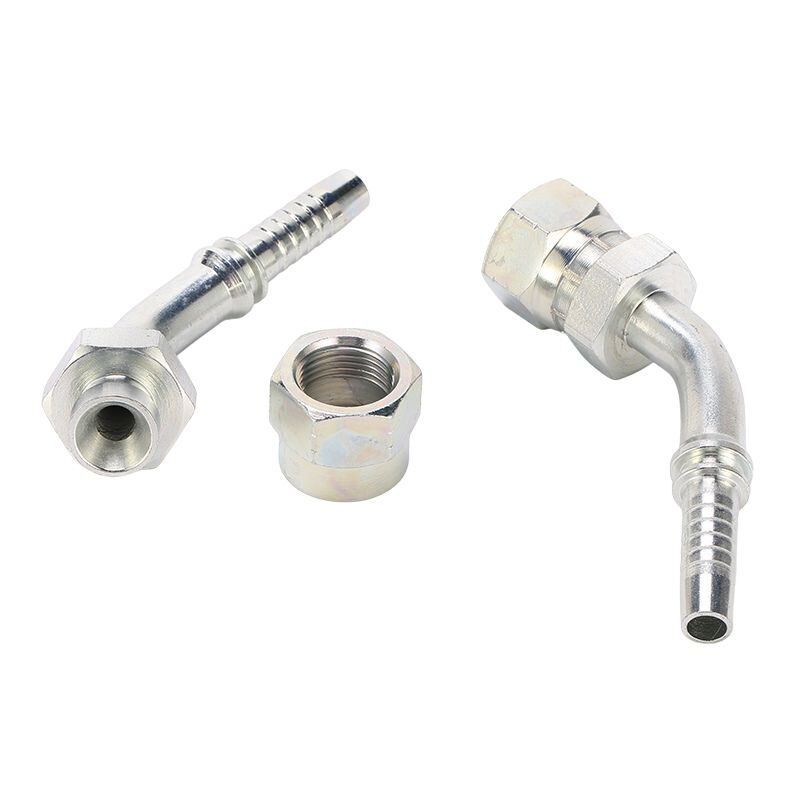

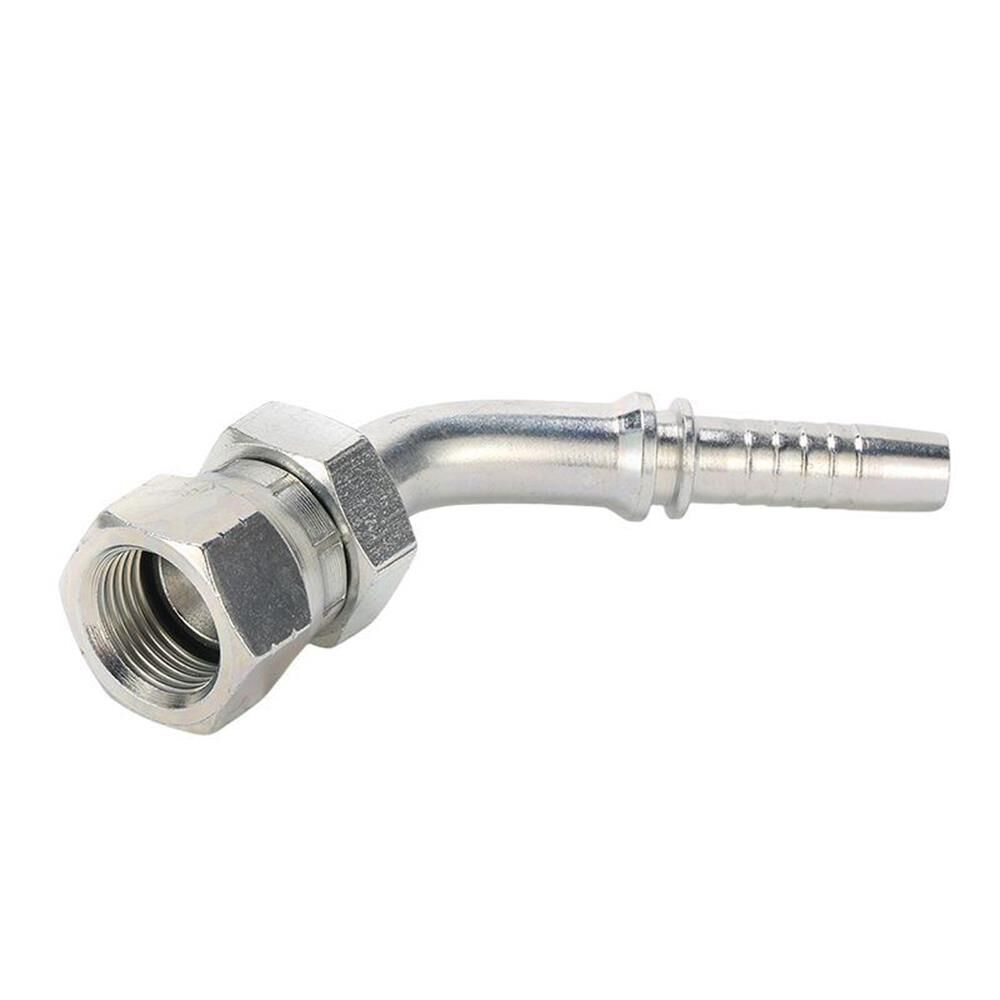

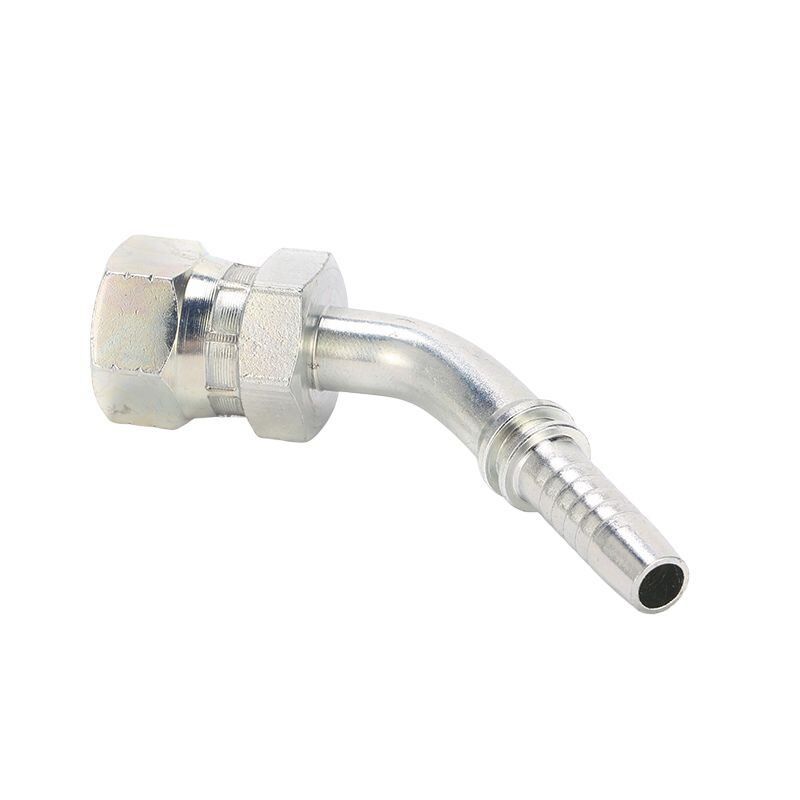

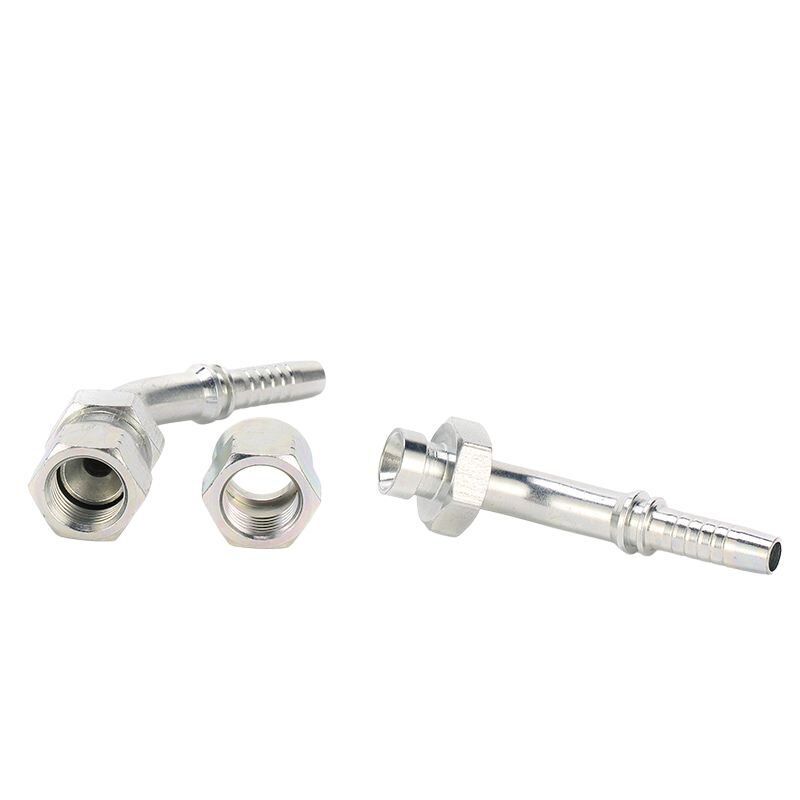

28641 45° Metric JIS Hydraulic Fitting Video
This video shows information about 28641 45° JIS hydraulic fitting.
Typically, JIS hydraulic fittings are commonly used in high-pressure hydraulic applications such as industrial machinery, construction equipment, and automotive systems.
If you have any questions about JIS hydraulic fittings, please contact us.
