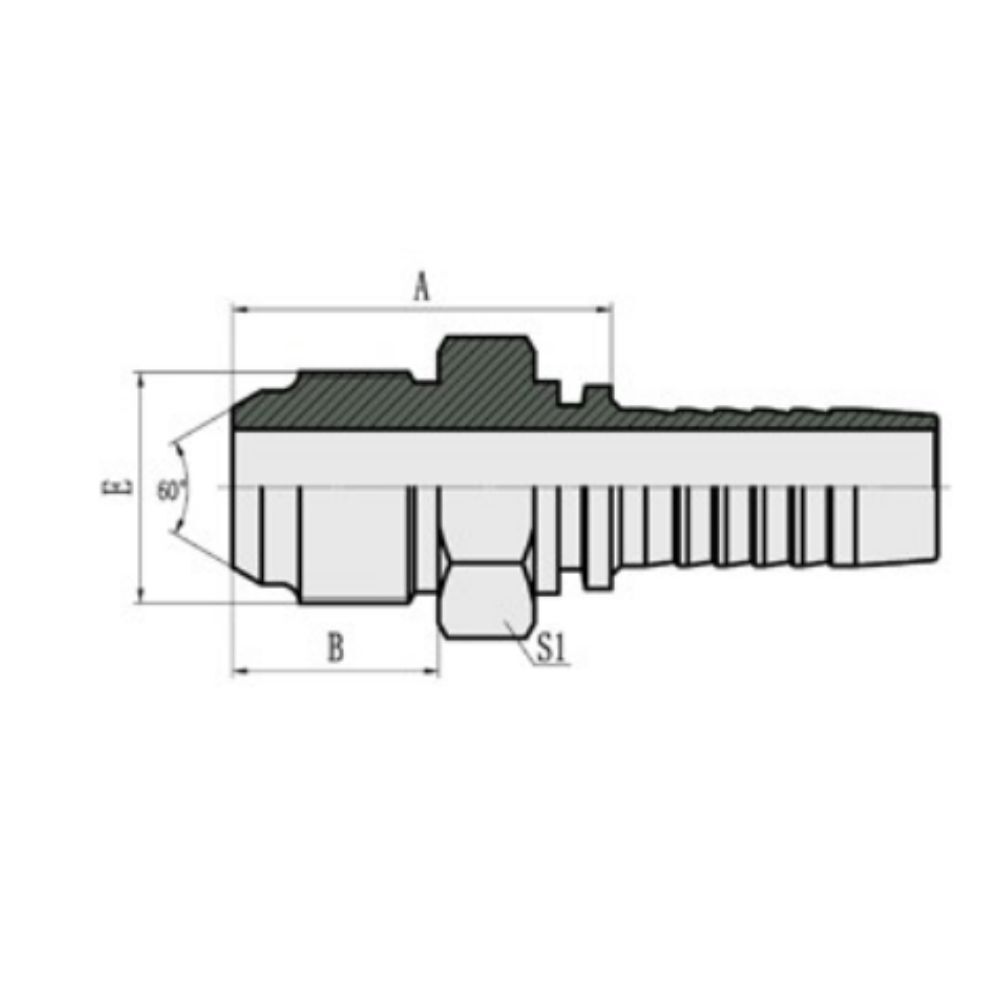

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | B | S1 | ||
18611-14-04 | M14*1.5 | 6 | 04 | 29.5 | 17 | 17 |
18611-14-06 | M14*1.5 | 10 | 06 | 29.5 | 17 | 17 |
18611-16-04 | M16*1.5 | 6 | 04 | 30.5 | 18 | 17 |
18611-16-06 | M16*1.5 | 10 | 06 | 30.5 | 18 | 17 |
18611-18-06 | M18*1.5 | 10 | 06 | 30.5 | 18 | 19 |
18611-20-08 | M20*1.5 | 12 | 08 | 35 | 20 | 22 |
18611-22-08 | M22*1.5 | 12 | 08 | 35 | 20 | 24 |
18611-24-10 | M24*1.5 | 16 | 10 | 39.5 | 21.5 | 27 |
18611-30-12 | M30*1.5 | 20 | 12 | 45 | 26 | 32 |
18611-33-16 | M33*1.5 | 25 | 16 | 50.5 | 30 | 36 |
18611-36-20 | M36*1.5 | 32 | 20 | 55 | 33 | 38 |
18611-42-24 | M42*1.5 | 40 | 24 | 60 | 36 | 46 |

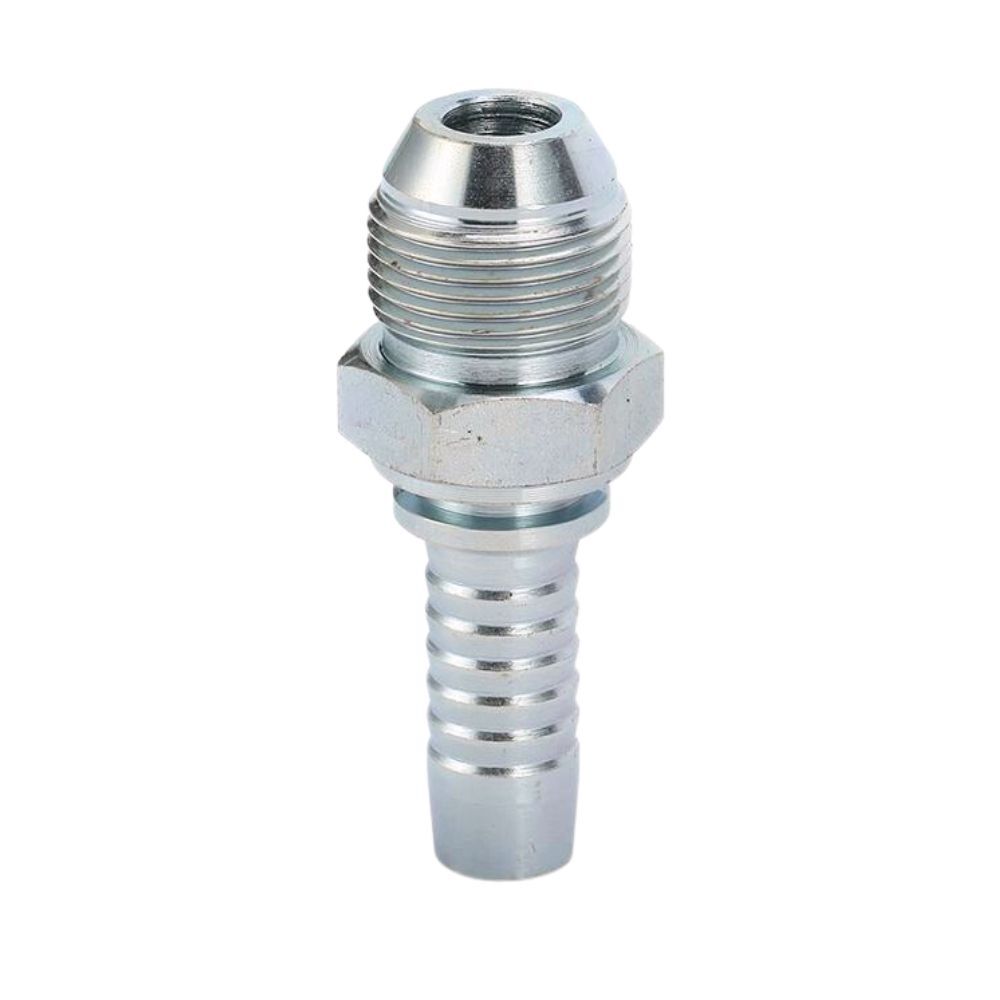

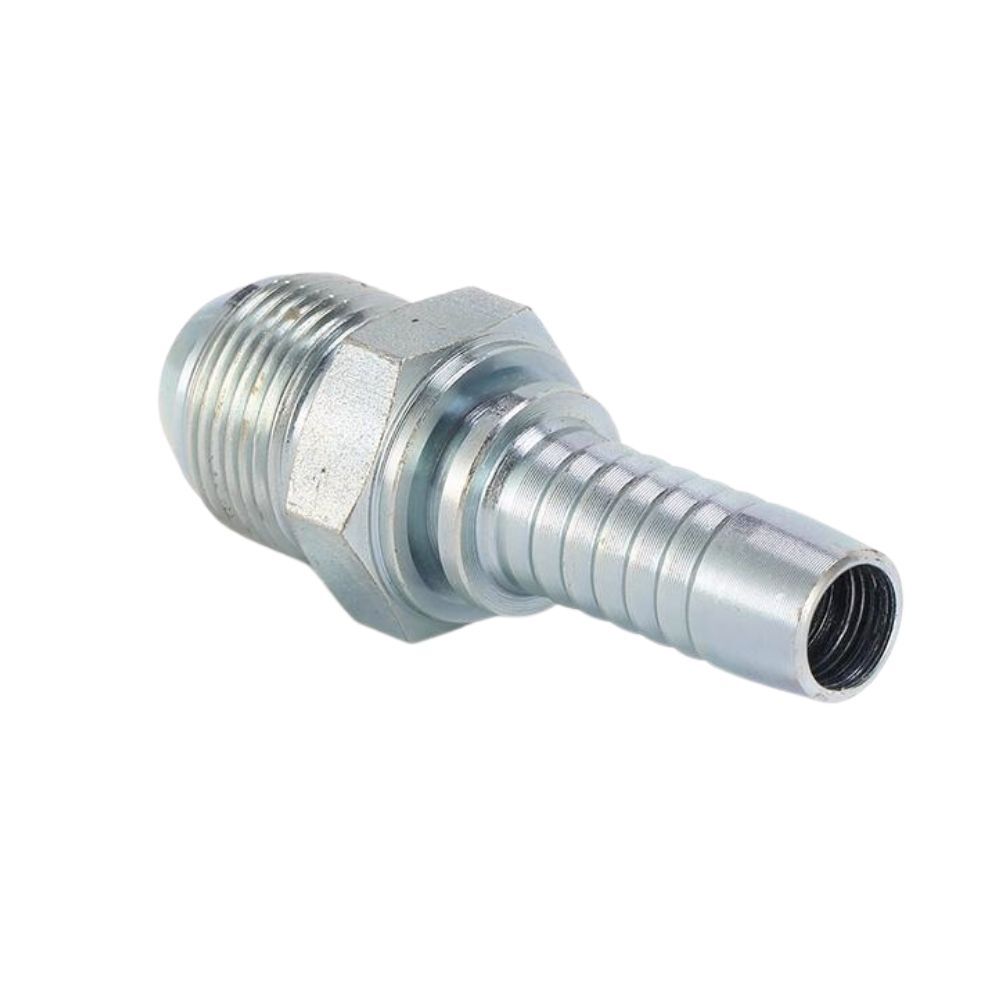

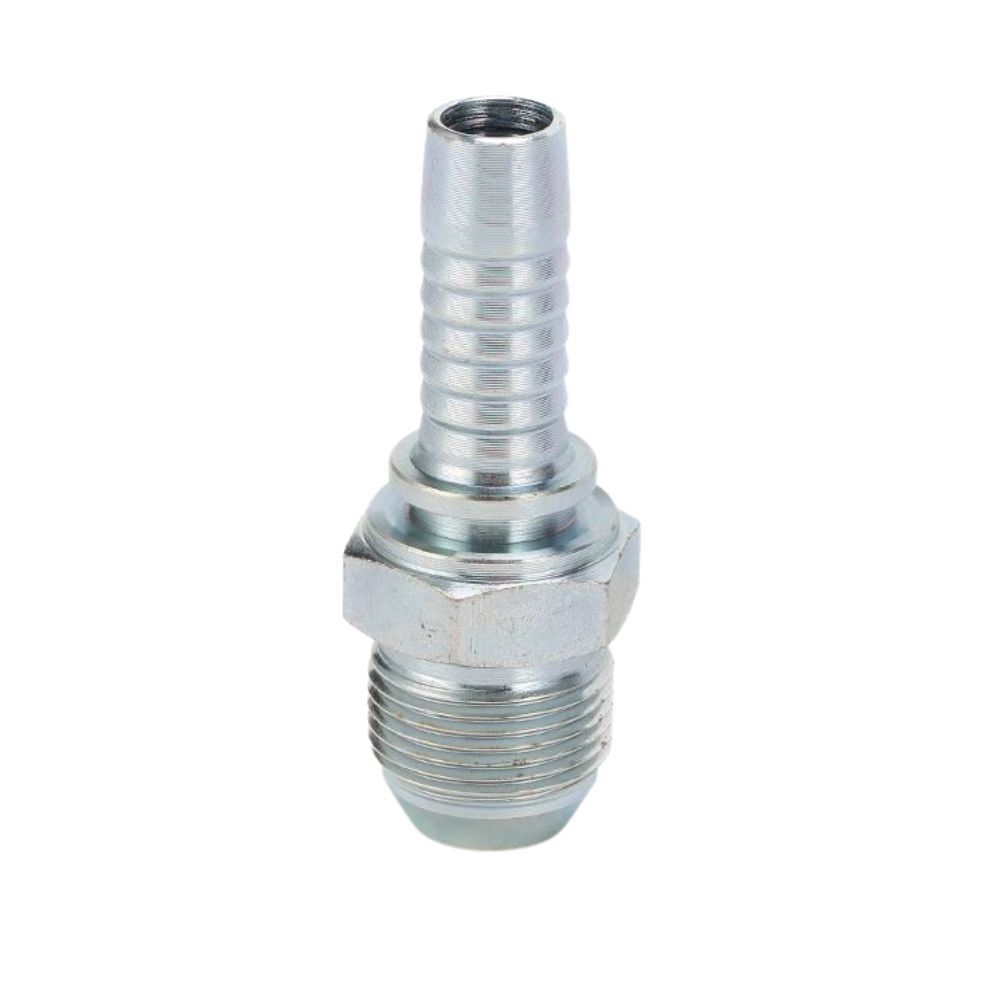

18611 Male 60° Cone Seat JIS Fitting Video
This video shows information about 18611 JIS Metric fitting.
Typically, JIS fitting is commonly used in high-pressure hydraulic applications such as in industrial machinery, construction equipment, and automotive systems.
If you have any questions about JIS hydraulic fittings, please contact us.
