Description

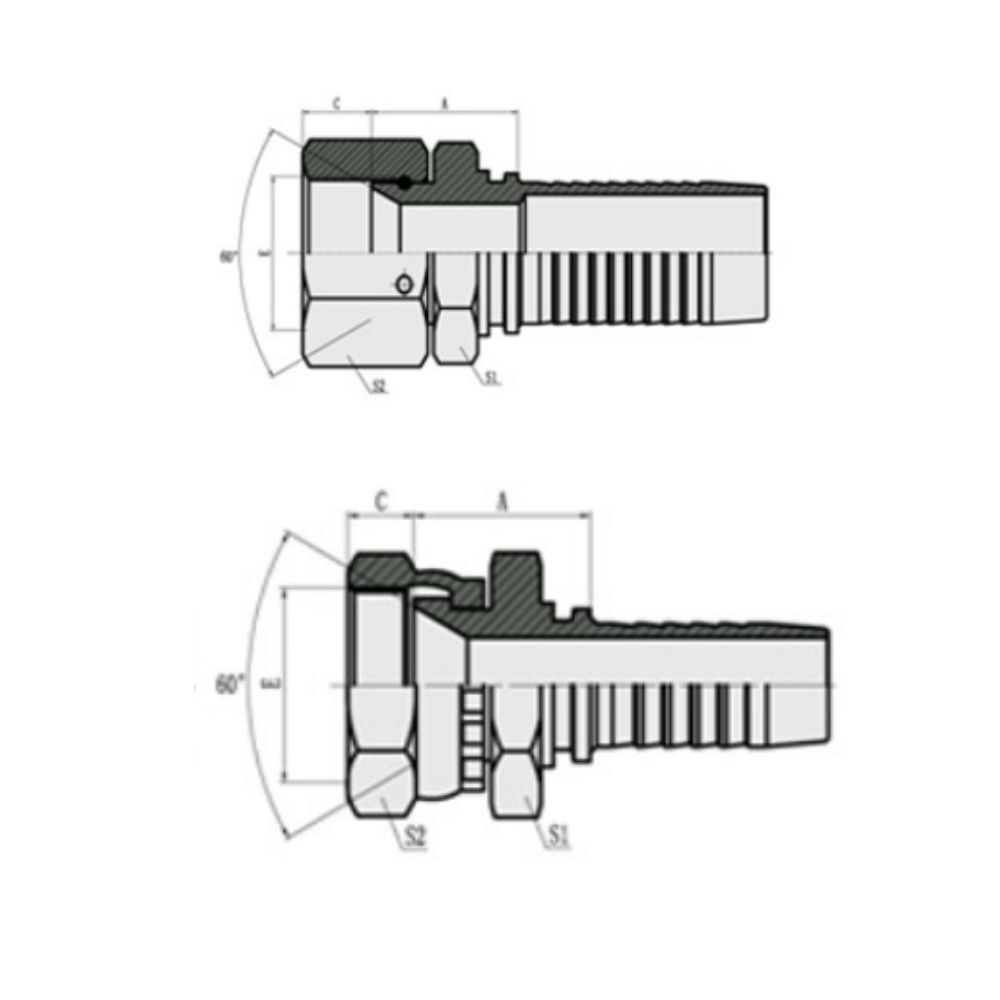

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | C | S1 | S2 | ||
28611-12-04 | M12*1.5 | 6 | 04 | 20 | 9 | 17 | 17 |
28611-14-04 | M14*1.5 | 6 | 04 | 21 | 10.5 | 19 | 19 |
28611-14-06 | M14*1.5 | 10 | 06 | 21 | 10.5 | 19 | 19 |
28611-16-04 | M16*1.5 | 6 | 04 | 24 | 10 | 22 | 22 |
28611-16-05 | M16*1.5 | 8 | 05 | 24 | 10 | 22 | 22 |
28611-16-06 | M16*1.5 | 10 | 06 | 24 | 10 | 22 | 22 |
28611-18-06 | M18*1.5 | 10 | 06 | 25 | 11.5 | 24 | 24 |
28611-18-08 | M18*1.5 | 12 | 08 | 24.5 | 11.5 | 24 | 24 |
28611-20-08 | M20*1.5 | 12 | 08 | 28.5 | 12 | 27 | 27 |
28611-22-08 | M22*1.5 | 12 | 08 | 25.5 | 14 | 27 | 27 |
28611-24-08 | M24*1.5 | 12 | 08 | 27.5 | 15 | 32 | 32 |
28611-24-10 | M24*1.5 | 16 | 10 | 28.5 | 15 | 32 | 32 |
28611-27-10 | M27*1.5 | 16 | 10 | 28.5 | 10 | 32 | 32 |
28611-30-12 | M30*1.5 | 20 | 12 | 28.5 | 18.3 | 36 | 36 |
28611-33-12 | M33*1.5 | 20 | 12 | 31 | 21.3 | 41 | 41 |
28611-33-16 | M33*1.5 | 25 | 16 | 32 | 21.3 | 41 | 41 |
28611-36-20 | M36*1.5 | 32 | 20 | 35.5 | 20 | 46 | 46 |
28611-42-24W | M42*1.5 | 40 | 24 | 36 | 18.8 | 55 | 55 |

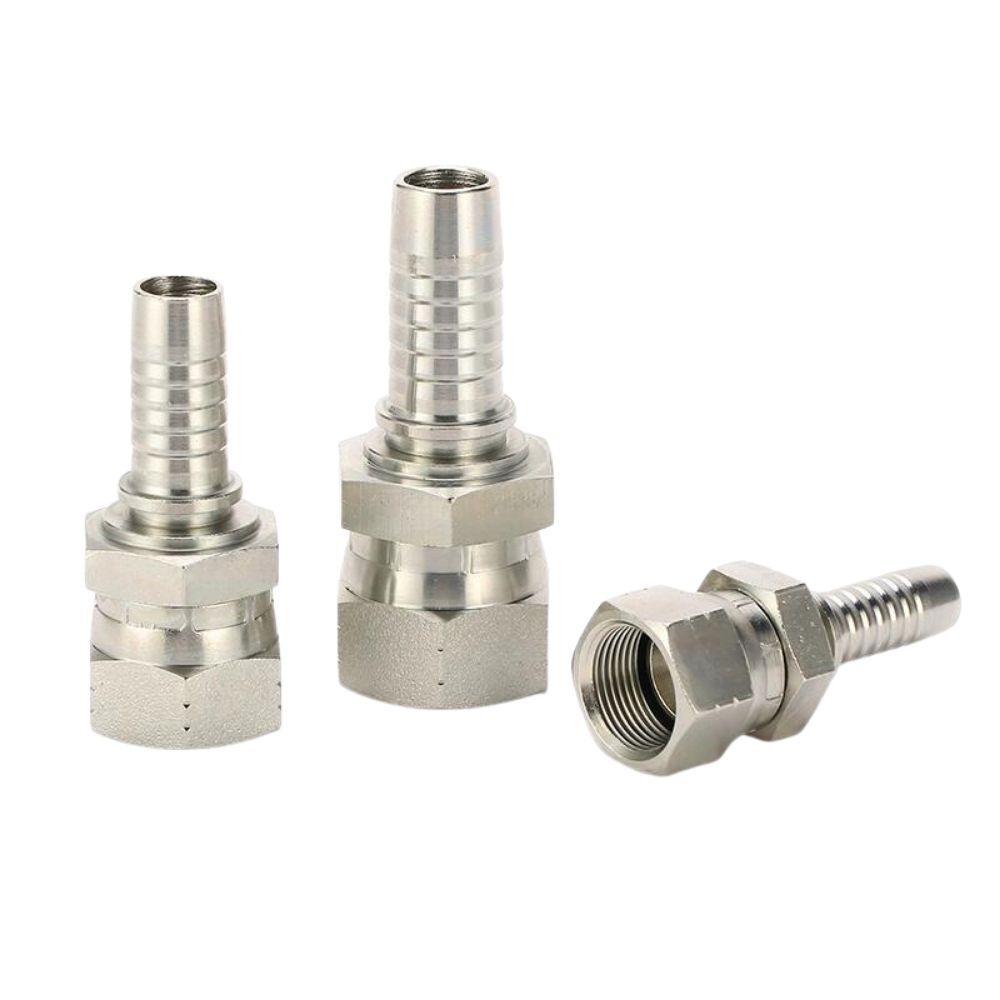

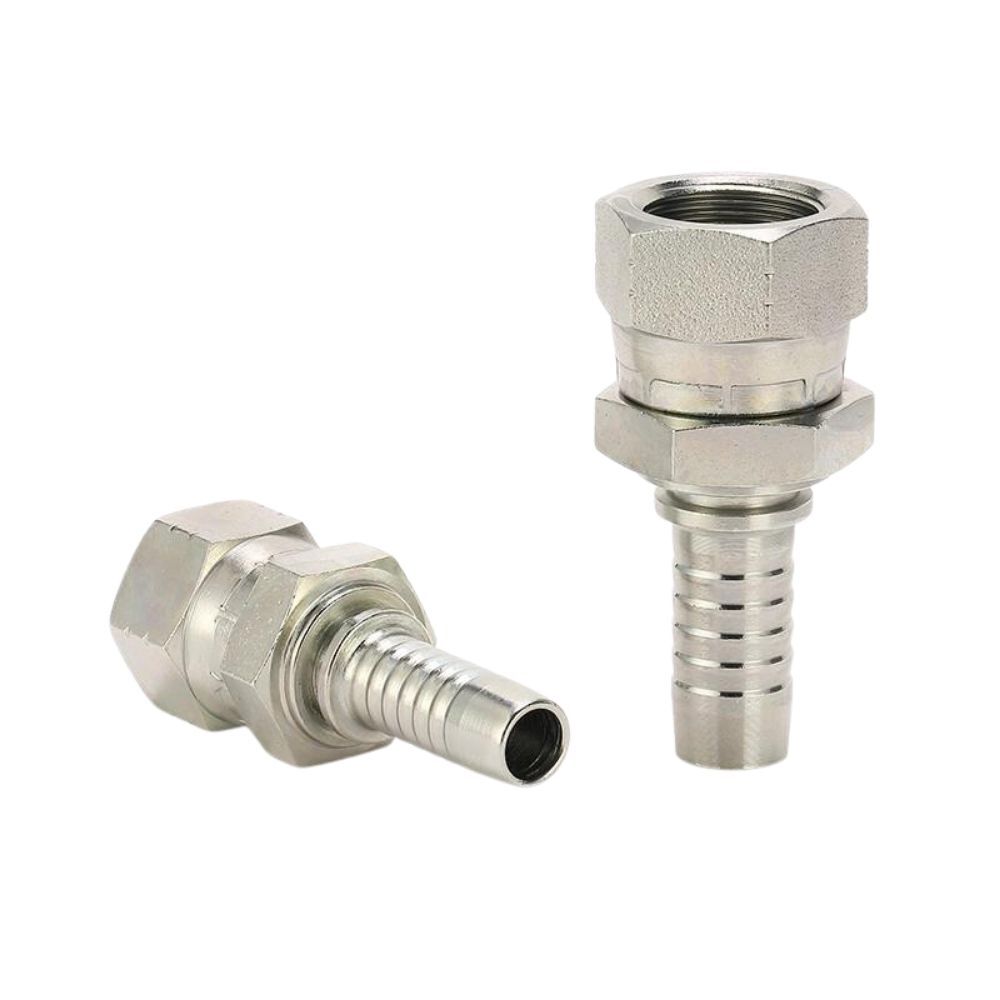

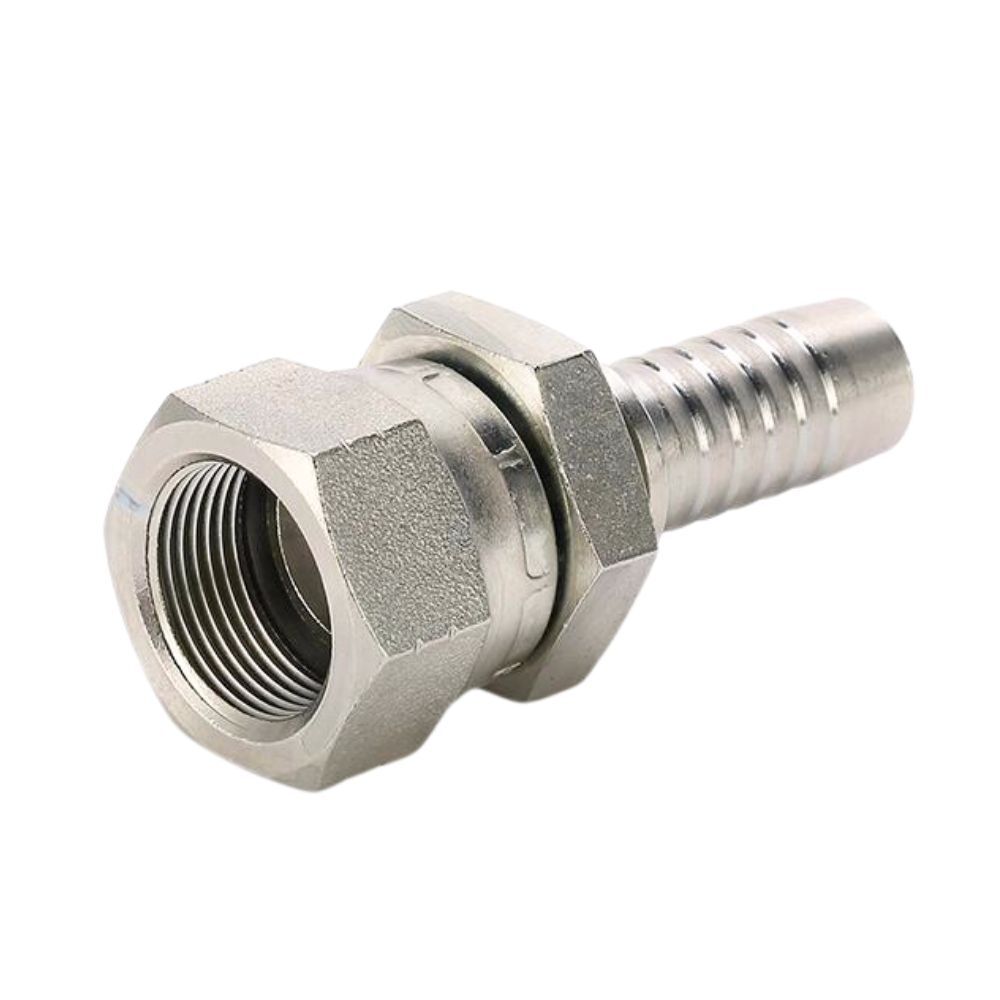

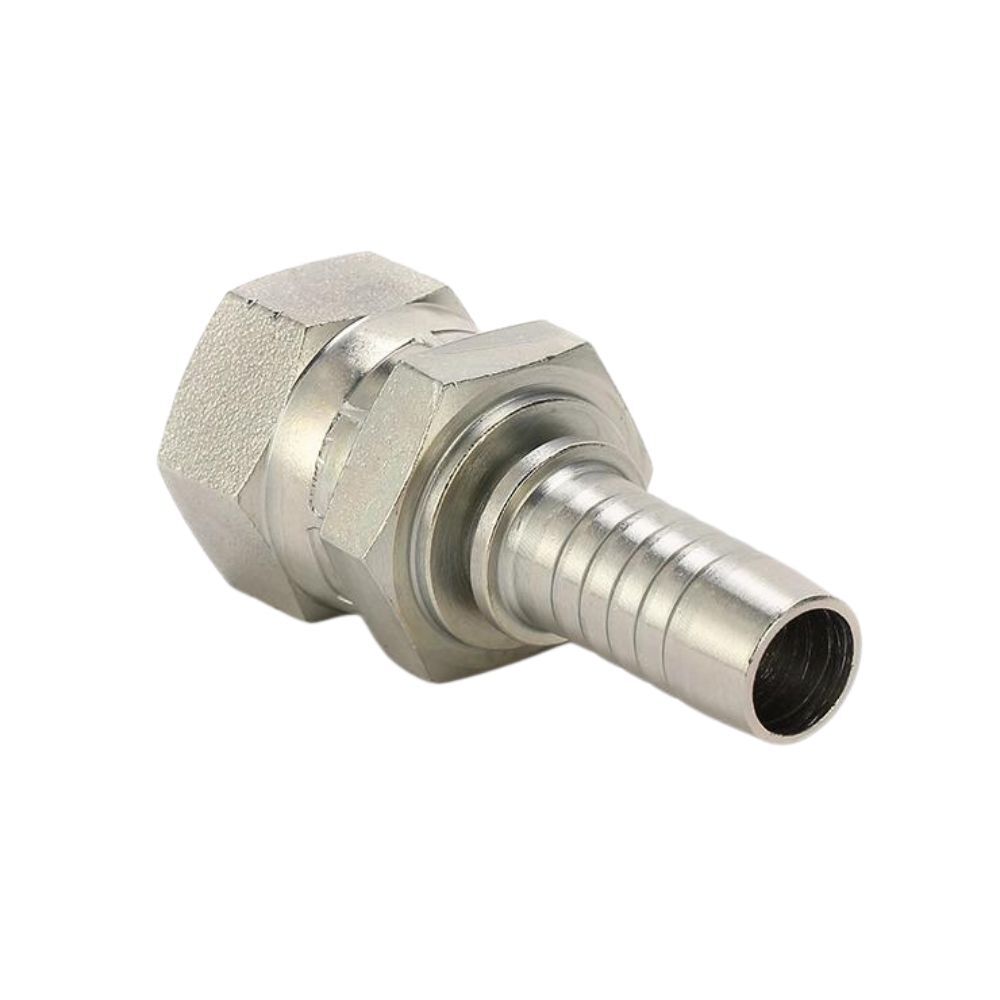

28611 Female 60° Cone Seat Metric JIS Fittings Video
This video shows information about 28611 JIS Metric fittings.
Typically, JIS fittings are commonly used in high-pressure hydraulic applications such as in industrial machinery, construction equipment, and automotive systems.
If you have any questions about JIS hydraulic hose fittings, please contact us.
