Description
NPT Hydraulic Pipe Fitting

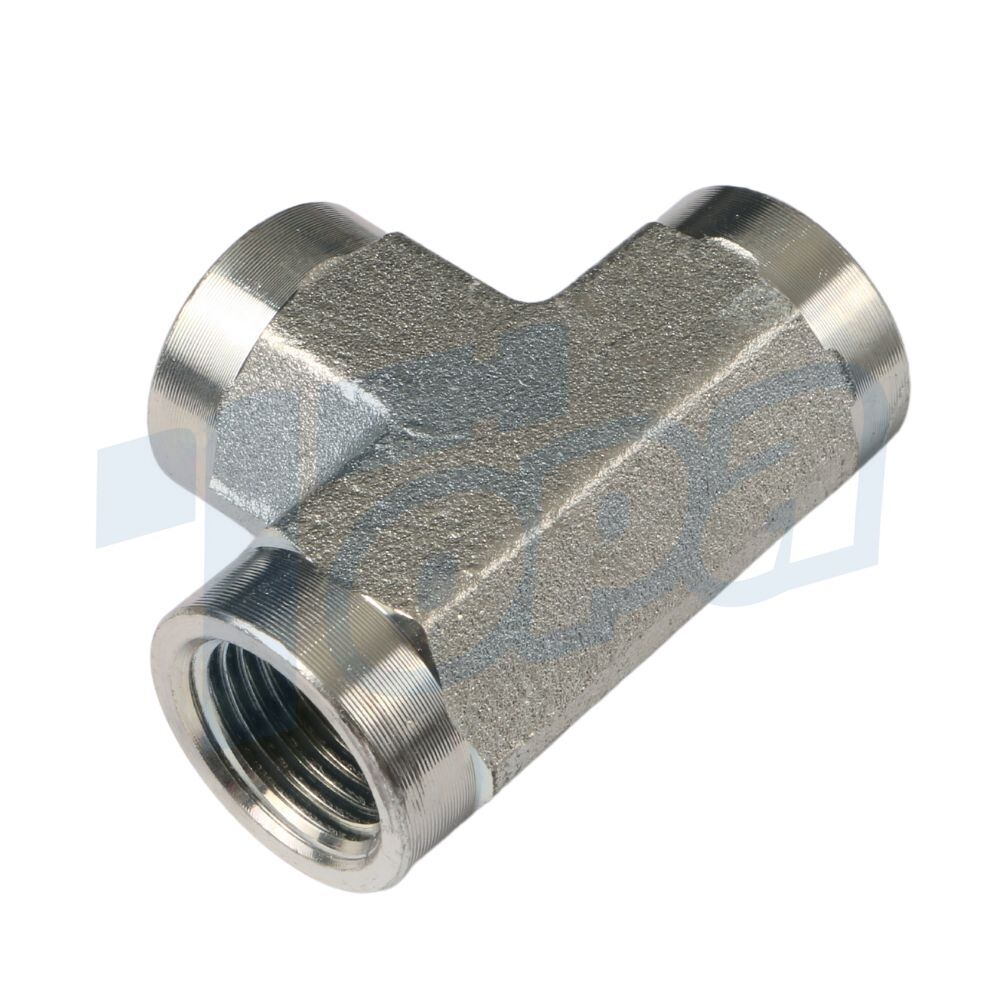

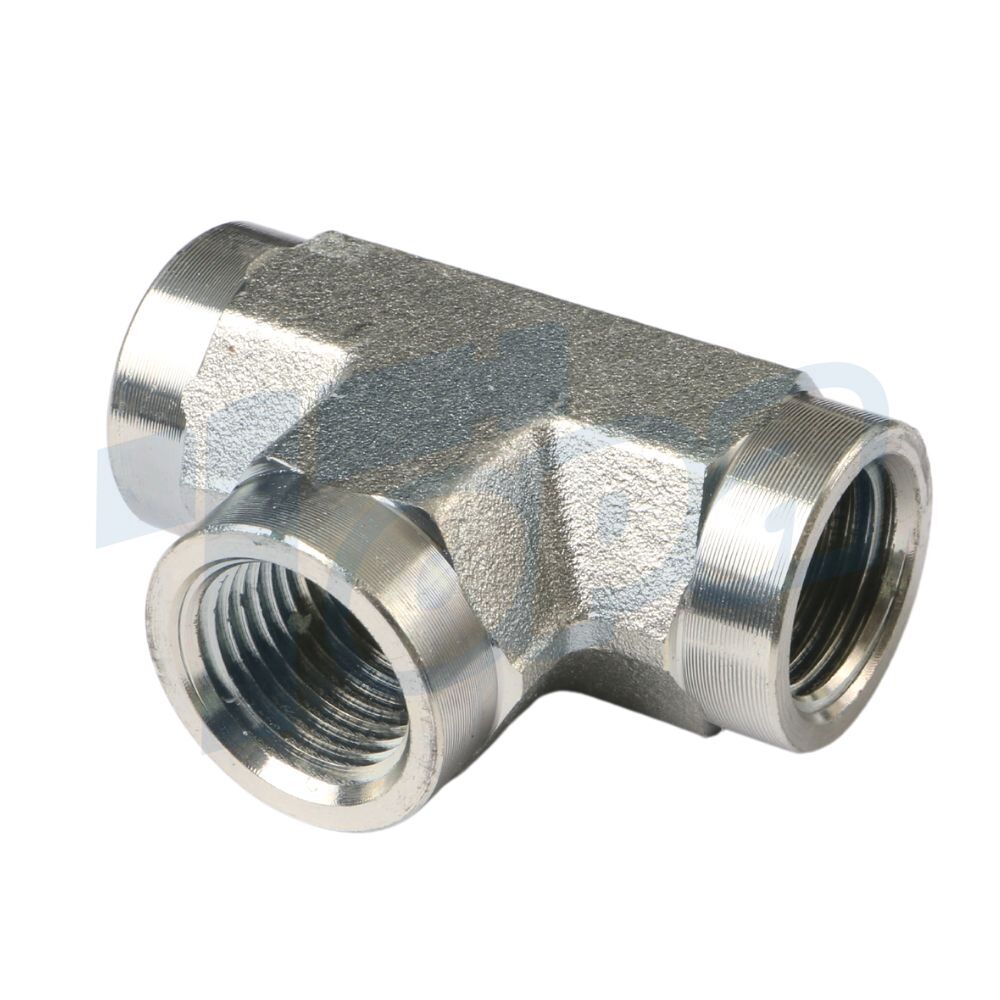

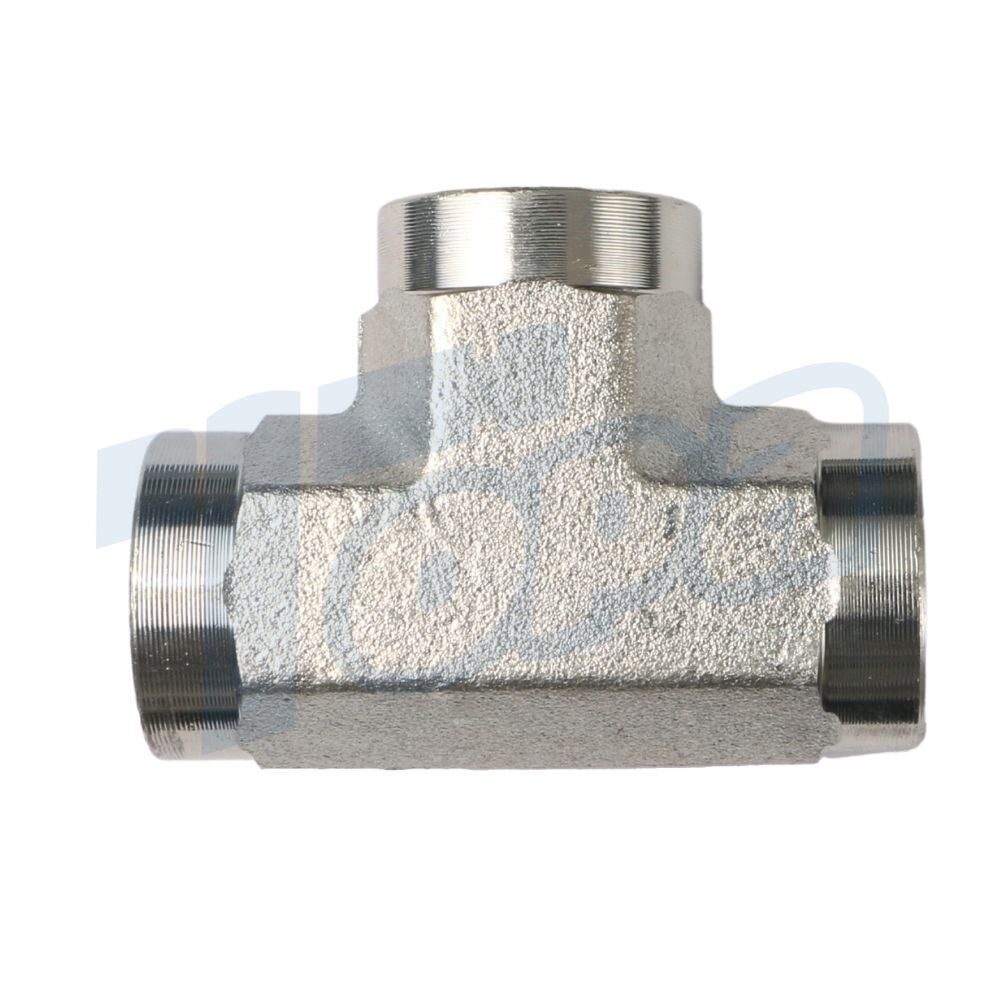

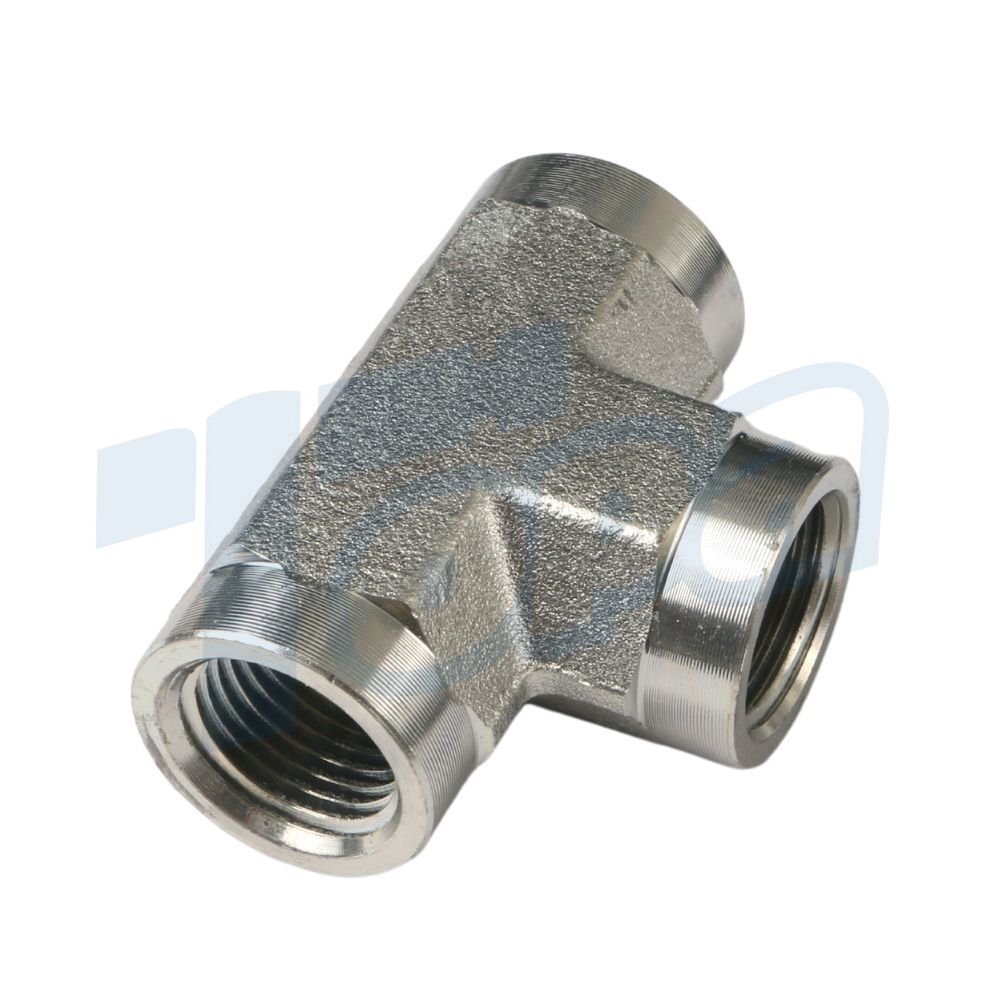

5605 NPT run tee adapters have three female NPT threads on both ends. And they are used to connect hydraulic pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with NPT hydraulic pipe fittings, please contact us!

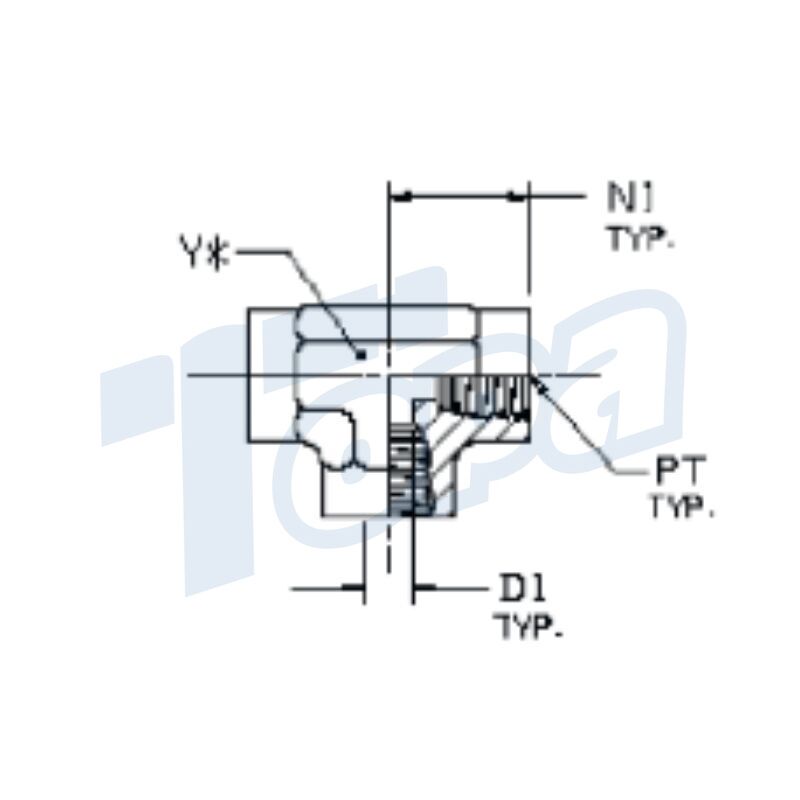

Dimensional Drawings:
TUBE FITTING PART # | PT PORT THD NPTF | REF D1 DRILL (inch) | N1 (inch) | Y (inch) |
5605-2-2-2 | 1/8-27 | 0.328 | 0.66 | 9/16 |
5605-4-4-4 | 1/4-18 | 0.422 | 0.88 | 3/4 |
5605-6-6-6 | 3/8-18 | 0.563 | 1.02 | 7/8 |
5605-8-8-8 | 1/2-14 | 0.688 | 1.23 | 11/16 |
5605-12-12-12 | 3/4-14 | 0.891 | 1.36 | 15/16 |
5605-16-16-16 | 1-11 1/2 | 1.125 | 1.63 | 1 5/8 |
5605-20-20-20 | 1 1/4-11 1/2 | 1.469 | 1.70 | 1 7/8 |
5605-24-24-24 | 1 1/2-11 1/2 | 1.703 | 2.08 | 2 1/2 |
5605 NPT Hydraulic Pipe Fitting Video
As the best Chinese hydraulic adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our hydraulic products can be used in a wide range of hydraulic fluid environments and are resistant to high pressures and temperatures.
Topa has multiple CNC machines and professional staff, so we can process hydraulic fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt hydraulic fittings and adapters, please contact us!
