Description

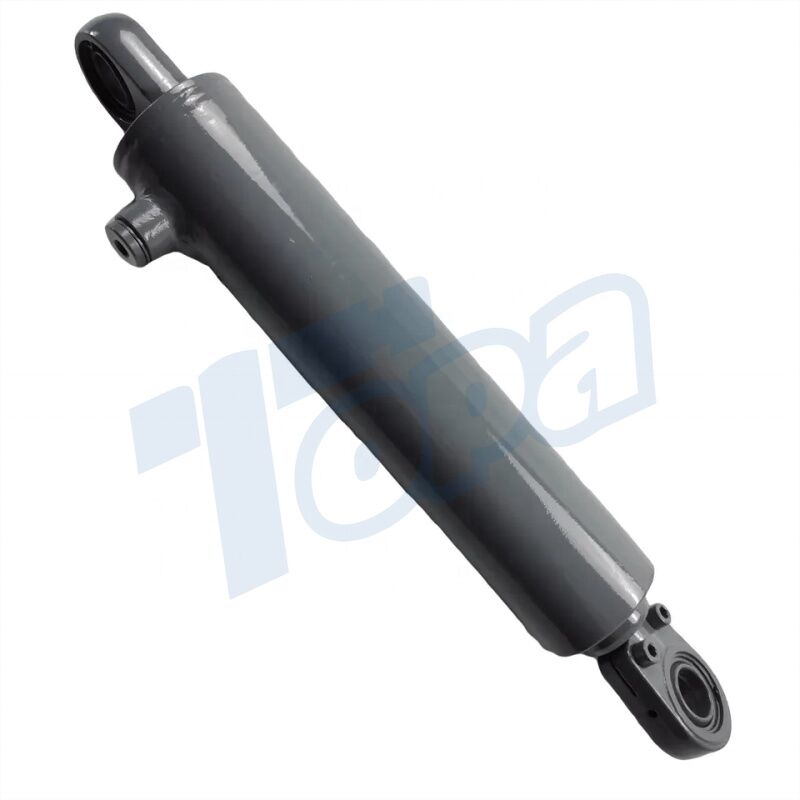

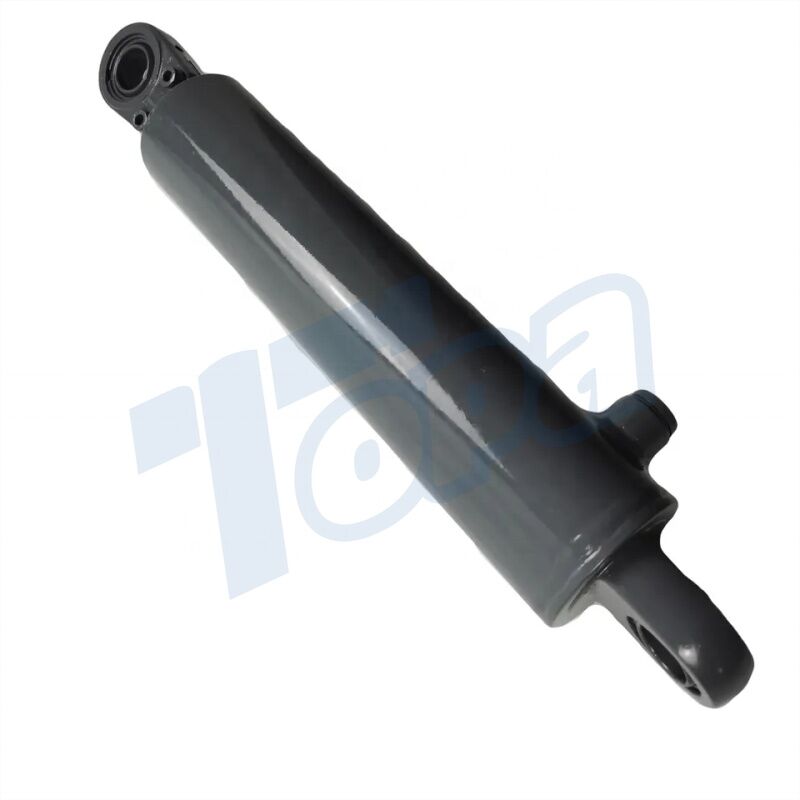

Jack Welded Single Acting Hydraulic Cylinders are robust and built for durability. The cylinder barrel is typically made of high-strength steel and features a sleek, cylindrical shape. The end caps are welded to the barrel, adding to the overall sturdiness of the design. The piston rod, which extends out of the barrel, is often chrome-plated for added durability and corrosion resistance. The hydraulic port is usually located at the bottom of the cylinder, and the entire unit may be coated with a protective layer to resist wear and tear.
The primary function of a Hydraulic Cylinder Single Acting is to provide mechanical force for jacking or lifting applications. When hydraulic fluid is pumped into the single hydraulic port at the bottom of the cylinder, it pushes the piston upwards. This, in turn, extends the piston rod, generating the mechanical force needed to lift or jack up heavy loads. Given its welded construction, this type of hydraulic cylinder is particularly well-suited for high-load and high-pressure applications where additional strength and durability are required
Advantages
High Strength and Durability
The welded construction provides an extra layer of strength, making these cylinders highly durable and well-suited for high-load applications.
Versatility
These cylinders can be customized to fit specific jacking or lifting requirements, making them highly versatile.
Energy Efficiency
Being single-acting, these cylinders consume less energy compared to double-acting cylinders, making them more energy-efficient.
Applications
Vehicle Lifting
Commonly used in automotive repair shops for lifting cars or trucks for maintenance or inspection.
Material Handling
Used in forklifts, pallet jacks, and other material handling equipment for lifting and transporting goods.
Hydraulic Presses
In hydraulic press machines, these cylinders provide the necessary force for compressing materials.
Understanding Your Needs
Our team of skilled engineers and professionals will work closely with you to understand your specific requirements. We engage in detailed consultations to grasp the nuances of your operational challenges and objectives, ensuring that the final product is perfectly aligned with your needs.
Versatility in Customization
Our customization services are incredibly versatile. We can adjust the stroke length to meet the specific operational needs of your machinery, tailor the dimensions to fit space constraints, and even choose materials that are best suited for your application’s environmental conditions.
Aesthetic Customization
Beyond functional specifications, we also offer aesthetic customization. If you have specific branding needs or color preferences, we can coat the hydraulic cylinders in colors that align with your company’s branding guidelines.
Jack Welded Single Acting Hydraulic Cylinder
The first step in the manufacturing process of Jack Welded Single Acting Hydraulic Cylinders at Topa Hydraulic is the careful selection of materials. Given the high-load and high-pressure applications these cylinders are designed for, we typically opt for high-strength steel for the cylinder barrel and piston rod. These materials are then precisely machined using state-of-the-art CNC machines to form the various components, including the barrel, piston, and piston rod.
After the initial machining, the components move on to the welding stage. The cylinder barrel and end caps are welded together to provide added strength and durability, a key feature of these cylinders. Following welding, the piston, piston rod, and seals are meticulously assembled into the barrel. Once the assembly is complete, each cylinder undergoes a series of rigorous quality assurance tests.
Contact Topa for more information!
