Single Action Hydraulic Cylinders

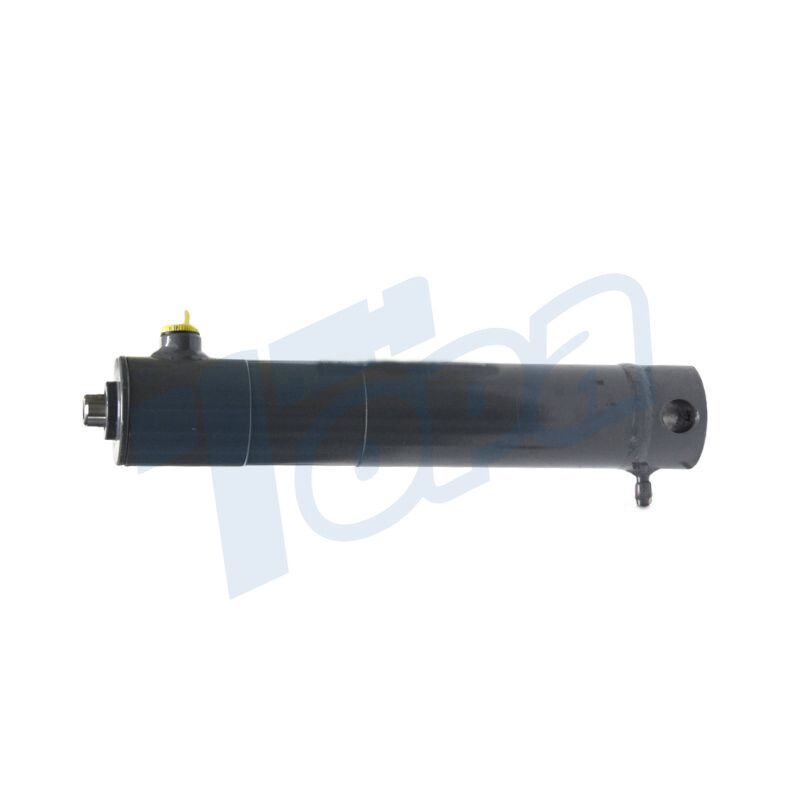

Rice Transplanter Single Action Hydraulic Cylinders

Cylinder Barrel
The cylinder barrel is the main body that houses the piston and hydraulic fluid. It is usually made from corrosion-resistant materials like stainless steel or aluminum, given the wet conditions it will operate in.

The piston is responsible for converting hydraulic energy into mechanical energy, which is used to operate various functions of the rice transplanter.

Piston Rod
The piston rod is attached to the piston and extends out of the cylinder barrel. It is generally made of corrosion-resistant materials and may be coated for added protection against wear and rust.

Hydraulic Port
This port is used for pumping hydraulic fluid into the cylinder, which activates the piston and extends the piston rod.

Seals and Gaskets
These are typically made from materials that can withstand the wet and muddy conditions of paddy fields.


Rice Transplanter Single Action Hydraulic Cylinders are designed with a focus on durability and corrosion resistance. They usually feature a sleek, cylindrical barrel made from stainless steel or aluminum, often with a protective coating to withstand the wet and muddy conditions of paddy fields.

These cylinders operate by converting hydraulic energy into mechanical energy. When hydraulic fluid is pumped into the cylinder, the piston activates and extends the piston rod, enabling various functions of the rice transplanter, such as adjusting the planting depth or lifting the planting unit.


Engineered to meet the specific needs of rice transplanting, these cylinders offer reliable performance, ensuring smooth operation and reduced downtime.

Energy Efficiency
Being single-acting, these cylinders consume less hydraulic fluid and energy compared to double-acting cylinders, making them more energy-efficient.

Space Efficiency
Their compact design allows for easy integration into rice transplanting machines, making them ideal for applications where space is limited.


Planting Depth Adjustment
One of the primary applications of these cylinders in rice transplanters is to adjust the planting depth, ensuring that the rice seedlings are planted at the optimal depth in the soil.

Lifting Planting Unit
These cylinders are also used to lift the planting unit of the rice transplanter, allowing for easy maneuverability and transition between planting rows.

Height Adjustment
In some advanced rice transplanting machines, these cylinders assist in adjusting the height of the entire machine to adapt to varying field conditions.

Seedling Tray Positioning
Some rice transplanters use these cylinders to position the seedling trays correctly, ensuring accurate and efficient planting.

Topa's Customized Services

Understanding Your Needs
At Topa, the customization process begins with a thorough understanding of your unique requirements. We believe that every client has specific needs that standard products may not fully address. Our team of skilled engineers engages in detailed discussions with you to grasp the nuances of your operational challenges and objectives.

Versatility in Customization
Our customization services are incredibly versatile. Whether you’re looking for hydraulic cylinders with particular stroke lengths to fit specialized machinery or specific dimensions to meet space constraints, we’ve got you covered.

Color and Aesthetic Customization
Beyond functional specifications, we understand that aesthetics and branding can be crucial for your business. To that end, we offer customization in color schemes to ensure that the hydraulic cylinders align with your company’s branding or the color coding of your equipment.

hydraulic cylinder Welding Topa

Rice Transplanter Single Action Hydraulic Cylinders

The manufacturing journey at Topa starts with the careful selection of high-quality materials, such as high-strength steel or aluminum, depending on the application’s specific needs. These materials are then precisely machined using state-of-the-art equipment to form the various components of the hydraulic cylinder, including the barrel, piston, and piston rod.

Once all components are machined to specification, they move on to the assembly stage. Here, our team of skilled professionals meticulously assembles the parts, ensuring that each component fits perfectly and operates smoothly. After assembly, each hydraulic cylinder undergoes a series of rigorous quality assurance tests. These tests include pressure tests to check the cylinder’s ability to withstand operational pressures and functionality checks to ensure all components work as intended.

Contact Topa now, and we will give you the best services!
