Single Acting Hydraulic Cylinders

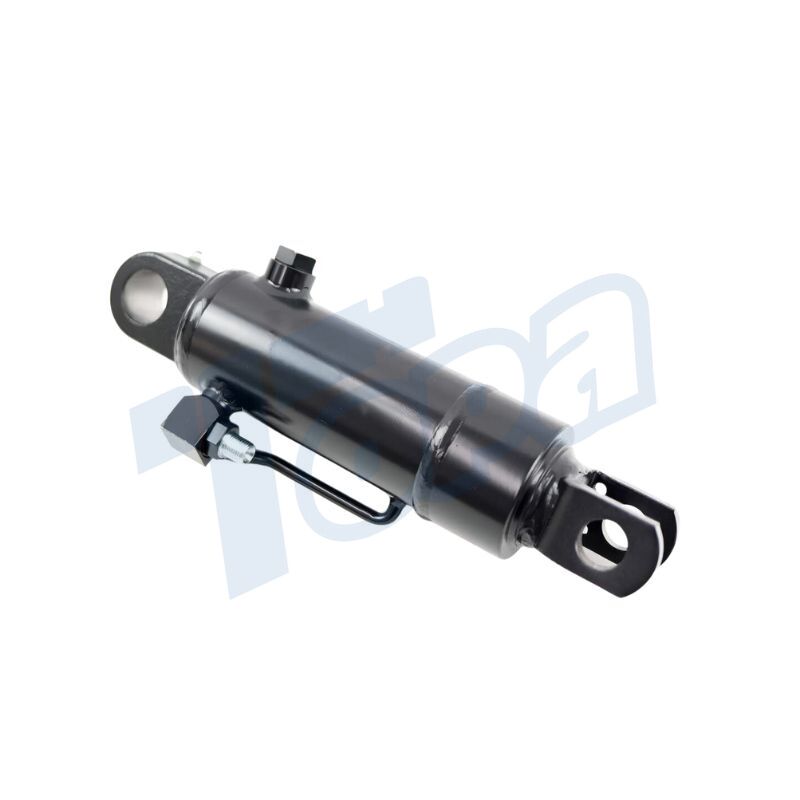

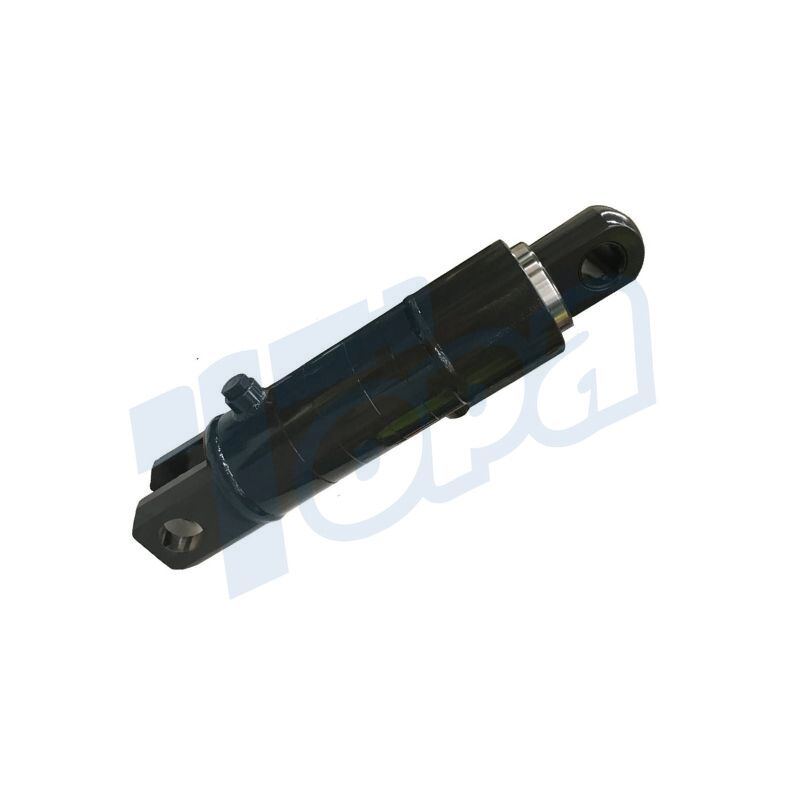

Tractor Lift Single Acting Hydraulic Cylinders

Cylinder Barrel
The cylinder barrel serves as the main body of the cylinder and is usually made from high-strength steel to withstand the rigors of agricultural use. It houses the piston and hydraulic fluid.

Piston
Inside the barrel is a piston, which moves in a single direction—upwards or downwards—depending on the hydraulic fluid pressure. The piston is responsible for converting hydraulic energy into mechanical energy to lift tractor attachments.

Piston Rod
The piston rod is attached to the piston and extends out of the cylinder barrel. It is generally made of high-strength steel and may be chrome-plated for added durability and corrosion resistance.

Hydraulic Port
Since this is a single-acting cylinder, it features only one hydraulic port, usually located at the bottom of the cylinder. This port is used for pumping hydraulic fluid into the cylinder, which activates the piston and extends the piston rod.

Mounting Options
Various mounting options such as clevis, pin-eye, or tang might be used depending on the specific tractor model and attachment.

Description

Tractor Lift Single Acting Hydraulic Cylinders are robust and designed for durability, typically featuring a barrel made of high-strength steel. The exterior often has a protective coating to resist corrosion and wear, making it suitable for the harsh conditions of agricultural use.

These cylinders operate on the principle of hydraulic fluid being pumped into a single port, which activates the piston and extends the piston rod. This provides the mechanical force needed to lift various tractor attachments like plows, mowers, or front-end loaders.

Advantages

High Load Capacity

These cylinders are designed to handle high loads, making them ideal for lifting heavy tractor attachments.

Energy Efficiency

Being single-acting, these cylinders generally consume less hydraulic fluid and energy compared to double-acting cylinders.

Customizability

The design allows for easy customization in terms of size, stroke length, and materials, making them adaptable for various applications.

Space Efficiency

Their compact design makes them ideal for tractors where space may be limited.

Applications

Plowing

These cylinders are commonly used in tractors with plowing attachments to lift and lower the plow as needed.

Harvesting

In harvesting equipment like combine harvesters, these cylinders help in lifting and adjusting various components.

Tilling

Tractors with tilling attachments often use these cylinders to lift the tiller off the ground when not in use or to adjust its depth.

Mowing

In tractors with mower attachments, these cylinders help in lifting the mower deck for easy maneuverability or maintenance.

Topa's Customized Services

Topa offers a wide range of customization options for these specialized cylinders:

Stroke Length

We can customize the stroke length to ensure the cylinder provides the exact range of motion required for your specific agricultural tasks.

Dimensions

Whether you need a compact cylinder for a smaller tractor or a larger one for heavy-duty tasks, we can tailor the dimensions to fit your specific requirements.

Color

If you have specific aesthetic or branding needs, we offer color customization to align the cylinder’s appearance with your tractor or company colors.

Material

Depending on your application, we offer material options like high-strength steel for durability or other specialized materials for unique needs.

Single Acting Hydraulic Cylinder for Elevator

At Topa, the manufacturing of tractor single acting hydraulic cylinder starts with the selection of high-quality materials, usually high-strength steel, to ensure durability and performance. Our skilled professionals then proceed to machine and assemble the components, adhering to stringent quality standards.

Quality assurance is a crucial step in our manufacturing process. Each cylinder undergoes rigorous testing, including pressure tests and functionality checks, to ensure it meets both industry standards and the specific needs of agricultural applications.

For more information or to discuss your project needs, feel free to reach out to us at Topa. We are here to provide you with best-quality products and services that add value to your operations.
