Description
Male JIC Hydraulic Connections

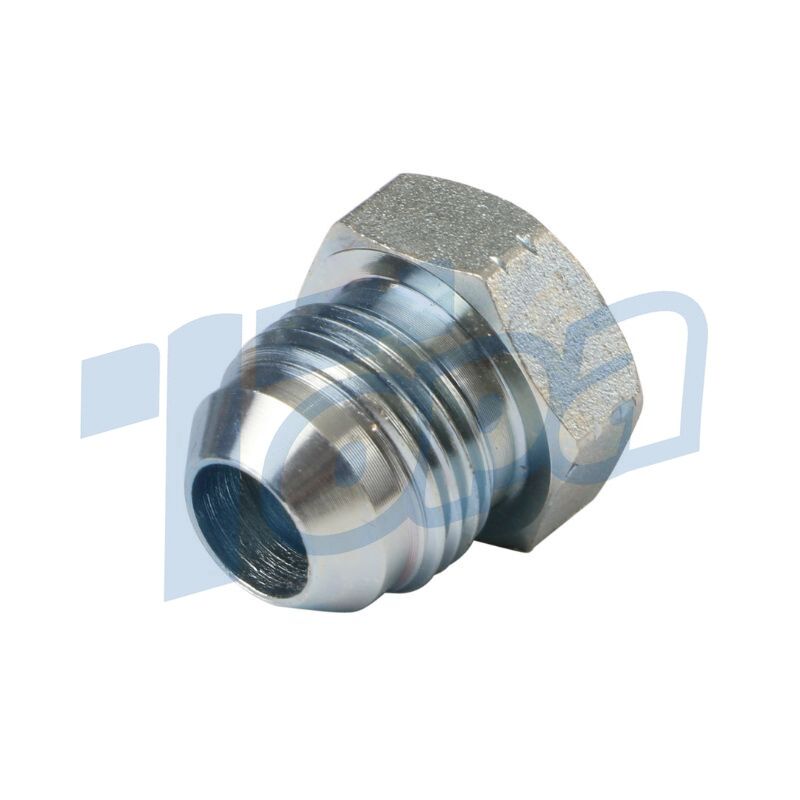

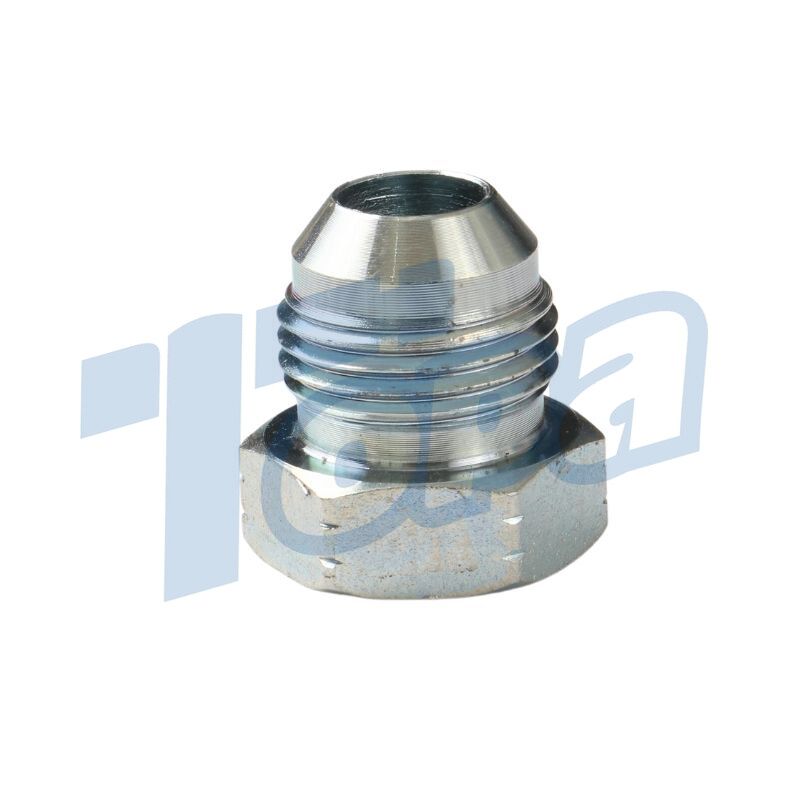

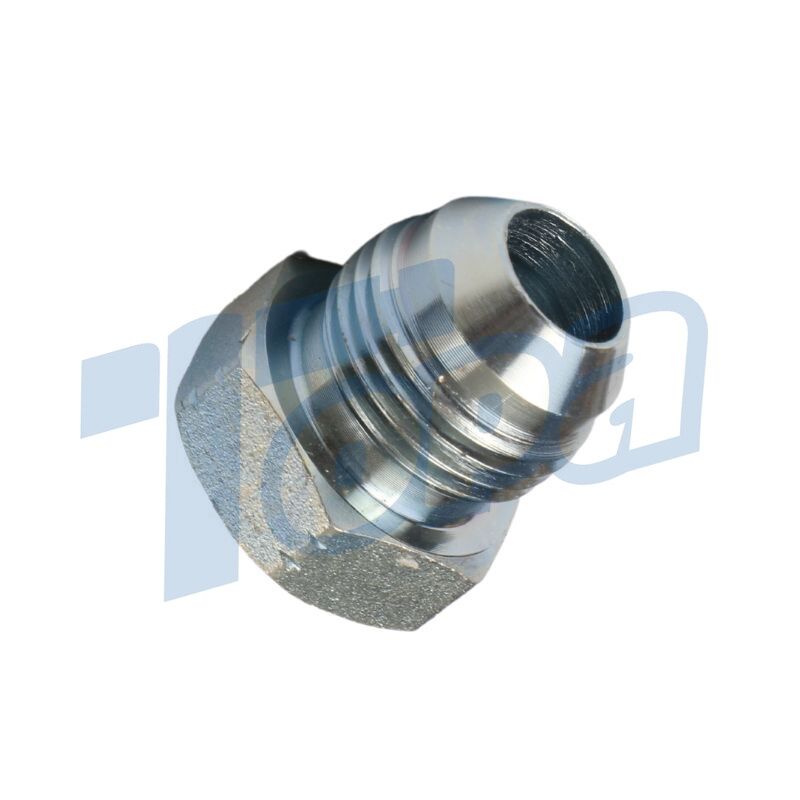

2408 JIC hydraulic plugs with male 37° flare on the ends. They are made of high-quality metal materials, durable and high-pressure resistance. Topa can provide all sizes and materials of JIC hydraulic connections, please contact us for more information!

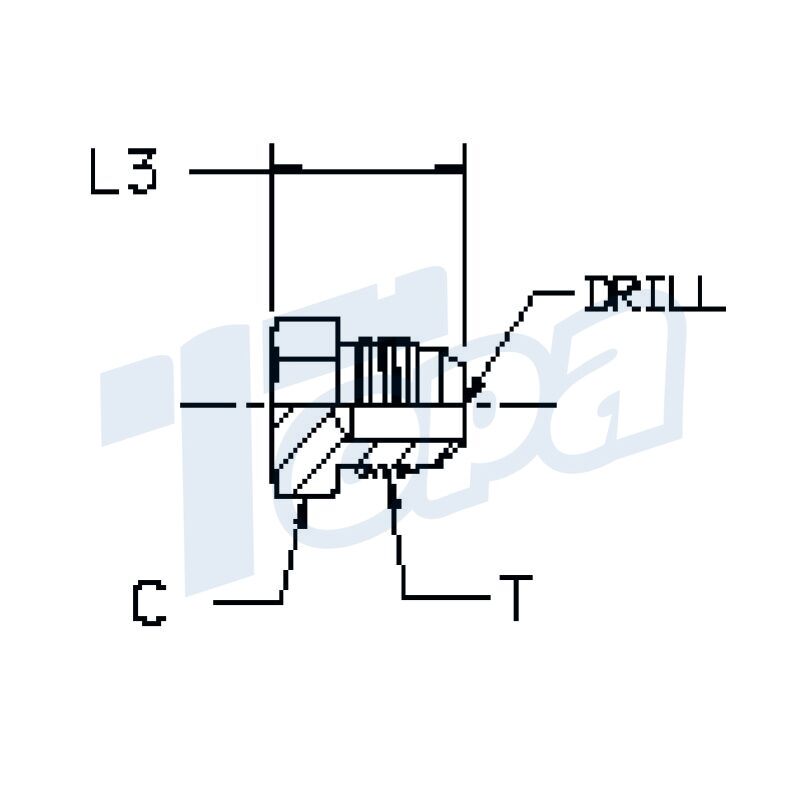

Dimensional Drawings:
TUBE FITTING PART # | TUBE O.D. (inch) | T TUBE END UN/UNF-2A | C HEX (inch) | L3 (inch) |
2408-2 | 1/8 | 5/16-24 | 7/16 | 0.70 |
2408-3 | 3/16 | 3/8-24 | 7/16 | 0.73 |
2408-4 | 1/4 | 7/16-20 | 1/2 | 0.80 |
2408-5 | 5/16 | 1/2-20 | 9/16 | 0.80 |
2408-6 | 3/8 | 9/16-18 | 5/8 | 0.84 |
2408-8 | 1/2 | 3/4-16 | 13/16 | 0.94 |
2408-10 | 5/8 | 7/8-14 | 15/16 | 1.10 |
2408-12 | 3/4 | 11/16-12 | 1 1/8 | 1.28 |
2408-14 | 7/8 | 13/16-12 | 1 1/4 | 1.31 |
2408-16 | 1 | 15/16-12 | 1 3/8 | 1.33 |
2408-20 | 1 1/4 | 1 5/8-12 | 1 11/16 | 1.45 |
2408-24 | 1 1/2 | 1 7/8-12 | 2 | 1.66 |
2408-32 | 2 | 2 1/2-12 | 2 5/8 | 2.05 |
2408 JIC Hydraulic Connections Video
As a hydraulic connections factory, Topa can supply hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and high temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our hydraulic fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about hydraulic line plugs, please contact us!
