Male JIC Elbow Hydraulic Adapter Fittings

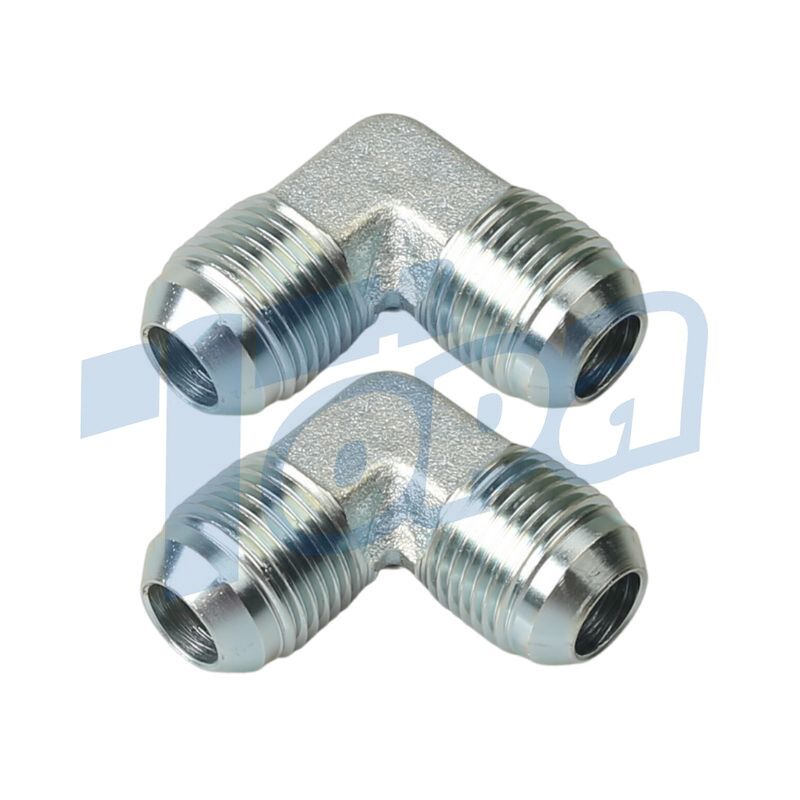

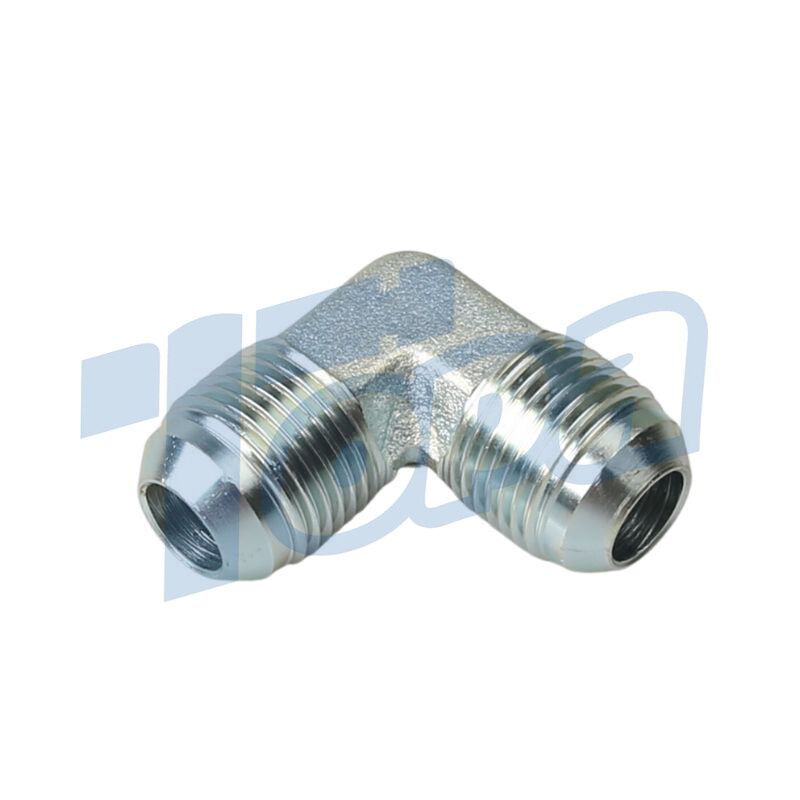

2500 90-degree elbow JIC hydraulic fittings with male 37° flare on both ends. They are made of high-quality metal materials, durable and high-temperature resistance. Topa can provide all sizes and materials of JIC hydraulic hose adapter, please contact us for more information!
Dimensional Drawings:

TUBE FITTING PART # | TUBE O.D. (inch) | T TUBE END UN/UNF-2A | T1 TUBE END UN/UNF-2A | D DRILL (inch) | D1 DRILL (inch) | M (inch) | M1 (inch) | Y (inch) |
2500-2-2 | 1/8 | 5/16-24 | 5/16-24 | 0.062 | 0.062 | 0.78 | 0.78 | 7/16 |
2500-3-3 | 3/16 | 3/8-24 | 3/8-24 | 0.125 | 0.125 | 0.83 | 0.83 | 7/16 |
2500-4-4 | 1/4 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.89 | 0.89 | 7/16 |
2500-5-5 | 5/16 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 0.95 | 0.95 | 9/16 |
2500-6-6 | 3/8 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 1.06 | 1.06 | 9/16 |
25004-6 | 3/8 to 1/4 | 9/16-18 | 7/16-20 | 0.297 | 0.172 | 1.06 | 1.05 | 9/16 |
2500-8-8 | 1/2 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 1.25 | 1.25 | 3/4 |
2500-6-8 | 1/2 to 3/8 | 3/4-16 | 9/16-18 | 0.391 | 0.297 | 1.25 | 1.14 | 3/4 |
2500-10-10 | 5/8 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 1.45 | 1.45 | 7/8 |
2500-8-10 | 5/8 to 1/2 | 7/8-14 | 3/4-16 | 0.484 | 0.391 | 1.45 | 1.33 | 7/8 |
2500-12-12 | 3/4 | 11/16-12 | 11/16-12 | 0.609 | 0.609 | 1.66 | 1.66 | 11/16 |
2500-8-12 | 3/4 to 1/2 | 11/16-12 | 3/4-16 | 0.609 | 0.391 | 1.66 | 1.42 | 11/16 |
2500-10-12 | 3/4 to 5/8 | 11/16-12 | 7/8-14 | 0.609 | 0.484 | 1.66 | 1.54 | 11/16 |
2500-14-14 | 7/8 | 13/16-12 | 13/16-12 | 0.718 | 0.718 | 1.73 | 1.73 | 13/16 |
2500-16-16 | 1 | 15/16-12 | 15/16-12 | 0.844 | 0.844 | 1.81 | 1.81 | 15/16 |
2500-12-16 | 1 to 3/4 | 15/16-12 | 11/16-12 | 0.844 | 0.609 | 1.81 | 1.77 | 15/16 |
2500-20-20 | 1 1/4 | 1 5/8-12 | 1 5/8-12 | 1.078 | 1.078 | 2.06 | 2.06 | 1 5/8 |
2500-24-24 | 1 1/2 | 1 7/8-12 | 1 7/8-12 | 1.312 | 1.312 | 2.33 | 2.33 | 1 7/8 |
2500-32-32 | 2 | 2 1/2-12 | 2 1/2-12 | 1.781 | 1.781 | 3.06 | 3.06 | 2 1/2 |
2500 JIC Hydraulic Adapter Fittings Video
As a hydraulic adapter fittings supplier, Topa can supply hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and high temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you still want information about JIC adapter fittings, please contact us!
