DOT Fitting Tube Inserts

Description:

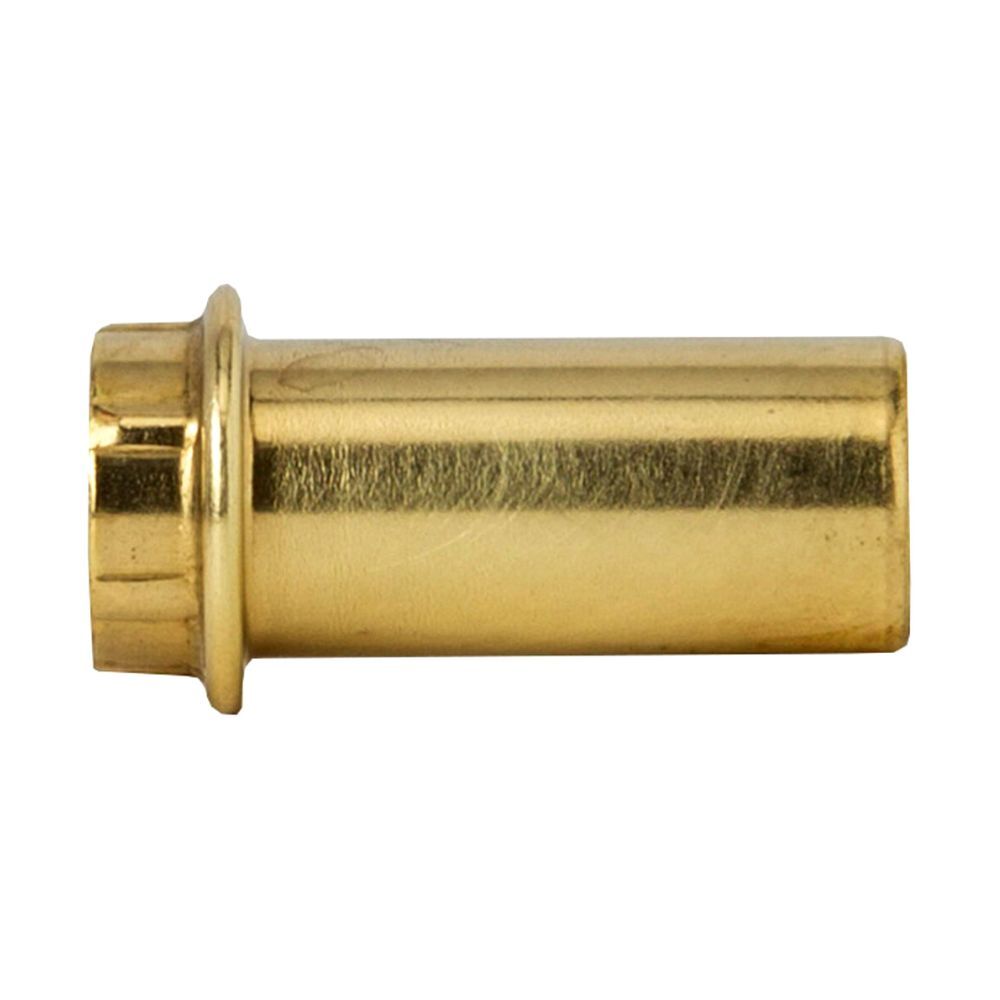

A brass insert is a cylindrical component made of brass that is used to provide a strong, durable, and corrosion-resistant thread in a soft material such as plastic.

It is inserted into a drilled hole and provides a mating surface for screws or bolts to be threaded into.

If you have any further questions about the dot tubing and fittings, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

Part#	Tube O.D	L	O.D	Approx Wt.Lbs
1588-4	1/4	0.53	0.163	0.01
1588-6	3/8	0.64	0.245	0.01
1588-8	1/2	0.81	0.370	0.01
1588-10	5/8	0.86	0.434	0.01
1588-12	3/4	1.04	0.559	0.01

DOT Fitting Tube Inserts - Brass Nylon Tubing Insert Video

This video shows the information on the brass insert dot tube inserts.

Additionally, brass inserts can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the air brake line tube fittings.
