Description

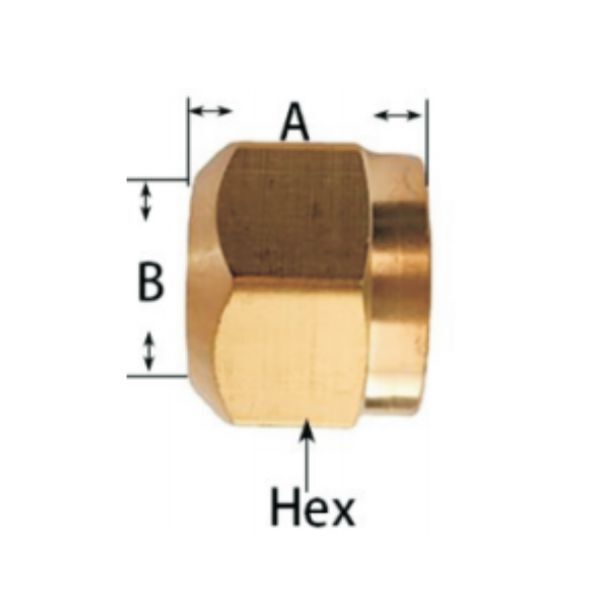

Part# | Tube O.D | Hex | B | A | Approx Wt.Lbs |
1572-3 | 3/16 | 7/16 | 0.194 | 0.40 | 0.02 |
1572-4 | 1/4 | 9/16 | 0.256 | 45. | 0.02 |
1572-6 | 3/8 | 5/8 | 0.348 | 0.63 | 0.03 |
1572-8 | 1/2 | 13/16 | 0.509 | 0.72 | 0.05 |
1572-10 | 5/8 | 15/16 | 0.634 | 0.77 | 0.06 |
1572-12 | 3/4 | 1-1/8 | 0.760 | 0.81 | 0.09 |

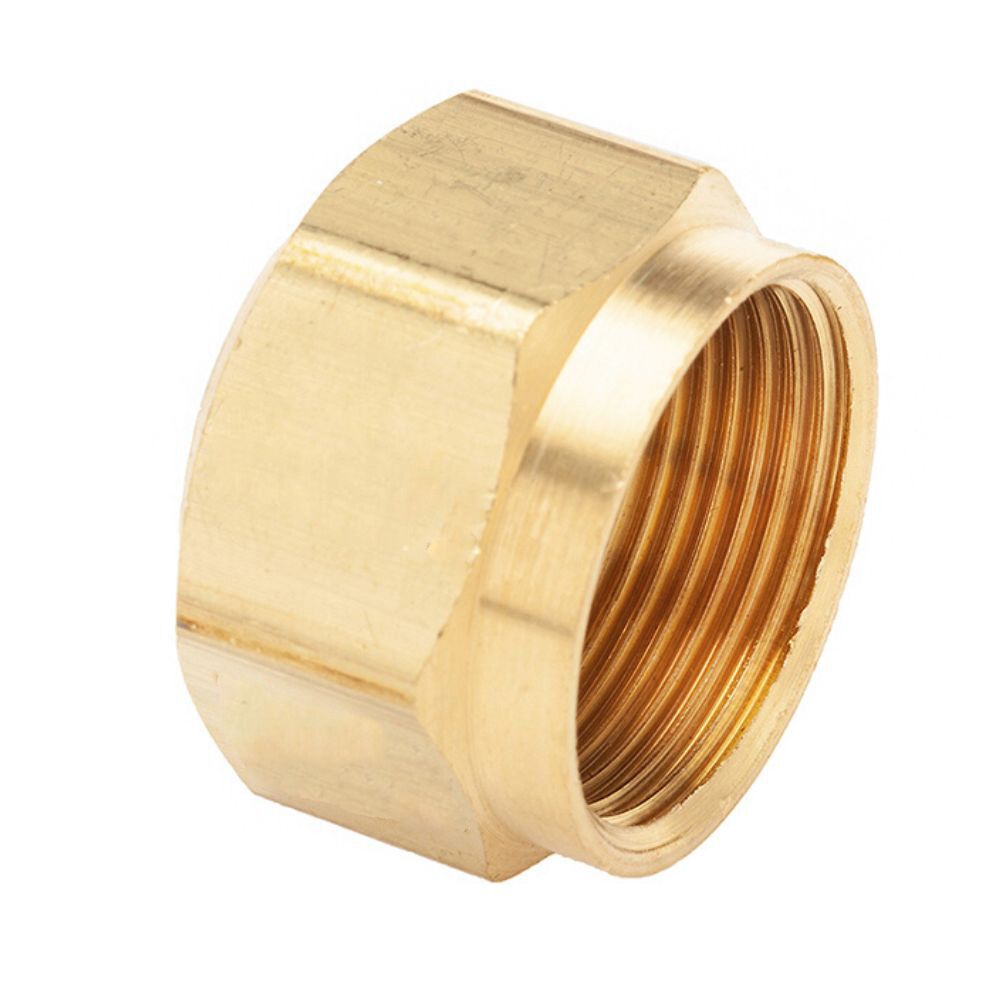

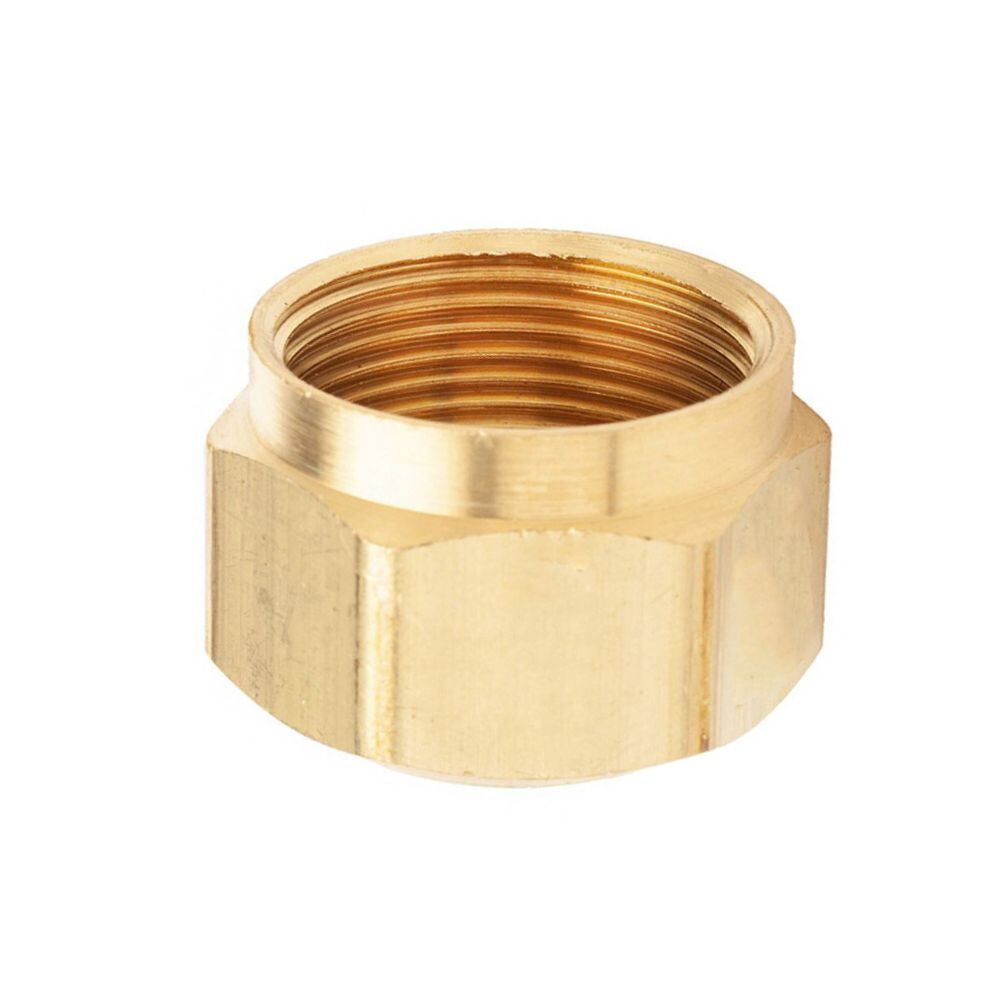

Brass DOT Air Line Nut - Nylon Tubing Nut Video
This video shows the information on the brass dot air line nut.
Additionally, brass nuts can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.
Please get in touch with us if you have any questions about the air brake line tube fittings.
