Description

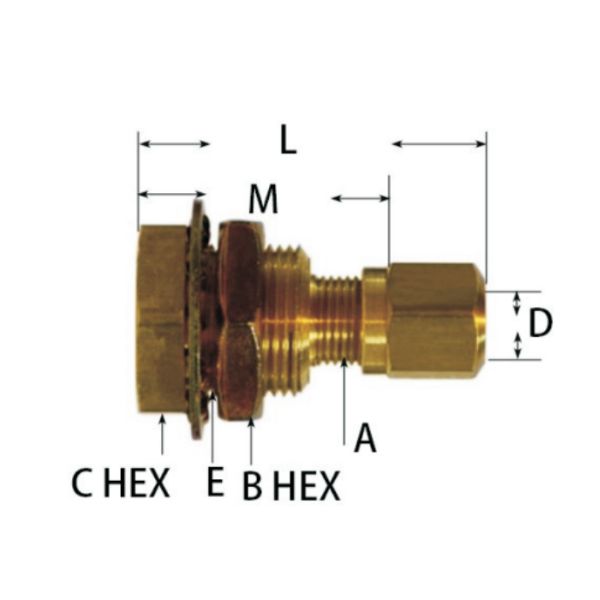

Part# | Tube O.D* | A | E | B hex | C hex | L | M | D |
1586-6E | 3/8*3/8 | 17/32-24 | 7/8-14 | 1-1/16 | 1-1/16 | 1.92 | 1.40 | 0.338 |
1586-8E | 1/2*3/8 | 11/16-20 | 7/8-14 | 1-1/16 | 1-1/16 | 1.94 | 1.42 | 0.338 |

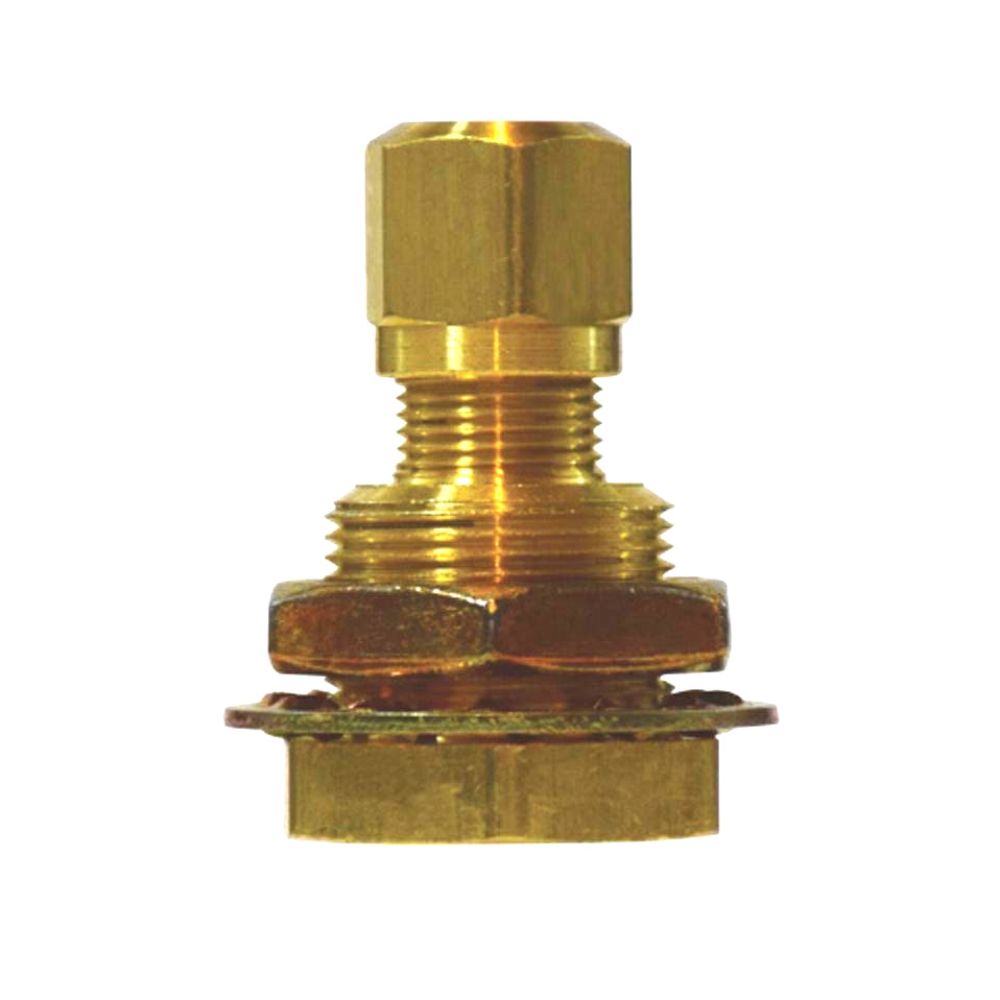

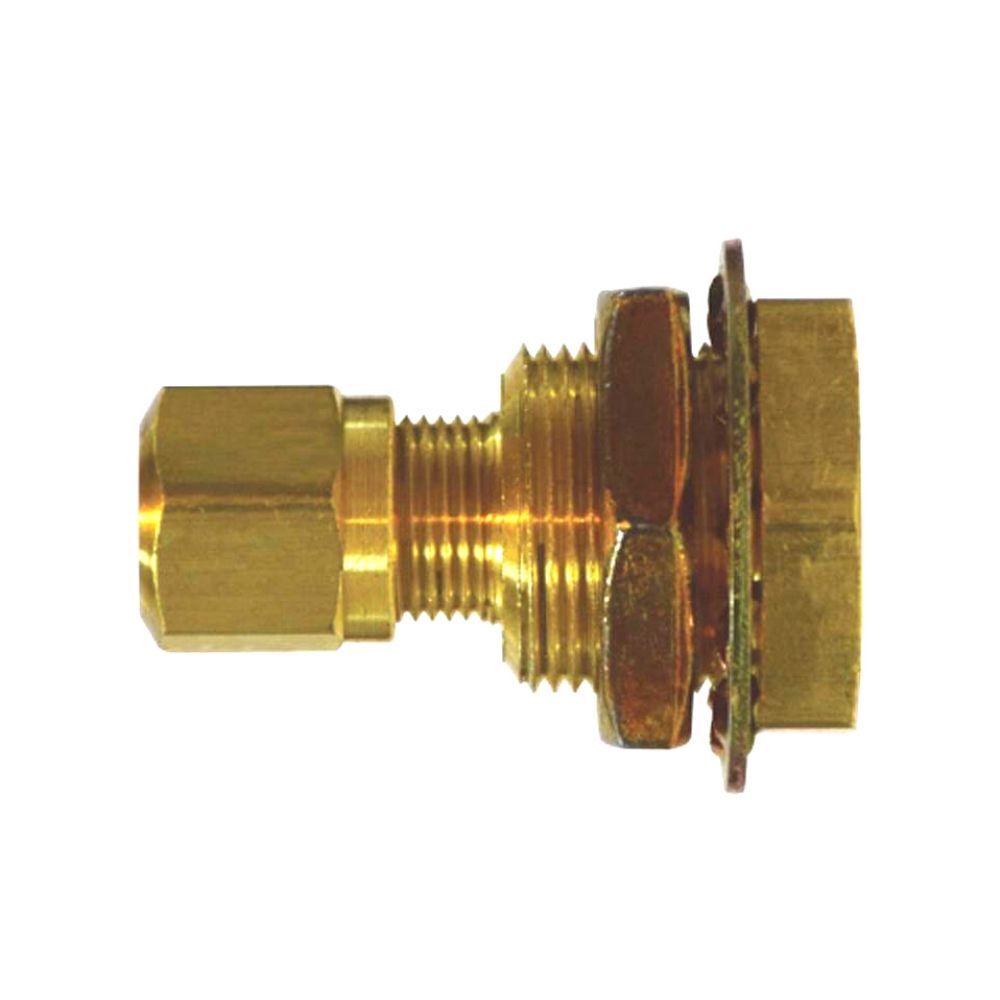

Brass Air Brake Tube Fitting - Nylon Tubing Bulkhead Union Video
This video shows the information on the compression × female NPTF thread bulkhead union air brake tube fitting.
Additionally, brass bulkhead unions can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.
Please get in touch with us if you have any questions about the dot tubing and fittings.
