Description

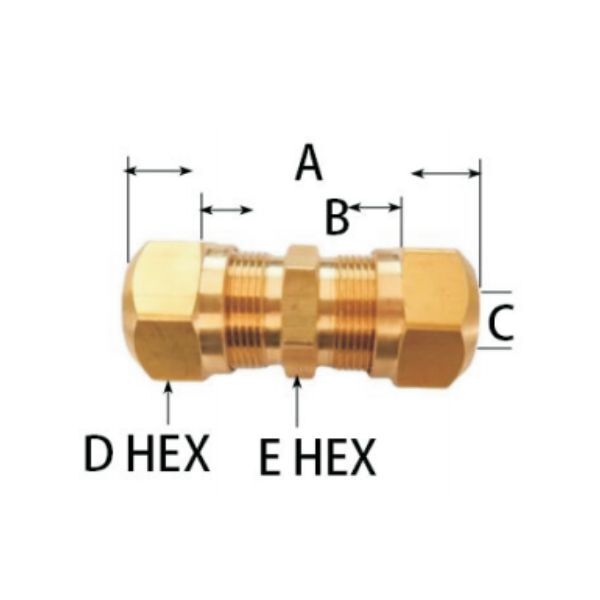

Part# | Tube | D | E | A | B | C | Approx |
1573-3 | 3/16 | 7/16 | 7/16 | 1.21 | 0.87 | 0.137 | 0.05 |
1573-4 | 1/4 | 9/16 | 7/16 | 1.49 | 0.83 | 0.137 | 0.07 |
1573-6 | 3/8 | 5/8 | 11/16 | 2.00 | 1.08 | 0.217 | 0.11 |
1573-8 | 1/2 | 13/16 | 11/16 | 2.23 | 1.29 | 0.338 | 0.20 |
1573-10 | 5/8 | 15/16 | 13/16 | 2.39 | 1.41 | 0.398 | 0.25 |
1573-12 | 3/4 | 1-1/8 | 1 | 2.60 | 1.58 | 0.523 | 0.40 |

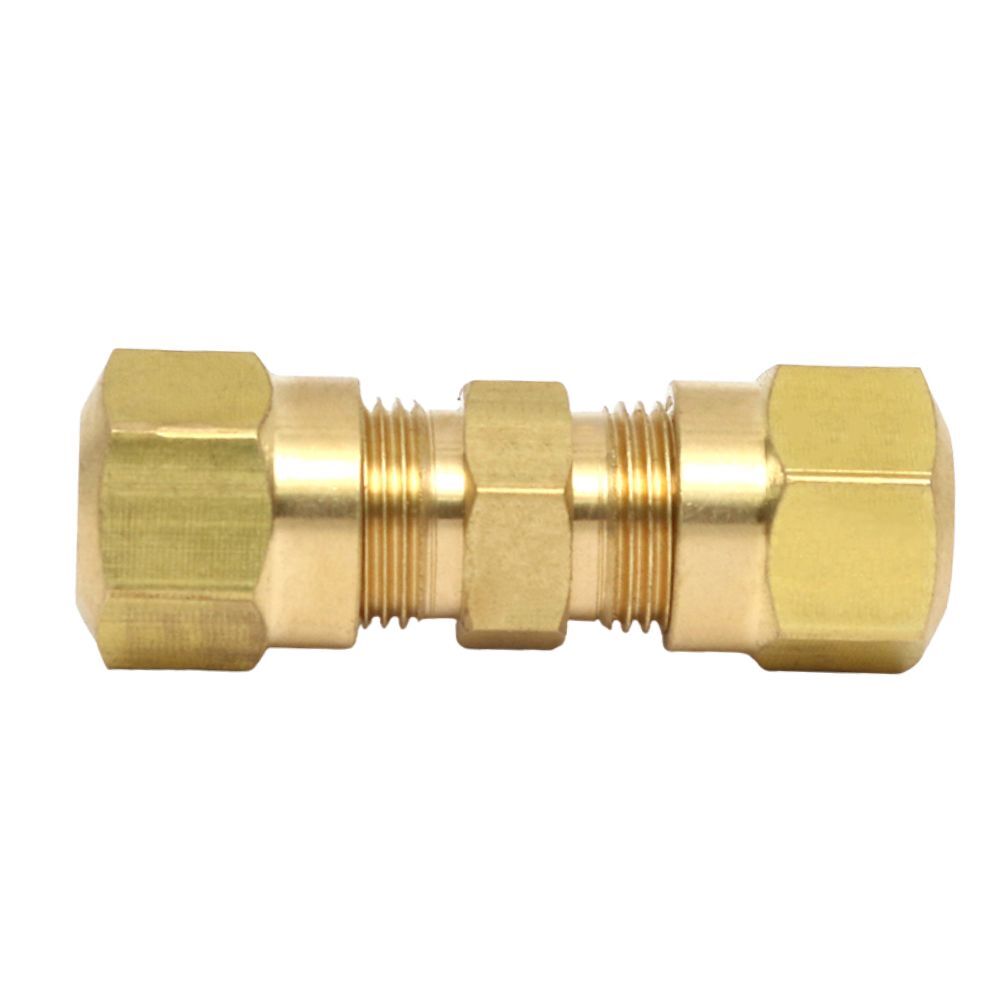

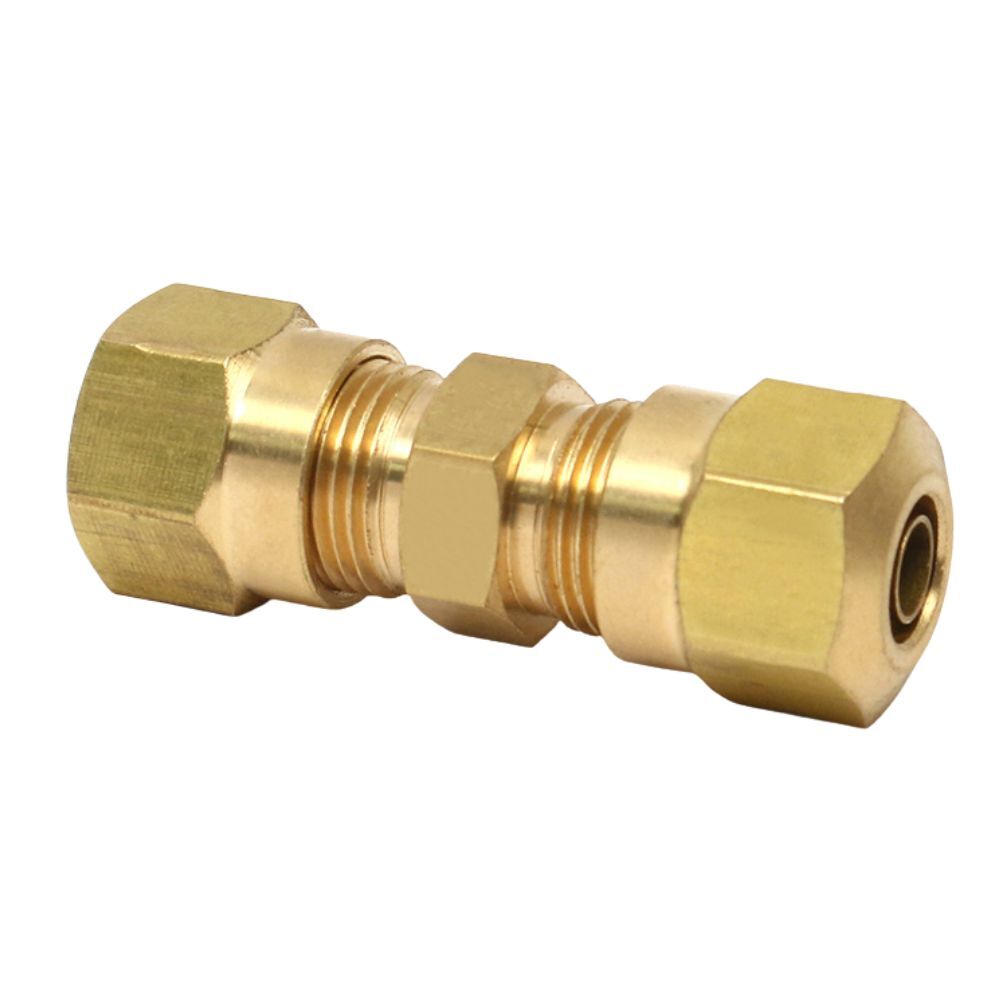

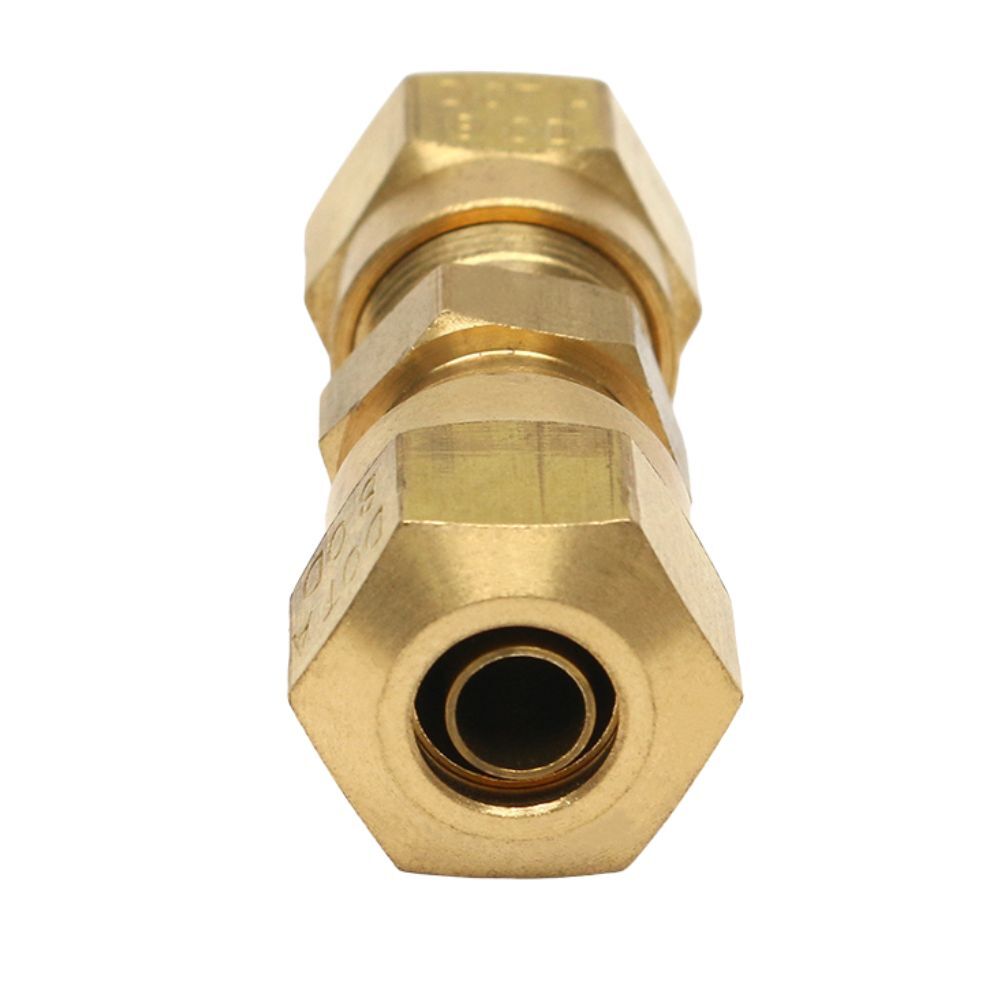

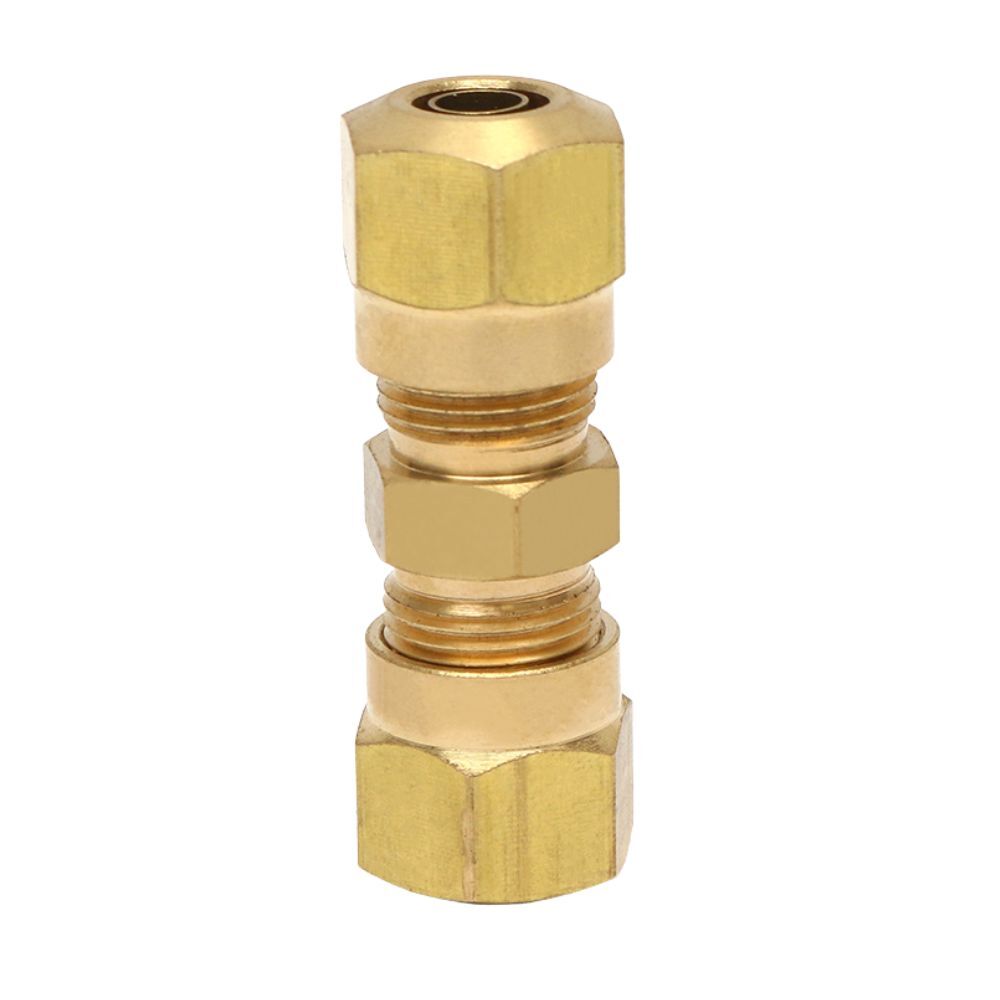

Brass DOT Compression Fittings - Union - For Nylon Tubing Video
This video shows the information on the DOT compression fittings.
Additionally, brass dot air brake unions can be used with nylon tubings. They have a large number of sizes and dimensions. They can play an essential role in air brake systems.
Please get in touch with us if you have any questions about the dot air line compression fittings.
