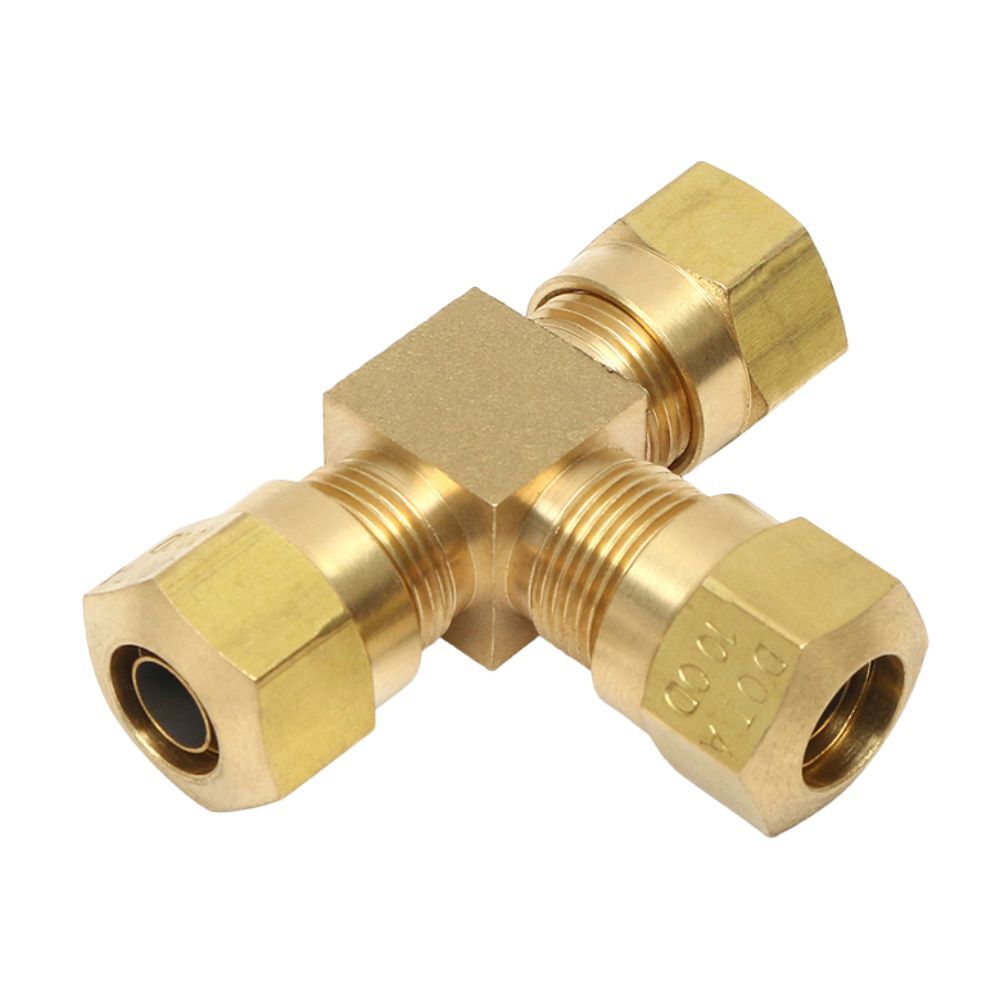

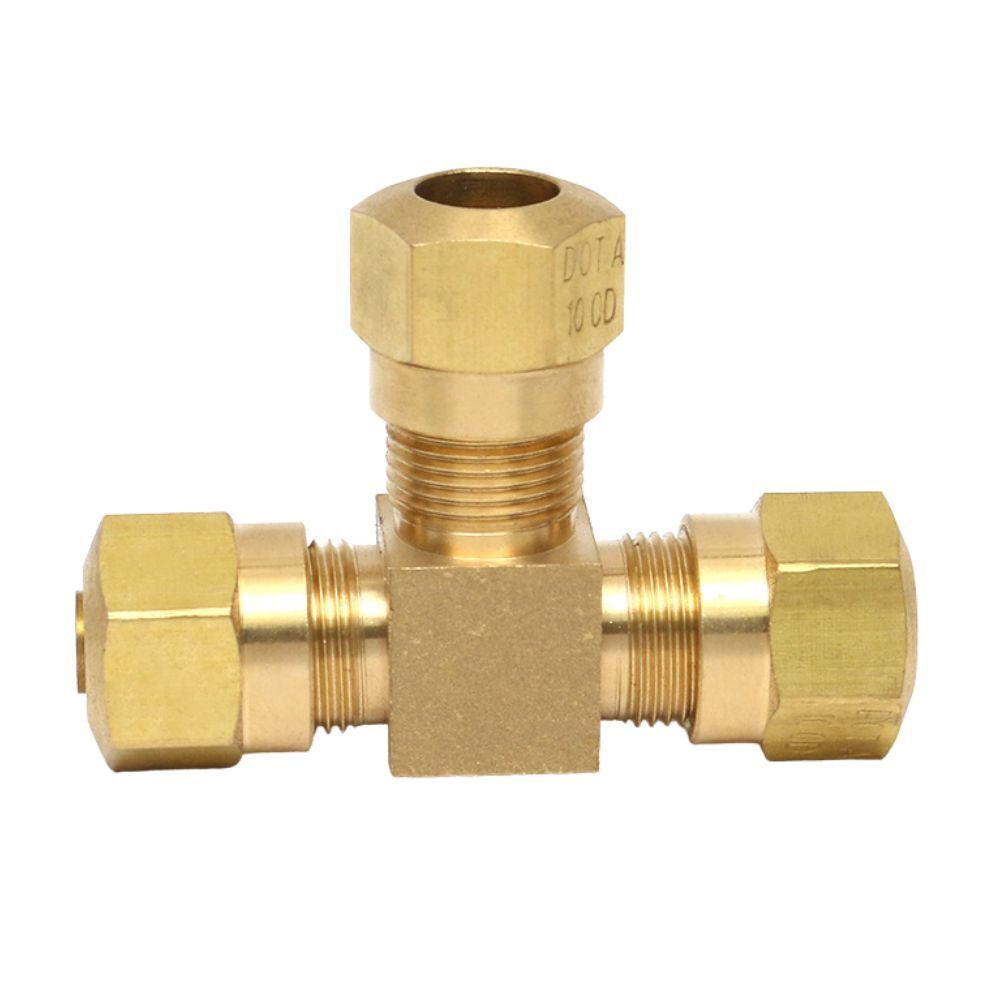

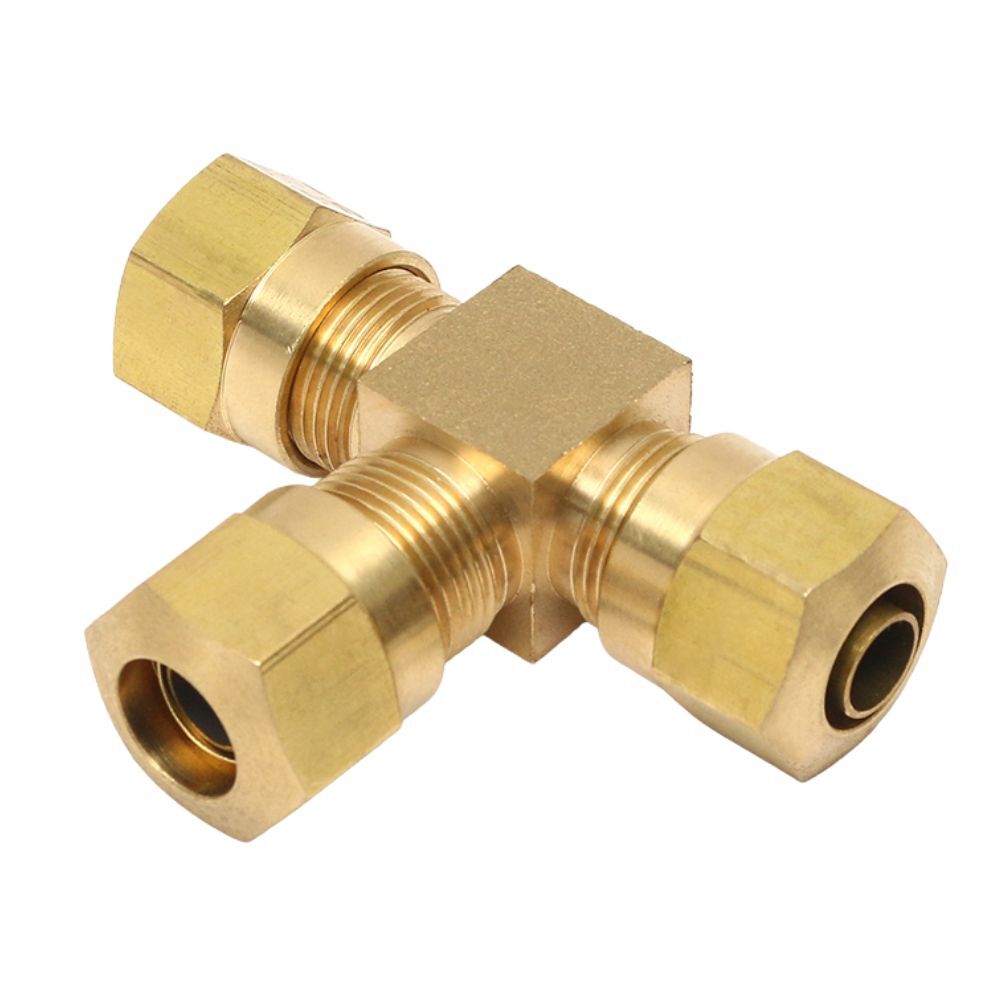

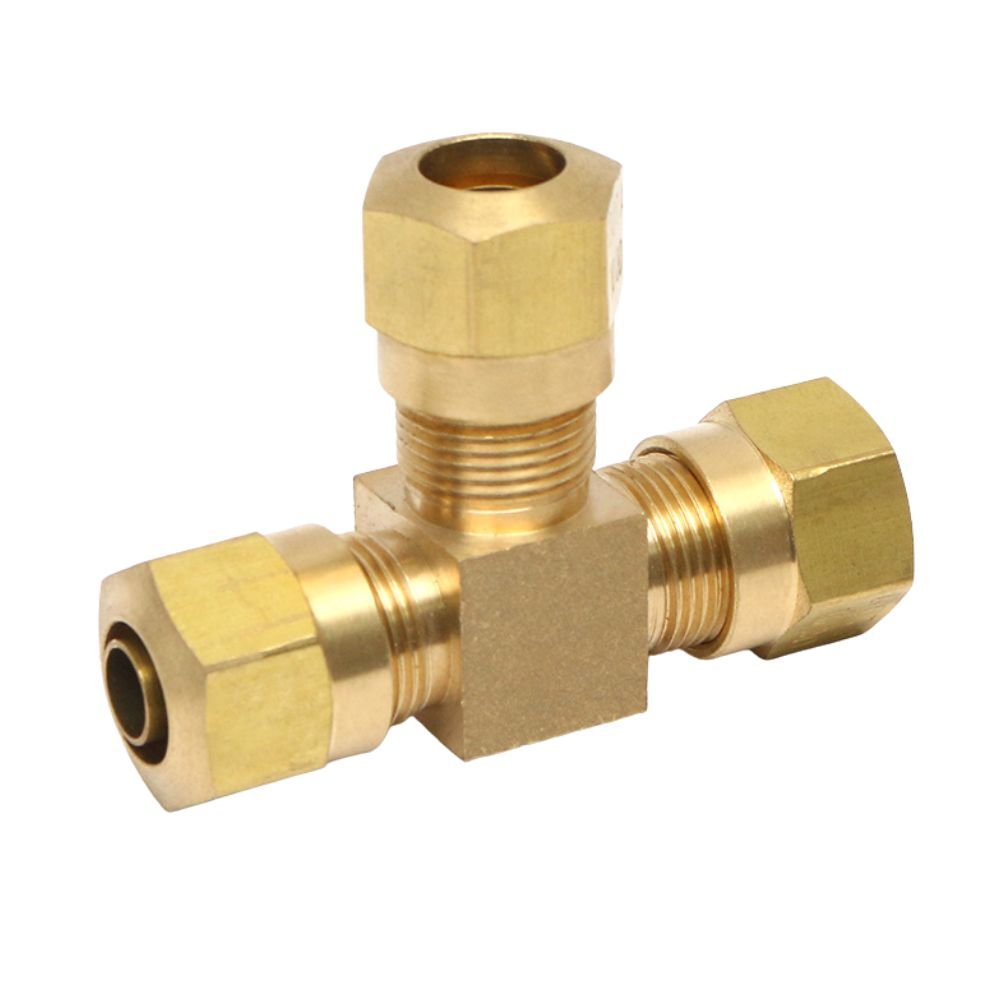

DOT Brass Compression Fittings

Description:

A DOT Compression Union Tee is a type of fitting used in plumbing and fluid transfer systems. The DOT brass compression fittings are air brake fittings used to connect sections of nylon tubings.

It is a tee-shaped component with threaded connections on each end and a compression connection in the center. The threads are used to connect to other fittings and pipe sections, while the compression connection allows for a secure and leak-free connection to a flexible hose or tubing.

If you have any further questions about the dot air line compression fittings, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

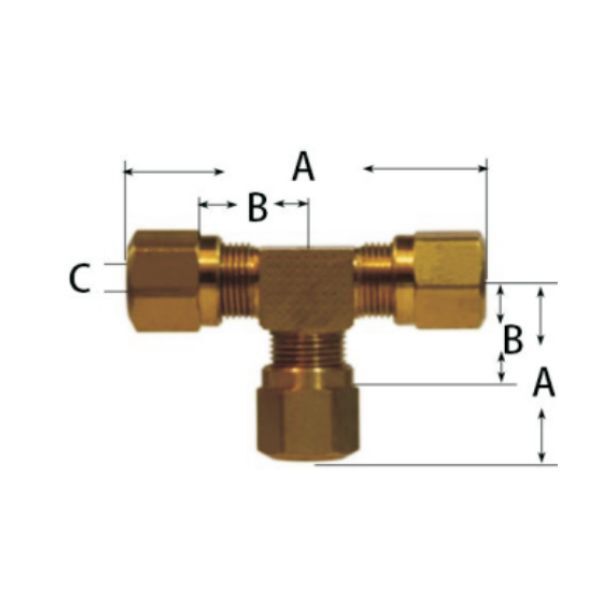

Part#	Tube O.D	A	B	C	Approx Wt.Lbs
1575-4	1/4	0.95	0.62	0.137	0.12
1575-6	3/8	1.24	0.78	0.217	0.19
1575-8	1/2	1.45	0.93	0.338	0.36
1575-10	5/8	1.58	1.09	0.398	0.48

DOT Brass Compression Fittings - For Nylon Tubing Tee Video

This video shows the information on the DOT brass compression fittings.

Additionally, brass union tees can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the air brake compression fitting.
