Description

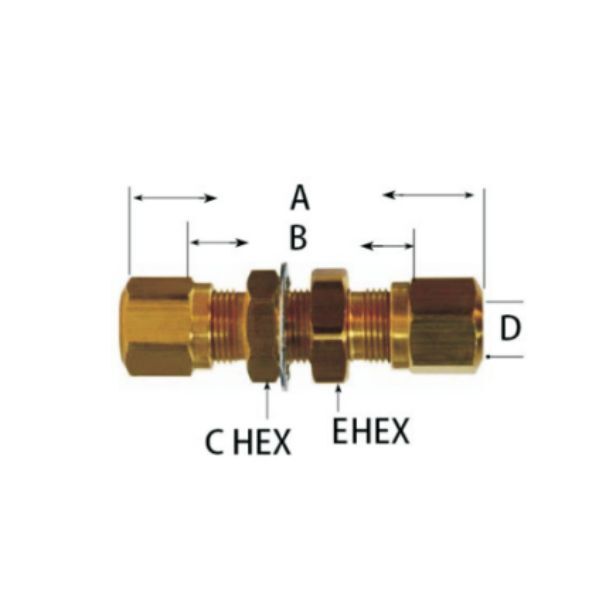

Part# | Tube O.D | E | C Hex | A | B | D |
1574-3 | 3/16 | 7/16 | 7/16 | 1.80 | 1.21 | 0.087 |
1574-4 | 1/4 | 9/16 | 9/16 | 2.04 | 1.38 | 0.137 |
1574-6 | 3/8 | 11/16 | 11/16 | 2.54 | 1.62 | 0.217 |
1574-8 | 1/2 | 13/16 | 13/16 | 2.92 | 1.88 | 0.338 |
1574-10 | 5/8 | 15/16 | 15/16 | 2.99 | 2.01 | 0.398 |
Air Brake Compression Fittings-Nylon Tubing Bulkhead Union Video
This video shows the information on the air brake compression fittings.

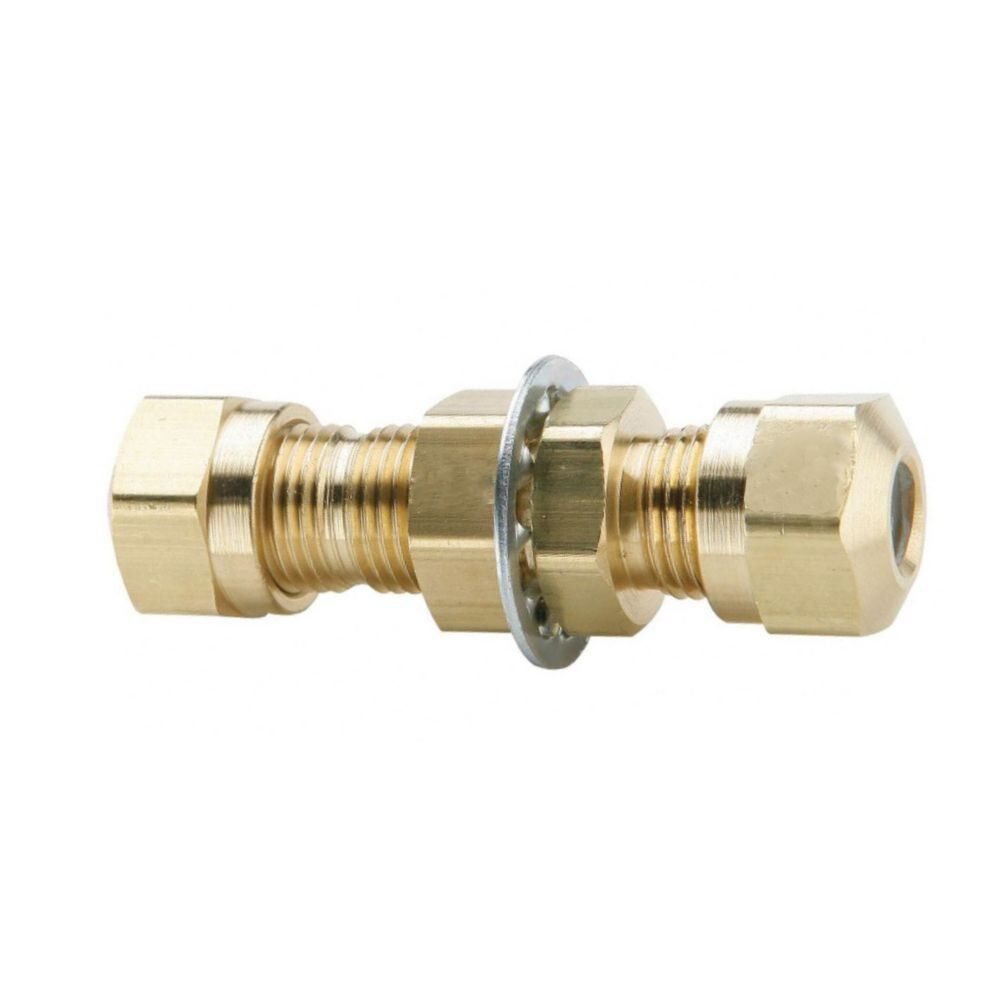

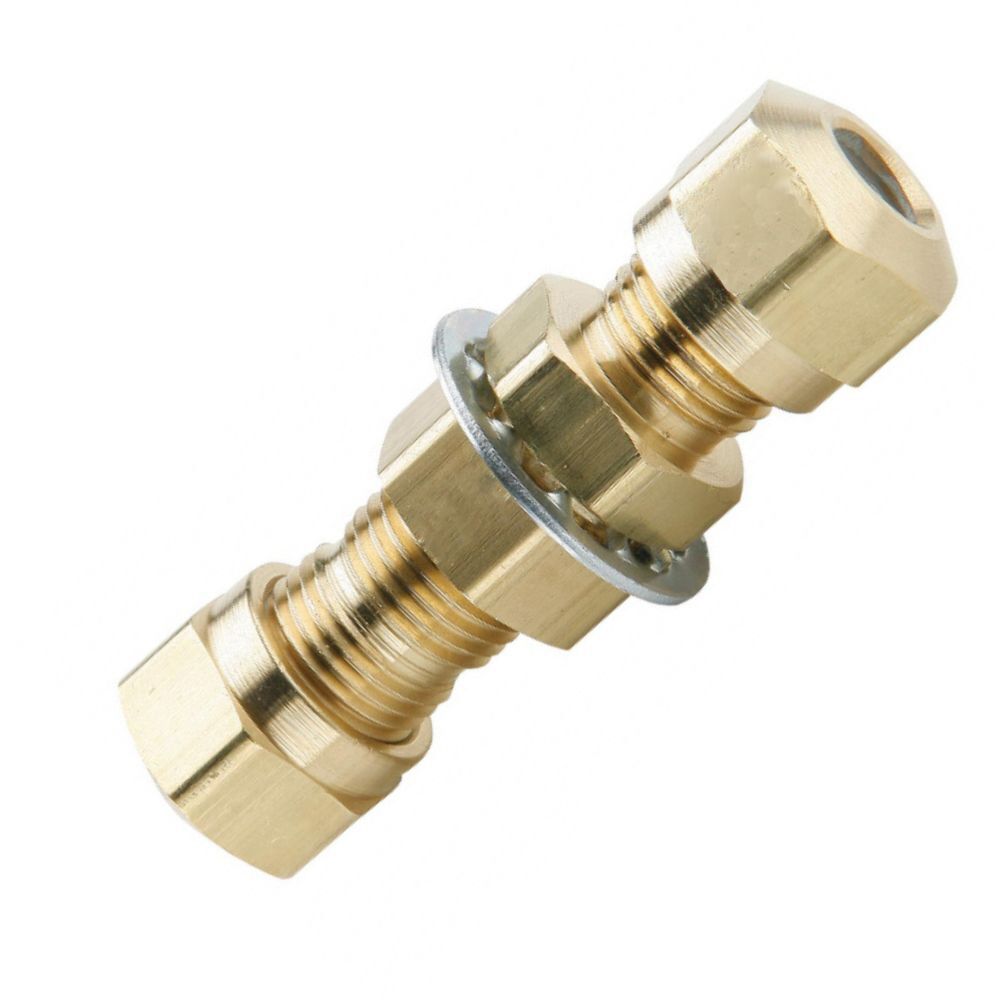

Additionally, brass dot air brake bulkhead unions can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.
Please get in touch with us if you have any questions about the air line compression fittings.
