DOT Compression Elbow Fitting

Description:

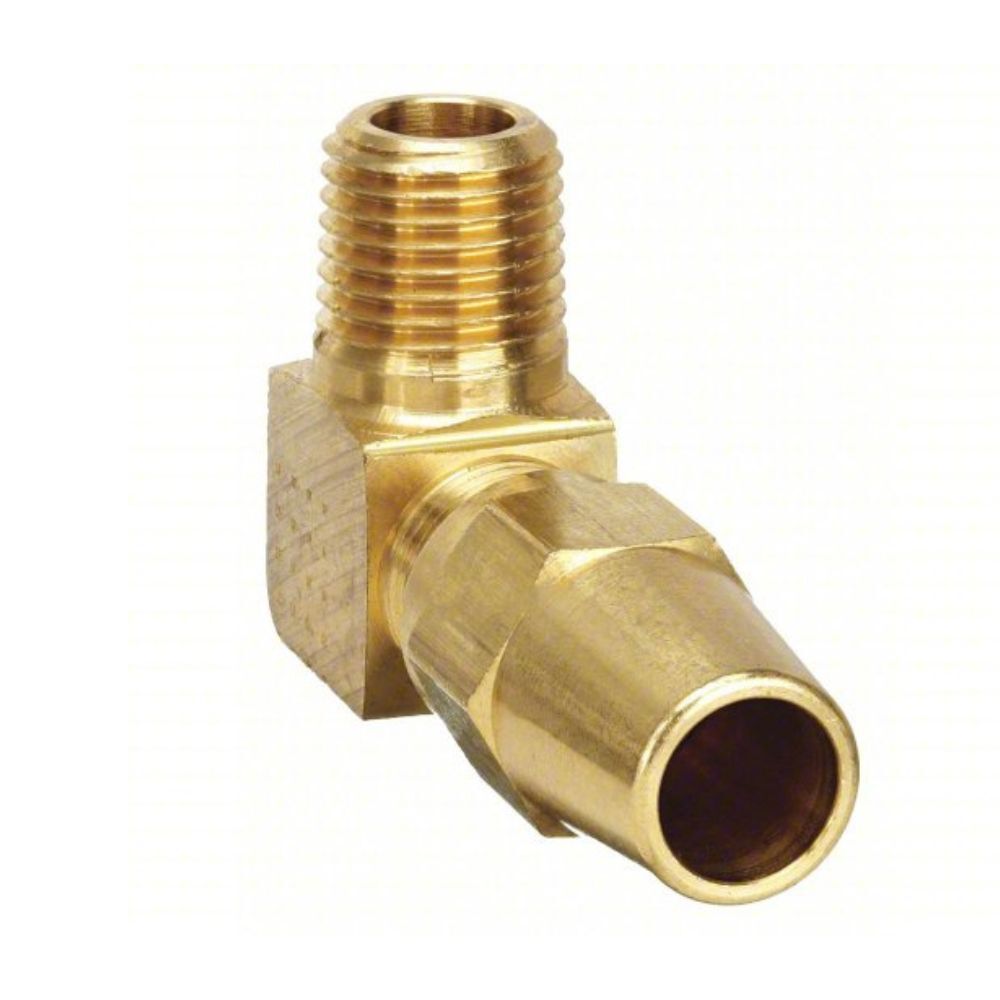

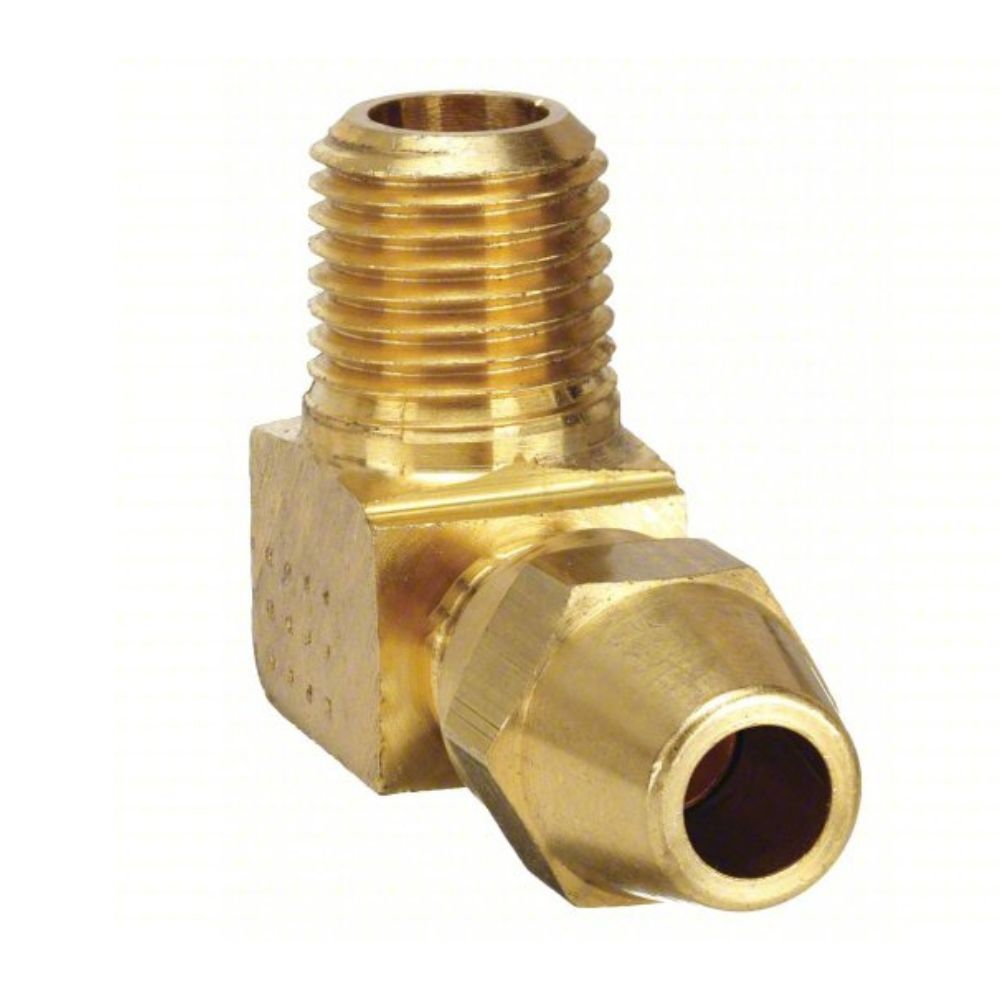

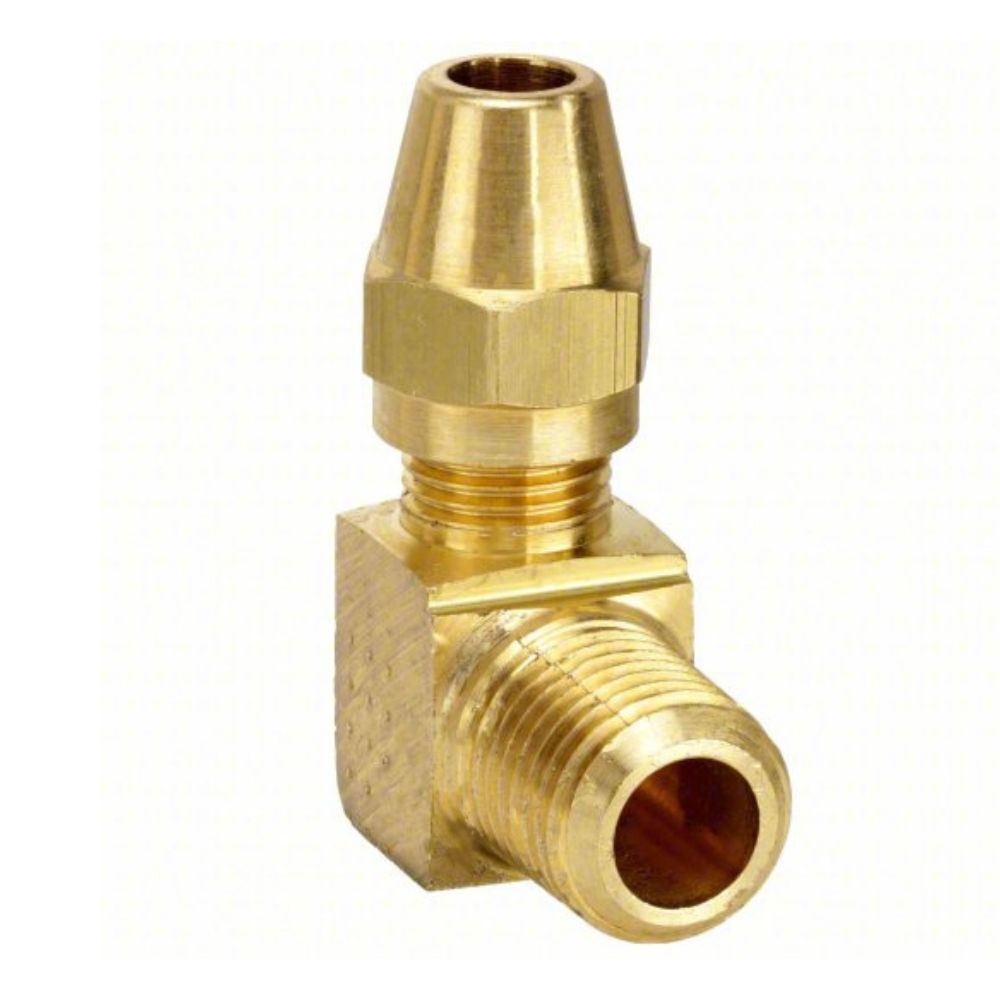

A brass compression male 90-degree elbow is a dot fitting that is used to connect copper tubing flexibly. It can create a strong seal to stop leakage.

Air brake DOT compression elbow fitting can be applied in air copper tubing systems, such as trucks, mobile equipment, and trailers.

If you have any further questions about the air line fittings for trucks, feel free to ask.

Features and Benefits:

• Easy to assemble
• Durability
• Leak free
• Quick

Description

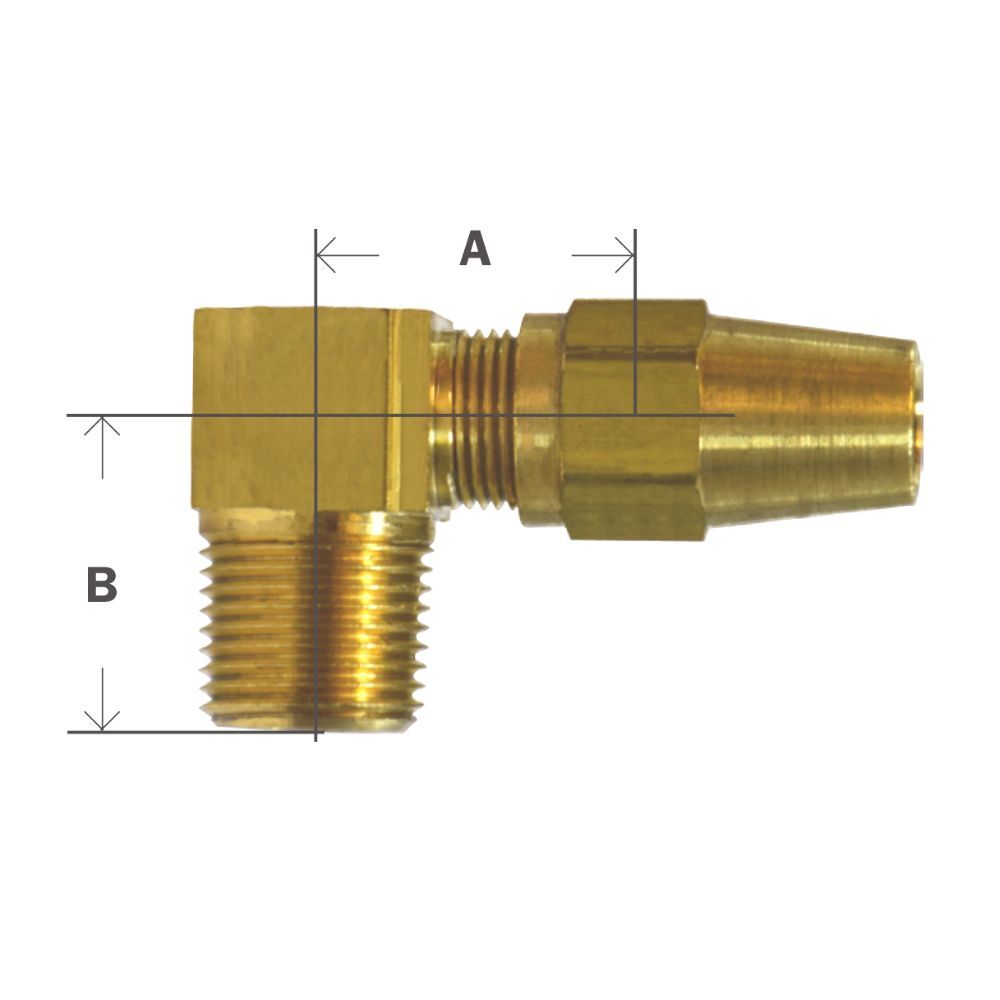

Part #	Tube O.D. x Male NPTF	A	B	Approx. Wt. Lbs.
38-235	1/4” x 1/8”	0.64	0.76	0.08
38-236	1/4” x 1/4”	0.69	0.88	0.10
38-237	1/4” x 3/8”	0.73	0.86	0.14
38-239	3/8” x 1/4”	0.80	0.93	0.12
38-240	3/8” x 3/8”	0.83	0.90	0.16
38-243	1/2” x 3/8”	0.92	0.98	0.22
38-244	1/2” x 1/2”	1.04	1.19	0.30
38-246	5/8” x 1/2”	1.10	1.25	0.36

DOT Compression Elbow Fitting-Male Elbow Video

This video shows the information on the copper tubing male DOT compression elbow fitting.

Additionally, com × MNPTF elbows can be used with copper tubings. They have a large number of O.D. sizes and dimensions, such as 1/2, 3/4, 1/8, 3/8, etc. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the dot air brake hose fittings.
