Description

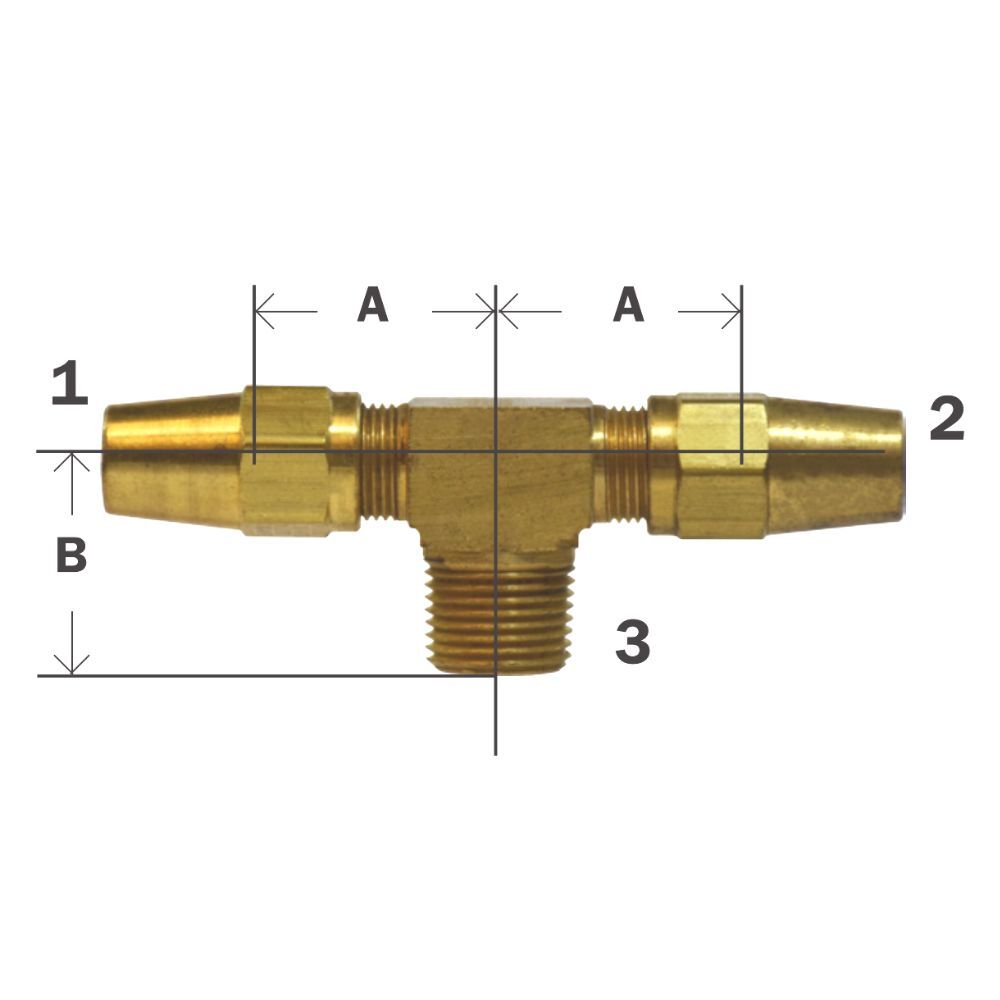

Part # | Tube O.D. x Male NPTF (1&2)x3 |
A |
B | Approx. Wt. Lbs. |
38-278 | 3/8” x 1/4” | 0.78 | 0.91 | 0.18 |
38-279 | 3/8” x 3/8” | 0.85 | 0.92 | 0.24 |

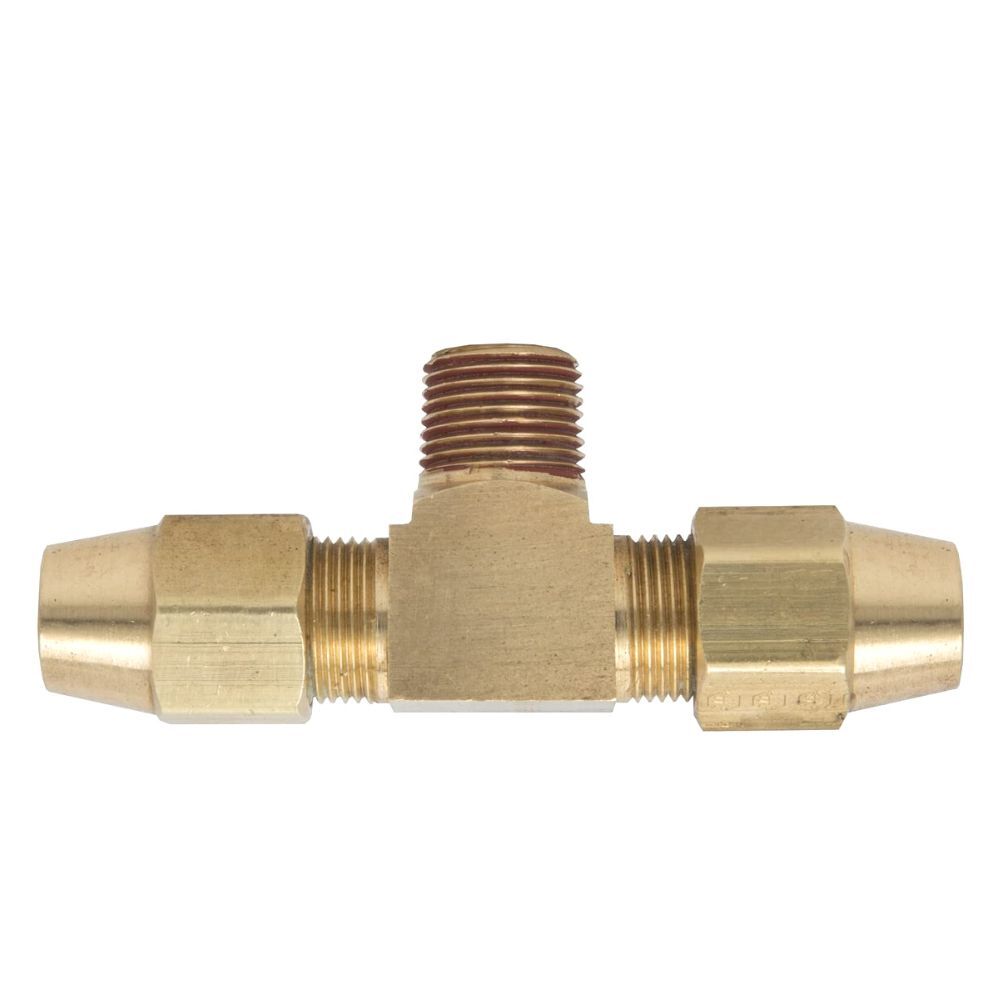

DOT Air Brake Tee-Copper Tubing Male Branch Tee Video
This video shows the information on the male branch DOT air brake tee.
Additionally, tube × tube× MNPTF tees can be used with copper tubings. They have a large number of O.D. sizes and dimensions, such as 1/2, 3/4, 3/8, etc. And they also play an essential role in air brake systems.
Please get in touch with us if you have any questions about the air brake hose fittings.
