Description

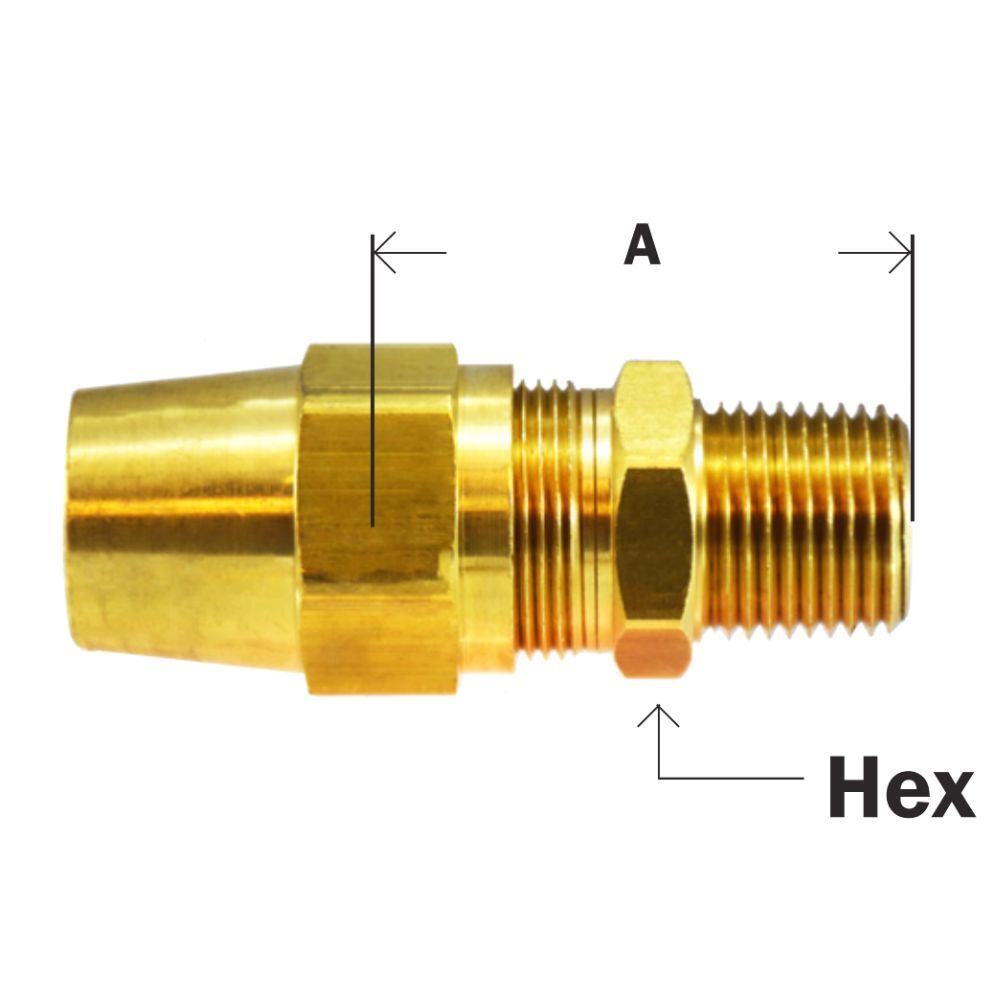

Part # | Tube O.D. x Male NPTF | A | Hex | Approx. Wt. Lbs. |
38-217 | 1/4” x 1/8” | 0.88 | 0.43 | 0.06 |
38-218 | 1/4” x 1/4” | 0.97 | 0.56 | 0.08 |
38-221 | 3/8” x 1/4” | 1.09 | 0.56 | 0.10 |
38-222 | 3/8” x 3/8” | 1.19 | 0.69 | 0.12 |
38-223 | 3/8” x 1/2” | 1.45 | 0.87 | 0.18 |
38-224 | 1/2” x 1/4” | 1.32 | 0.69 | 0.16 |
38-225 | 1/2” x 3/8” | 1.35 | 0.69 | 0.18 |
38-226 | 1/2” x 1/2” | 1.51 | 0.87 | 0.24 |
38-227 | 5/8” x 3/8” | 1.39 | 0.81 | 0.22 |
38-228 | 5/8” x 1/2” | 1.57 | 0.87 | 0.24 |
38-229 | 3/4” x 1/2” | 1.67 | 1.00 | 0.34 |

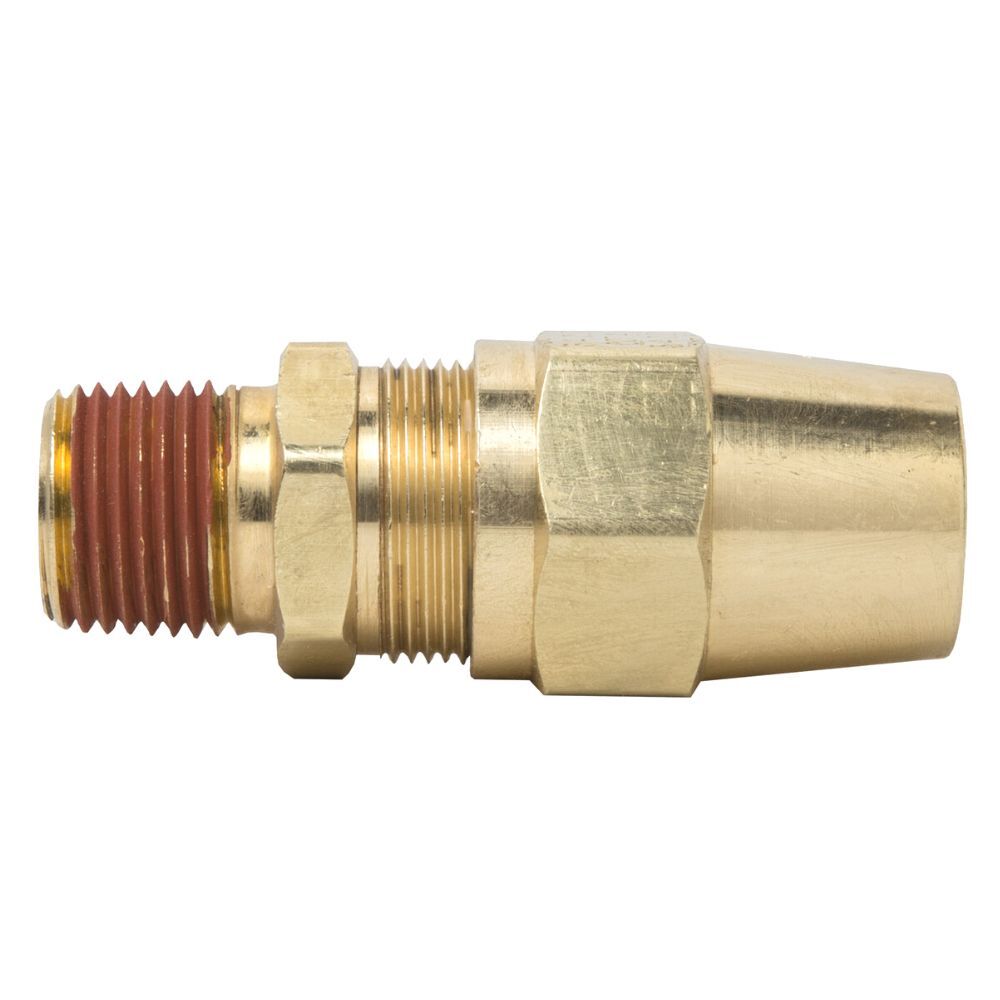

DOT Air Line Adapters-Copper Tubing Male Adapter Video
This video shows the information on the copper tubing male adapter DOT air line adapters.
Additionally, male NPTF adapters can be used with copper tubings. They have a large number of O.D. sizes and dimensions, such as 1/2, 3/4, 3/8, etc. And they also play an essential role in air brake systems.
Please get in touch with us if you have any questions about the air hose push fittings.
