Air Brake Compression Fitting - Nylon Tubing Female Adapter

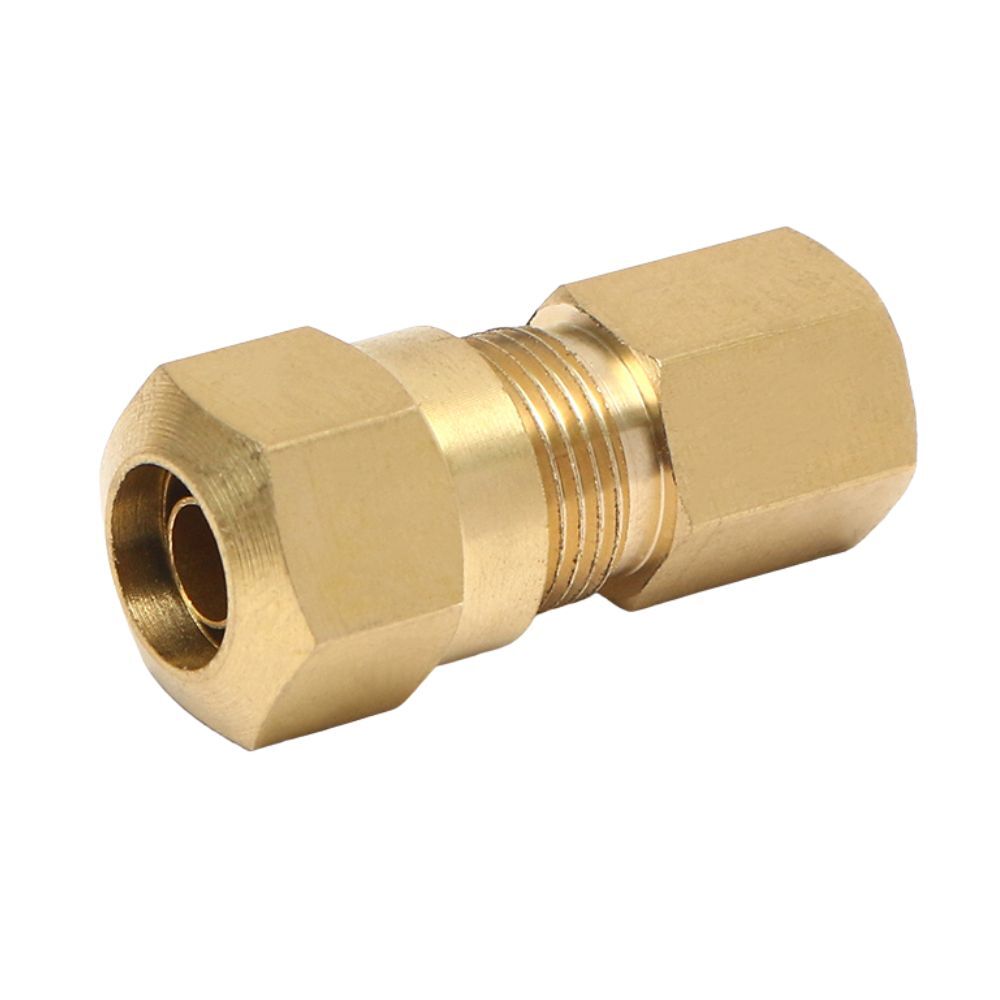

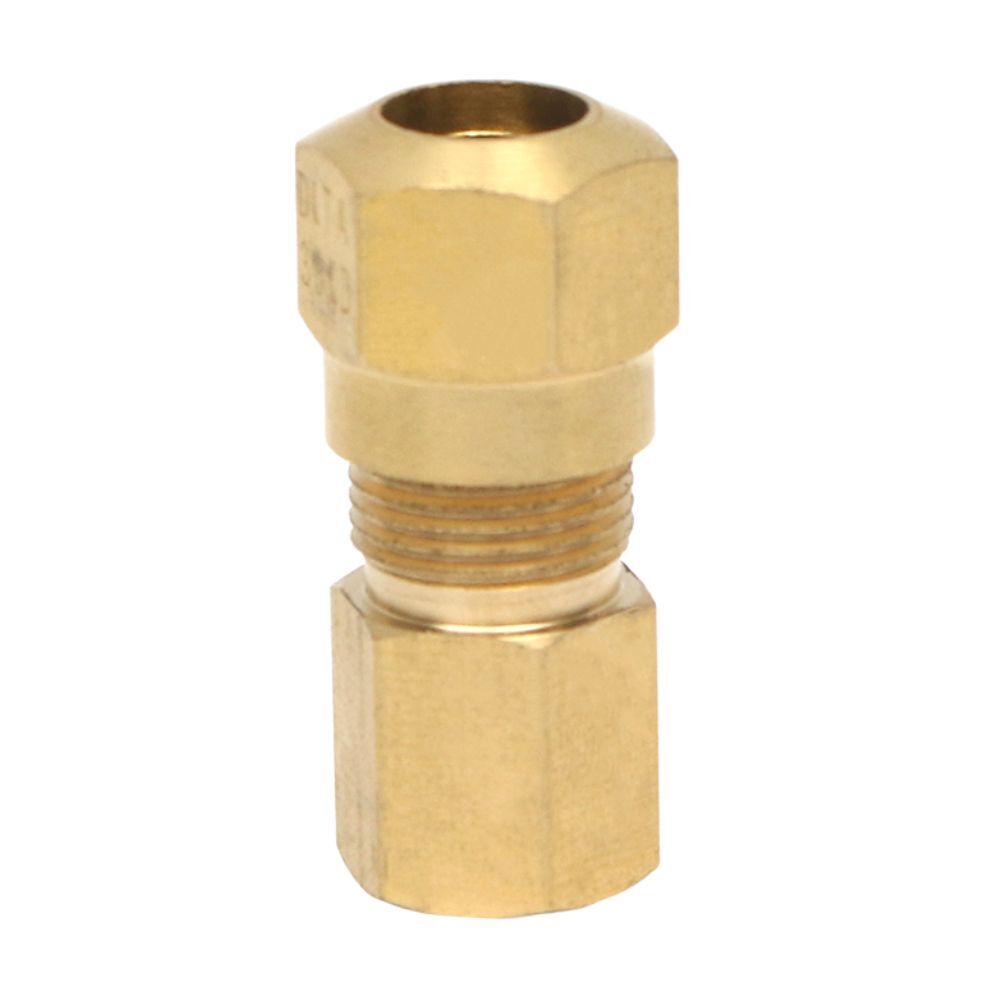

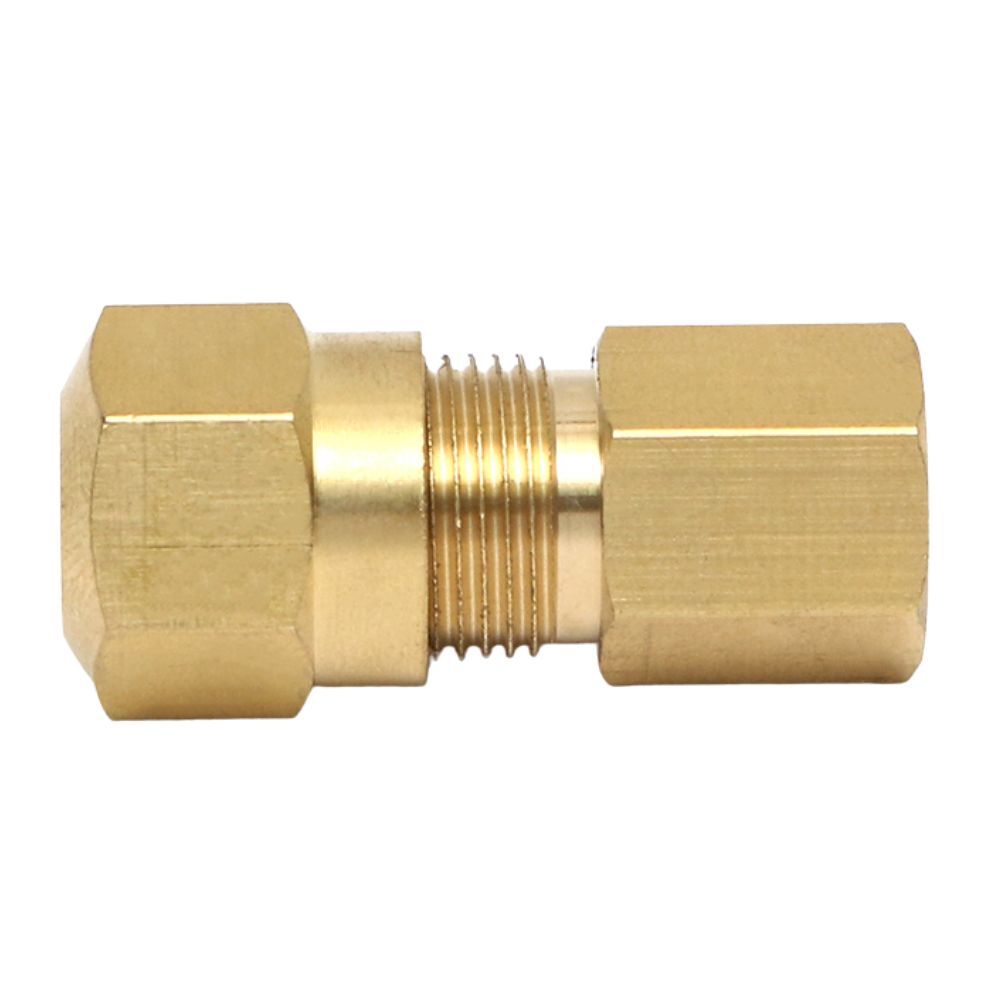

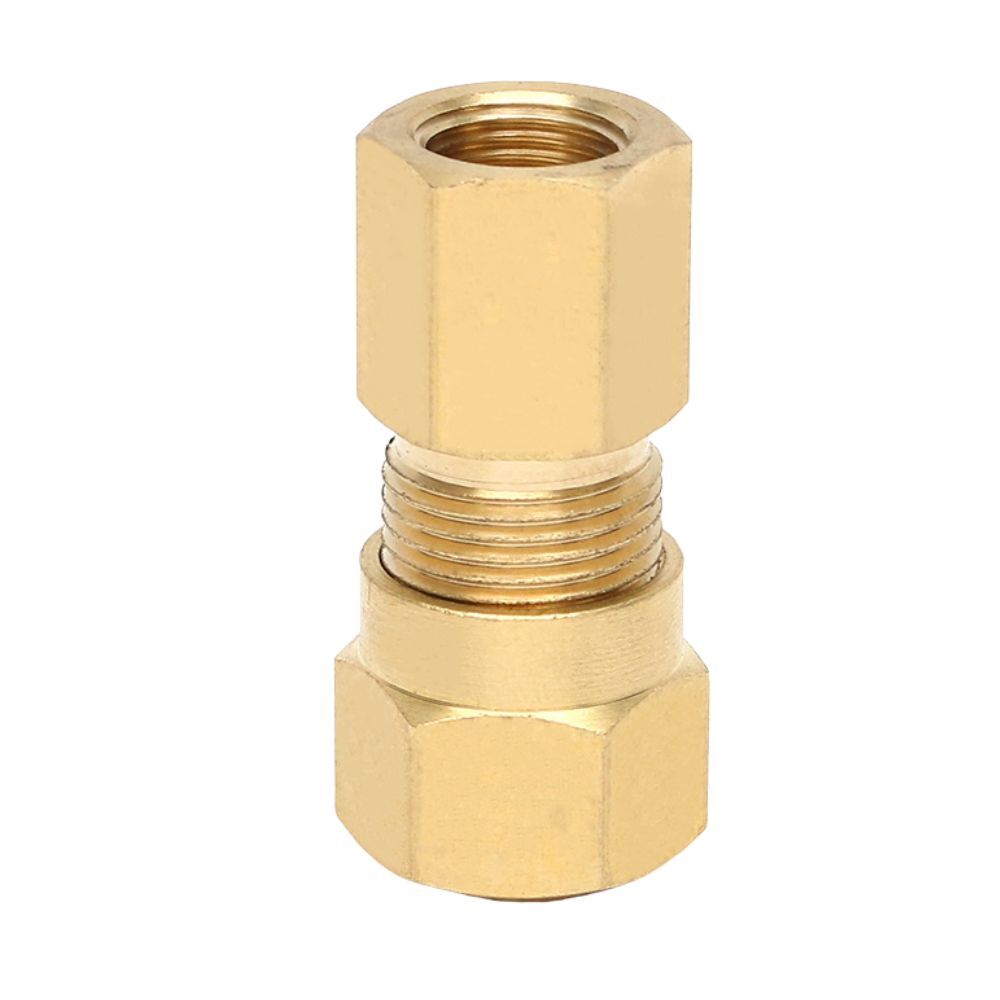

DOT Air Brake Compression Fitting

Description:

DOT air brake compression fitting is a type of fitting used in air brake systems. The female adapters have a female NPT thread and are used to connect nylon tubing.

The use of compression connections allows for a secure connection to the flexible nylon tubing, which helps to prevent leaks and minimize maintenance requirements.

If you have any further questions about the air brake fittings nylon tubing, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

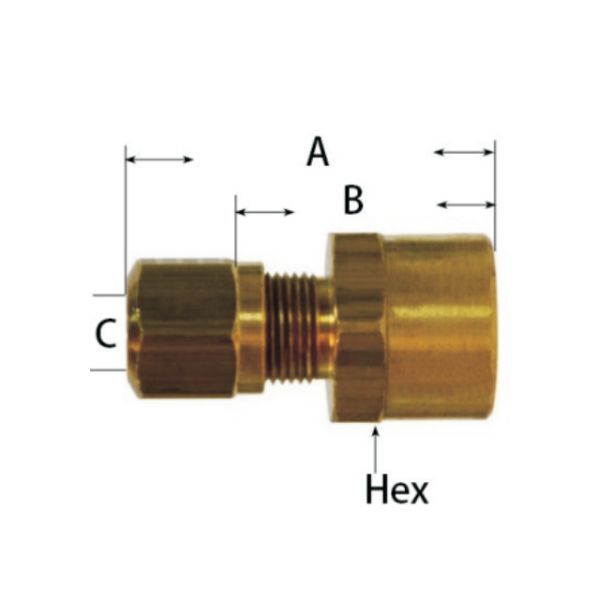

Part#	Tube O.D* Female NPT	Hex	A	B	C	Approx Wt.Lbs
1578-4C	1/4*1/8	9/16	1.17	0.84	0.137	0.06
1578-4D	1/4*1/4	11/16	1.40	1.07	0.137	0.08
1578-6C	3/8*1/8	9/16	1.46	1.00	0.217	0.07
1578-6D	3/8*1/4	11/16	1.64	1.18	0.217	0.10
1578-6E	3/8*3/8	7/8	1.64	1.18	0.217	0.14
1578-8E	1/2*3/8	7/8	1.79	1.27	0.338	0.16
1578-8F	1/2*1/2	1-1/16	1.96	1.44	0.338	0.20
1578-10E	5/8*3/8	7/8	1.80	1.31	0.398	0.28
1578-10F	5/8*1/2	1-1/16	1.99	1.50	0.398	0.28
1578-12F	3/4*1/2	1-1/16	1.99	1.60	0.398	0.31

Air Brake Compression Fitting - Nylon Tubing Female Adapter Video

This video shows the information on the DOT air brake compression fitting.

Additionally, brass female adapters can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the nylon air brake tube fittings.
