DOT Approved Compression Fittings

Description:

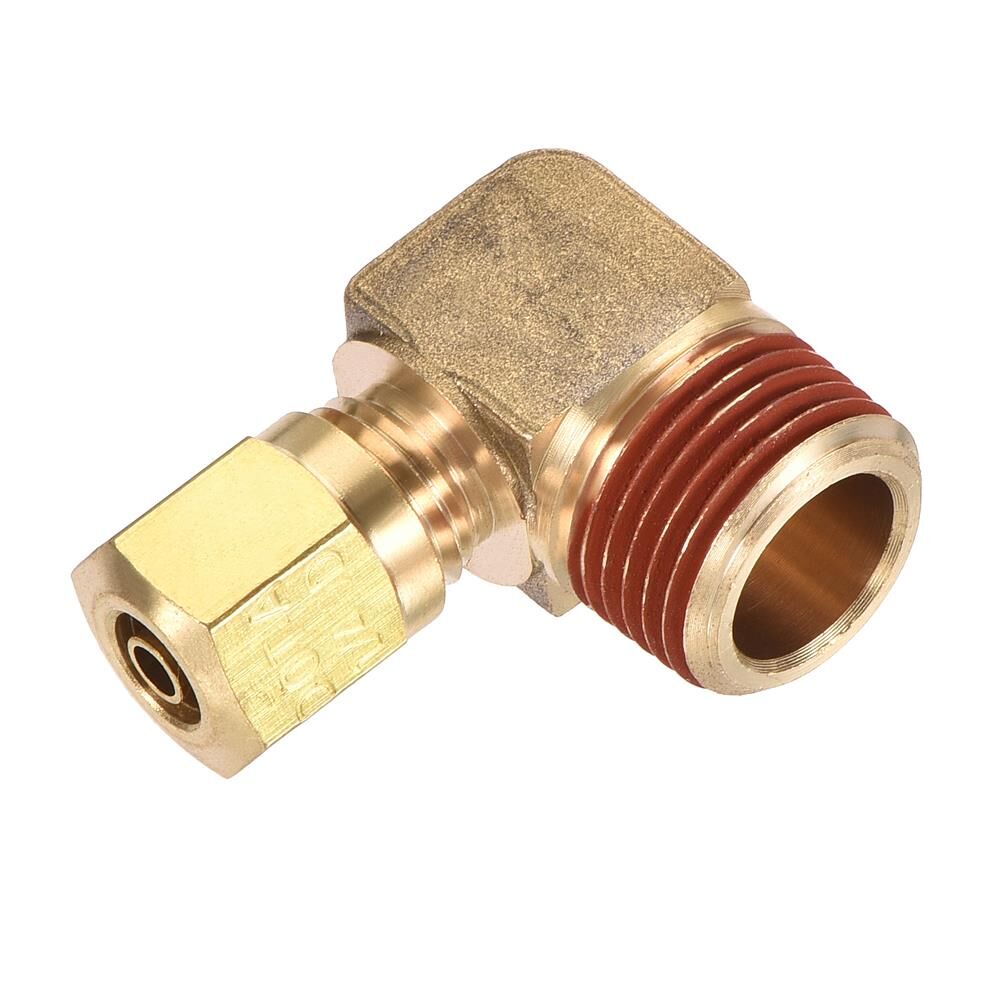

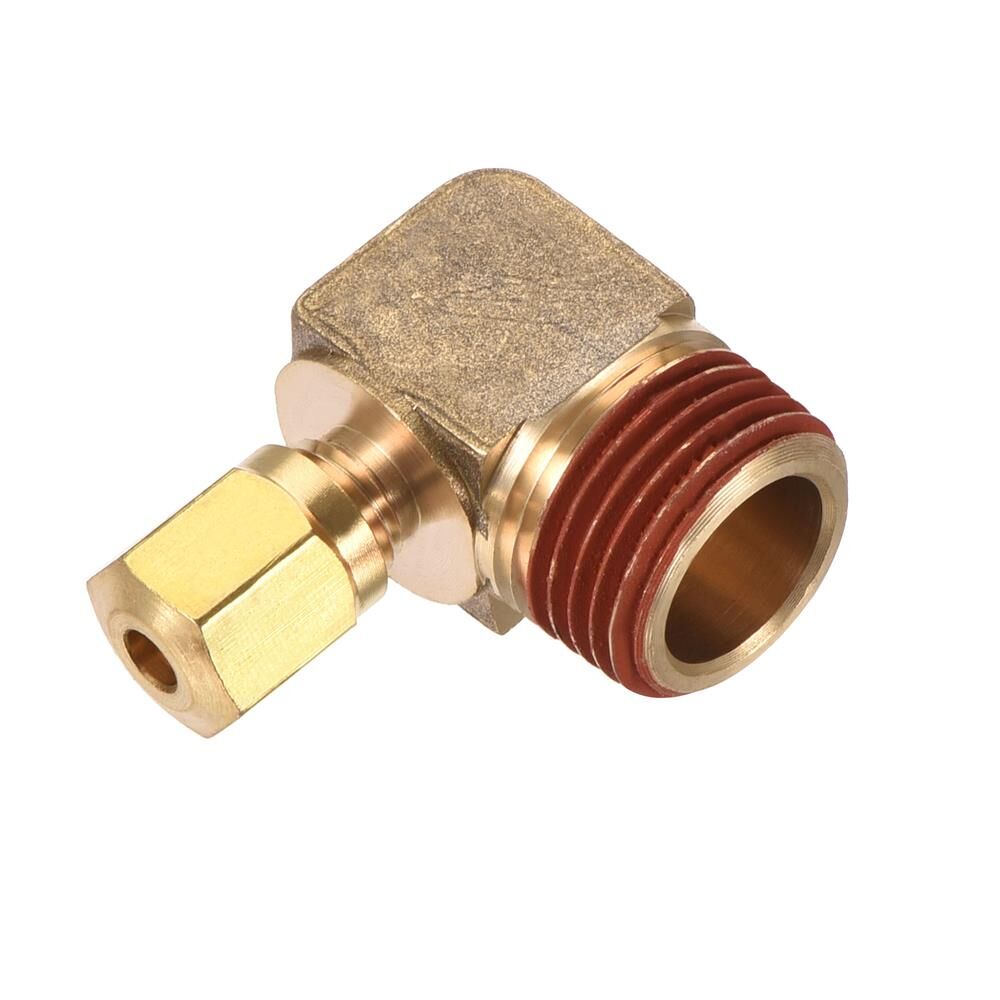

The male elbow adapters have a male NPT thread and are used to connect nylon tubing at a right angle. A DOT approved compression fitting is a type of fitting used in air brake systems.

The male end of the elbow has NPT threads, which provide a secure, threaded connection to a female NPT fitting.

If you have any further questions about the dot compression fitting, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

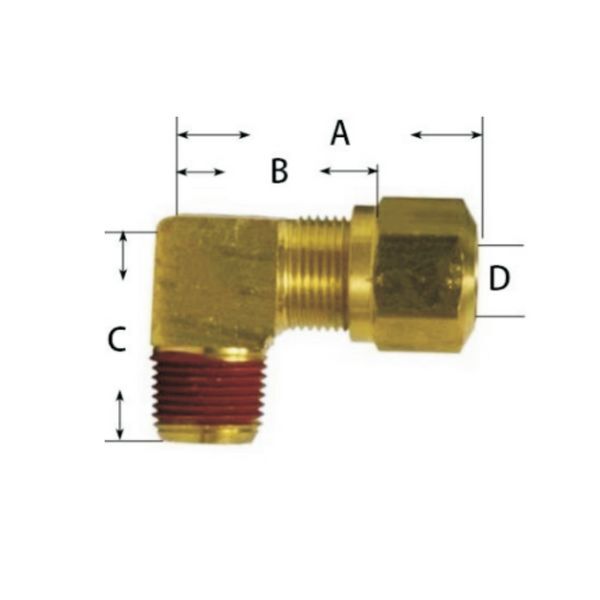

Part#	Tube O.D* Male NPTF	A	B	C	D	Approx Wt.Lbs
1580-3C	3/16*1/8	0.90	0.60	0.67	0.087	0.04
1580-3D	3/16*1/4	0.91	0.62	0.87	0.087	0.04
1580-4C	1/4*1/8	0.95	0.62	0.66	0.137	0.06
1580-4D	1/4*1/4	1.00	0.68	0.87	0.137	0.08
1580-4E	1/4*3/8	1.16	0.73	0.86	0.137	0.13
1580-6C	3/8*1/8	1.19	0.73	0.75	0.217	0.09
1580-6D	3/8*1/4	1.25	0.79	0.92	0.217	0.11
1580-6E	3/8*3/8	0.30	0.84	0.91	0.217	0.14
1580-6F	3/8*1/2	1.40	0.94	1.10	0.217	0.20
1580-8D	1/2*1/4	1.38	0.86	0.99	0.338	0.16
1580-8E	1/2*3/8	1.44	0.92	0.99	0.338	0.20
1580-8F	1/2*1/2	1.55	1.03	1.18	0.338	0.29
1580-10E	5/8*3/8	1.49	1.00	1.05	0.398	0.26
1580-10F	5/8*1/2	1.58	1.09	1.24	0.398	0.32
1580-10G	5/8*3/4	1.76	1.25	1.32	0.400	0.40
1580-12F	3/4*1/2	1.70	1.19	1.33	0.523	0.43
1580-12G	3/4*3/4	1.77	1.26	1.32	0.523	0.51

DOT Approved Compression Fittings - Nylon Tubing Male Elbow Video

This video shows the information on the male elbow DOT approved compression fittings.

Additionally, brass male elbow adapters can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the dot approved compression fittings.
