Air DOT Compression Fitting

Description:

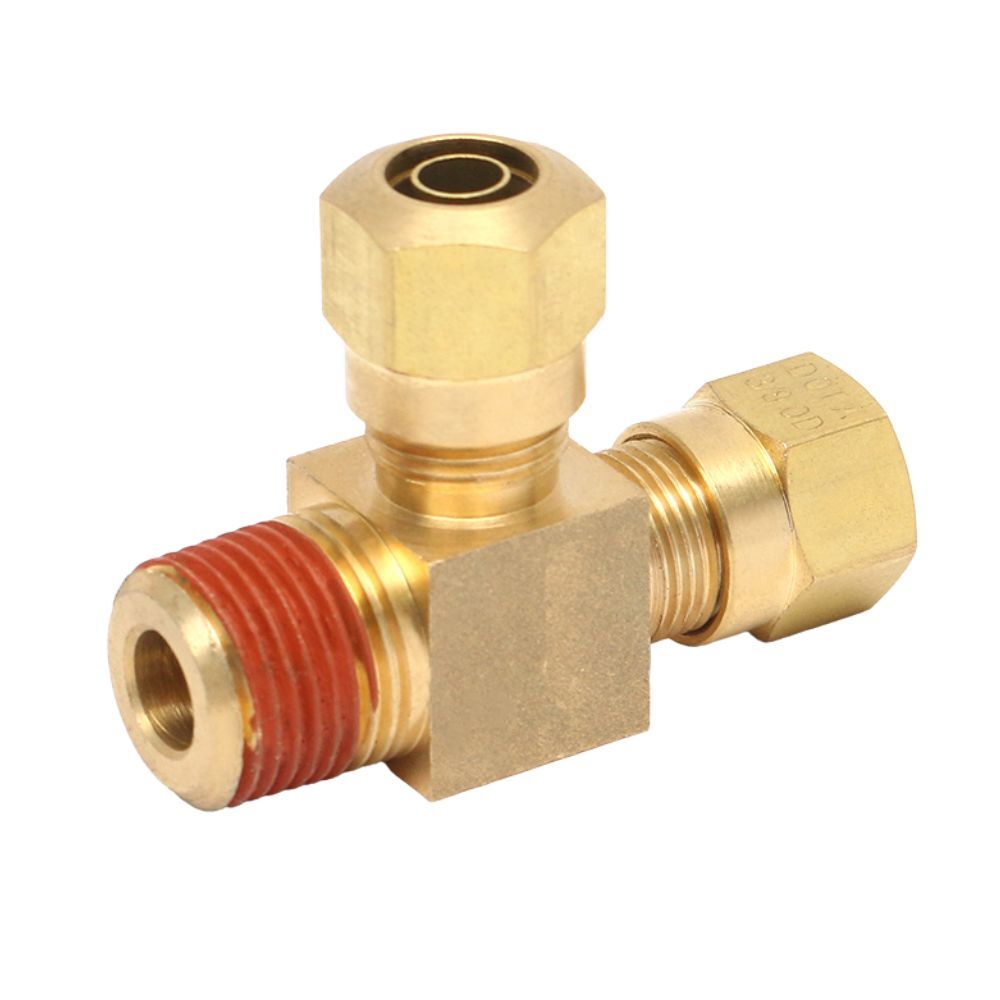

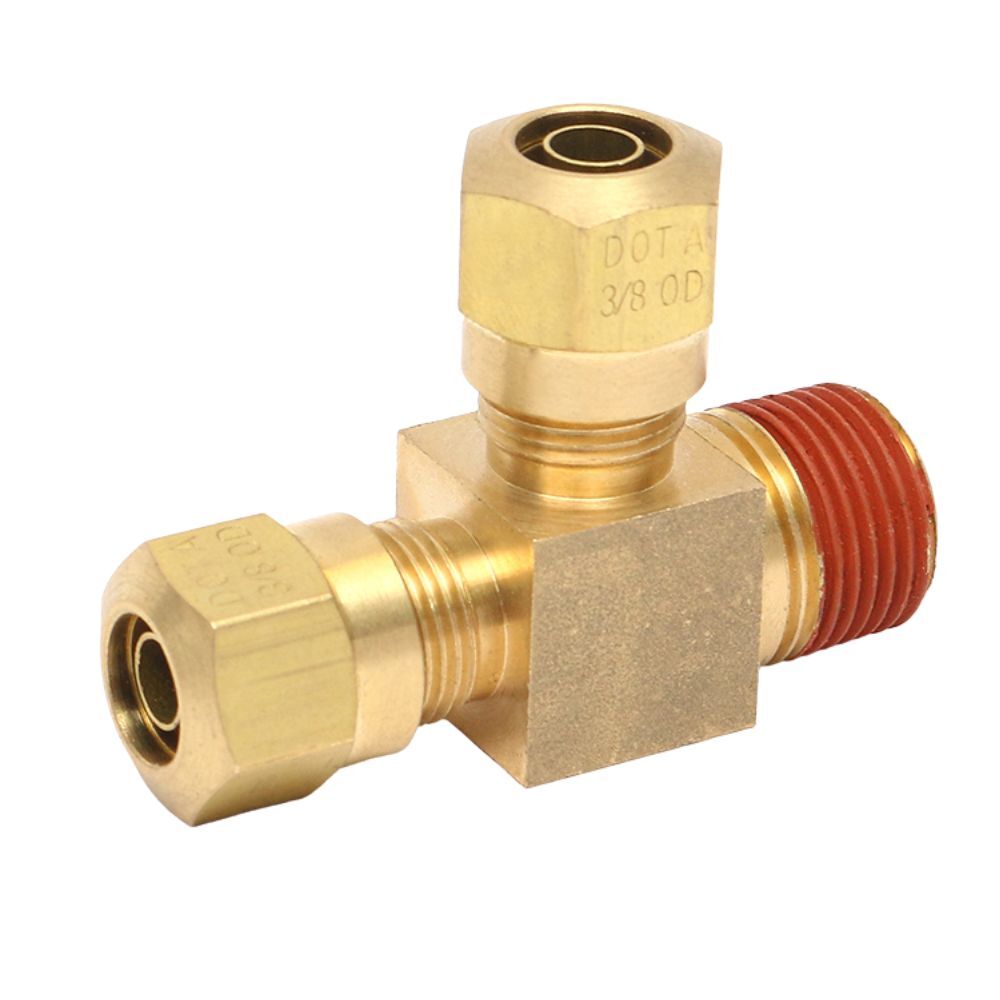

The male run tee has a male NPT thread and is used to connect nylon tubing in different ways. An air DOT compression fitting is a type of tee fitting used in air brake systems.

The male run tee can be applied in many applications, and it can provide a secure, leak-tight connection to a female DOT compression fitting.

If you have any further questions about the brass air brake fittings for nylon tubing, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick

Description

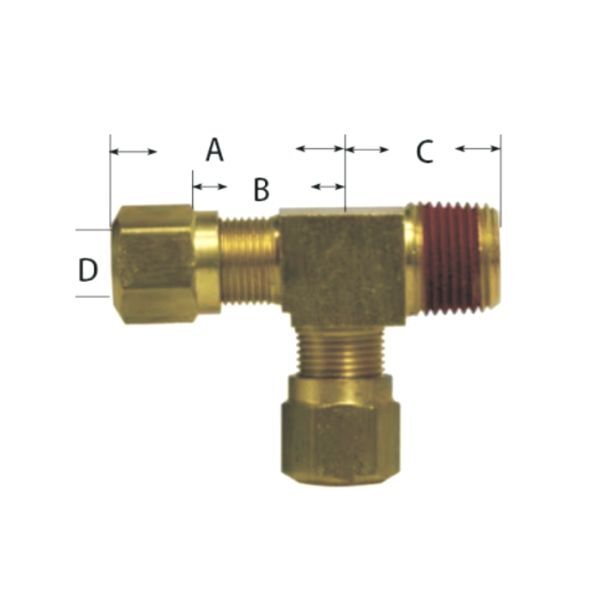

Part#	Tube O.D* Female NPTF* Tube O.D	A	B	C	D	Approx Wt.Lbs
1582-4C	1/41/81/4	0.95	0.62	0.66	0.137	0.10
1582-4D	1/41/41/4	1.00	0.68	0.87	0.137	0.13
1582-6D	3/81/41/4	1.25	0.79	0.92	0.217	0.14
1582-6D	3/81/43/8	0.30	0.82	0.91	0.217	0.17
1582-6E	3/83/83/8	1.35	0.84	0.95	0.217	0.20
1582-8E	1/23/81/2	1.45	0.93	0.99	0.338	0.30
1582-8F	1/21/21/2	1.55	1.03	1.18	0.338	0.35
1582-10F	5/81/25/8	1.60	1.09	1.24	0.398	0.40

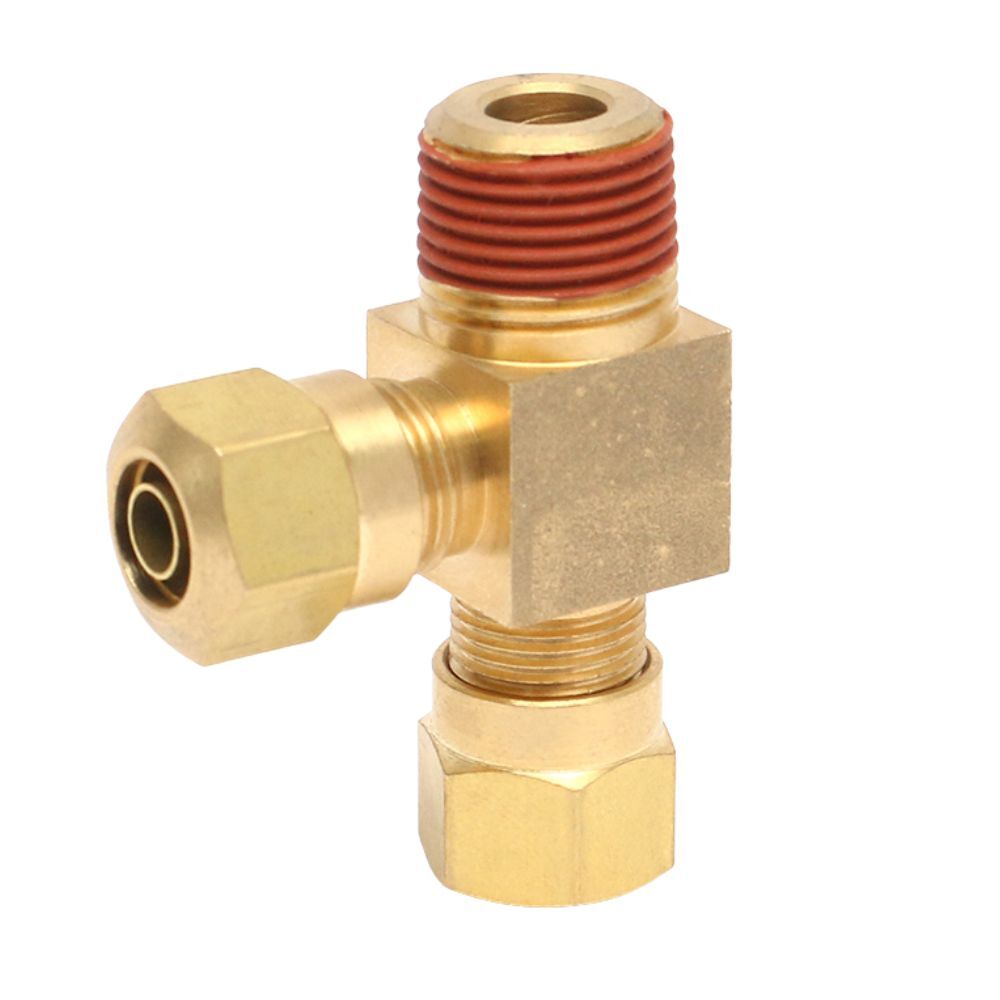

Air DOT Compression Fitting - Nylon Tubing Male Run Tee Video

This video shows the information on the male run tee air DOT compression fitting.

Additionally, brass male run tees can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the nylon air brake tubing fittings.
