Compression DOT Brake Fittings

Description:

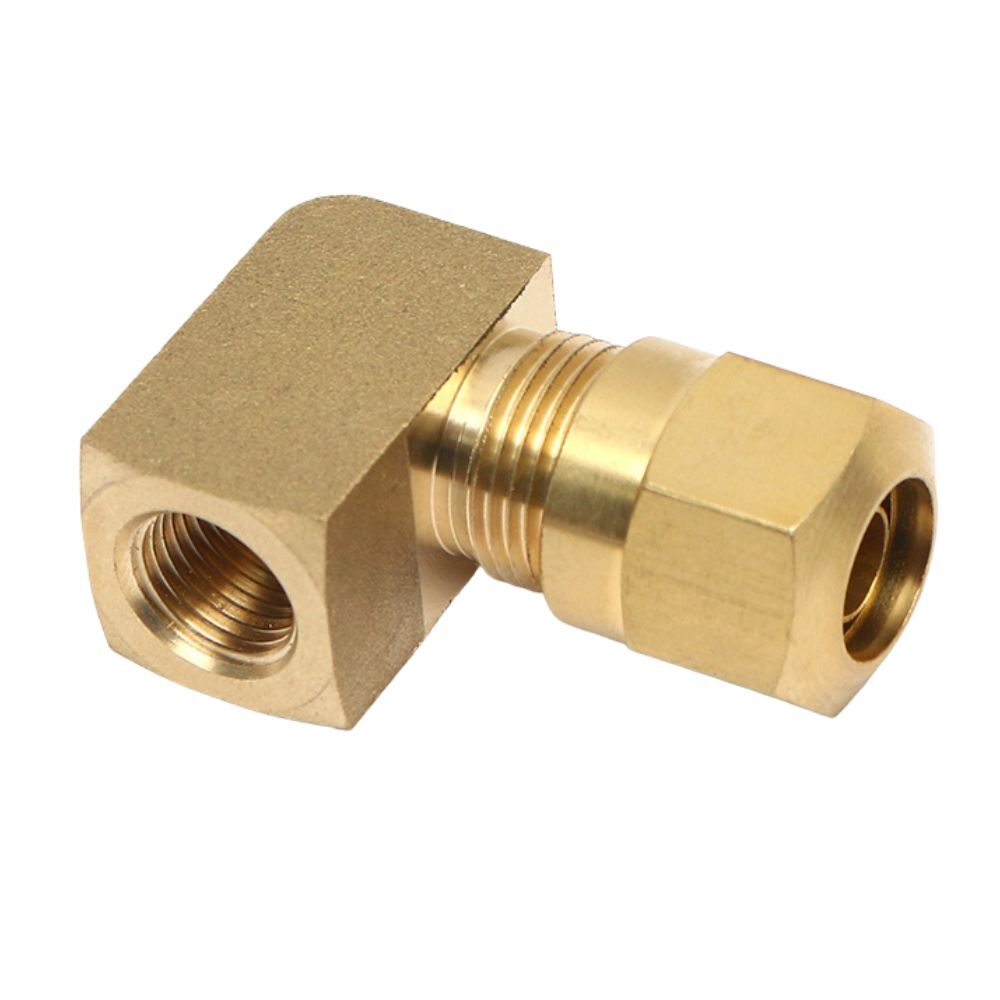

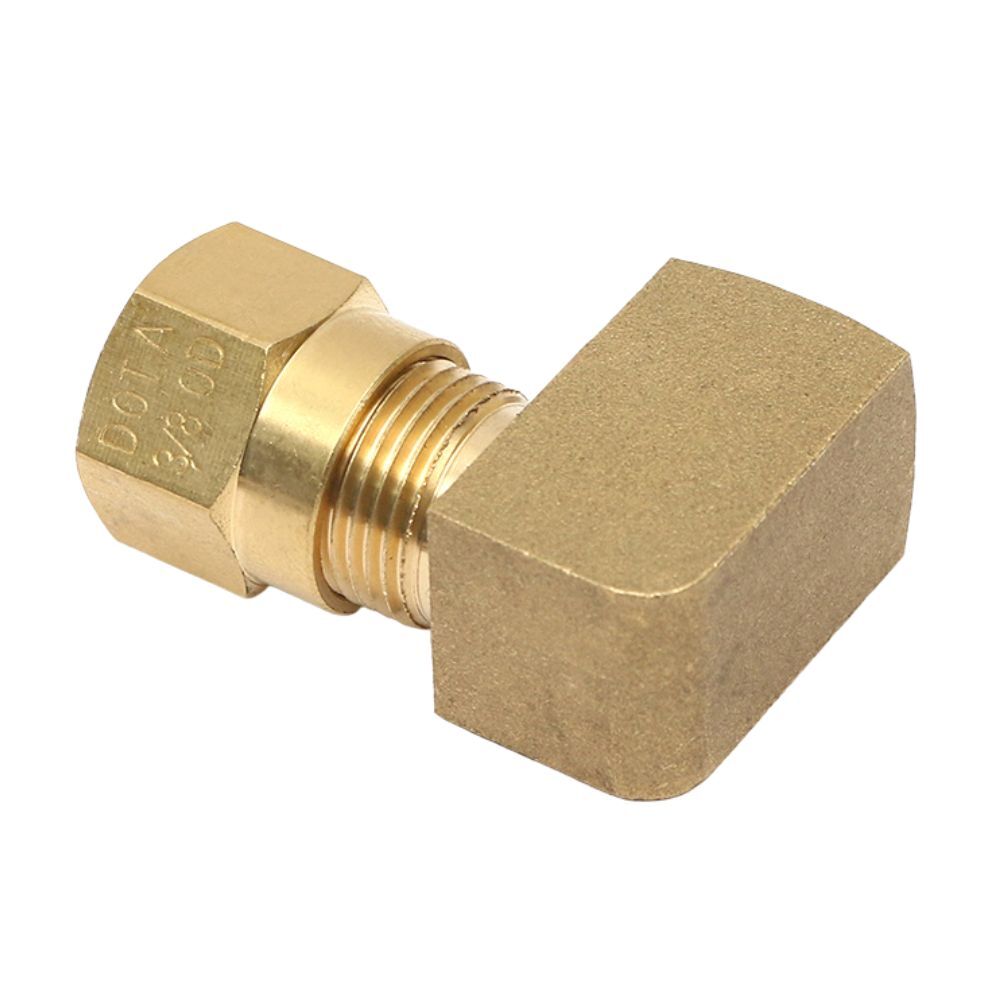

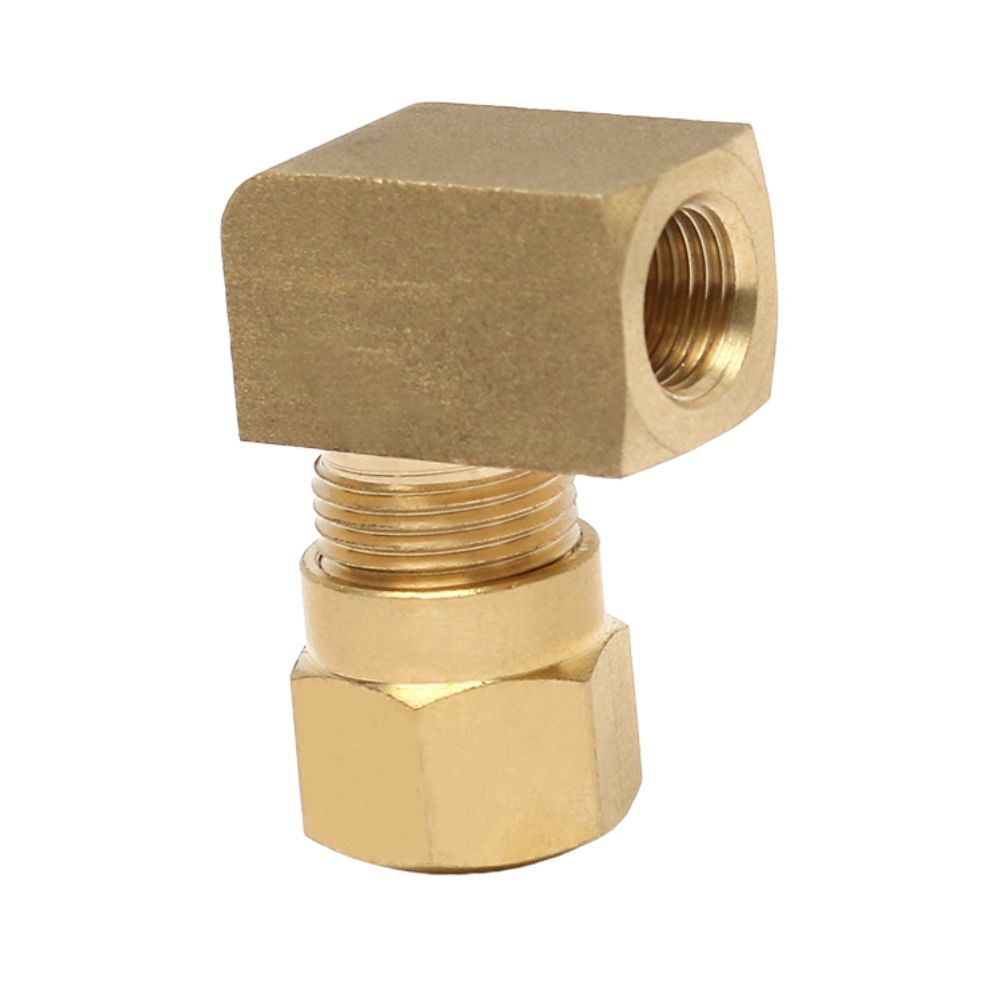

The female elbow adapters have a female NPT thread and are used to connect nylon tubing at a right angle. A compression DOT brake fitting is a type of fitting used in air brake systems.

The female end of the elbow has NPT threads, which provide a secure, threaded connection to a male NPT fitting.

If you have any further questions about the compression dot brake line fitting, feel free to ask.

Features and Benefits:

• Easy to maintain
• Durability
• Corrosion-resistance
• Quick



Description

Part#

Tube O.D*
Female
NPTF

A

B

C

D

Approx
Wt.Lbs

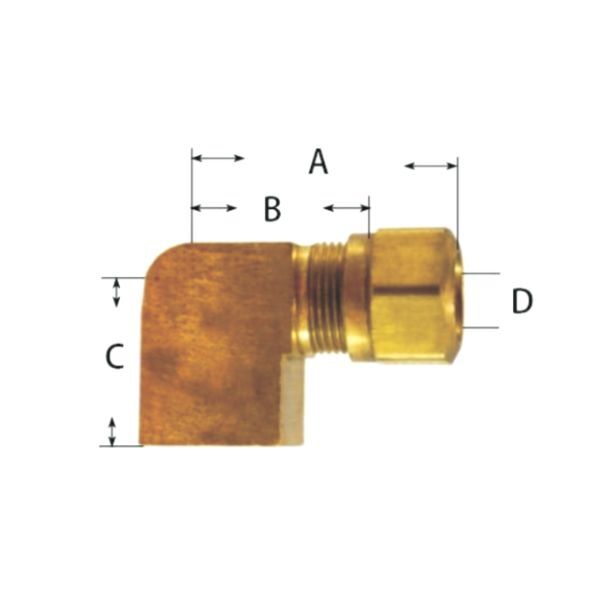

1581-3C

3/16*1/8

0.96

0.67

0.52

0.087

0.07

1581-4C

1/4*1/8

1.02

0.69

0.52

0.137

0.08

1581-4D

1/4*1/4

1.11

0.78

0.71

0.137

0.12

1581-6C

3/8*1/8

1.29

0.83

0.59

0.217

0.14

1581-6D

3/8*1/4

1.35

0.89

0.77

0.217

0.10

1581-6E

3/8*3/8

1.39

0.93

0.77

0.217

0.12

1581-8E

1/2*3/8

1.55

1.03

0.82

0.338

0.23

1581-8F

1/2*1/2

1.65

1.13

1.01

0.338

0.36

1581-10F

5/8*1/2

1.70

1.19

1.07

0.398

0.38

Compression DOT Brake Fittings - Nylon Tubing Female Elbow Video

This video shows the information on the male swivel adapter DOT compression fitting.

Additionally, brass male swivel adapters can be used with nylon tubings. They have a large number of sizes and dimensions. And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the nylon air brake tubing fittings.
