DOT Air Brake Connectors

Description:

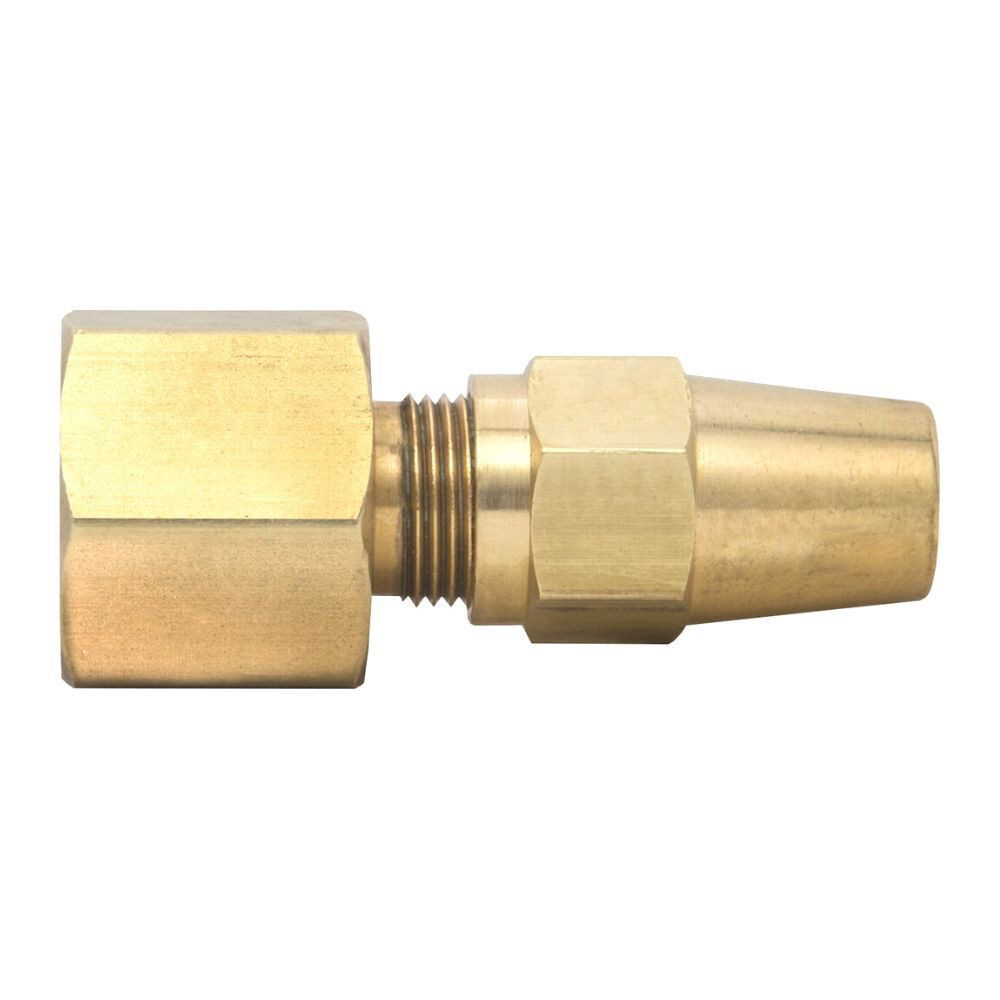

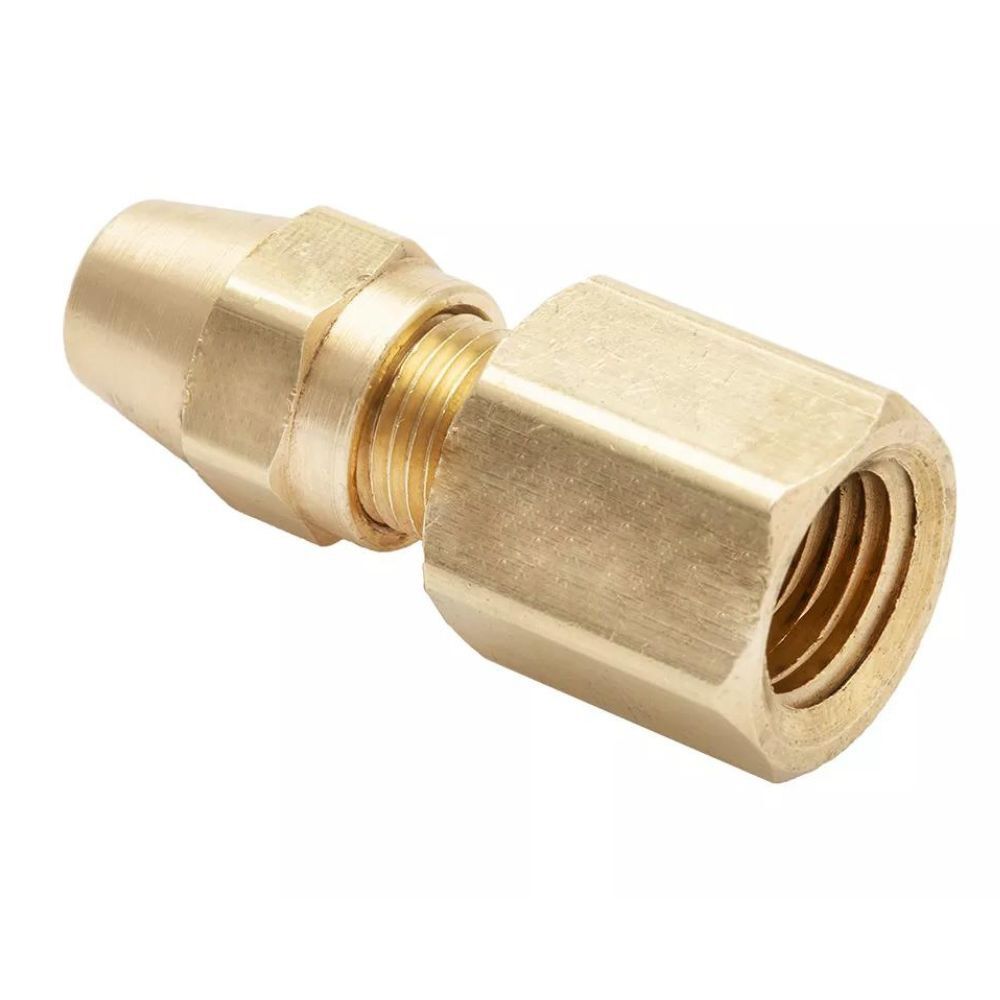

A brass compression copper tubing female adapter is a female NPTF thread dot fitting that is used to connect copper tubing flexibly. It can create a strong seal to stop leakage.

Air brake connectors can be applied in air copper tubing systems, such as trucks, mobile equipment, and buses.

If you have any further questions about the brass air line fitting, feel free to ask.

Features and Benefits:

• Easy to assemble
• Durability
• Leak free
• Quick

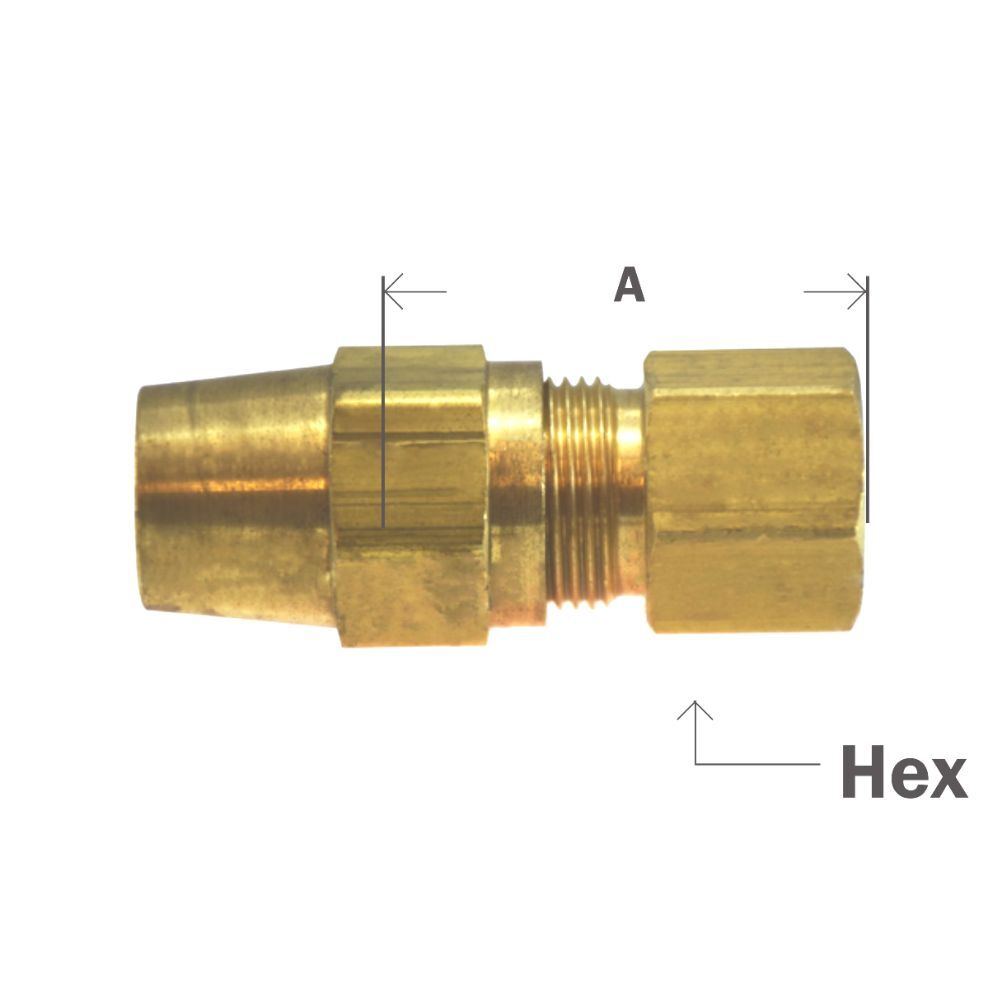

Description

Part #

Tube O.D. x Female NPTF

A

Hex

Approx. Wt. Lbs.

38-207

3/8” x 1/4”

1.19

0.68

0.12

38-208

3/8” x 3/8”

1.18

0.87

0.16

38-209

1/2” x 3/8”

1.27

0.87

0.18

DOT Air Brake Connectors - Copper Tubing Female Adapter Video

This video shows the information on the copper tubing femael adapter brake connectors.

Additionally, female adapters can be used with copper tubings. They have a large number of O.D. sizes and dimensions, such as 1/2, 3/4, 3/8, etc.  And they also play an essential role in air brake systems.

Please get in touch with us if you have any questions about the air brake dot brass fittings.
