Description

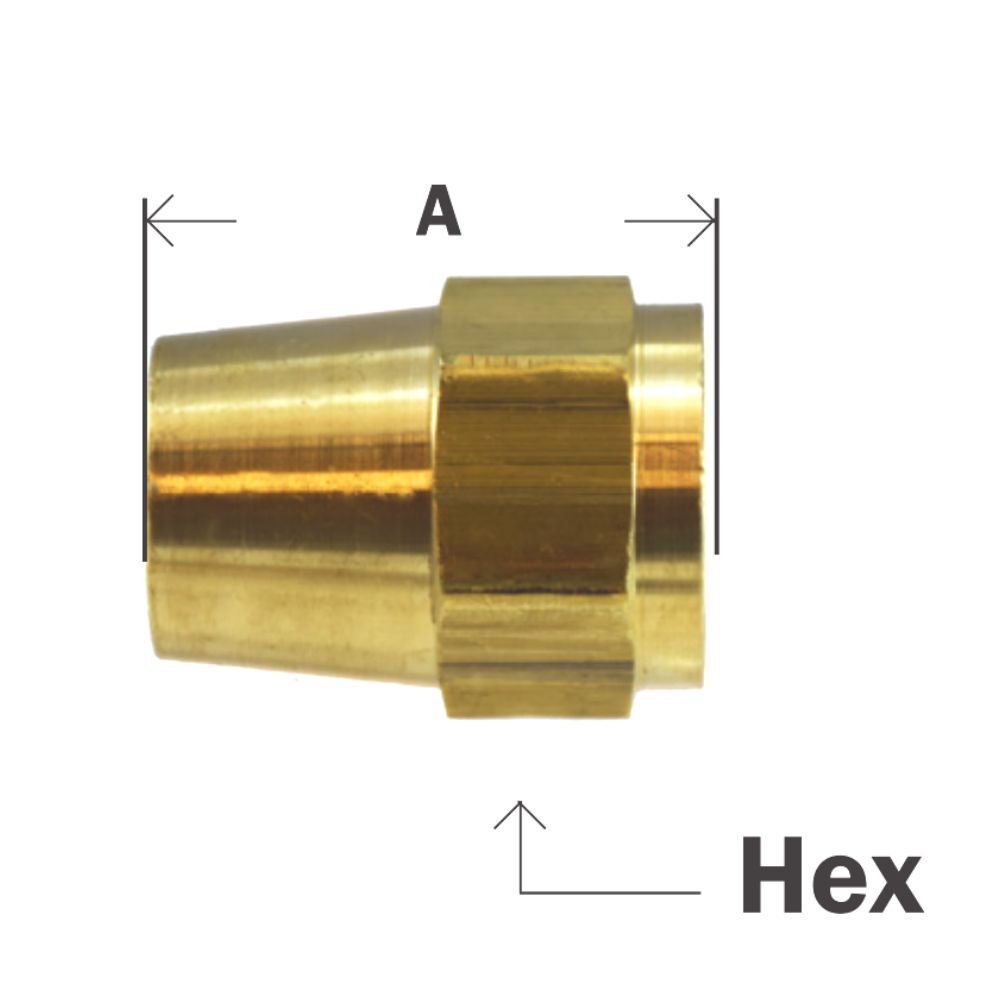

Part # | Tube O.D. | A | Hex | Approx. Wt. Lbs. |
38-170 | 1/4” | 0.75 | 0.56 | 0.02 |
38-171 | 3/8” | 1.13 | 0.62 | 0.04 |
38-172 | 1/2” | 1.25 | 0.81 | 0.08 |
38-173 | 5/8” | 1.38 | 0.94 | 0.12 |
38-174 | 3/4” | 1.56 | 1.12 | 0.18 |

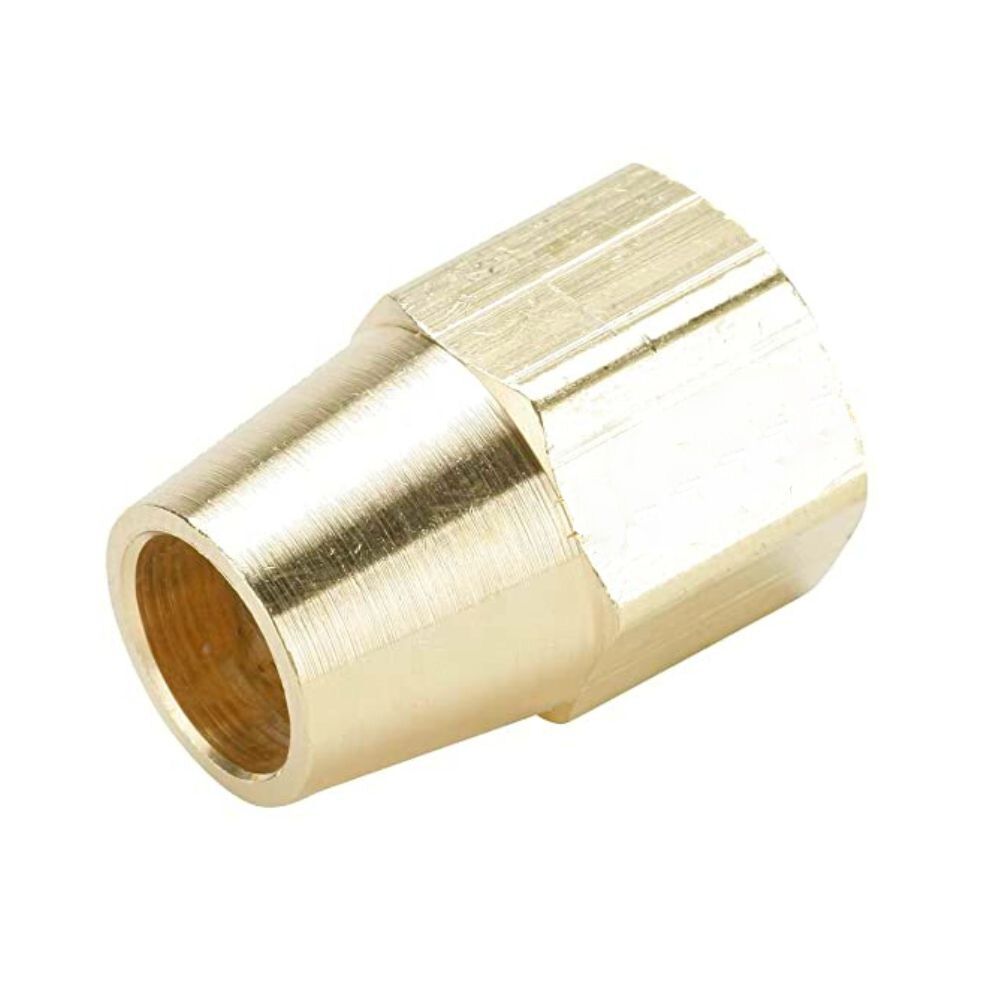

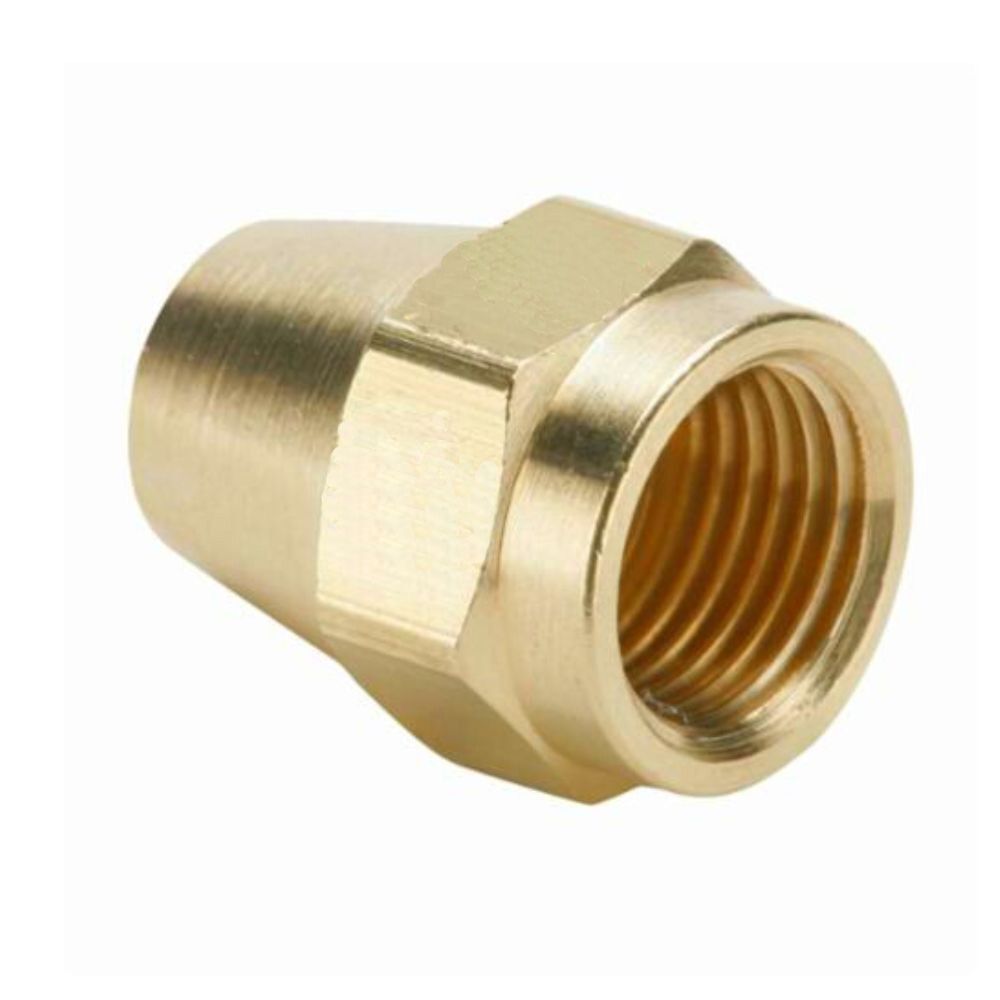

Compression DOT Airline Fitting-Copper Tubing Nut Video
This video shows the information on the nut compression DOT airline fitting.
Additionally, air brake nuts can be used with copper tubings. They have a large number of O.D. sizes and dimensions, such as 1/2, 3/4, 3/8, etc. And they also play an essential role in air brake systems.
Please get in touch with us if you have any questions about the air brake hose fittings.
